FLIR K2

General description

The FLIR K2 is a robust and reliable infrared camera designed to perform under

extremely severe conditions. The FLIR K2 has an intuitive interface with a design that

makes it easy to control even with a gloved hand.

Benefits:

• Robust and reliable: The FLIR K2 is designed to meet tough operating conditions.

It can withstand a drop from 2 m (6.5 ft.) onto a concrete floor, is water resistant to

IP67, and is fully operational up to 55°C (135°F), and operational up to +85°C

(+185°F) for 15 minutes, +150°C (+302°F) for 10 minutes, and +260°C (+500°F)

for 3 minutes.

• Innovative: The FLIR K2 utilizes our patented technology MSX, where a thermal

sensor is combined with a visual camera sensor to give detailed image information

in many user situations.

• Easy-to-use: Easily used in a gloved professional hand. An intuitive and simple

user interface allows you to focus on the job. The FLIR K2 can be controlled by just

one large button on top of the unit.

Typical applications:

• Heat detection.

• Search and rescue.

• Final extinction.

• Back-up camera.

• Scanning camera.

• Fire attack.

Imaging and optical data

IR resolution 160 × 120 pixels

Thermal sensitivity/NETD < 100 mK @ +30°C (+86°F)

P/N: 73701-0101

appearing herein are either registered trademarks

or trademarks of FLIR Systems and/or its

subsidiaries. All other trademarks, trade names or

company names referenced herein are used for

identification only and are the property of their

respective owners.

Document identity

Publ. No.: 73701-0101

Release:

Commit: 26407

Language: en-US

Modified: 2015-06-04

Formatted: 2015-06-08

Corporate Headquarters

FLIR Systems, Inc.

27700 SW Parkway Ave.

Wilsonville, OR 97070

USA

Telephone: +1-503-498-3547

Website

http://www.flir.com

Customer support

http://support.flir.com

Disclaimer

Specifications subject to change without further

notice. Camera models and accessories subject

to regional market considerations. License

procedures may apply. Products described herein

may be subject to US Export Regulations. Please

refer to exportquestions@flir.com with any

questions.

1 (9) www.flir.com

Shop for FLIR products online at: 1.877.766.5412

www.ShopThermography.ca

FLIR K2

P/N: 73701-0101

#73701-0101; r. /26407; en-US

Imaging and optical data

Field of view (FOV) 47° × 31.5°

Depth of field 0.1 m (0.33 ft.), infinity

Focal length 1.9 mm (0.075 in.)

Spatial resolution (IFOV) 6.22 mrad

F-number 1.1

Image frequency 9 Hz

Focus Fixed

Detector data

Detector type Focal plane array, uncooled

microbolometer

Spectral range 7.5–13 µm

Pitch 12 μm

Visual camera

Built-in digital camera 640 × 480 pixels

Digital camera, FOV 73° × 61°, adapts to the IR lens

Sensitivity Minimum 10 lux

Image presentation

Display 3 in. LCD, 320 × 240 pixels, backlit

Auto range Auto, non-selectable

Image presentation modes

Image modes • TI Basic fire-fighting mode (default)

• Black-and-white fire-fighting mode

• Fire mode

• Search-and-rescue mode

• Heat detection mode

NOTE

The image mode can only be changed using

FLIR Tools.

Multi Spectral Dynamic Imaging (MSX)

Yes

Measurement

Object temperature range • –20°C to +150°C (–4°F to +302°F)

• 0°C to +500°C (+32°F to +932°F)

Accuracy ±4°C (±7.2°F) or ±4% for ambient

temperatures of 10–35°C (50–95°F)

2 (9) www.flir.com

Shop for FLIR products online at: 1.877.766.5412

www.ShopThermography.ca

FLIR K2

P/N: 73701-0101

#73701-0101; r. /26407; en-US

Measurement analysis

Spotmeter 1

Automatic hot detection Heat detection mode (the hottest 20% of

the of scene is colorized)

Isotherm Yes

USB

USB USB Micro-B

Compatibility

Compatible with FLIR software FLIR Tools

Data communication interfaces

Interfaces Update from PC devices

Power system

Battery type Li ion

Battery voltage 3.6 V

Battery capacity 2.6 Ah at 20–25°C (68–77°F)

Battery operating time Approximately 4 hours at +25°C (+77°F)

ambient temperature and typical use

Charging system Battery is charged inside the camera or

in a dedicated charger

Charging time 2.5 h to 90% capacity, charging status

indicated by LEDs

Charging temperature 0–45°C (32–113°F)

Power management Automatic shutdown and sleep mode

Start-up time from sleep mode 10 seconds

Start-up time 30 seconds

Environmental data

Operating temperature range • –10°C to +55°C (+14°F to +131°F):

infinity

• +85°C (+185°F): 15 minutes

• +150°C (+302°F): 10 minutes

• +260°C (+500°F): 3 minutes

Storage temperature range –40°C to +70°C (–40°F to +158°F)

Humidity (operating and storage) IEC 60068-2-30, 24 hours, 95% relative

humidity, 25–40°C (77–104°F), 2 cycles

Relative humidity 95% relative humidity, 25–40°C (77–104°

F), non-condensing

EMC • EN 61000-6-2:2005 (immunity)

• EN 61000-6-3:2011 (emission)

• FCC 47 CFR Part 15 B (emission)

3 (9) www.flir.com

Shop for FLIR products online at: 1.877.766.5412

www.ShopThermography.ca

FLIR K2

P/N: 73701-0101

#73701-0101; r. /26407; en-US

Environmental data

Magnetic fields EN 61 000-4-8, test level 5 for continuous

field (severe industrial environment)

Encapsulation IP 67 (IEC 60529)

Corrosion ASTM B117, salt spray, 5% saline

solution in 48 hours and +35°C

Shock 25 g (IEC 60068-2-27)

Vibration 2 g (IEC 60068-2-6)

Drop 2 m (6.6 ft.) on concrete floor (IEC

60068-2-31)

Safety (power supply) CE/EN/UL/CSA/PSE 60950-1

Physical data

Camera weight, incl. battery 0.7 kg (1.54 lb.)

Battery weight 0.119 kg (0.26 lb.)

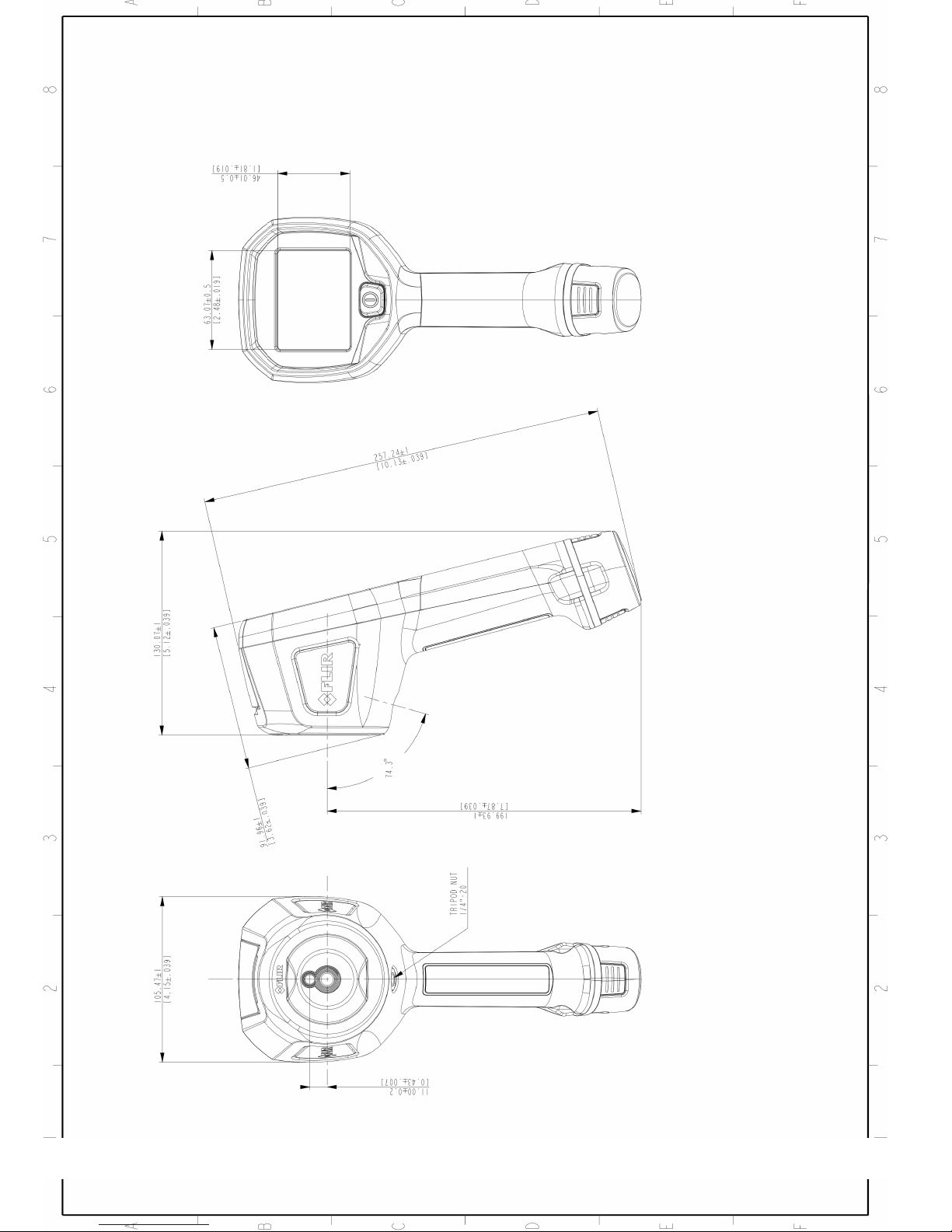

Camera size (L × W × H) 250 mm × 105 mm × 90 mm (9.8 in. × 4.1

in. × 3.5 in.)

Tripod mounting UNC ¼″-20

Material • PPSU

• Silicon rubber

• Aluminium, cast

• Flame-resistant magnesium alloy

Shipping information

List of contents • Infrared camera

• Battery (×2)

• Battery charger

• Lanyard strap

• Power supply

• Printed documentation

• USB cable

• User documentation CD-ROM

Packaging, weight TBD

Packaging, size TBD

EAN-13 4743254002050

UPC-12 845188011345

Country of origin China

4 (9) www.flir.com

Shop for FLIR products online at: 1.877.766.5412

www.ShopThermography.ca

Shop for FLIR products online at: 1.877.766.5412

www.ShopThermography.ca

Shop for FLIR products online at: 1.877.766.5412

www.ShopThermography.ca

Shop for FLIR products online at: 1.877.766.5412

www.ShopThermography.ca

Shop for FLIR products online at: 1.877.766.5412

www.ShopThermography.ca

FLIR K2

P/N: 73701-0101

#73701-0101; r. /26407; en-US

9 (9) www.flir.com
