Using the On-Screen Display

(OSD) Menu for C336ZC1

You can configure the camera’s advanced settings on a FLIR MPX DVRs using the OSD

menu. Use the OSD menu to correct imperfections in the camera image as well as config-

ure automated PTZ functions like preset locations, patterns, and tours.

NOTE

If you have made changes in the OSD menu and you are not happy with the outcome, see 1.3.20 Camera

Factory Defaults, page 19 to reset all items in the Camera Setting menu to their default values. See 1.1.3

Restore Factory Defaults, page 3 to reset all other items in the OSD menu.

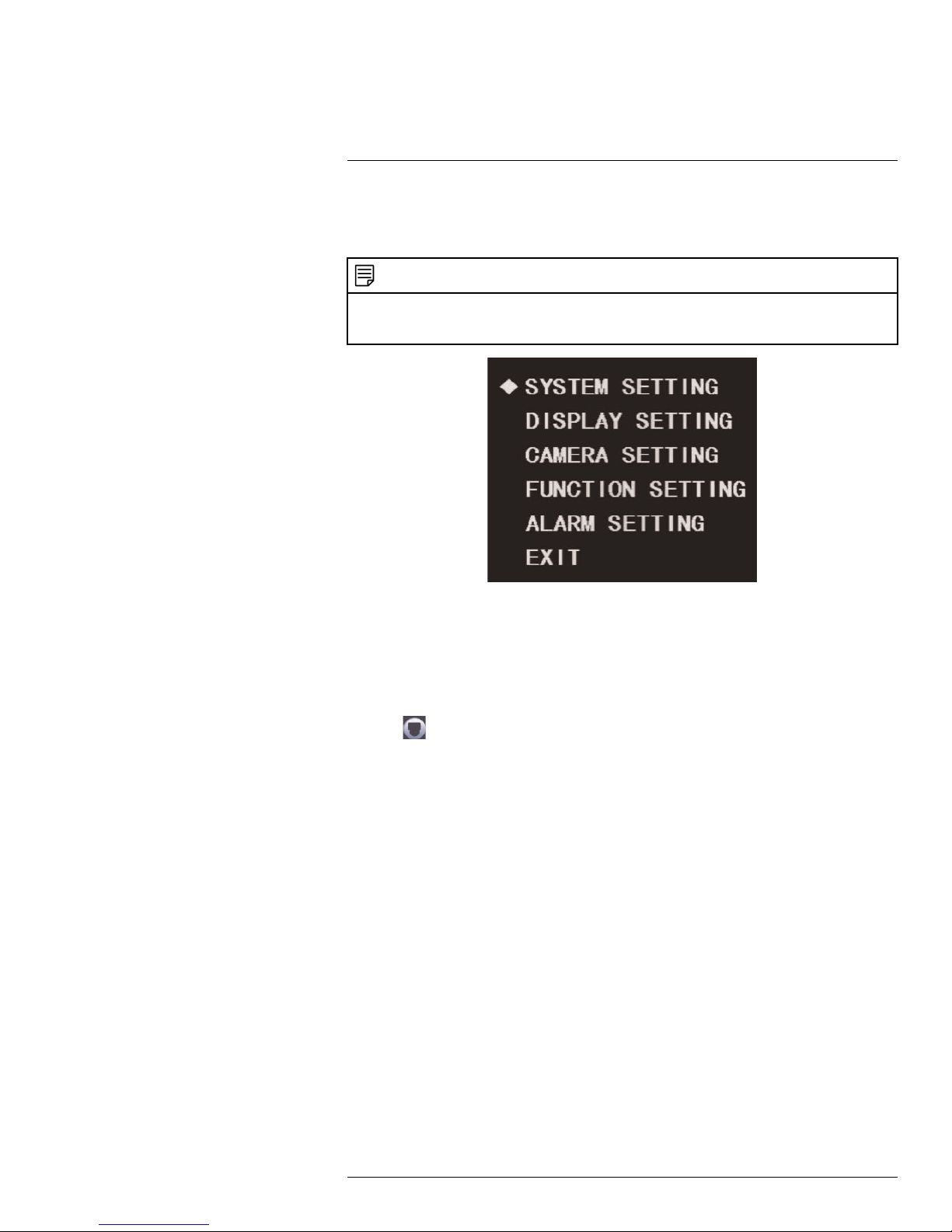

To access the OSD menu:

1. In Live View, double-click the channel that has the PTZ camera connected to open in

full-screen.

2. Right-click and click Pan/Tilt/Zoom. Enter the system user name and password if

prompted. The PTZ menu opens.

3. Click the arrow in the PTZ control window to show advanced controls.

4. Click . The OSD menu appears over the camera image.

5. Use the on-screen controls to configure menu items:

•Up / down arrows: Select menu items.

•Left / right arrows: Change values for menu items.

•Esc: Exit the OSD menu.

•Enter: Confirm selection.

1.1 System Settings

Use the system settings menu to configure basic system information.

System Settings — Menu Structure:

#LX400048; r. 1.0/23171/23171; en-US 1

Using the On-Screen Display (OSD) Menu for C336ZC1

SYSTEM INFORMATION ADDR Displays the camera address.

BR Displays the camera baud rate.

PARITY Displays the communication parity.

PTZ VER Displays the PTZ firmware version.

CAM VER Displays the camera firmware version.

ADDR INFORMATION ADDR TYPE •HARD

•SOFT

ADDR-HARD 1–255

ADDR-SOFT 0–255

SET NORTH Set the current viewing angle as the benchmark angle for the camera.

LANGUAGE Set the language for the OSD menu.

FACTORY DEFAULT Restore the camera system settings to their original, out-of-the-box state.

Exposure settings are not affected when you restore the camera system

settings.

RESTART Reboot the PTZ camera. OSD settings are not affected when you reboot

the camera.

1.1.1 System Information

NOTE

The information in this section is for service purposes only.

The system information menu displays the PTZ protocol information, including the camera

address, baud rate, parity, and firmware version numbers. The information in this section

is for reference and cannot be configured through the OSD menu.

1.1.2 Address (ADDR) Information

NOTE

The information in this section is for service purposes only.

The address information menu lets you choose how the camera address is determined.

The camera address is how standard definition DVRs identify PTZ cameras. Under ADDR

TYPE, select HARD to have the address determined by the DIP switches inside the cam-

era housing, or SOFT to select the address using the software (select the address value

under ADDR-SOFT).

#LX400048; r. 1.0/23171/23171; en-US 2

Using the On-Screen Display (OSD) Menu for C336ZC1

1.1.3 Restore Factory Defaults

Restore the camera module to its out-of-the-box state. This will reset all menu items ex-

cept those in the CAMERA SETTING menu back to their default values.

CAUTION

This step cannot be undone.

To restore camera factory defaults:

1. Use the on-screen arrow keys to navigate to SYSTEM SETTING and click Enter.

2. Select FACTORY DEFAULT and click Enter.

1.1.4 Camera System Restart

Restarts the camera system. The camera powers off and then resumes normal function.

NOTE

Restarting the camera system does not affect OSD menu settings.

#LX400048; r. 1.0/23171/23171; en-US 3

Using the On-Screen Display (OSD) Menu for C336ZC1

To restart the camera module:

1. Use the on-screen arrow keys to navigate to SYSTEM SETTING and click Enter.

2. Select RESTART and click Enter.

1.2 Display Settings

Use the display settings menu to choose what information appears over the camera image.

Display Settings — Menu Structure:

PRESET ON / OFF

AZIMUTH DISP ON / OFF

POSITION ON / OFF

INSIDE TEMP •°C

•°F

•OFF

To configure the display settings:

1. Use the on-screen arrow keys to navigate to DISPLAY SETTING and click Enter.

2. Under PRESET, select ON to show the preset title on the video display, or select OFF

to hide.

3. Under AZIMUTH DISP, select ON to show the camera’s coordinates on the video dis-

play, or select OFF to hide.

4. Under POSITION, select ON to show the angle between the camera’s current position

and the benchmark position on the video display (for details on setting benchmark po-

sition, see 1.1 System Settings, page 1), or select OFF to hide.

5. Under INSIDE TEMP, select °F or °C to show the camera’s internal temperature on the

video display, or select OFF to hide.

1.3 Camera Settings

Use the camera settings menu to adjust the camera image.

Camera Settings — Menu Structure:

#LX400048; r. 1.0/23171/23171; en-US 4

Using the On-Screen Display (OSD) Menu for C336ZC1

WB SETTING WB MODE •AUTO

•ATW

•INDOOR

•OUTDOOR

•OUTDOOR AUTO

•NA LAMP

•NA LAMP AUTO

•MANUAL

R GAIN 0–100

B GAIN 0–100

EXPOSURE

SETTING

AE MODE •AUTO

•MANUAL

•IRIS PRIO

•SHUTTER PRIO

GAIN SETTING 1–16

SHUTTER 1/4 – 1/30,000

IRIS SETTING 1–18

EXPOSURE

COMP

1–15

BLC ON / OFF

NEXT PAGE SLOW

SHUTTER

ON / OFF

SLOW

SHUTTER

LIMIT

1/1 – 1/30

AGC GAIN

LIMIT

1–3

NR 1–16 or OFF

CAMERA

3D NR

1–16 or OFF

HIGH

LIGHT

REDUCE

•HIGH

•LOW

•OFF

PAGE

AE RECOVERY •5M

•15M

•30M

•1H

•2H

•OFF

WDR SETTING WDR MODE >

ON / OFF

DAY/NIGHT

SETTING

DAY/NIGHT •DAY

•NIGHT

•AUTO

TYPE •ELECTRON

•MECHANISM

THRESHOLD 1–8

#LX400048; r. 1.0/23171/23171; en-US 5

Using the On-Screen Display (OSD) Menu for C336ZC1

FOCUS

SETTING

FOCUS MODE •AUTO

•MANUAL

•SEMIAUTO

FOCUS LIMIT •10CM

•1M

•2M

•3M

•5M

•AUTO

SENSITIVITY •LOW

•MID

•HIGH

CORRECTION •ON

•OFF

•AUTO


ADJUST

HUE 1–100

BRIGHTNESS 1–100

SATURATION 1–100

CHROMA

SUPPRESS

1–4

GAMMA 1–16

CONTRAST 1–100

STYLE •STANDARD

•SOFT

•NATURAL

ZOOM SPEED 1–8

NEXT PAGE APERTURE 1–16

APERTURE

RESTRAIN

1–16

DIGITAL ZOOM ON / OFF

PICTURE FLIP ON / OFF

LENS INIT Performs a lens initialization.


MODE •720P / 25

•720P / 30

•720P / 50

•720P / 60

NEXT PAGE CAMERA

FACTORY

DEFAULT

Restores the camera to its original, out-of-the-box

settings.

CAMERA

RESTART

Restarts the camera.

1.3.1 White Balance Settings

The white balance setting menu is used to correct color appearance in the camera image.

#LX400048; r. 1.0/23171/23171; en-US 6
