1. Product Description
The CC1W is a wireless version of our CC1 pump off control load cell. The CC1W utilizes
the same proven design attributes as the CC1. This includes a stainless steel body, hermetic
sealing, with fatigue rating. The CC1W transmits polished rod load wirelessly, which solves
the industry wide problem of cable failures. After months of development in the field, working
hand in hand with end users, our design addresses the most demanding concerns raised.
The CC1W technology sets our product apart from other wireless products currently available
inthemarket. The primaryadvantage webring isextremelylowpowerconsumption. Despite
the low power consumption, the product can deliver a continuous flow of data, high signal
strength and longbattery life. We also offer position sensing capability which is synchronized
with the load measurement. This eliminates the need for hall effect sensors or inclinometers

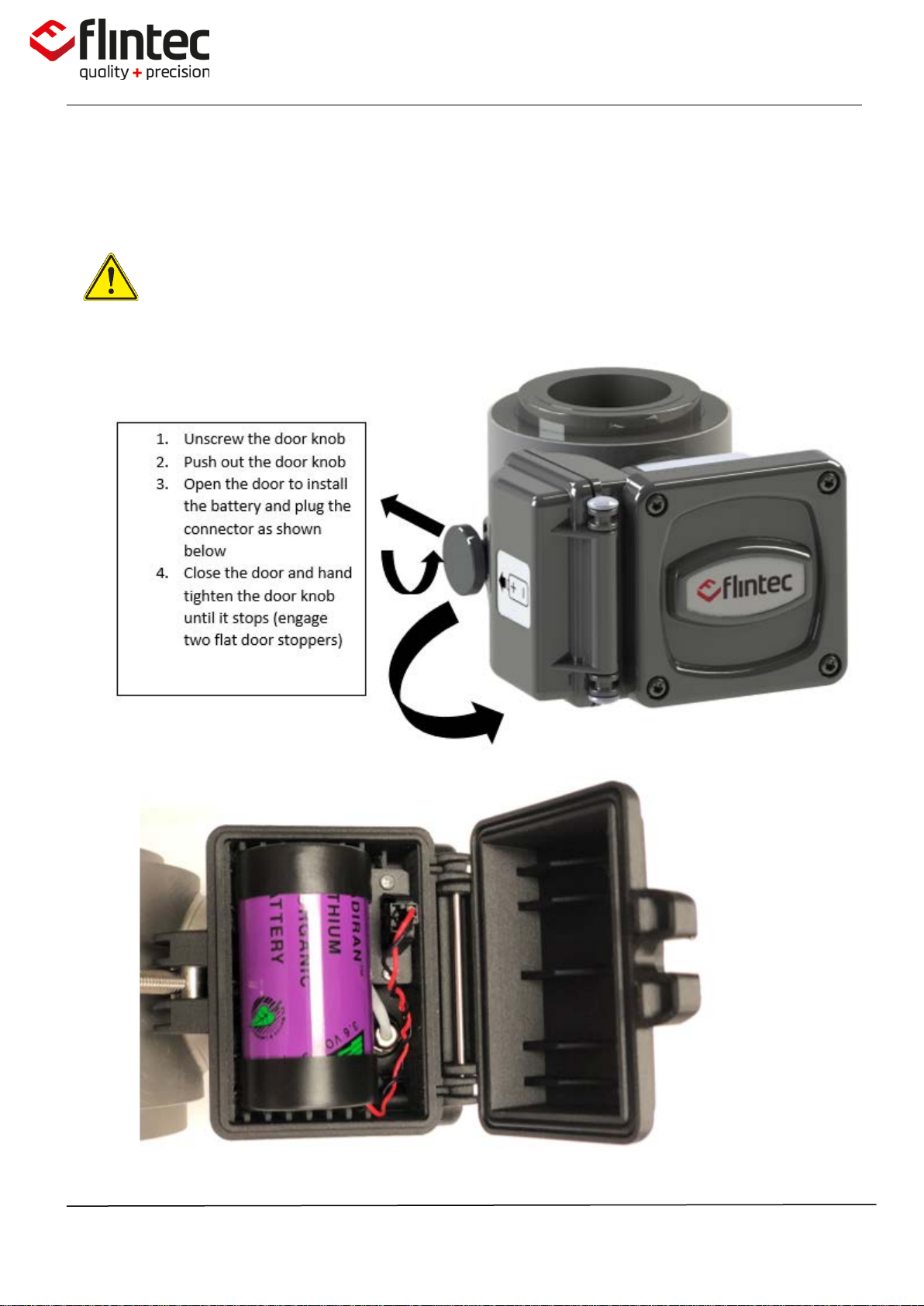

and the costly maintenance associated with each. The wireless enclosure also incorporates
an independent compartment for both the wireless technology and the battery. This allows
for easy, single handed access to the battery for replacement in the field. We specified a
pre-wired “D cell” battery that is inexpensive and commercially available worldwide.
•Continuous flow of data: 100 readings per second
•Low power consumption: 12-18 month battery life
•High signal strength: >=+12dBm, 30-300 meter transmission
•HazLoc approved: UL rated for Class 1, Division 1 environments (see label for full
approval)
•On-board position: +/-2% accuracy
•Security: Proprietary wireless transmission protocol
•Ease of use: independent battery access, commercially available battery
•Weatherproof: IP67 rating, rated for use in -70°F to 175°F (-55°C to 80°C)
Parts in the box:
•Base unit (receiver)
•Base antenna & 12ft extension cable
•Magnetic cable clamps (4pcs) for extension cable
•Loadcell with transmitter (CC1W)
•Lithium battery (Included)
•U-bolt assembly for mounting the base unit/receiver to a pole
•User manual
Accessories (Sold separately):
•P/N 53-003004 - OD-73mm [2-7/8”], ID-39.7mm [1-9/16”], H-14mm [0.56”] Stainless Steel Spherical Washers
•P/N 53-003301 - OD-73mm [2-7/8”], ID-39.7mm [1-9/16”], H-14mm [0.56”] Black oxide Spherical Washers
•P/N 52-0091955 - OD-88.6mm [3.49”] and ID-42.4mm [1.67”], H-19mm [3/4”] Nickel Plated Load Spacer
•P/N 52-0089758 – DIN Rail Assembly for mounting the Base
