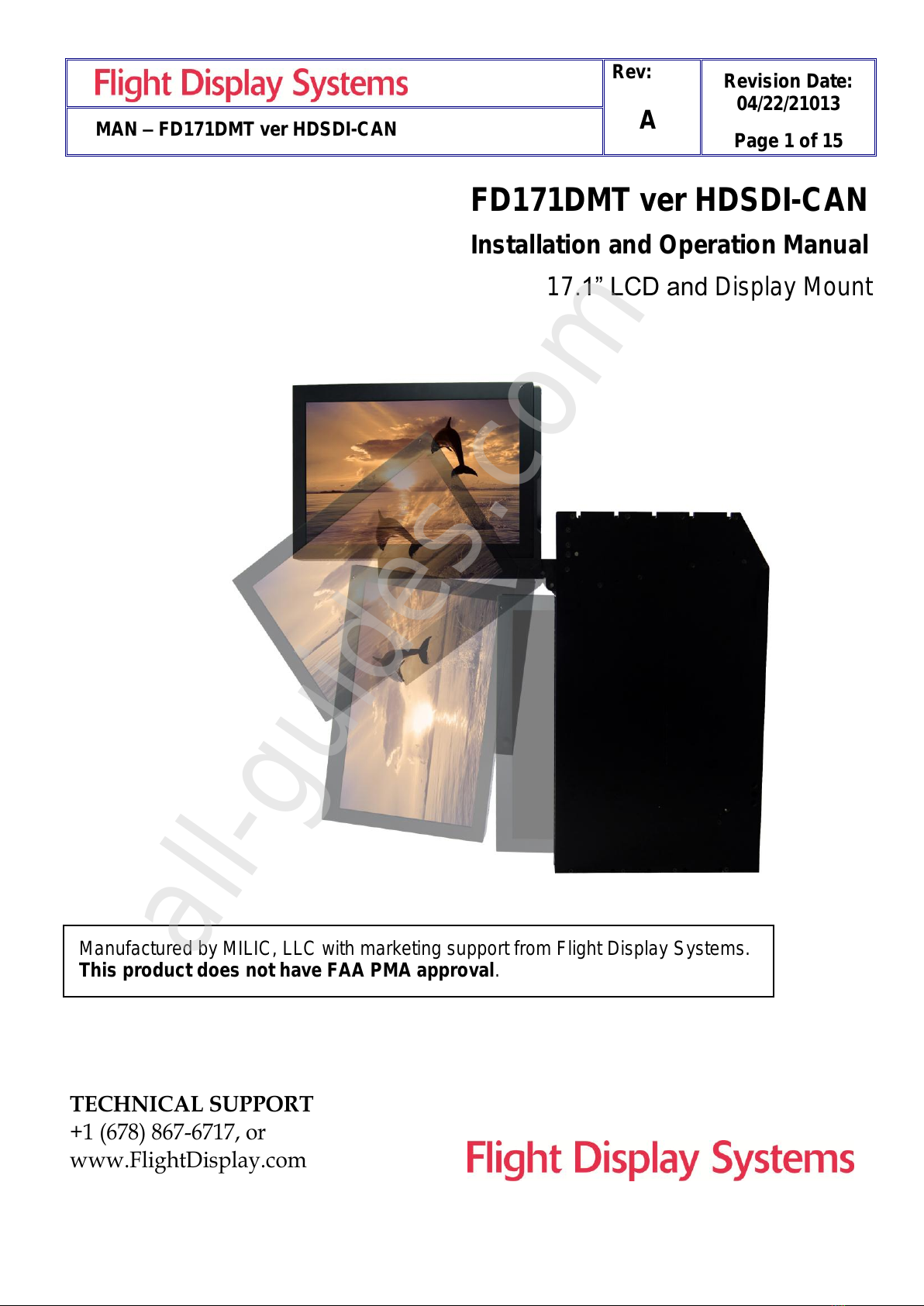

Flight Display Systems FD171DMT Manual de usuario

Rev:

Revision Date:

04/22/21013

Page 1 of 15

MAN –FD171DMT ver HDSDI-CAN

FD171DMT ver HDSDI-CAN

Installation and Operation Manual

17.1” LCD and Display Mount

Manufactured by MILIC, LLC with marketing support from Flight Display Systems.

This product does not have FAA PMA approval.

TECHNICAL SUPPORT

+1 (678) 867-6717, or

www.FlightDisplay.com

All manuals and user guides at all-guides.com

all-guides.com

Rev:

Revision Date:

04/22/21013

Page 2 of 15

MAN –FD171DMT ver HDSDI-CAN

FD171DMT ver HDSDI-CAN

17.1” LCD and Display Mount

Flight Display Systems

1765 Grassland Parkway

Alpharetta, GA 30004

+1 (678) 867-6717 Phone

+1 (678) 867-6742 Fax

sales@FlightDisplay.com

www.FlightDisplay.com

For the most current copy of all product manuals, please visit our website at

www.FlightDisplay.com

For more product support information, please visit the following link at

http://support.FlightDisplay.com/

All manuals and user guides at all-guides.com

Rev:

Revision Date:

04/22/21013

Page 3 of 15

MAN –FD171DMT ver HDSDI-CAN

Table of Contents

General Information......................................................................................................................4

1. Front View..........................................................................................................................4

2. Side View............................................................................................................................4

Additional Information ..............................................................................................................5

Specifications................................................................................................................................5

Installation Instructions .............................................................................................................6

Power..............................................................................................................................................6

Wiring Suggestions .....................................................................................................................6

Power and Ground Wiring.........................................................................................................7

Power/Video..................................................................................................................................8

1. Pinout 5W1 Combo-D ......................................................................................................8

Technical Drawing.......................................................................................................................9

Technical Drawing.....................................................................................................................10

Operation Instructions..............................................................................................................11

1. Button Controls ...............................................................................................................11

2. Remote Control Buttons.................................................................................................12

Troubleshooting.........................................................................................................................13

1. Video Noise......................................................................................................................13

2. Snow or Sweeping Lines................................................................................................13

3. No Power to Monitor or No Video Input....................................................................13

4. Color Distortion...............................................................................................................13

5. Remote Control Inoperable ...........................................................................................13

Technical Support......................................................................................................................14

Instructions for Continued Airworthiness ...........................................................................14

Warranty ......................................................................................................................................15

Log of Revisions.........................................................................................................................15

All manuals and user guides at all-guides.com

Rev:

Revision Date:

04/22/21013

Page 4 of 15

MAN –FD171DMT ver HDSDI-CAN

General Information

The FD171DMT ver HDSDI-CAN is a 17.1" LCD and Display Mount which has

features that allow installation in the smallest of mounting areas with the minimum of

interface equipment. Built with retrofit aircraft integration in mind, this display has a

single HDSDI-CAN Video input.

Front View

Side View

FD171DMT-R

Shown, In the

Deployed State

Press Here to

Deploy Monitor

Press Here to Stow

Monitor

NEVER PRESS HERE

All manuals and user guides at all-guides.com

Rev:

Revision Date:

04/22/21013

Page 5 of 15

MAN –FD171DMT ver HDSDI-CAN

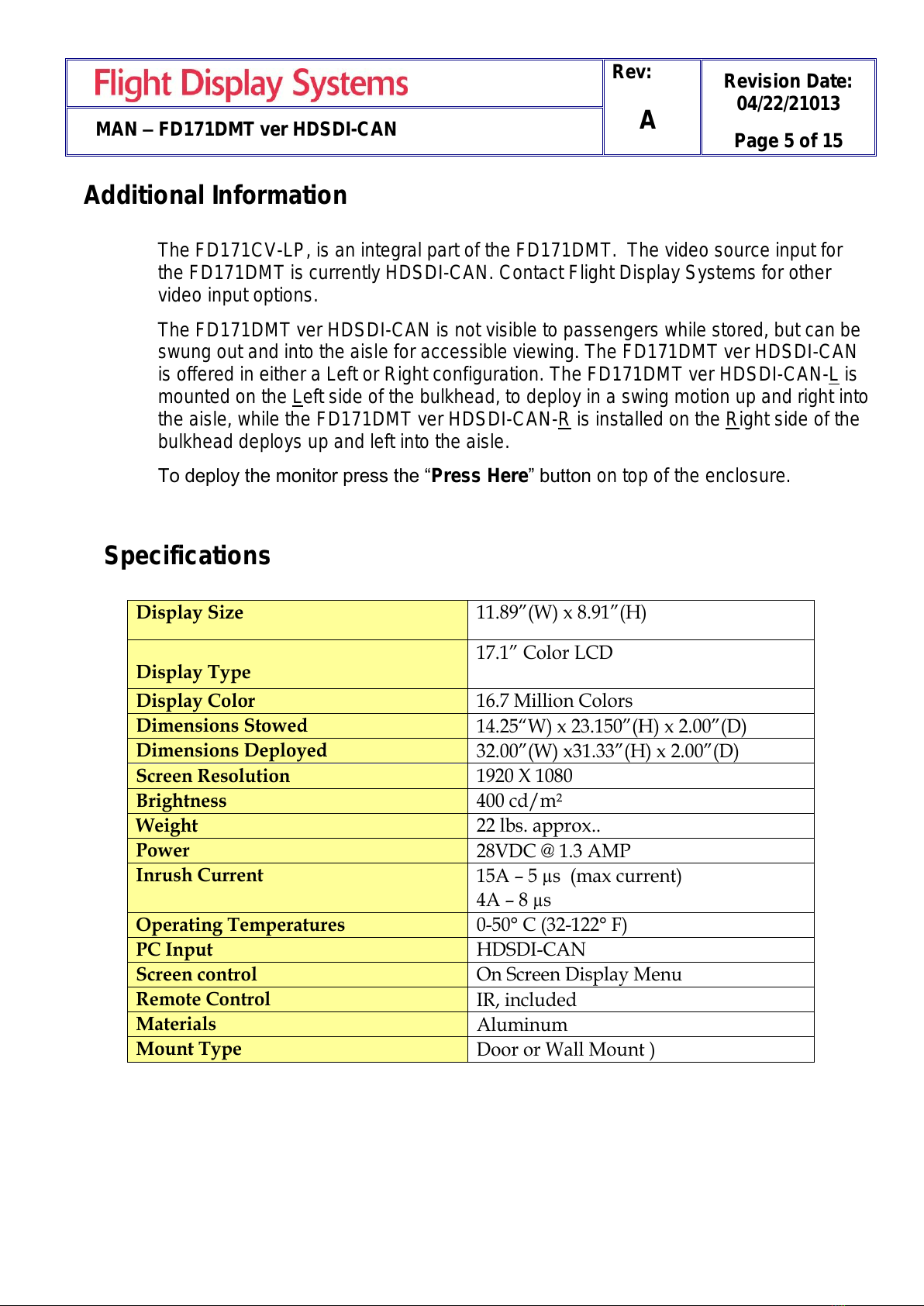

Additional Information

The FD171CV-LP, is an integral part of the FD171DMT. The video source input for

the FD171DMT is currently HDSDI-CAN. Contact Flight Display Systems for other

video input options.

The FD171DMT ver HDSDI-CAN is not visible to passengers while stored, but can be

swung out and into the aisle for accessible viewing. The FD171DMT ver HDSDI-CAN

is offered in either a Left or Right configuration. The FD171DMT ver HDSDI-CAN-L is

mounted on the Left side of the bulkhead, to deploy in a swing motion up and right into

the aisle, while the FD171DMT ver HDSDI-CAN-R is installed on the Right side of the

bulkhead deploys up and left into the aisle.

To deploy the monitor press the “Press Here” button on top of the enclosure.

Specifications

Display Size

11.89”(W) x 8.91”(H)

Display Type

17.1” Color LCD

Display Color

16.7 Million Colors

Dimensions Stowed

14.25“W) x 23.150”(H) x 2.00”(D)

Dimensions Deployed

32.00”(W) x31.33”(H) x 2.00”(D)

Screen Resolution

1920 X 1080

Brightness

400 cd/m²

Weight

22 lbs. approx..

Power

28VDC @ 1.3 AMP

Inrush Current

15A –5 µs (max current)

4A –8 µs

Operating Temperatures

0-50° C (32-122° F)

PC Input

HDSDI-CAN

Screen control

On Screen Display Menu

Remote Control

IR, included

Materials

Aluminum

Mount Type

Door or Wall Mount )

All manuals and user guides at all-guides.com

Rev:

Revision Date:

04/22/21013

Page 6 of 15

MAN –FD171DMT ver HDSDI-CAN

Installation Instructions

All cabin entertainment equipment, such as the FD171DMT ver HDSDI-CAN, should

be installed on a non-essential bus and have a dedicated circuit breaker.

The FD171DMT ver HDSDI-CAN is integrated with a rugged mounting bracket.

Usually the FD171DMT ver HDSDI-CAN is mounted inside a bulkhead divider. The

monitor locks into place when stowed. The FD171DMT ver HDSDI-CAN is secured

with four to ten #10 machine screws. Please be sure to inspect the mounting bracket

for the correct number of holes before pre-drilling.

Power

This is a 28VDC unit that requires 1.3 Amp of power to operate. The unit turns on

automatically upon monitor deployment.

Wiring Suggestions

All shields should be grounded to the connector at the source, and floating at the

display.

Avoid routing video wiring parallel to:

AC wiring

Strobe wiring

DC motor supply cables

Inverter cabling

Or any other potential noise source

All manuals and user guides at all-guides.com

all-guides.com

Rev:

Revision Date:

04/22/21013

Page 7 of 15

MAN –FD171DMT ver HDSDI-CAN

Power and Ground Wiring

This is a 28 VDC monitor that requires 1.3 Amp of power to operate. To operate

properly this monitor requires an input voltage of 18-29 VDC.

The rated current of the equipment and associated voltage drop should be taken into

consideration when selecting wire gauge. The following example is based on an

install with a 28 VDC power system and a total of 50 feet of wire between the circuit

breaker, monitor and ground.

Example: 22awg wire has 16.2 Ohms per 1000 feet, this equates to .81 Ohms for 50

feet. 1.3 Amp of current on .81 Ohms will drop 1.06 Volts.

Resistance of Wire Type M22759/16-**

(** = Gauge)

Gauge (AWG)

OHMS/1000’

26.20

16.20

9.88

4.81

2.02

1.26

.701

Also, use short heavy gauge wire and a clean tight connection for ground.

It is the installer's responsibility to understand the product's requirements to install the

product in compliance with industry standards and safety.

All manuals and user guides at all-guides.com

Rev:

Revision Date:

04/22/21013

Page 8 of 15

MAN –FD171DMT ver HDSDI-CAN

Power/Video

Pin out for P1 (5W1 Combo-D Female Receptacle)

Supplied

Connector P/N: Conec –3005W1SM99A10X

Coax Contact P/N: Conec –132J30029X (for use with RG179)*

*Other cable type contacts available from Conec

MATING FACE

Number

Description

28VDC Power

28VDC Ground

Can low

Can high

HDSDI IN

All manuals and user guides at all-guides.com

Rev:

Revision Date:

04/22/21013

Page 9 of 15

MAN –FD171DMT ver HDSDI-CAN

Technical Drawing

All manuals and user guides at all-guides.com

Rev:

Revision Date:

04/22/21013

Page 10 of 15

MAN –FD171DMT ver HDSDI-CAN

Technical Drawing
