Flight Display Systems FD70ARM-G Manual de usuario

Document Number:

MAN – FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 1 of 18

FD70ARM-G

Installation and Operation Manual

7 Inch Dual LCD System

TECHNICAL SUPPORT

678-867-6717, or

www.FlightDisplay.com

All manuals and user guides at all-guides.com

all-guides.com

Document Number:

MAN – FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 2 of 18

FD70ARM-G

7" Dual LCD System

Flight Display Systems

1765 Grassland Parkway

Alpharetta, GA 30004

678-867-6717 Phone

678-867-6742 Fax

sales@flightdisplay.com

www.flightdisplay.com

For the most current copy of all product manuals, please visit our website at www.flightdisplay.com

All manuals and user guides at all-guides.com

Document Number:

MAN – FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 3 of 18

Table of Contents

General Information......................................................................................................................4

1. Front View..........................................................................................................................4

2. Additional Information....................................................................................................4

Specifications................................................................................................................................5

Installation Instructions .............................................................................................................5

1. Power ..................................................................................................................................5

Wiring Instructions......................................................................................................................7

1. S-Video/Composite & Audio Wiring............................................................................7

2. VGA Wiring .......................................................................................................................8

3. Power & Ground Wiring..................................................................................................9

4. Power/Video ...................................................................................................................10

Operations Instructions ............................................................................................................13

1. Button Control.................................................................................................................13

Technical Drawing.....................................................................................................................14

Troubleshooting.........................................................................................................................15

Technical Support......................................................................................................................16

Instructions for Continued Airworthiness ...........................................................................17

Warranty ......................................................................................................................................17

Log of Revisions.........................................................................................................................18

All manuals and user guides at all-guides.com

Document Number:

MAN –FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 4of 18

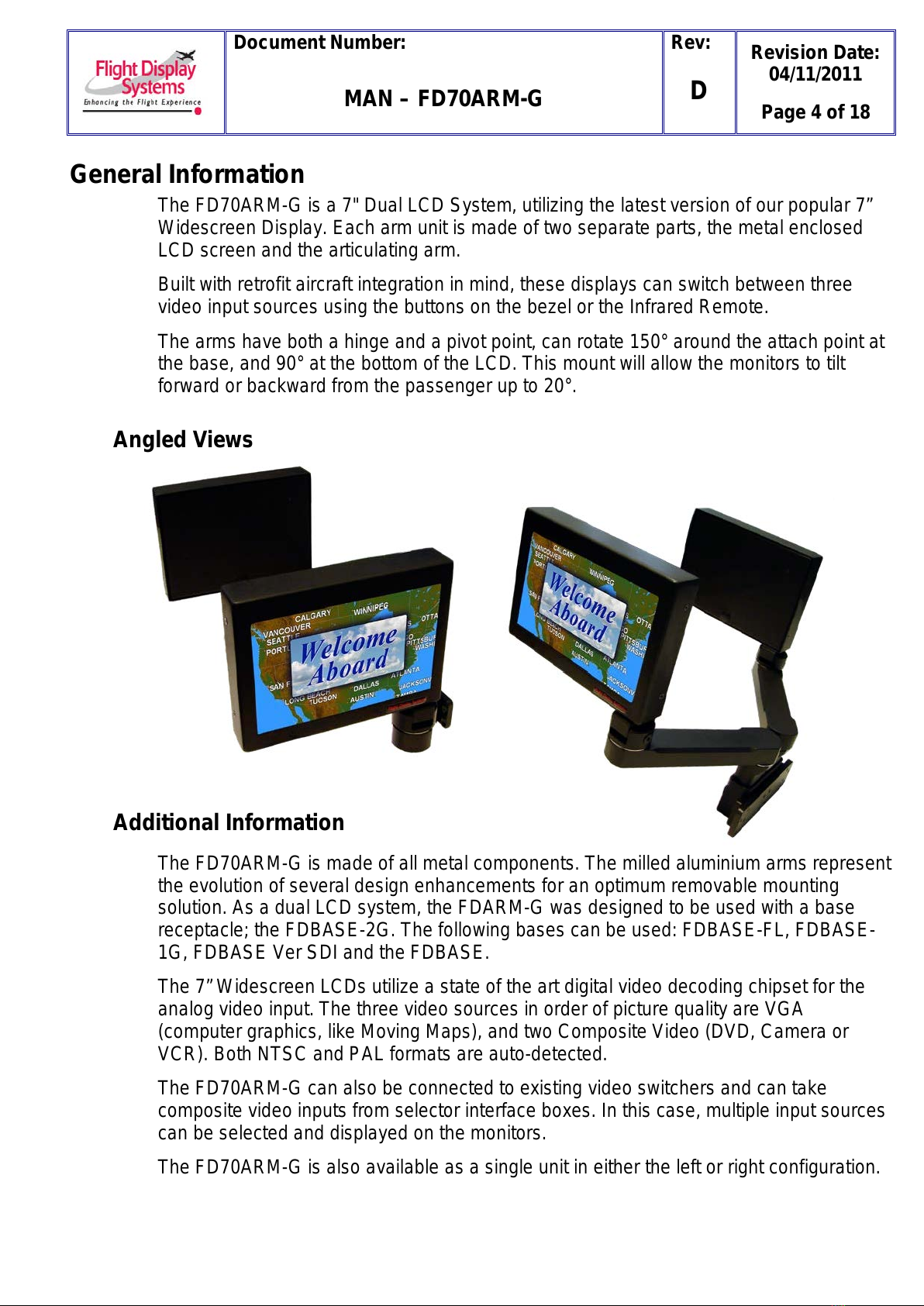

General Information

The FD70ARM-G is a 7" Dual LCD System, utilizing the latest version of our popular 7”

Widescreen Display. Each arm unit is made of two separate parts, the metal enclosed

LCD screen and the articulating arm.

Built with retrofit aircraft integration in mind, these displays can switch between three

video input sources using the buttons on the bezel or the Infrared Remote.

The arms have both a hinge and a pivot point, can rotate 150° around the attach point at

the base, and 90° at the bottom of the LCD. This mount will allow the monitors to tilt

forward or backward from the passenger up to 20°.

Angled Views

Additional Information

The FD70ARM-G is made of all metal components. The milled aluminium arms represent

the evolution of several design enhancements for an optimum removable mounting

solution. As a dual LCD system, the FDARM-G was designed to be used with a base

receptacle; the FDBASE-2G. The following bases can be used: FDBASE-FL, FDBASE-

1G, FDBASE Ver SDI and the FDBASE.

The 7” Widescreen LCDs utilize a state of the art digital video decoding chipset for the

analog video input. The three video sources in order of picture quality are VGA

(computer graphics, like Moving Maps), and two Composite Video (DVD, Camera or

VCR). Both NTSC and PAL formats are auto-detected.

The FD70ARM-G can also be connected to existing video switchers and can take

composite video inputs from selector interface boxes. In this case, multiple input sources

can be selected and displayed on the monitors.

The FD70ARM-G is also available as a single unit in either the left or right configuration.

All manuals and user guides at all-guides.com

Document Number:

MAN – FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 5 of 18

Specifications

Display Type

7” TFT Color LCD

Supported Resolutions

640x480 ~ 1024x768

Display Brightness

450 cd/m

Contrast Ratio

500:1

Dimensions

6.80”(W) x 4.75”(H) x 1.20”(D)

LCD Dimension

6.00”(W) x 3.60”(H)

Mount Dimension

7” (W) x 3.9” (H) x 1.5” (D)

Total Weight (2 Display & Dual Base)

4.6 lbs.

Viewing Angle

140°/120°

Mount Type

Articulating Arm

Power

12VDC @ .6 Amps

28VDC @ .3 Amps

PC Video Input

VGA (Analog RGB 15 pin D-sub)

Standard Video Input

2 Composite Video

Video Type Supported

NTSC, PAL

Screen Control

On-Screen Display Menu

Remote Control

IR, included

Materials

Aluminum

DO-160 Testing

Section 21, Category B

Installation Instructions

All cabin entertainment equipment, such as the FD70ARM-G, should be installed on a

non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch

be installed in the cockpit so that the pilot can de-energize the entertainment system

should it become necessary.

Power

The monitors in this dual system are 12-28VDC monitors that require 0.3 Amps (@28V) to

0.6 Amps (@12V) of power to operate.

All manuals and user guides at all-guides.com

Document Number:

MAN – FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 6 of 18

All manuals and user guides at all-guides.com

all-guides.com

Document Number:

MAN – FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 7 of 18

Video Wiring Suggestions

All shields should be grounded to the connector at the source, and floating at the display.

Avoid routing video wiring parallel to:

•AC wiring

•Strobe wiring

•DC motor supply cables

•Inverter cabling

•Or any other potential noise source.

S-Video/Composite and Audio Wiring

Recommended cable for s-video and audio purposes is PIC 75 Ohm Coax, P/N V76261.

This is a lightweight, flexible, and low signal loss cable which meets FAA flammability

requirements of FAR 23.1359(d), FAR 25.853(a) and FAR 25.869(a)(4).

Similar aviation coaxial cable can be used from other vendors, as well.

Some aircraft are prone to AC noise - we recommend adding to the composite source a

75 Ohm video isolation transformer such as Deerfield Laboratory, Inc. Part No. 162-1

(www.deerfieldlab.com, (650) 632-4090). In most cases this should be added to the video

output of the source.

All manuals and user guides at all-guides.com

Document Number:

MAN – FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 8 of 18

VGA Wiring

Recommended cable for VGA purpose is ECS P/N 453005. This is a single shielded

cable containing 5 separate coaxial cables, color-coded to match the functions of the

wires.

We recommend coax cables be terminated using solder sleeve coaxial cable

terminators such as Raychem Part Number CWT-4174-W122-5/9.

All manuals and user guides at all-guides.com

Document Number:

MAN – FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 9 of 18

Power and Ground Wiring

This is a 28VDC monitor that requires 1.5 amps of power to operate. To operate properly

this monitor requires an input voltage of 18-29VDC.

The rated current of the equipment and associated voltage drop should be taken into

consideration when selecting wire gauge. The following example is based on an install

with a 28VDC power system and a total of 50 feet of wire between the circuit breaker,

monitor and ground.

Example: 22awg wire has 16.2 Ohms per 1000 feet, this equates to .81 Ohms for 50 feet.

1.5 Amps of current on .81 Ohms will drop 1.22 Volts.

Resistance of Wire Type M22759/16-**

(** = Gauge)

Gauge (AWG)

OHMS/1000’

26.20

16.20

9.88

4.81

2.02

1.26

.701

Also, use short heavy gauge wire and a clean tight connection for ground.

It is the installer’s responsibility to understand the product’s requirements to install the

product in compliance with industry standards and safety.

All manuals and user guides at all-guides.com

Document Number:

MAN – FD70ARM-G

Rev:

Revision Date:

04/11/2011

Page 10 of 18

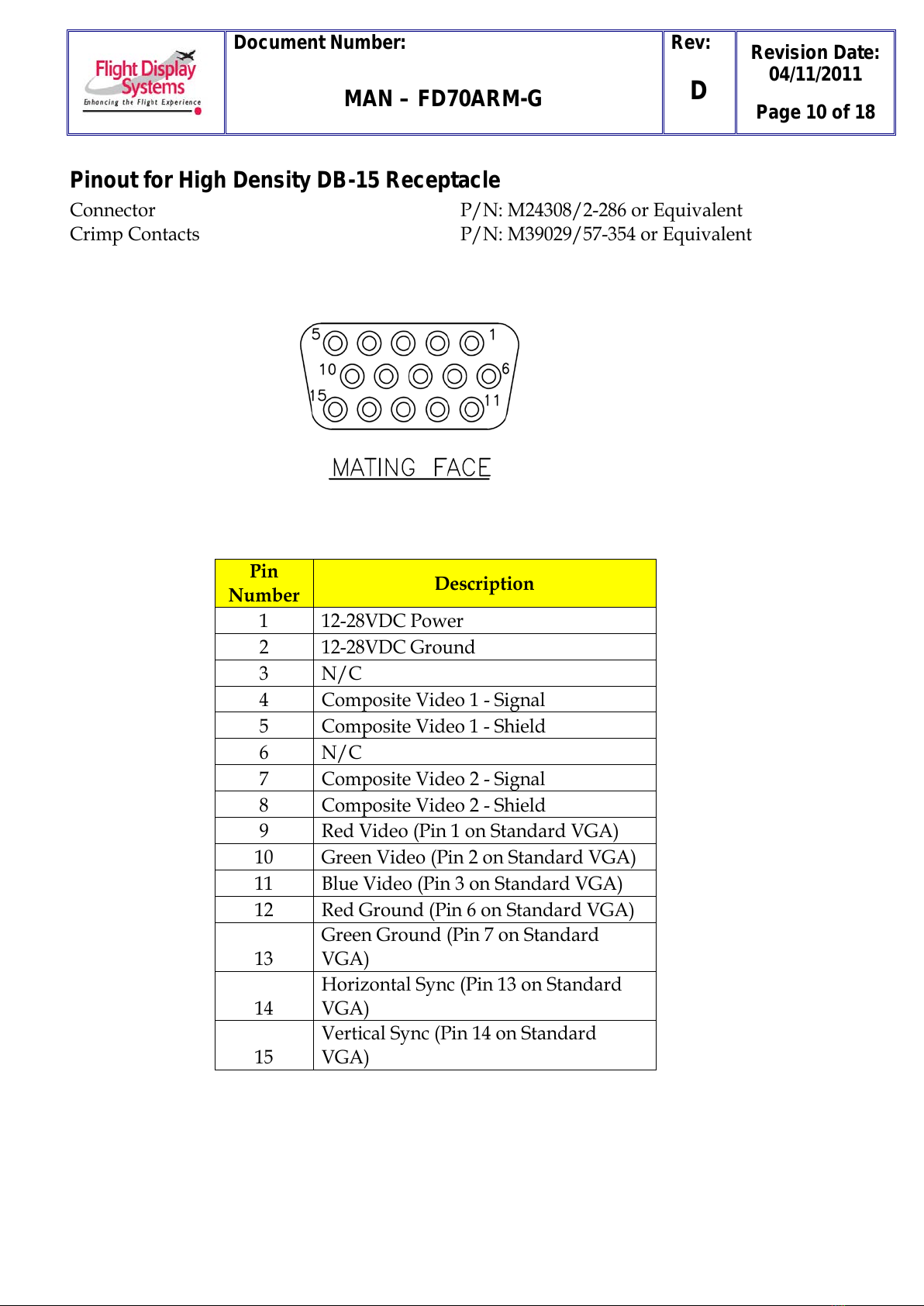

Pinout for High Density DB-15 Receptacle

Connector P/N: M24308/2-286 or Equivalent

Crimp Contacts P/N: M39029/57-354 or Equivalent

Number Description

1 12-28VDC Power

2 12-28VDC Ground

N/C

Composite Video 1 - Signal

5 Composite Video 1 - Shield

6 N/C

Composite Video 2 - Signal

Composite Video 2 - Shield

9 Red Video (Pin 1 on Standard VGA)

10 Green Video (Pin 2 on Standard VGA)

Blue Video (Pin 3 on Standard VGA)

Red Ground (Pin 6 on Standard VGA)

Green Ground (Pin 7 on Standard

VGA)

Horizontal Sync (Pin 13 on Standard

VGA)

Vertical Sync (Pin 14 on Standard

VGA)
