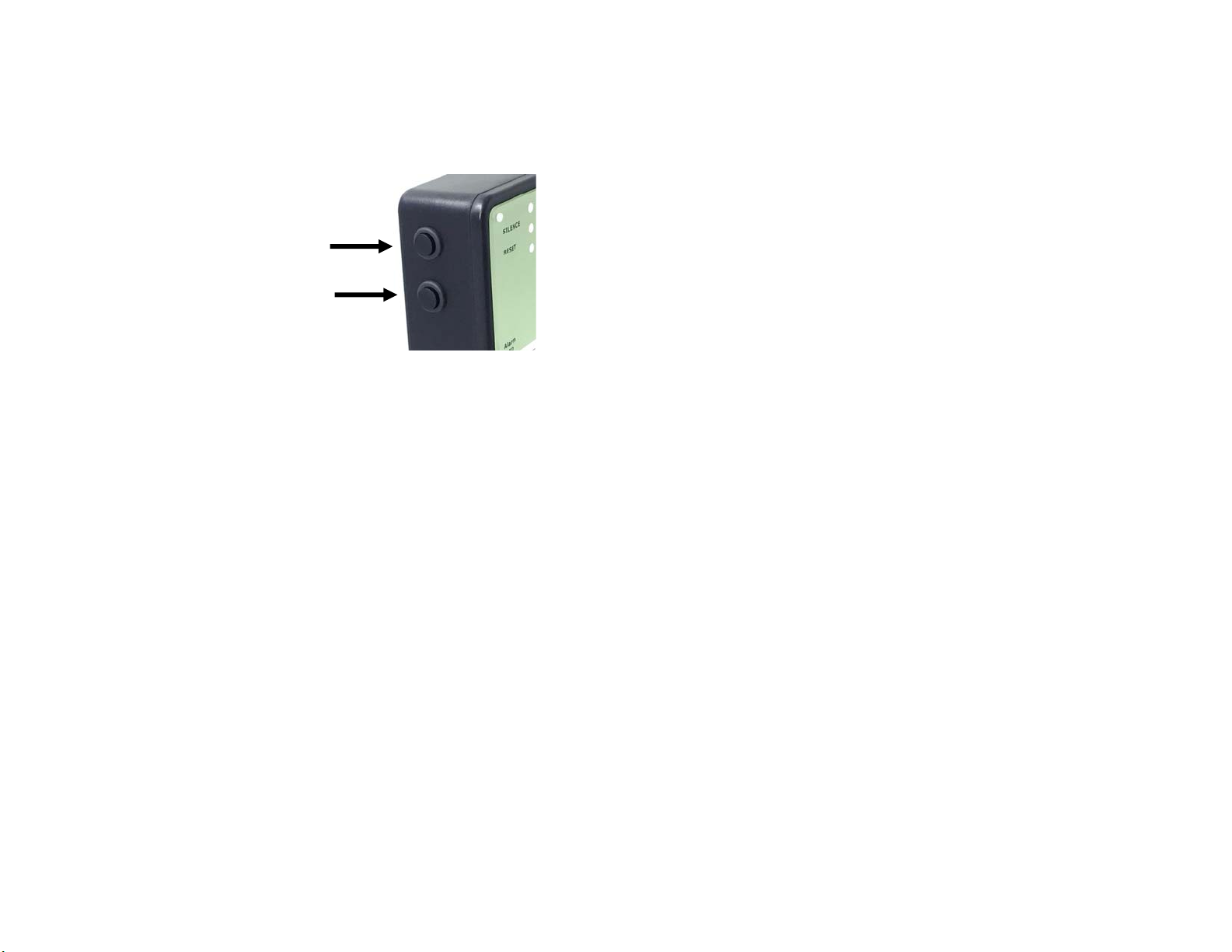

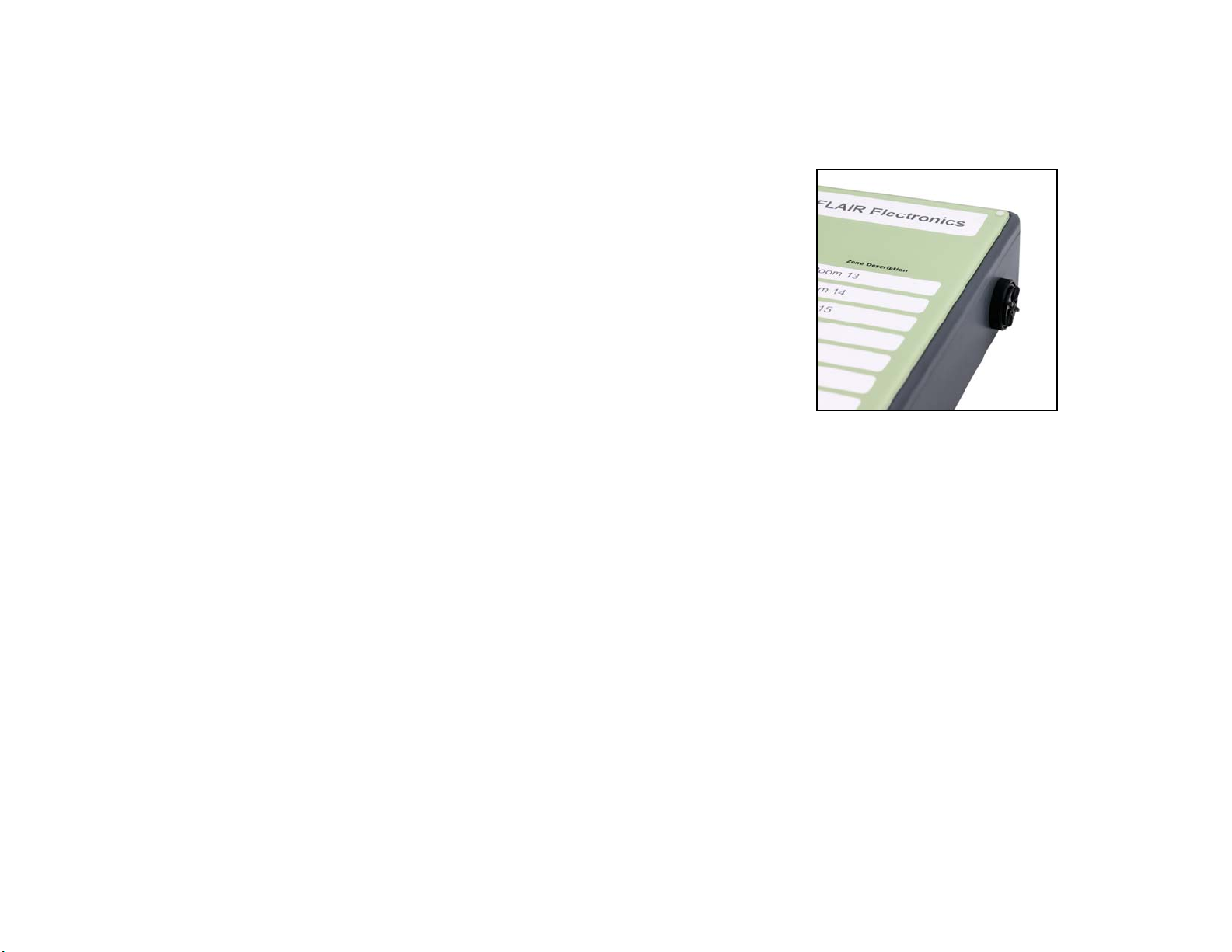

5.4. Silence/Reset/System Test Push Buttons
The Annunciator has two push buttons on the upper left
side so the user may silence, reset or perform a system
test on the Annunciator and the Control Board. Silence is
the top button and Reset the one below.
Silence: If pressed when any zone is in alarm, Red LED
flashing and Audible sounder on, will cause the audible
sounder to turn off and the zone Alarm Red LED to change
from flashing to steady
Reset: If pressed and held for a second after an “Alarm”
status message has been silenced and a “Secure” status
message has been received will cause.
1. All restored Alarm LEDs to turn off
2. Relay output to turn off
3. Note: If transmitter is still sending a “Low
Battery”, “Missing”, “Alarm” or “Tamper”
message then that Alarm LED and the audible
sounder will continue to stay on or flash again.
Lamp/Audible Sounder Test
During normal operations with no “Alarm” messages, the
Reset push button may be pressed for 5 seconds and will
cause:
1. The Audible sounder to chirp 2 times
2. All the LEDs to flash for 3 seconds
3. The Relay to turn on for 3 seconds
4. The Audible sounder to chirp 3 times
Silence
Reset
12

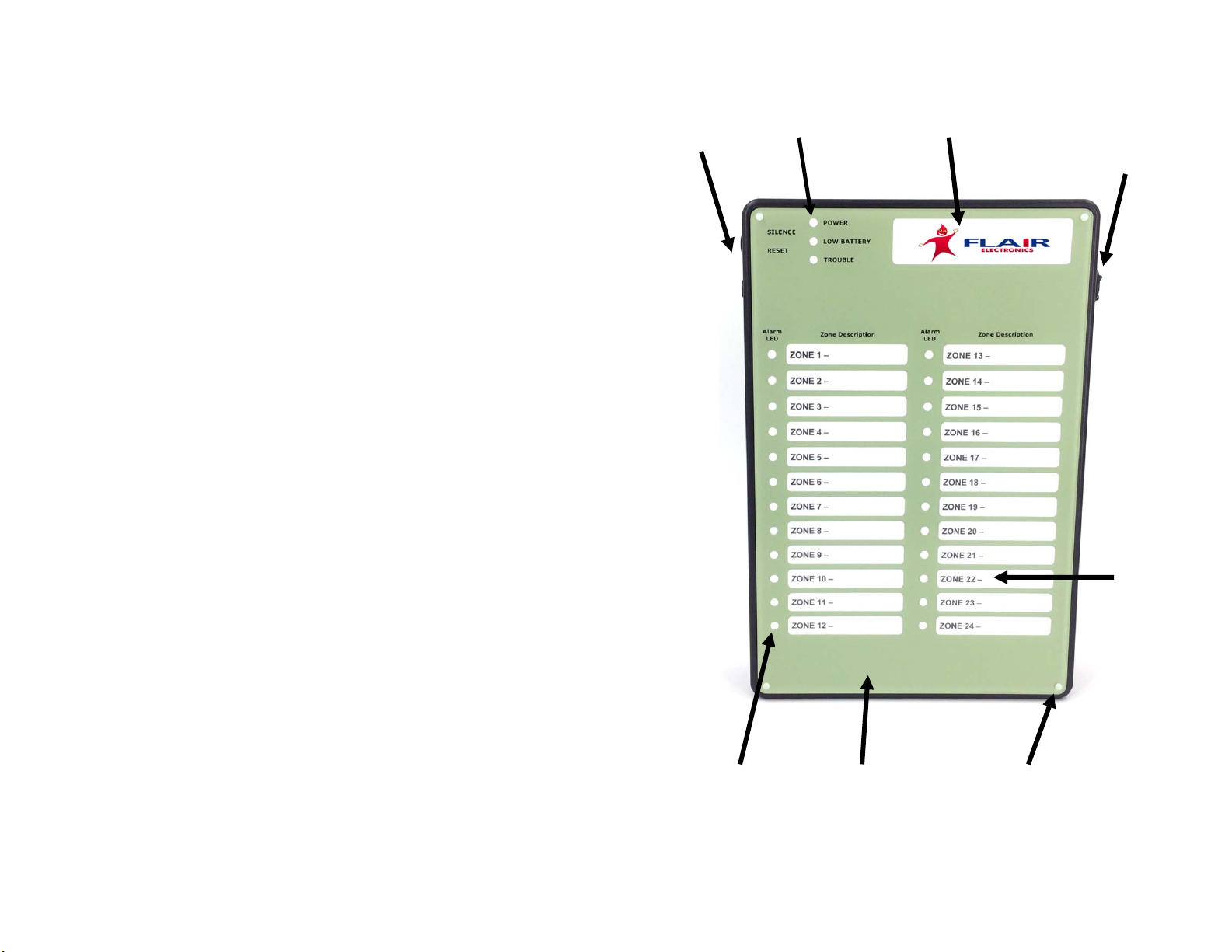

5.5. Power LED
ON Green: During normal AC operation
ON Red: During DC operation, Loss of AC Power
OFF: Loss of all power, AC and Battery
FLASHING Red: When there is a backup battery and the
voltage drops below 10.7 Volts.
FLASHING Green Yellow: When AC operation is restored
but battery is not charged above 10.7 Volts. Continuous
Green Yellow flashing may mean that battery is no longer
good.
5.6. Common Transmitter Low Battery LED
OFF: During normal transmitter operation
ON: When the annunciator receives a “Low Battery” message
from any enrolled transmitters or device. It will
automatically turn off when the low battery condition is
corrected by replacing the battery of the transmitter or
device.
5.7. Common Trouble LED
OFF: During normal operation
ON: When the annunciator fails to receive a check in
message from any enrolled transmitter or device.
5.8. Internal Audible Sounder
OFF: During normal operation
ON: The internal audible sounder will turn on steady when AC
power has been interrupted or the backup battery drops
below 10.7 Volts. The audible sounder will remain on until
the acknowledge button has been pressed and held for 1
second.
5.9. SPDT Relay Output
OFF: All zones are in a secure condition
ON: When any zone is in an alarm condition
