POLY-CASTER™ LT Hopper Spreader

Installation Instructions

These Installation Instructions are for FISHER®POLY-CASTER LT hopper spreaders with

serial numbers 0000 and higher.

CAUTION

Read this manual before installing or

operating the spreader.

A DIVISION OF FISHER, LLC

Fisher Engineering

August 15, 2013

Lit. No. 43583, Rev. 01

78902

50 Gordon Drive, Rockland, Maine 04841-2139 • www.ﬁsherplows.com

Lit. No. 43573/43583/43593, Rev. 01 3 August 15, 2013

SAFETY INFORMATION

WARNING/CAUTION LABELS

Please become familiar with the Warning and Caution

labels on the spreader.

NOTE: If labels are missing or cannot be read, see

your sales outlet.

SAFETY DEFINITIONS

NOTE: Indicates a situation or action that can lead

to damage to your spreader and vehicle or other

property. Other useful information can also be

described.

CAUTION

Indicates a potentially hazardous situation

that, if not avoided, may result in minor or

moderate injury. It may also be used to alert

against unsafe practices.

WARNING

Indicates a potentially hazardous situation

that, if not avoided, could result in death or

serious personal injury.

ROTATING PARTS AND FLYING OB-

JECTS CAN CAUSE INJURY OR DEATH

• Keep hands, arms, feet and loose clothing away

• Shut o power ans stop engine before servicing

• Read owners manual before operating.

• Keep bystanders at least 60 ft away.

D6544

NO STEP

• Slippery Surface When Wet.

• May Cause Severe Injury

D6545

• DO NOT EXCEED GVWR OF VEHICLE

• DO NOT OVERLOAD SPREADER

• LOAD SPREADER EVENLY D6546

• Read Owner’s Manual for Installation Instructions.

• Secure spreader to truck with ratchet straps.

• Anchor spreader securely to truck body with bolt kit provided to

prevent slipping or sliding.

• Routinely check straps and handware to make sure they are secure.

D6548

Lit. No. 43573/43583/43593, Rev. 01 4 August 15, 2013

SERIAL NUMBER LABEL

Code Deﬁnition

MM 2-Digit Month

YY 2-Digit Year

LL 2-Digit Location Code

#### 4-Digit Sequential Number

PPPPP 5-Digit Assembly PN

• DO NOT REMOVE SPREADER WITH MATERIAL IN HOPPER

• FASTEN SPREADER DOWN WITH APPROVED RATCHET

STRAPS AND BOLT KIT

• REAR FRAME LOCATOR BARS MUST BE IN PLACE BEFORE

OPERATING VEHICLE

DANGER

D6547

ROTATING AUGER CAN CAUSE

SERIOUS INJURY OR DEATH

• Keep arms, hands, and loose clothing

away from auger.

• Shut o control and unplug spreader

before servicing. D6335

SERIAL NO.

0.5 cu yd

MODEL NO.

MMYYLL####PPPPP

SAFETY INFORMATION

Lit. No. 43573/43583/43593, Rev. 01 5 August 15, 2013

SAFETY INFORMATION

SAFETY PRECAUTIONS

Improper installation and operation could cause

personal injury and/or equipment and property damage.

Read and understand labels and the Owner's Manual

before installing, operating or making adjustments.

WARNING

• Driver to keep bystanders minimum of

25 feet away from operating spreader.

• Before working with the spreader, secure all

loose-ﬁtting clothing and unrestrained hair.

• Before operating the spreader, verify all

safety guards are in place.

• Before servicing the spreader, wait for

conveyor and spinner to stop.

• Do not climb into or ride on spreader.

WARNING

Overloading could result in an accident or

damage. Do not exceed GVWR or GAWR

ratings as found on the driver-side door

cornerpost of the vehicle. See Loading

Section to determine maximum volumes of

spreading material.

WARNING

Do not install the control for this product in

the deployment path of an air bag. Refer to

vehicle manufacturer's manual for air bag

deployment area(s).

CAUTION

During the hopper spreader installation

we recommend the addition of an OSHA

compliant Backup Alarm. This alarm is

required for OSHA governed employers.

CAUTION

Disconnect electric and/or hydraulic power

and tag out if required before servicing or

performing maintenance.

CAUTION

DO NOT leave unused material in hopper.

Material can freeze or solidify, causing unit to

not work properly. Empty and clean after each

use.

NOTE: Lubricate grease ﬁttings after each use.

Use a good quality multipurpose grease.

PERSONAL SAFETY

• Remove ignition key and put the vehicle in park or

in gear to prevent others from starting the vehicle

during installation or service.

• Wear only snug-ﬁtting clothing while working on

your vehicle or spreader.

• Do not wear jewelry or a necktie, and secure long

hair.

• Wear safety goggles to protect your eyes from

battery acid, gasoline, dirt and dust.

• Avoid touching hot surfaces such as the engine,

radiator, hoses and exhaust pipes.

• Always have a ﬁre extinguisher rated BC handy,

for ﬂammable liquids and electrical ﬁres.

CAUTION

• Do not operate a spreader in need of

maintenance.

• Before operating the spreader, reassemble

any parts or hardware removed for cleaning

or adjusting.

• Before operating the spreader, remove

materials such as cleaning rags, brushes,

and hand tools from the spreader.

• While operating the spreader, use auxiliary

warning lights, except when prohibited by law.

Lit. No. 43573/43583/43593, Rev. 01 6 August 15, 2013

SAFETY INFORMATION

CELL PHONES

A driver's ﬁrst responsibility is the safe operation of

the vehicle. The most important thing you can do

to prevent a crash is to avoid distractions and pay

attention to the road. Wait until it is safe to operate

Mobile Communication Equipment such as cell

phones, text messaging devices, pagers or two-way

radios.

VENTILATION

BATTERY SAFETY

CAUTION

Batteries normally produce explosive gases

which can cause personal injury. Therefore,

do not allow ﬂames, sparks or lit tobacco

to come near the battery. When charging or

working near a battery, always cover your

face and protect your eyes, and also provide

ventilation.

• Batteries contain sulfuric acid which burns

skin, eyes and clothing.

• Disconnect the battery before removing or

replacing any electrical components.

WARNING

Vehicle exhaust contains lethal fumes.

Breathing these fumes, even in low

concentrations, can cause death. Never

operate a vehicle in an enclosed area without

venting exhaust to the outside.

Lit. No. 43573/43583/43593, Rev. 01 7 August 15, 2013

These instructions cover vehicles which have been

recommended for carrying the hopper spreader.

Please see your local dealer for proper vehicle

applications.

MATERIAL WEIGHTS

WARNING

Overloading could result in an accident or

damage. Do not exceed GVWR or GAWR as

found on the driver-side cornerpost of vehicle.

WARNING

New untitled vehicle installation of a spreader

requires National Highway Trafﬁc Safety

Administration altered vehicle certiﬁcation

labeling. Installer to verify that struck load of

snow or ice control material does not exceed

GVWR or GAWR rating label and complies

with FMVSS.

CAUTION

Read and adhere to manufacturer's

ice-control material package labeling

including Material Safety Data Sheet

requirements.

CERTIFICATION

Lit. No. 43573/43583/43593, Rev. 01 8 August 15, 2013

DETERMINING VEHICLE PAYLOAD

1. Install the hopper spreader and optional

equipment according to the instructions.

2. Install or attach any other equipment that will be

on the vehicle while the hopper spreader will be in

use (step bumper, trailer hitch, snowplows, etc.).

Fill gas tanks.

3. Obtain the Gross Vehicle Weight Rating (GVWR),

Front Gross Axle Weight Rating (FGAWR) and

Rear Gross Axle Weight Rating (RGAWR) from

the certiﬁcation label located inside the driver-side

door jamb or door.

4. With the occupants in the truck for normal hopper

spreader operation, weigh the vehicle to obtain

gross vehicle weight (GVW).

5. Subtract the GVW from the GVWR to determine

the available material payload.

6. Obtain the weight per cubic yard (lb/cu yd) of

the desired material. Divide the weight into the

payload to determine the maximum volume of

material that can be carried.

WARNING

Overloading could result in an accident or

damage. Do not exceed GVWR or GAWR

ratings as found on the driver-side door

cornerpost of the vehicle. See Loading

Section to determine maximum volumes of

spreading material.

7. Compare the maximum volume to determine the

maximum height of the material in the hopper

spreader.

8. Fill the hopper with the material to the calculated

height. Reweigh the vehicle with occupants

and verify the GVW, Front Gross Axle Weight

and Rear Gross Axle Weight are less than the

vehicle's ratings.

9. Repeat Steps 7 and 8 for each type of material.

Material Density

(lb/ft3)

Rock Salt – Dry 80–90

Sand/Salt Mix – Dry 95–120

WARNING

Do not overload vehicle. Use chart below

to calculate weight of material. Weights of

material are an average for dry materials.

CAUTION

Never use wet materials or materials with

foreign debris with any of these spreaders.

These units are designed to handle dry, clean,

free ﬂowing material.

Lit. No. 43573/43583/43593, Rev. 01 9 August 15, 2013

MOUNTING THE SPREADER

MOUNTING SPREADER

NOTE: Periodically throughout the snow and ice

control season, verify mounting devices are secure.

1. Remove the tailgate from the pickup bed.

2. Load the spreader onto the truck bed.

3. Mount the chute to the deﬂector using the supplied

hardware kit.

4. Mount the chute/deﬂector assembly to the spinner

assembly with supplied hardware to form the drive

assembly.

5. Mount the drive assembly to the spreader with a

bent pin and secure with a hair pin cotter.

6. Slide the spreader forward until the deﬂector/chute

assembly makes contact with the vehicle. Then,

slide spreader back approximately 1" to allow

proper clearance.

7. Install stop bars using supplied hole patterns (see

illustration below). To achieve the best position,

you may need to drill additional holes in the

bracket in order to properly position the spreader.

If there are interferences, relocate the holes,

making sure there are at least two forward and

two rearward of the front to back centerline.

CAUTION

Before lifting, verify hopper is empty of

material. The lifting device must be able to

support the spreader's weight as shown in

the spreader speciﬁcations table.

WARNING

Spreader shall be bolted to vehicle frame.

Do not rely on the tie-down chains or straps

alone to hold spreader in vehicle.

Through floor/bed

mounting fasteners

Adjustable Stop Bracket

CAUTION

Before drilling holes, check to be sure that no

vehicle wiring or other components could be

damaged.

Lit. No. 43573/43583/43593, Rev. 01 10 August 15, 2013

MOUNTING THE SPREADER

8. Once the spreader is positioned front to back,

center it left to right. Looking at the inside front

and rear corner of the lower frame area, you will

notice four holes in the bottom of the frame. Using

a paint pen or similar marking device, mark hole

locations.

9. Drill holes at the marked locations.

10. Install and tighten all four cap screws.

11. Install the four ratchet straps as shown below.

NOTE: It is important for safety that this strapping

method be used as the standard mounting

procedure.

12. Connect the spreader power cord to vehicle

main power plug mounted at the rear of the

vehicle (refer to installation instructions for wiring

instructions).

Cross left upper to

right lower

Strap from rear

of vehicle to front

corner (both sides)

Cross right upper to

left lower

Tarp Kit

Ratchet Strap

CAUTION

Before drilling holes, check to be sure that no

vehicle wiring or other components could be

damaged.

Tabla de contenidos

Otros manuales de Esparcidor de Fisher

Fisher

Fisher POLY-CASTER 78601 Manual de usuario

Fisher

Fisher STEEL-CASTER Manual de usuario

Fisher

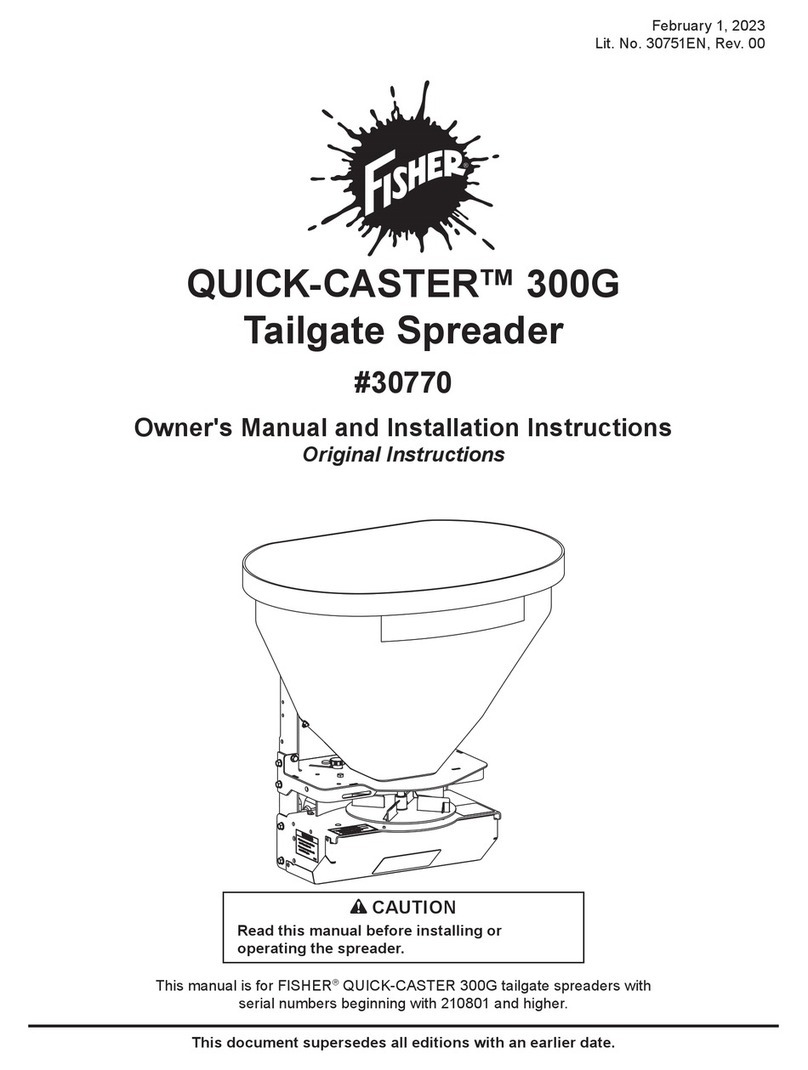

Fisher QUICK-CASTER 300G Instrucciones de funcionamiento

Fisher

Fisher QUICK-CASTER 300H Instrucciones de funcionamiento

Fisher

Fisher 2500 Series Manual de usuario

Fisher

Fisher PRO-CASTER Manual de usuario

Fisher

Fisher Hopper Manual de usuario

Fisher

Fisher M-Scope Gold Bug 2 Manual de usuario

Fisher

Fisher PRO-CASTER Manual de usuario

Fisher

Fisher Speed-Caster Manual de usuario

Fisher

Fisher 500 Manual de usuario

Fisher

Fisher STEEL-CASTER Manual de usuario

Fisher

Fisher WB-100B Instrucciones de funcionamiento

Fisher

Fisher Hopper Manual de usuario

Fisher

Fisher EMERSON 168 Series Manual de usuario

Fisher

Fisher QUICK-CASTER 300W Instrucciones de funcionamiento

Fisher

Fisher 110 Manual de usuario

Fisher

Fisher 1000-(10003) Manual de usuario

Fisher

Fisher 1000 Manual de usuario

Fisher

Fisher POLY-CASTER 78001 Manual de usuario

Fisher

Fisher PRO-CASTER 0806 Manual de usuario

Fisher

Fisher SWING AWAY Manual de usuario

Manuales populares de Esparcidor de otras marcas

PEQUEA

PEQUEA GT-100 Manual de usuario

Herculano

Herculano H2RS9 Manual de usuario

Epoke

Epoke SKE8 Manual de usuario

GEA

GEA EL44 Hoja de especificaciones

Boss Snowplow

Boss Snowplow TGS 800 Manual de usuario

TurfEx

TurfEx RS7200 Manual del propietario

Ferris

Ferris Pathfinder Series Manual de usuario

Fayat Group

Fayat Group DYNAPAC S100 Guía de solución de problemas

Art's-Way Manufacturing

Art's-Way Manufacturing X700 Manual de instalación y operación

EASTMAN

EASTMAN CR 500 Manual de usuario

Nogueira

Nogueira RoyalFlow-600 Manual de usuario

Buyers

Buyers TGS05B Manual de usuario

Magnum

Magnum V-BOX PV Series Suplemento

Meyer's

Meyer's VB280 Manual de usuario

SnowEx

SnowEx VX-4210 Manual de usuario

Kramer

Kramer VM-400HDCP Manual de usuario

H&S

H&S 5134 Manual de usuario

H&S

H&S 5215 Manual de usuario
