Fisher FIELDVUE DVC6200p Guía de configuración
www.Fisher.com
FisherrFIELDVUE™DVC6200p Digital Valve
Controller Device Setup and Accessing
Communication and Calibration using Siemens
SIMATIC Manager/PDM
Contents
Related Documents 2...........................
Connecting the Digital Valve Controller using
Enhanced Device Description (EDD) for Siemens
SIMATIC PDM 3................................
Setting PG/PC Interface 4.......................
Loading the DVC6200p EDD to the SIMATIC
Manager/PDM Catalog 8.....................
Device Setup using Siemens PDM Software 11.....
Going Online with the DVC6200p 17..............
Performing One-Step Local Quick Setup
to Calibrate and Tune the DVC6200p 19........
This document takes you through setting up and accessing the DVC6200p using Siemens SIMATIC PDM software, as
well as performing initial actuator and valve configuration, calibration, and tuning using the Guided Setup procedure.
The procedures covered in this supplement were completed using Siemens SIMATIC Manager/PDM 8.1. While the
steps taken should remain basically the same, screens may vary slightly if you are using a different version of the
software.
Ensure that all necessary files, including the latest DVC6200p EDD, are available.
Note
Setting PG/PC Interface and loading the DVC6200p EDD are generally required only once per computer.
Refer to the DVC6200 Series Quick Start Guide (D103556X012) for DVC6200p
installation, connection and initial configuration information. If a copy of this quick
start guide is needed scan or click the QR code at the right, contact your Emerson
Process Management sales office, or visit our website at www.Fisher.com.
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
Scan or click
to access
field support
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
2
Related Documents
D Fisher FIELDVUE DVC6200 Series Digital Valve Controller quick start guide (D103556X012)
D Fisher FIELDVUE DVC6200p Digital Valve Controller instruction manual (pending)
All documents are available from your Emerson Process Management sales office. Also visit our website at
www.FIELDVUE.com.
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
3
Connecting the DVC6200p using Enhanced Device Description
(EDD) for Siemens SIMATIC PDM
Refer to figure 1.
Figure 1. Connecting the FIELDVUE DVC6200p using EDD for Siemens SIMATIC PDM
BACK-RAIL
PROFIBUS PA
POWER
SUPPLY DP/PA COUPLER
24 VDC SUPPLY VOLTAGE
FOR DP/PA COUPLER
230V/120V AC
DP 9-PIN
CABLE CONNECTORS DP CABLE (PURPLE)
PROFIBUS USB
INTERFACE ADAPTER
PROFIBUS DP
MASTER SYSTEM
(CLASS-2
MASTER)
OR
PROFIBUS CARD
PCMCIA TYPE ADAPTER
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
4
Setting PG/PC Interface
Note
Setting the PG/PC interface or PC card (CP 5711 or similar PROFIBUS card) is done only once, after the first hardware installation of
the PC card inside the computer.
1. Set PG/PC Interface is available under the PC ‘Control Panel’ once Siemens STEP 7 or SIMATIC Manager/PDM
software is installed.
a. Go to Set PG/PC Interface as shown in figure 2.
b. Under the Interface, click on Select... to add the PCI/PCMCIA/USB type PROFIBUS card installed on the PC.
c. Once the interface or card appears as shown in figure 2, select the interface adapter installed and click on
Properties. In this example, the PC Adapter USB A2.PROFIBUS.1 <Active> is selected.
For further support on Setting PG/PC Interface visit the following Siemens website for detailed setup procedures:
http://support.automation.siemens.com/WW/view/en/25471997
Figure 2. Set PG/PC Interface
SELECT THE
PROFIBUS
INTERFACE
ADAPTER
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
5
2. If the PROFIBUS card is the only master on the bus select 'PG/PC is the only master on the bus', as shown in figure 3.
If there are other Class 1 or Class 2 masters on the bus, then DO NOT select PG/PC is the only master on the bus.
Under Network Parameters select the appropriate Transmission Rate of the bus. Click OK when all parameters are
set.
Figure 3. PROFIBUS Card Parameter Setting
PARAMETER SETTINGS
Note
The parameter setting above applies only if the PG/PC card is the only master on the bus.
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
6
3. Click on Diagnostics... as shown in figure 4.
Figure 4. Diagnostics...
4. In the Diagnostics window, shown in figure 5, click on Test to check the status of the PROFIBUS card and network.
Figure 5. Status/Network Diagnostics—Test
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
7
5. Confirm the status is OK (see figure 6.) If the status is Failed, changes to the parameters set in step 2 may be
required.
Note
If the“Test” fails, check the DP/PA coupler type used and the parameter setting, as recommended by the coupler manufacturer.
6. To identify the address of the host and any connected device select Read as shown in figure 6.
Figure 6. Status/Network Diagnostics
TEST STATUS
READ
7. Any master or slave (devices) that is connected will be reflected (in the example shown in figure 7, the PROFIBUS
card is connected to address 4). Station Active refers to Masters on the bus. Station Passive refers to the slave
(devices) on the bus. An active ready PLC (Master Class 1) will be denoted as Station Active Ready.
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
8
Figure 7. Status/Network Diagnostics—Station Address
STATION ADDRESS
BUS NODE 55
Note
The default address of the DVC6200p is set by the factory to 126.
Note
In the above example, a slave device was found at Bus Node 55, and the Class 2 Master device is at address 4.
Make note of the addresses found during the bus node scan for future reference.
Note
It is not necessary to make any changes to information found in the other tabs.
8. Select OK to close the Set PG/PC interface.
Loading the DVC6200p EDD to the SIMATIC Manager/PDM Catalog
Open the Device Integration Manager - Siemens.
Load the EDD file from a source directory or from a compressed source, as shown in figure 8. Navigate to the EDD file,
highlight and select Open to add the EDD to the catalog (see figure 9).
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
9

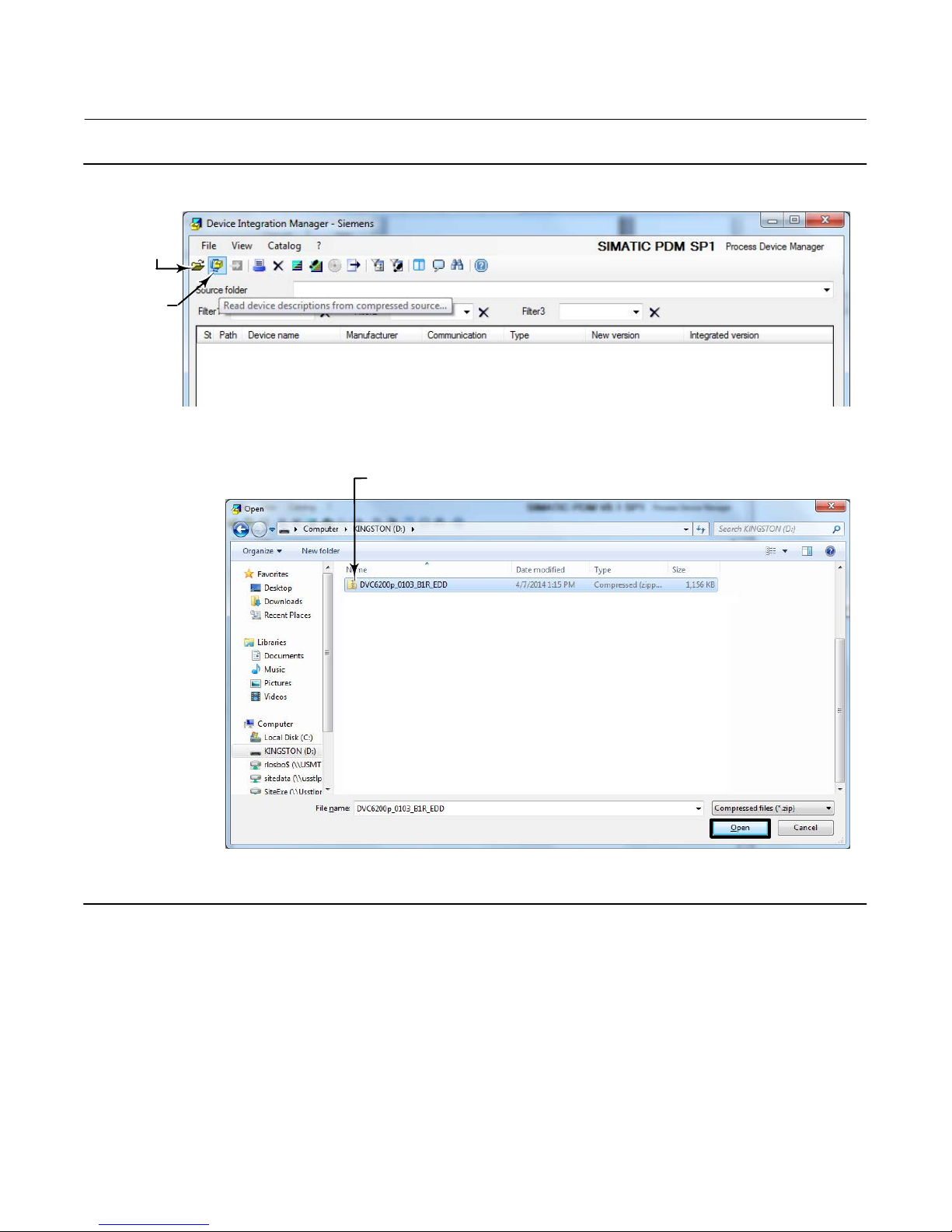

Figure 8. Loading the EDD File
SOURCE
DIRECTORY
COMPRESSED
SOURCE
OR
NAVIAGATE
TO EDD FILE
Instruction Manual Supplement
D103560X012
DVC6200p Digital Valve Controller
November 2014
10
Note
Loading the EDD for a specific device, such as the DVC6200p, on the SIMATIC PDM on a station is only needed once, unless a new
or updated EDD is required.
Figure 9. EDD Loaded on Device Integration Manager
EDD LOADED
TO CATALOG
