Installation instructions

and User guide

Ice & Water refrigerator

E402B, E442B, E522B,

RF610A & RF540A models

Contents

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer. Note that the word “refrigerator”,

throughout this User Guide, refers to combination refrigerator/freezer products.

Introduction 2

Safety and warnings 3

Installation instructions 5

All about the display 16

Using the display options 18

Bottle Chill, Fast Freeze 18

The temperature of your refrigerator and freezer 19

Settings 19

User warnings 20

Using your water dispenser 21

Water filter 22

Using your ice maker 24

Active Smart

™

special features 26

Cleaning and caring for your refrigerator 28

On vacation/holiday 31

Refrigerator sounds 32

Storing food in your refrigerator 33

Storing food in your freezer 35

Troubleshooting 37

Manufacturer’s Warranty 41

Customer Care 43

Filter performance data sheet 45

Thank you for buying a Fisher & Paykel Active Smart™ refrigerator with automatic ice dispensing

and chilled water through the door.

At Fisher & Paykel we are very proud of this refrigerator. This refrigerator combines size and

storage space with the latest features and functions. We feel we have achieved water dispensing

through the door without compromising storage space or access to the refrigerator.

Thousands of hours of food care research and 75 years of refrigeration experience has been

programmed into your refrigerator to give you the best possible performance.

We hope you enjoy your new refrigerator.

Fig.1 Ice & Water Refrigerators

Introduction

Important!

It is important that this User Guide is retained with your Ice & Water refrigerator for future

reference. Should the appliance be sold or transferred to another owner, please ensure that

the User Guide is left with the appliance. This will ensure that the new owner can familiarise

themselves with the information and warnings contained within the Guide.

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance.

Failure to do so can result in death, electric shock, fire or injury to persons.

Use this appliance only for its intended purpose as described in this User Guide.

Important safety precautions

Warning

When using this appliance always exercise basic safety precautions including the following:

Danger



This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.



Young children should be supervised to ensure they do not play with the appliance.



Risk of child entrapment. Before you throw away your old refrigerator or freezer:

– Take off the doors

– Leave the shelves in place so that children may not easily climb inside.



The manufacturer’s installation instructions for product and cabinetry ventilation must be

followed when installing the appliance.



Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of

obstruction.



Do not use mechanical devices or other means to accelerate the defrosting process, other than

those recommended by the manufacturer.



Do not damage the refrigerant circuit.



In case of damage to the refrigerant circuit, ventilate the area by opening all windows. Do not

operate electrical equipment or any other equipment that may produce flames in the area. Contact

your authorised Fisher & Paykel Repairer immediately to arrange for the appliance to be repaired.

R600a

This refrigerator may contain the flammable refrigerant isobutane.

().

Disposal



Extreme care must be taken when disposing of your old appliance to avoid hazards. The

refrigerant gas must be safely removed and for the safety of young children, remove doors.



Your Fisher & Paykel Appliances Authorised Repairer will be able to give advice on

environmentally friendly methods of disposing of your old refrigerator or freezer.

Electrical



This appliance must be properly installed in accordance with the installation instructions before

it is used.

Safety and warnings

4Safety and warnings



Never unplug your refrigerator by pulling on the power cord.



Always grip the plug firmly and pull straight out from the outlet.



Do not plug in any other appliance at the same power point as your refrigerator or use extension

cords or double adapters.



Repair or replace immediately all electric service cords that have become frayed or otherwise

damaged. Do not use a cord that shows cracks or abrasion along its length or at either the plug

or appliance end.



If the power supply cord is damaged, it must only be replaced by your Fisher & Paykel Appliances

Authorised Repairer because special purpose tools are required.



When moving your appliance away from the wall, be careful not to roll over or damage the

power cord.



Unplug your refrigerator before cleaning or replacing the lightbulb.



Do not use electrical appliances inside the food storage compartments of the appliance, unless

they are of the type recommended by the manufacturer.

Important!

Your refrigerator is designed to operate for many years without the need for service checks.

However, if your refrigerator is malfunctioning, have it attended to by your Fisher & Paykel

Appliances Authorised Repairer as soon as possible. All electrical repairs must be carried out by

an adequately trained service technician or qualified electrician.

Storing food and drinks



DO NOT store explosive substances such as aerosol cans with a flammable propellant in this

appliance.



Never store volatile or flammable materials in your refrigerator as they may explode.



Never freeze liquids in glass containers. Liquid expands during freezing, which may cause the

container to explode.



Never freeze carbonated drinks. They may explode.



Do not consume food if it is too cold. Food removed from the freezer compartment may be cold

enough to cause damage when brought into contact with bare skin, eg frozen ice cubes.

Power failure – food safety



Do not refreeze frozen foods that have thawed completely. Follow the recommendations below if

you discover food in your freezer has thawed:

1) Ice crystals still visible – food may be refrozen but should be stored for a shorter period than

recommended.

2) Thawed but refrigerator cold – refreezing generally not recommended. Fruits and

some cooked food can be refrozen but use as soon as possible. Meat, fish, poultry – use

immediately or cook then refreeze. Vegetables – discard as they usually go limp and soggy.

3) Thawed and warmer than 5°C (41°F) – discard all food.



Do not refreeze frozen foods that have thawed completely. The food may be dangerous to eat.

Cleaning



Many commercially available cleaning products contain solvents which may attack plastic

components of your refrigerator and cause them to crack. Please refer to the cleaning care

section of this booklet for further advice.

SAVE THESE INSTRUCTIONS

Installation instructions

WARNING!

Electric Shock Hazard

Read and follow the SAFETY AND WARNINGS outlined in this User Guide

before operating this appliance, pages 3 – 4.

Failure to do so can result in death, electric shock, fire or injury to persons.

Please follow the installation steps below to ensure your appliance operates correctly.

1. Power



The appliance must be installed so the plug is accessible.



To ensure that the appliance is not accidentally switched off, connect your refrigerator to its

own power point. Do not plug in any other appliance at this power point or use extension cords

and double adaptors, as the combined weight of both power cords can pull the double adaptor

from a wall outlet socket.



For power requirements, refer to the information on the serial plate located at the front bottom

right-hand side of the refrigerator when the door is open.



It is essential that the appliance be properly grounded (earthed).

2. Location



Your refrigerator should not be located in direct sunlight or next to any heat generating

appliance such as a cooktop, oven or dishwasher.

6Installation instructions

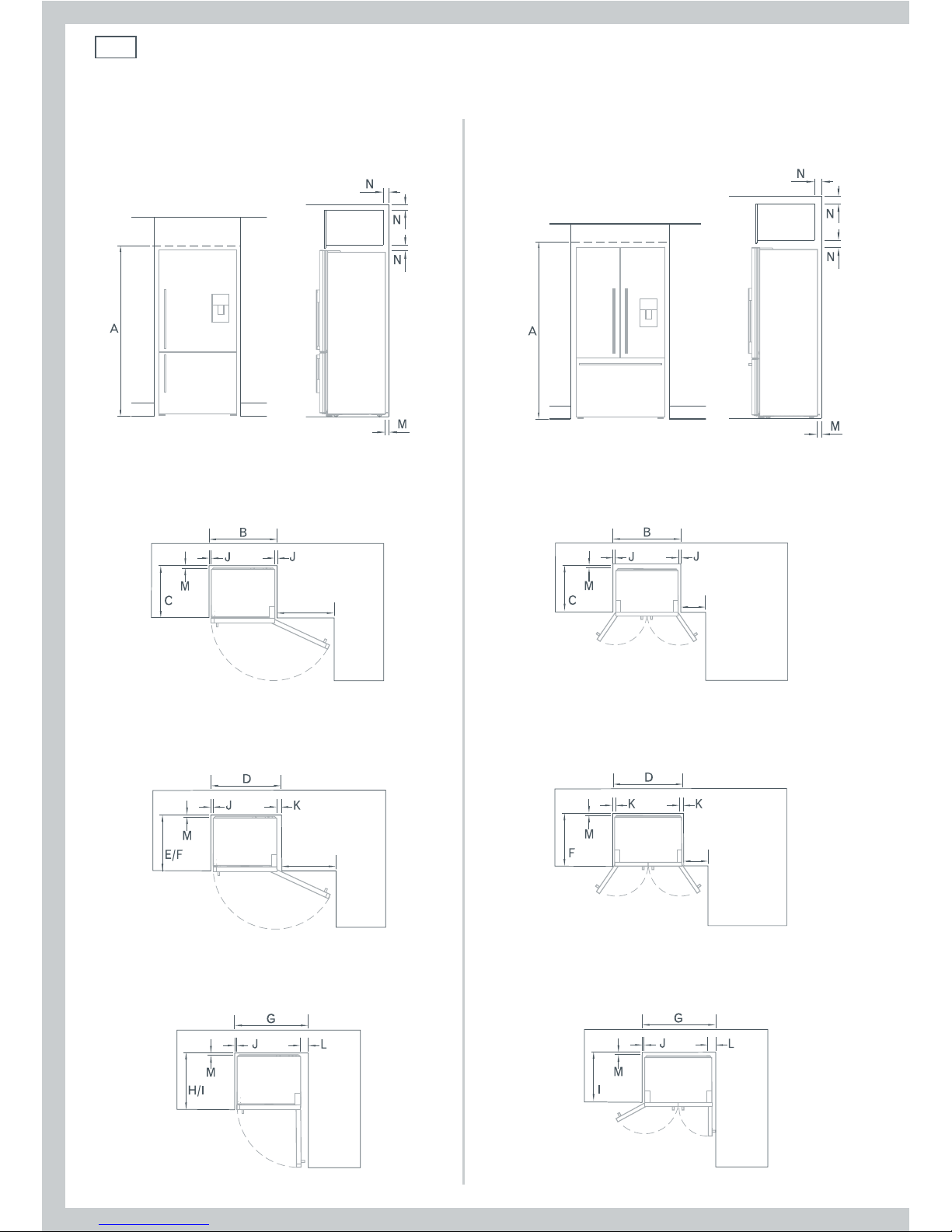

E402B, E442B, E522B RF610A/RF540A

Flush with refrigerator chassis – full door rotation

Flush with refrigerator door – 90° door rotation

Flush with refrigerator chassis – full door rotation

Flush with refrigerator door – full door rotation

Flush with refrigerator door – 90° door rotation

Flush with refrigerator door – full door rotation

Installation instructions

3. Ventilation and installation



To ensure adequate ventilation for your refrigerator see recommended cabinetry

dimensions below.



These measurements do not include space for the water filter at the back of the cabinet as we

recommend that the filter is placed as close to the incoming water supply as possible

Cabinetry dimensions (mm)

(including minimum air clearances) E402B E442B E522B RF610A

RF540A

inside height 1735 1735 1735 1810

Flush with refrigerator chassis – full door rotation

inside width 675 720 830 940

inside depth 620 620 620 620

Flush with refrigerator door – full door rotation

inside width 705 750 860 1000

inside depth flush to curved door 675 675 675 –

inside depth flush to flat door 690 690 690 690

Flush with refrigerator door – 90° door rotation

(for full drawer/shelf access, the doors need to be open past 90°)

inside width 745 790 900 1010

inside depth flush to curved door 675 675 675 –

inside depth flush to flat door 690 690 690 690

Minimum clearances

side clearance 20 20 20 20

side clearance – hinge side flush with door – full rotation 50 50 50 50

side clearance – hinge side flush with door – 90° rotation 90 90 90 90

rear clearance (incl. evaporator tray) 30 30 30 30

vent (above refrigerator cabinet or around top of cupboard) 50 50 50 50

door clearance – hinge side flush with chassis – full rotation 520 555 645 365

door clearance – hinge side flush door – full rotation 490 525 615 335

8Installation instructions

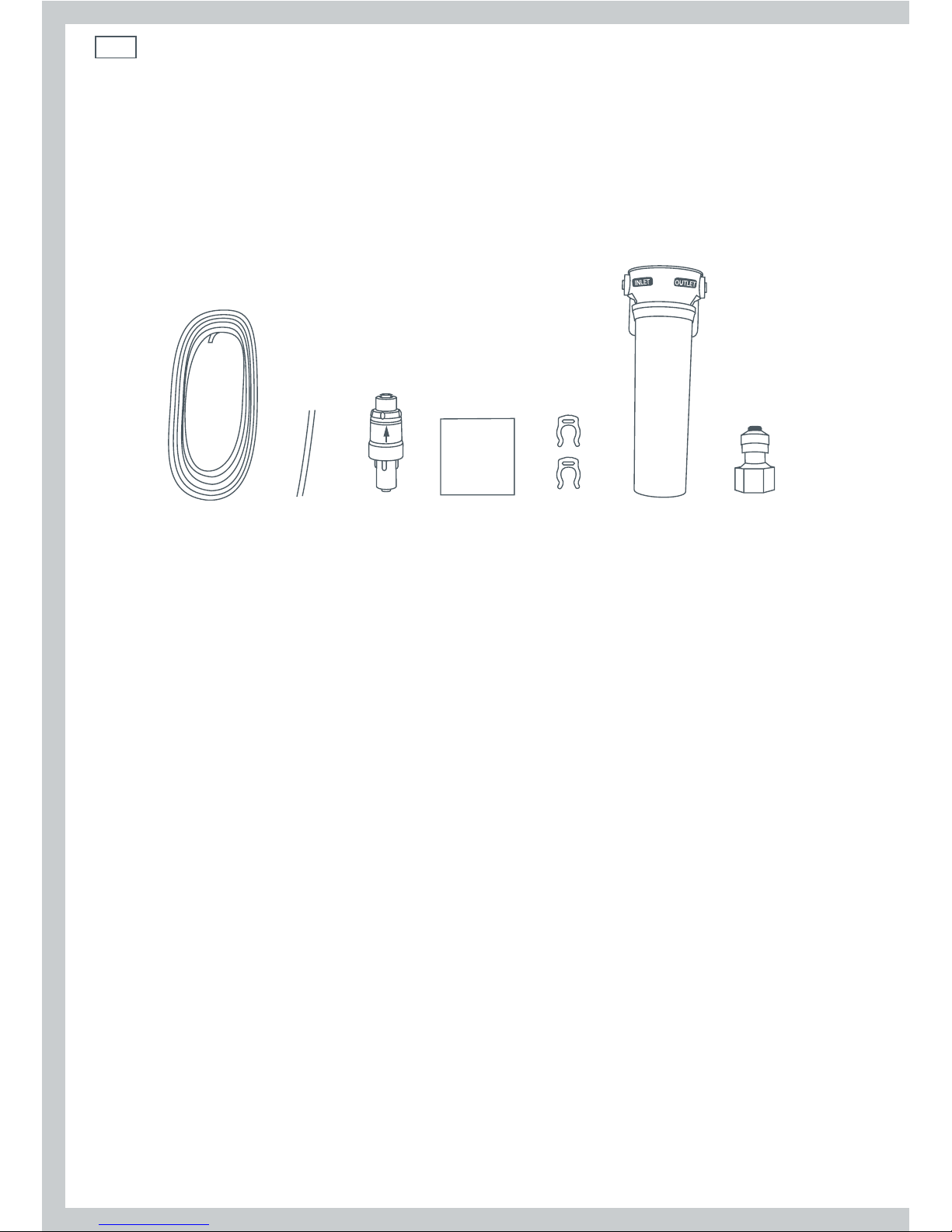

Contents of filter kit

4 m (13 ft) white 6 mm (¼”) tubing

1 x 200 mm (8”) blue tubing

1 x pressure reducing valve (PRV)

1 x double sided foam

2 x locking keys

1 x water filter cartridge and head

1 x tap connection – 15 mm (½”) BSP

Important!



It is imperative the pressure reducing valve (PRV) is fitted prior to the filter. This valve ensures

water will not flow back into the mains from the refrigerator’s water system. If the PRV is not

fitted to the connection line, the Ice & Water features may not function in some circumstances.



The water connection to your Ice & Water refrigerator must be installed by an authorised

plumber or authorised Fisher & Paykel service person.



The water connection instructions below are intended only for the professional installer.



The new tubings supplied with the refrigerator are to be used, old tubings from old Ice & Water

connections should not be used.

Installation precautions/warning



DO NOT use with water that is microbiologically unsafe or of unknown quality without

adequate disinfection before or after the system.



WARNING – connect to potable water supply only.



DO NOT install on line pressure above 827 kPa (119 psi) or below 150 kPa (22 psi).



DO NOT use on hot water supply (38°C [100°F max.]).



DO NOT cut any length of tube shorter than 200mm.



DO NOT install near electrical wires or water pipes that will be in the path of drilling when

selecting the location of the filter system.



DO NOT mount the filter in such a position that it will be struck by other items, such as

wastebaskets, etc.



DO NOT install the filter or any water tubing in direct sunlight as prolonged exposure to light

can weaken plastic components.



DO NOT install the filter in a location that is susceptible to freezing temperatures as damage to

the filter housing could occur.



DO NOT screw the filter to the refrigerator.



DO NOT install the filter or any water tubing in high temperature areas eg in a ceiling cavity.



AVOID contamination of pipes during installation.



DO NOT use copper tubing. The plastic tubing supplied should always be used.



DO NOT continuously dispense water for a period longer than 2 minutes.

Fig.2 Water connection kit

1234567

Otros manuales para ActiveSmart E402B

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de Fisher & Paykel

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135B Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel RS4621FLJK2 Manual de usuario

Fisher & Paykel

Fisher & Paykel Refrigerator & Freezer Manual de usuario

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF523M Manual de usuario

Fisher & Paykel

Fisher & Paykel RS36W80 series Manual de usuario

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF730Q Manual de usuario

Fisher & Paykel

Fisher & Paykel RS36W80 series Manual de usuario

Fisher & Paykel

Fisher & Paykel RS7621WR Manual de usuario

Fisher & Paykel

Fisher & Paykel RS6019S2 Manual de usuario

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF500QNUB1 Manual de usuario

Fisher & Paykel

Fisher & Paykel RX693 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel RS90A Manual de usuario

Fisher & Paykel

Fisher & Paykel 331T Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel ActiveSmart RF135B Manual de usuario

Fisher & Paykel

Fisher & Paykel RS6121SLK1 Manual de usuario

Fisher & Paykel

Fisher & Paykel E522BLXU2 Manual de usuario

Fisher & Paykel

Fisher & Paykel ACTIVESMART RS36A72 Instrucciones de funcionamiento y mantenimiento

Fisher & Paykel

Fisher & Paykel RS90A1 Manual de usuario

Fisher & Paykel

Fisher & Paykel ACTIVESMART RF605QDUVX1 Manual de usuario

Fisher & Paykel

Fisher & Paykel CoolDrawer RB90S64MKIW1 Instrucciones de funcionamiento

Fisher & Paykel

Fisher & Paykel RS90A1 Manual técnico

Fisher & Paykel

Fisher & Paykel RF522ADW5 Manual de usuario

Fisher & Paykel

Fisher & Paykel RS6019S2R Manual de usuario

Fisher & Paykel

Fisher & Paykel MILANO WHITE AWARD 790 Series Manual de usuario

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
