Fisher & Paykel RS90A1 Manual de usuario
fisherpaykel.com
Customer Support
T +65 6741 0777 W fisherpaykel.com
987_FP_2016-02-16
QUICK REFERENCE GUIDE
RS90A1
ACTIVESMART™ FRIDGE
900MM FRENCH DOOR
SLIDE-IN
CUSTOM PANEL
The new family size Fisher & Paykel Slide-in
refrigerators oer a new level of fit and finish
to deliver seamless kitchen integration. Designed
for easy installation to fit flush into new or existing
cabinetry with minimal 4mm gaps.
FEATURES BENEFITS
Seamless Integration The Slide-in series minimises gaps through heavy-duty
inline hinges and adjustable doors enabling minimal
4mm gaps to create consistent lines throughout your
kitchen. The series fits flush with cabinetry to minimise
disruption and deliver design freedom.
Sized to Suit The spacious 900mm French Door fridges are designed
for family life, with double doors for easy access
to uninterrupted fridge space.
Fresher Food for Longer Your fridge door is the most used door in your home.
Every time you open it the temperature changes around
your food. ActiveSmart™ Foodcare intelligently adjusts
airflow in the fridge to create a stable and even
temperature that helps your food stay fresher for longer.
Easy Cleaning Removable, spill-safe cantilevered glass shelves are
designed to contain drips and spills that can be simply
wiped away, while leaving the interior walls completely
smooth and easy to clean. Storage bins just need a wipe
to keep spotless.
Flexible Living These fridges adapt to suit your lifestyle by streamlining
food preparation and organisation with SmartTouch
controls, flexible shelving and storage options, and
slide-out bins and trays. Crisp LED lighting in all
compartments lights up all the shelves, bins and trays.
Ecient These ActiveSmart™ fridges intelligently adapt to daily
use cooling and defrosting only when they need to
without compromising on food care.
SPECIFICATIONS
Finish
Panel Ready
(apply your own cabinetry façade)
Dimensions
(excluding doors and handles)
H179 x W890 x D606mm
Total Gross Volume
Refrigerator
49L
Freezer
176L
Total
525L
Energy Rating
✔
Performance
ActiveSmart™ Foodcare
l
Frost free freezer
l
Adaptive defrost
l
Humidity Control System
l
Accessories
Custom door panel set
Apply your own (not sold)
Brushed aluminium handle set
(sold separately)
Part No. 24626
Warranty
Parts & labour
2 years
Sealed system parts
years
For full specifications visit
fisherpaykel.com

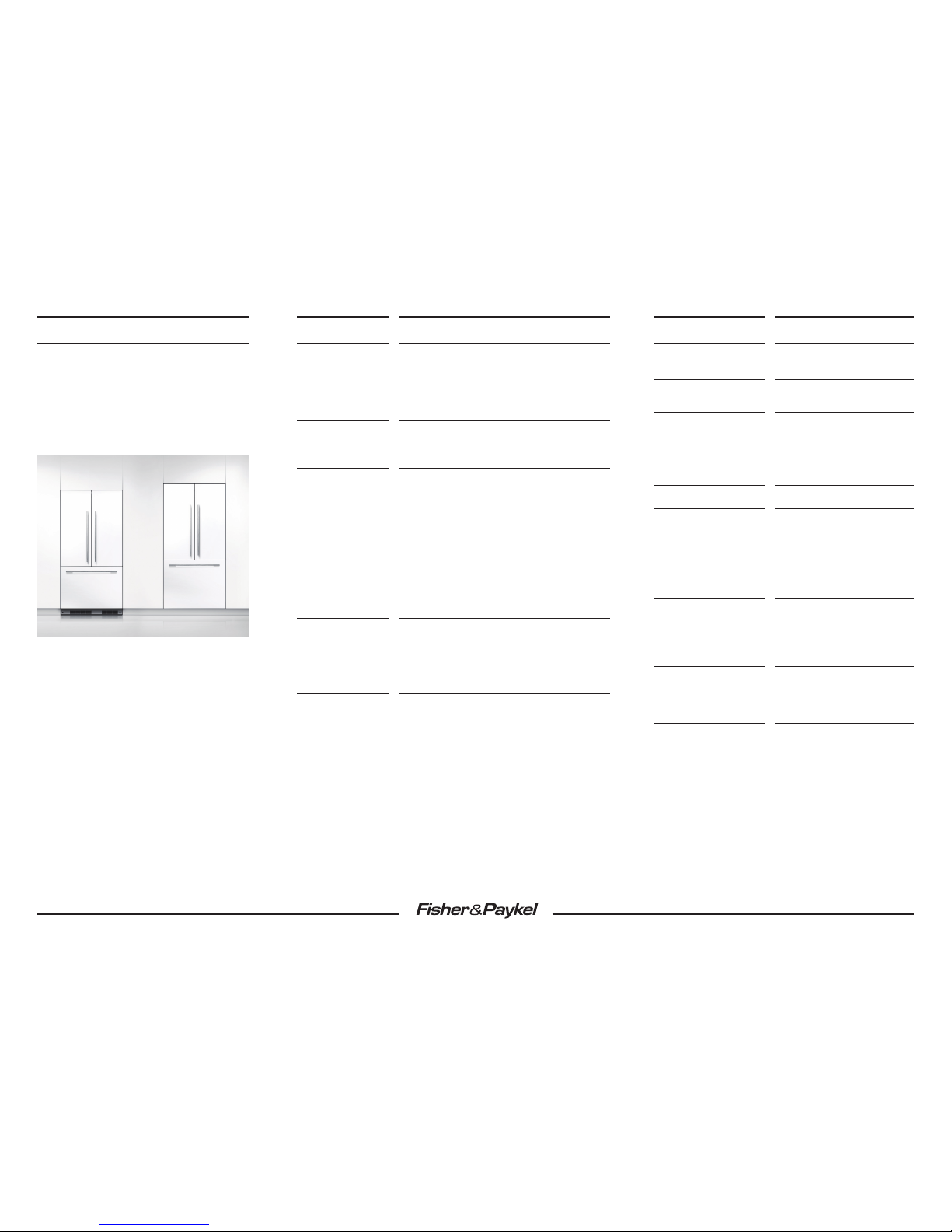

Product shown: Left - installed into a 900 x 1800mm cavity; Right - Alternative
installation into a 900mm x 1900mm cavity. Custom panel (indicative only, handles
sold separately).
CAVITY PREPARATION 900MM ACTIVESMART™ SLIDE-IN REFRIGERATOR
Model no:
RS90A1 (Panel Ready)
Cavity Dimensions
mm
a Overall height of cavity**
1800
B Overall width of cavity
when adjoining cabinetry can share 4mm door gap
900
when adjoining cabinetry cannot share 4mm door gap
904
c Overall depth of cavity
650
Specifications
RS90A1
Electrical
Supply
20 VAC, 50 Hz
Service
10 amp circuit
NOTE: Recommended that the electrical & water connection be located in an
adjacent cabinet to either side of the fridge or above the fridge cavity.
Do not locate water or electricity in this area, keep clear of connections.
CAUTION: Central area can only fit water outlet and electrical plug if they are
placed within a recessed cavity.
* In this location the water tap needs to be recessed into the wall, the recess
must allow for an 80mm bend radius for the water tube.
** Allow for height of plinth if using Alternative Installation method (see page
4 for details). Raise location of electrial connections by height of plinth.
A
B
C
REAR OF CAVITY
ISO VIEW OF CAVITY
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(/2''). Please read the installation manual for detailed information on
installing the product. www.fisherpaykel.com
!
987_FP_2016-02-16
DATA SHEET
INDICATES PRODUCT DATUM
INDICATES MINIMUM CABINETRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(/2''). Please read the installation manual for detailed information on
installing the product. www.fisherpaykel.com

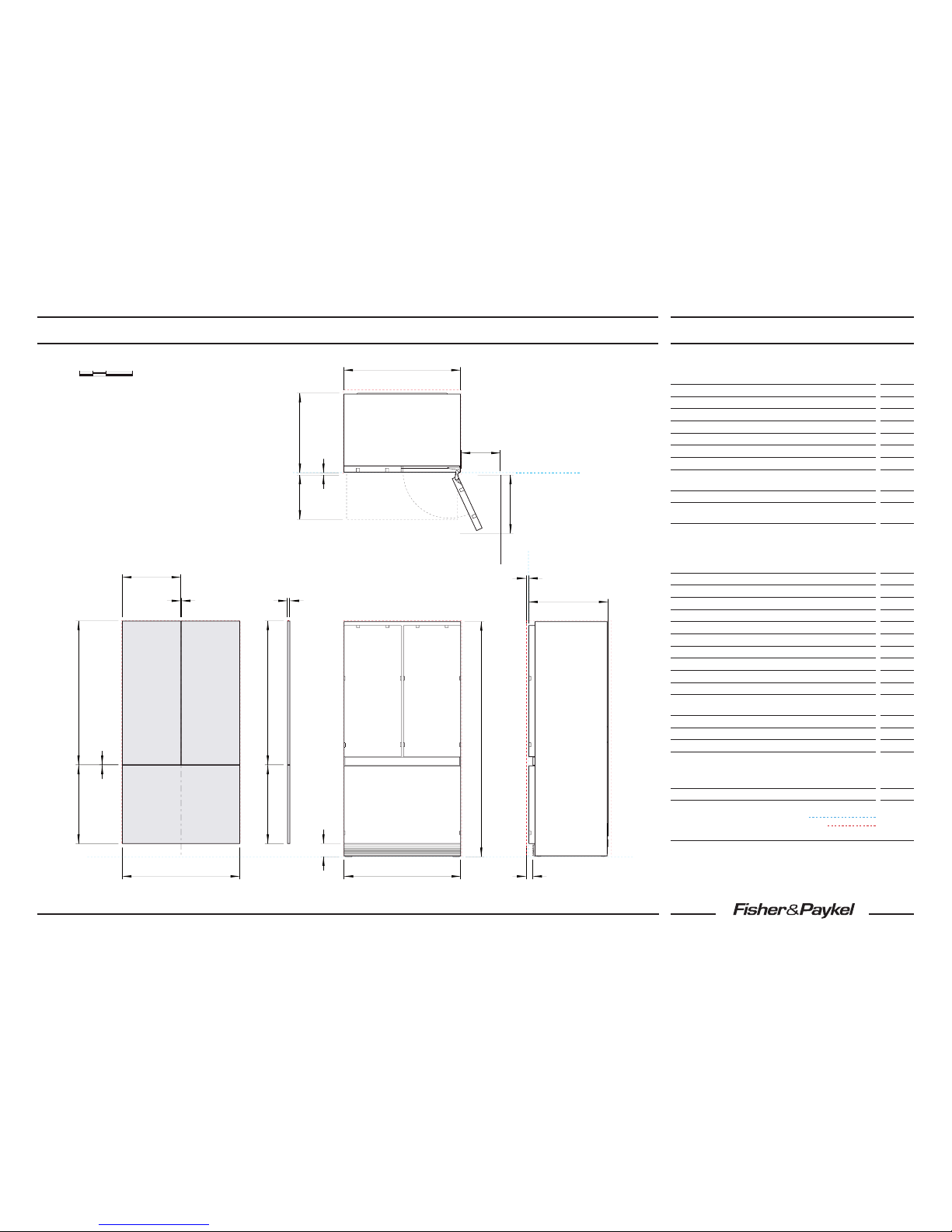

900MM ACTIVESMART™ SLIDE-IN REFRIGERATOR
Model no:
RS90A1 (Panel Ready)
Product Dimensions
mm
a Overall height of fridge
179
B Overall width of fridge
890
c Depth of fridge front panels (excl. handles)*
18
D Overall depth of fridge (excl. front door panels)
606
E Height from bottom datum to top of toekick
100
F Depth of toekick measured from front of door panels*
50
G Depth of door (widest opening) measured from front of
cabinetry
445
H Depth of drawer (open) measured from front of cabinetry*
8
I Minimum door clearance** to adjacent wall (115° – full internal
access)*
00
* Door panels to be manufactured and fitted by cabinetmaker, max thickness
18mm.
** Measured from front cabinetry edge, includes 2mm cabinetry gap.
Custom Panel Dimensions
mm
J Height of top door panel
1096
K Width of top door panel
446
L Gap between top door panels
4
M Height of bottom drawer panel
598
N Width of bottom drawer panel
896
O Gap between top door panels and bottom drawer panel
4
P Maximum depth of custom panels
18
Maximum weight of an individual top door panel
10kg
Maximum weight of bottom drawer panel
9.5kg
Minimum Clearances
mm
Minimum cabinetry gap clearance from edge of custom panels
4
Overall height of cavity
1800
Overall width of cavity
when adjoining cabinetry can share 4mm door gap
900
when adjoining cabinetry cannot share 4mm door gap
904
Overall depth of cavity
650
DATUM : FLOOR (LEVEL)
1793
A
DATUM : FRONT OF CHASSIS
DATUM : FRONT OF CHASSIS
FRONT VIEW
PLAN VIEW
PROFILE VIEW
890
B
D
C
WALL
890
B
P
D
E
F
C
G
H
I
J
K
L
M
N
J
M
O
CUSTOM PANELS
1002 00 4000
Millimetres
987_FP_2016-02-16
7461_FP_2015-08-10
ALTERNATIVE INSTALLATION
INDICATES MINIMUM CABINETRY CLEARANCES
IMPORTANT NOTE: Throughout this guide, dimensions may vary by ±2mm
(/2''). Please read the installation manual for detailed information on
installing the product. www.fisherpaykel.com
900MM ACTIVESMART™ SLIDE-IN REFRIGERATOR
Model no:
RS90A1 (Panel Ready)
Custom Panel Dimensions
mm
a Height of bottom drawer panel
698
B Minimum height of toekick panel*
50
C Minimum depth of toekick panel
50
* The bottom drawer panel can be extended lower to cover the grille. However
in this installation scenario the product needs to be raised a minimum of
50mm from the floor to allow for adequate air supply.
Note: this alternative installation will cause some restriction of air supply so
the fridge will not be operating at its optimum energy performance levels.
Additional Part (Air Splitter) Dimensions
mm
D Overall height of block
80
E Overall width of block
120
F Overall depth of block
25
G Height from bottom of door panel to bottom of block*
5
H Distance from left edge of panel to centre of block**
60
* Presumes door panel height of 698mm
** Note measurement given from left when panel viewed from rear
Block to be manufactured and fitted by cabinetmaker, it can be constructed
out of MDF or similar material
Bottom door panel and block need to be adequately sealed to withstand
moisture (50OC @ 80% RH). The back and sides of the panel should be
completely sealed with a waterproof vapour barrier (ie polyurethane) to
prevent damage to the panel
ISO VIEW PROFILE VIEW
A
B
A
B
C
REAR VIEW OF BOTTOM PANEL
D
E
F
G
H
AIR SPLITTER BLOCK
OPTIMISES AIR FLOW IN
AND OUT OF GRILLE
