Fisher & Paykel Intuitive DEIX2 Instrucciones de montaje

DEIX2, DGIX2

Secadora de ropa Intuitive™

Instructivo de instalación

y guía del usuario US CA (ES)

Installation instructions

and user guide US CA (EN)

Intuitive™ clothes dryer

The Governor of California is required to publish a list of substances known to the

state of California to cause cancer or reproductive harm and requires business to

warn customers of potential exposures to such substances.

Gas appliances contain or produce substances, which can cause death, or serious

illness and which are known to the State of California to cause cancer, birth defects,

or other reproductive harm. To reduce the risk from substances in fuel or from

fuel combustion, make sure this appliance is installed, operated, and maintained

according to the manufacturers instructions.

English Page 2 – 56

Español Pág 57 – 110

WARNING: For your safety the

information in this manual must be

followed to minimize the risk of fire or

explosion or to prevent property

damage, personal injury or death.

—Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

—WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do

not use any phone in your building.

• Clear the room, building or area of all

occupants.

• Immediately call your gas supplier from

a neighbor’s phone. Follow the gas

supplier’s instructions.

• If you cannot reach your gas supplier,

call the fire department.

—Installation and service must be

performed by a qualified installer, service

agency or the gas supplier.

Contents

Dryer Safety

Important Safety Instructions

Warranty 8

Installation Instructions

Installer Responsibilities, Location Requirements 10

Dimensions 12

Mobile Home Installation 13

Exhausting 14

Alternative Installation for Close Clearances 18

Exhaust Venting 19

Installation 20

Grounding Instructions 22

Electrical Requirements 23

Gas Requirements 29

Level Machine, Final Installation Checklist 32

Features

Operating Instructions

Fabric Type

Heavy, Mixed, Casual, Dry and Wear 37

Light, Air Dry 38

How Dry?

Autosensing, Dryness Levels 39

Display Screen

All About the Options Button

Progress Screen

The Options

Wrinkle Free, Time Dry 42

End of Cycle Beeps, Reminders, Cycle Tips, Troubleshooting 43

Lifecycles™

Family Allergy, Towels, Shirts, Lingerie 44

Special Freshen Up, Warm Up, Dry Clean 44

Bulky Blankets, Jeans, Comforter 45

Using Your Dryer

Sorting, Loading 46

Lint Bucket 47

Lidlock

Power failure 48

Care Labels

Cleaning

If your Intuitive™ Dryer Beeps for Help

Trouble Shooting

Limited Warranty

Thank you for buying a Fisher & Paykel Intuitive™ dryer.

We hope you enjoy using the Intuitive™ dryer as much as we have enjoyed designing it. We’ve

developed this dryer to treat your clothes with the utmost care, drying them gently so they

will look better for longer. We know you’ll enjoy the benefits of its easy loading drum, reverse

tumbling and lint removal system.

Please take the time to read this User Guide carefully. It will help you to operate and maintain

your new Intuitive™ dryer.

Your safety, and the safety of others is very important. Located on your dryer and throughout this

guide are safety messages and instructions; it is important that you understand and follow them.

Dryer Safety

Symbols

Symbols will be used in this Guide to highlight when extra care is required. Abide by these at

all times to ensure you and your family are not harmed while operating your dryer.

It is important to always act with caution and use common sense when operating your dryer.

Use only as per instructed by the User Guide.

DANGER

This is the safety alert symbol. This symbol alerts you to hazards that can kill

or hurt you and others.

The safety alert symbol and the word DANGER or WARNING will precede all

safety messages. These words mean:

You can be killed or seriously injured if you don’t

immediately follow instructions.

You can be killed or seriously injured if you don’t

follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

WARNING

Important Safety Instructions

WARNING

Electric Shock Hazard

Follow the safety precautions outlined in this User Guide.

Failure to do so can result in death or electric shock.

Safety Precautions

Read all instructions carefully before using this dryer.

Use this dryer only for its intended purpose as described in this User Guide.

To minimize the possibility of electric shock, unplug this dryer from the power supply or

disconnect the dryer at the household distribution panel (by removing the fuse or switching

off the circuit breaker) before attempting any user maintenance or cleaning.

Installations must be performed by a qualified or licensed contractor, plumber or gasfitter

qualified or licensed by the state, province, or region where this appliance is being installed.

This dryer must be properly installed and located in accordance with the Installation Instructions

before it is used.

This dryer must be properly grounded to conform with all governing codes and ordinances.

Follow details in Installation Instructions.

Do not install or store the dryer where it will be exposed to water or exposed to the weather.

Connect to a properly protected, rated and sized power supply circuit to avoid electrical overload.

Do not repair or replace any part of the appliance or attempt any servicing, unless specifically

recommended in the published user repair instructions that you understand and have the skills

to carry out.

When disconnecting the dryer, pull by the plug rather than the cord or junction of the cord plug,

to avoid damage to the cord or junction of the cord plug.

Make sure the cord is located so that it will not be stepped on, tripped over or otherwise subject

to stress or damage.

Do not tamper with the controls or the lid lock.

Note: Pressing the POWER button does NOT disconnect the dryer from the power supply, even

though the lights are out.

Do not operate this dryer if it is damaged, malfunctioning, partially disassembled or has missing

or broken parts, including a damaged cord or plug.

This dryer must be directly connected to an approved fixed electrical outlet. It cannot be

plugged into an extension cord.

Important Safety Instructions

WARNING

Fire Hazard

Only dry fabrics that have been washed with water.

Do not use heat to dry articles containing foam rubber or

similarly textured rubber-like materials. Dry on the Air Dry cycle.

A clothes dryer produces combustible lint and must be

exhausted outdoors. Take care to prevent the accumulation of

lint around the exhaust opening and in the surrounding area.

Do not use fabric softeners or products to eliminate static

unless recommended by the manufacturer of the fabric softener

or product.

Failure to follow these instructions can result in death or

personal injury.

To Reduce the Risk of Fire in a Tumble Dryer the Following Should

be Observed:

Do not place items in a tumble dryer that have previously been cleaned in, washed in, soaked

in, or spot cleaned with flammable liquids or solids. They are a fire or explosion hazard. Highly

flammable substances commonly used in domestic environments include acetone, denatured

alcohol, gasoline, kerosene, some brands of spot removers and dry cleaning solvents, turpentine,

waxes, wax removers, vegetable oil, fish oil, massage oil, and cooking oil.

Do not leave hot oil-affected items in a pile or stack. This can prevent heat from escaping and

can create a fire hazard. Oil-affected items can ignite spontaneously, especially when exposed to

heat sources such as a tumble dryer. The items become warm causing an oxidation reaction in

the oil. This oxidation creates heat. If the heat cannot escape the items can become hot enough

to catch fire.

Do not use heat to dry items containing rubber, foam rubber, plastic or similar materials, (such as

padded bras, bath mats, rugs, bibs, baby pants, plastic bags, pillows etc), as these materials might

melt or burn. Some rubber materials when heated can under certain circumstances produce fire

by spontaneous combustion. Dry only on the AIR DRY cycle.

Unless specifically recommended by their manufacturer, do not use fabric softeners or similar

products in a tumble dryer.

Do not store or use gasoline or other flammable gases and liquids near this or any other appliance.

Keep the area around and underneath your dryer free from the accumulation of combustible

materials such as lint, paper, rags, chemicals etc.

Do not store any items that may burn or melt (such as paper materials, plastics or plastic

containers etc) next to the dryer.

Empty the lint bucket before the lint reaches the top of the transparent section. (usually once

a week).

Important Safety Instructions/Warranty

The dryer must be exhausted to the outside. Carefully follow the venting details in the

Installation Instructions.

Keep the floor around your dryer clean and dry to reduce the possibility of slipping.

If your dryer is running and you want to unload or add clothes, press START/PAUSE and wait

until the machine has unlocked the lid. Do not force it open.

Do not reach into the appliance if the drum is moving.

Close supervision is necessary if this dryer is used by or near children. Do not allow children to

play inside, around or with this dryer or any other appliance.

Never climb on, climb into, or stand on the dryer top, lid or drum.

Undergarments that contain metal reinforcements should not be placed directly in the dryer.

Damage to the dryer can result if the metal reinforcements come loose during drying.

The interior of the appliance and exhaust duct should be cleaned periodically by qualified

service personnel.

Before the appliance is removed from service or discarded remove the lid and the drum door to

the drying compartment.

SAVE THESE INSTRUCTIONS

Warranty

Your dryer has been made to the highest standards. Years of development and rigorous testing

ensure that you have bought a world-class product, in the unlikely event that a problem should

occur, refer to the Warranty section at the back of this Guide (refer to page 54).

If you have a problem with your dryer refer to our troubleshooting section. If your problem

is not referenced, please always contact your Fisher & Paykel Authorized Service Agent or our

Customer Care Center (Toll Free 1 888 9 FNP USA (1 888 9 367 872)) rather than attempting to fix

it yourself.

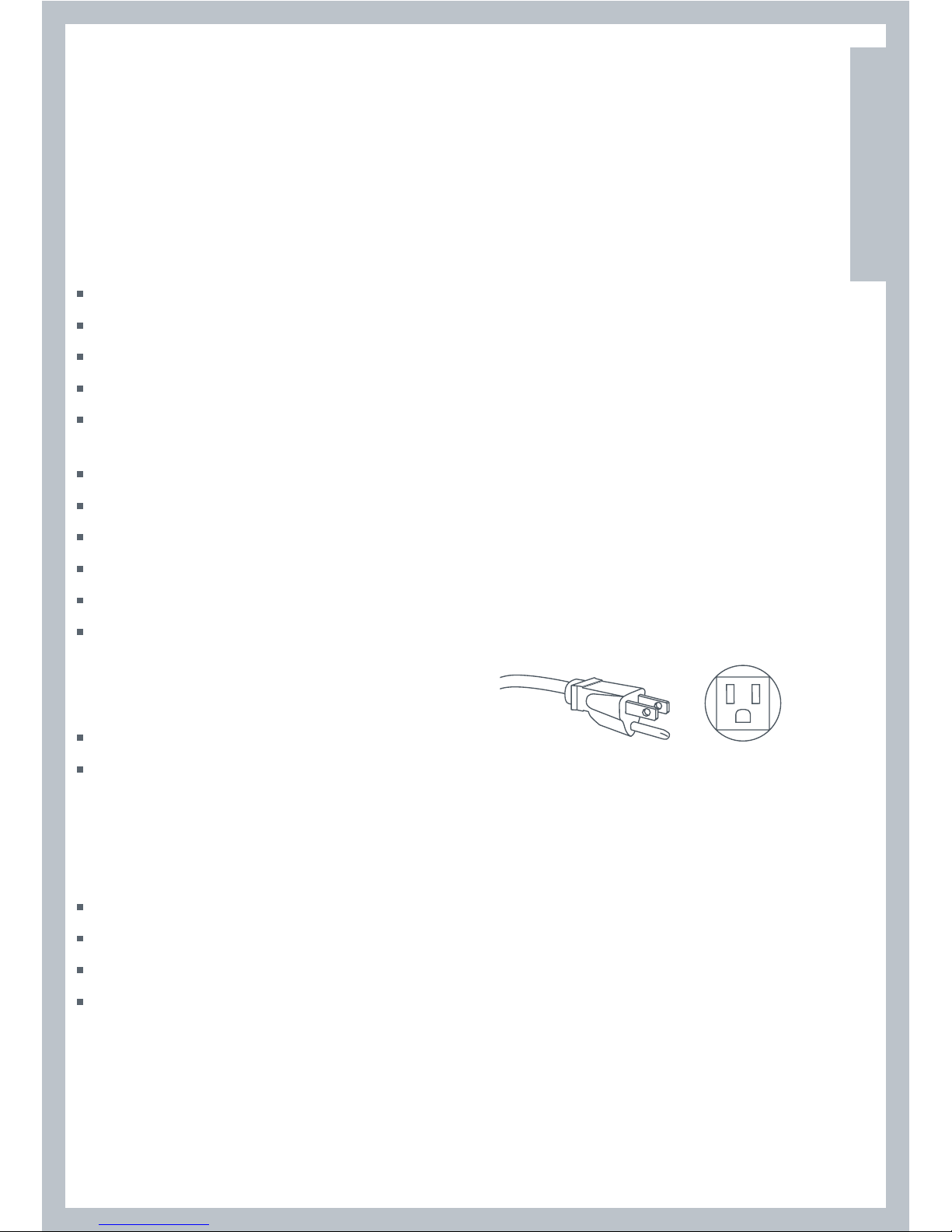

Installation Instructions

Read the Important Safety Instructions on pages 6 – 8 before you start

installing the dryer.

Check to make sure you have all the tools and parts necessary to correctly install this appliance.

Tools Required

¼’’ nut driver or socket wrench

Phillips screwdriver

Flat-blade screwdriver

Adjustable wrench 8” or 10” (20cm or 25cm) for gas connections

Pipe joint compound (pipe dope or tape) for gas pipe connections that is resistant to LP Propane,

Butane and Natural Gas (Gas models only)

Level

Caulking gun and compound (for installing new exhaust vent)

Gloves

Safety glasses

Knife

Duct tape

Parts Supplied

2 feet inserts for front feet.

A power supply cord is supplied already connected to the gas dryer (Gas models only)

Check to make sure all parts have been supplied.

Accessories

Mobile Home Installation Kit Part No 395488

Natural Gas to LP Conversion Kit Part No 395489 (Gas models only)

LP to Natural Gas Conversion Kit Part No 395490 (Gas models only)

Kit Element 208V Part No 395500 (Electric models only)

Parts Needed

Check with local codes and read electrical, gas and venting requirements before purchasing parts.

To the Installer

The correct installation of the dryer is your responsibility.

Be sure you read the following instructions carefully before you start to install the dryer. These

instructions should be left with the home owner for future reference.

It is Your Responsibility to:

Observe all governing codes and ordinances.

Check code requirements. Some codes limit or do not permit installation of clothes dryers in

garages, closets, mobile homes or sleeping quarters. Contact your local building inspector.

Adhere to these installation instructions.

Allow for spacing requirements with side by side installations (refer page 11).

Make sure you have all items necessary for correct installation.

Properly install the dryer.

Contact a qualified installer to ensure that the electrical and gas installation meets all national

and local codes and ordinances. (See page 6).

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away

from the dryer.

Place dryer at least 18 inches (46 cm) above the floor for a

garage installation.

Failure to do so can result in death, explosion, fire, or burns.

The dryer must be installed or stored in an area which is not exposed to water or weather.

It is extremely important that the dryer is installed in a well ventilated location. This dryer must

exhaust air outdoors. Do not install the dryer in any room or closet which does not permit the

free flow of replacement air.

The free area of any opening for the introduction of outside air shall not be less than twice the

area of the dryer exhaust outlet.

Before installing the dryer ensure that there is sufficient height to fully open the lid. Allow

sufficient room behind the dryer for the exhaust. The air intake is at the rear of the dryer. Ensure

that there is a sufficient air passage on each side of the dryer for intake air.

Otros manuales para Intuitive DEIX2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Secadora de Fisher & Paykel

Fisher & Paykel

Fisher & Paykel DE62T27DW2 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DE09 Manual técnico

Fisher & Paykel

Fisher & Paykel DE40F56AW1 Manual de usuario

Fisher & Paykel

Fisher & Paykel AeroSmart DE62T27CW1 Manual de usuario

Fisher & Paykel

Fisher & Paykel Front loading dryers Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DG7027G1 Manual de usuario

Fisher & Paykel

Fisher & Paykel AeroCare DE7027P2 Manual de usuario

Fisher & Paykel

Fisher & Paykel DE7060P2 Manual de usuario

Fisher & Paykel

Fisher & Paykel AeroCare DE7027J1 Manual de usuario

Fisher & Paykel

Fisher & Paykel DG60FA2 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DH8060P1 Manual de usuario

Fisher & Paykel

Fisher & Paykel DE6060M Manual de usuario

Fisher & Paykel

Fisher & Paykel AeroSmart DE62T27C Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DE7060G1 Manual de usuario

Fisher & Paykel

Fisher & Paykel Dryer Manual de usuario

Fisher & Paykel

Fisher & Paykel DE7060P1 Manual de usuario

Fisher & Paykel

Fisher & Paykel Intuitive DEIX2 Manual de usuario

Fisher & Paykel

Fisher & Paykel DE6060P Manual de usuario

Fisher & Paykel

Fisher & Paykel Smartload DEGX1 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel Smartload DGGX1US Manual de usuario

Fisher & Paykel

Fisher & Paykel DE60FA27AW2-96983 Manual de usuario

Fisher & Paykel

Fisher & Paykel DE6060P Diagrama de cableado

Fisher & Paykel

Fisher & Paykel DE8060P Manual de usuario

Fisher & Paykel

Fisher & Paykel DH8060P Manual de usuario

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
