Fisher & Paykel DE62T27DW2 Instrucciones de montaje

US CA (EN)

AeroSmart clothes dryer

Installation instructions

and User guide

The Governor of California is required to publish a list of substances known to the

state of California to cause cancer or reproductive harm and requires business to

warn customers of potential exposures to such substances.

WARNING!: Gas appliances contain or produce substances, which can cause death,

or serious illness and which are known to the State of California to cause cancer,

birth defects, or other reproductive harm. To reduce the risk from substances in

fuel or from fuel combustion, make sure this appliance is installed, operated, and

maintained according to the manufacturers instructions.

WARNING: For your safety the

information in this manual must be

followed to minimize the risk of fire or

explosion or to prevent property

damage, personal injury or death.

—Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

—WHAT TO DO IF YOU SMELL GAS

UÊ ÊÌÊÌÀÞÊÌÊ}ÌÊ>ÞÊ>««>Vi°

UÊ ÊÌÊÌÕVÊ>ÞÊiiVÌÀV>ÊÃÜÌVÆÊ`Ê

not use any phone in your building.

UÊ i>ÀÊÌiÊÀ]ÊLÕ`}ÊÀÊ>Ài>ÊvÊ>Ê

occupants.

UÊ i`>ÌiÞÊV>ÊÞÕÀÊ}>ÃÊÃÕ««iÀÊvÀ

a neighbor’s phone. Follow the gas

supplier’s instructions.

UÊ vÊÞÕÊV>ÌÊÀi>VÊÞÕÀÊ}>ÃÊÃÕ««iÀ]Ê

call the fire department.

—Installation and service must be

performed by a qualified installer, service

agency or the gas supplier.

Introduction 2

Important safety instructions 3

Installation instructions 7

The first time you turn your dryer on 33

Getting started quickly 34

Operating instructions 34

Using your dryer 36

Sorting and loading 36

Lint bucket 37

Selecting a cycle 38

Wrinkle free 38

Selecting the drying process 39

Auto Sensing 39

Time Dry 39

Selecting the dryness level 40

Stopping your dryer 41

Drying cycles explained 42

Drying special items 44

Care labels 46

Lid Lock 47

Power failure 47

Caring for your AeroSmart dryer 48

Before you call for service 49

If your AeroSmart dryer beeps for help 49

Solving operating problems 50

Solving drying problems 51

Limited warranty 52

How to get service 54

Important!

SAVE THESE INSTRUCTIONS

The models shown in this User Guide may not be available in all markets and are

subject to change at any time. For current details about model and specification

availability in your country, please visit our local website listed on the back cover

or contact your local Fisher & Paykel dealer.

Contents

2Introduction

Welcome to AeroSmart

Thank you for buying a Fisher & Paykel AeroSmart clothes dryer. We are very proud of this dryer

and trust it will serve you well for many years.

At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and

kind to the environment.

We have developed this dryer to treat your clothes with the utmost care, drying them gently,

so they will look better for longer. We trust you’ll enjoy the benefits of its easy loading drum,

reverse tumbling and unique lint removal system.

Please take the time to read this User Guide carefully. It will help you to operate and maintain

your new AeroSmart dryer.

Your safety, and the safety of others is very important. Located on your dryer and throughout this

guide are safety messages and instructions; it is important that you understand and follow them.

We hope you enjoy your new dryer, we have certainly enjoyed designing it for you.

Important!

It is important that this User Guide should be retained with your AeroSmart clothes dryer for

future reference. Should the appliance be sold or transferred to another owner, please ensure

that the User Guide is left with the appliance. This will ensure that the new owner can familiarize

themselves with the information and warnings contained within the Guide.

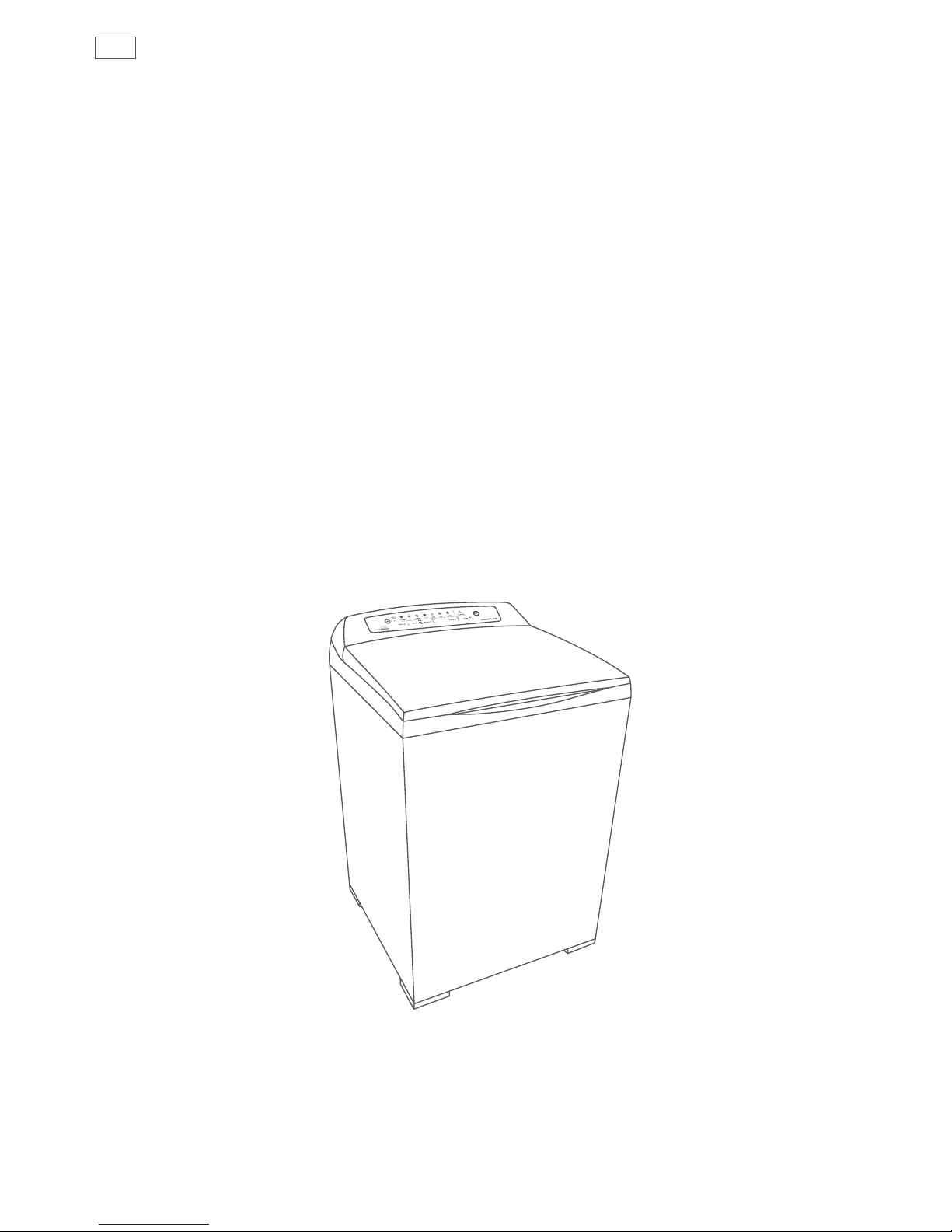

Fig.1 AeroSmart dryer

Important safety instructions

Symbols

Symbols will be used in this Guide to highlight when extra care is required. Abide by these at all

times to ensure you and your family are not harmed while operating your dryer.

It is important to always act with caution and use common sense when operating your dryer.

Use only as instructed by the User Guide.

This is the safety alert symbol. This symbol alerts you to hazards that can kill

or hurt you and others.

The safety alert symbol and the word DANGER or WARNING will precede all

safety messages. These words mean:

You can be killed or seriously injured if you don’t

immediately follow instructions.

You can be killed or seriously injured if you don’t

follow instructions.

All safety messages will identify the hazard, tell you how to reduce the chance of injury,

and tell you what can happen if the instructions are not followed.

DANGER

WARNING

4Important safety instructions

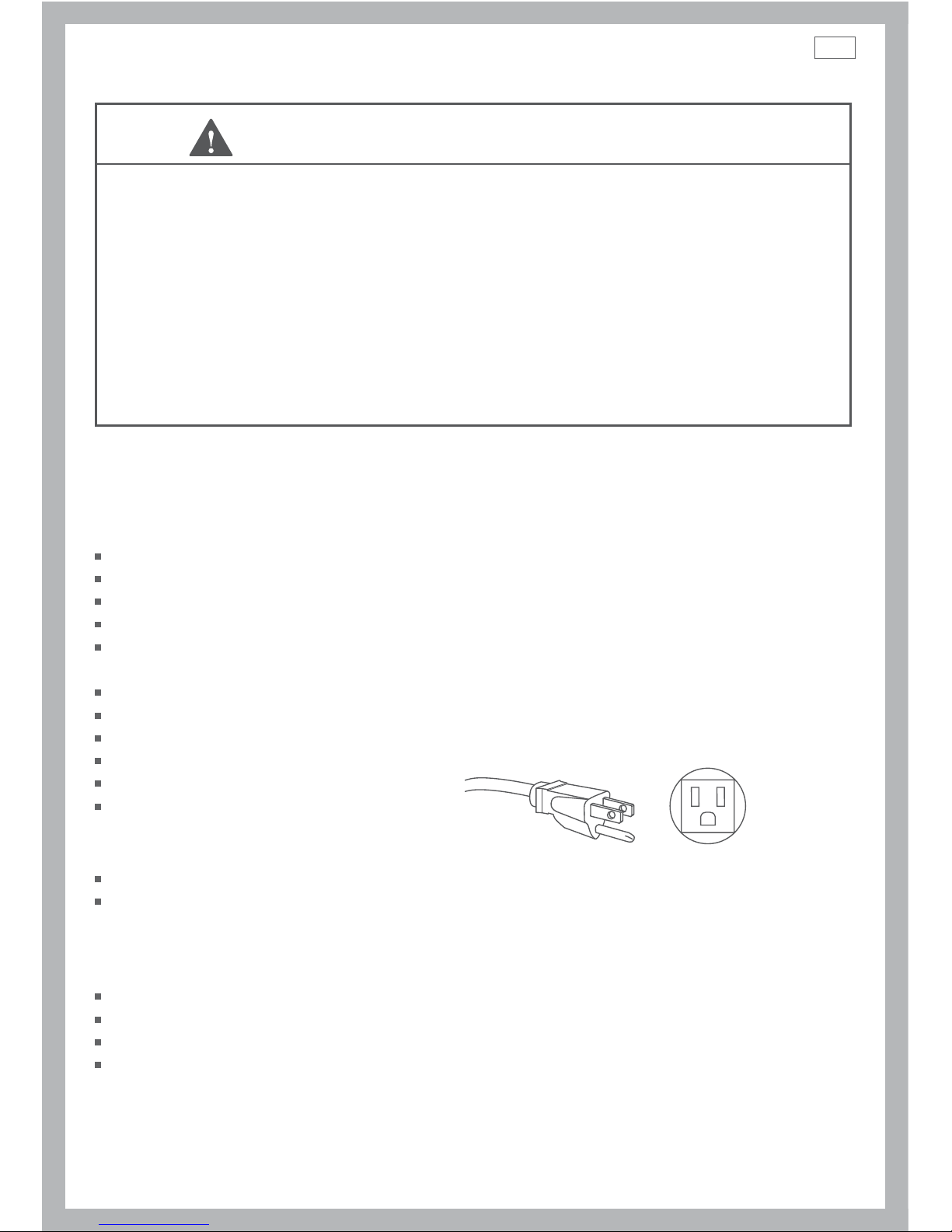

WARNING!

Electric Shock Hazard

Follow the safety precautions outlined in this User Guide.

Failure to do so can result in death or electric shock.

Important safety precautions

Read all instructions carefully before using this dryer.

Use this dryer only for its intended purpose as described in this User Guide.

To minimize the possibility of electric shock, unplug this dryer from the power supply or disconnect

the dryer at the household distribution panel (by removing the fuse or switching

off the circuit breaker) before attempting any user maintenance or cleaning.

Installations must be performed by a qualified or licensed contractor, plumber or gasfitter qualified

or licensed by the state, province, or region where this appliance is being installed.

This dryer must be properly installed and located in accordance with the Installation Instructions

before it is used.

This dryer must be properly grounded to conform with all governing codes and ordinances. Follow

details in Installation Instructions.

Do not install or store the dryer where it will be exposed to water or exposed to the weather.

Connect to a properly protected, rated and sized power supply circuit to avoid electrical overload.

Do not repair or replace any part of the appliance or attempt any servicing, unless specifically

recommended in the published user repair instructions that you understand and have the skills to

carry out.

When disconnecting the dryer, pull by the plug rather than the cord or junction of the cord plug, to

avoid damage to the cord or junction of the cord plug.

Make sure the cord is located so that it will not be stepped on, tripped over or otherwise subject to

stress or damage.

Do not tamper with the controls or the lid lock.

Note: Pressing the POWER button does NOT disconnect the dryer from the power supply, even

though the lights are out.

Do not operate this dryer if it is damaged, malfunctioning, partially disassembled or has missing or

broken parts, including a damaged cord or plug.

This dryer must be directly connected to an approved fixed electrical outlet. It cannot be plugged into

an extension cord.

Important safety instructions

WARNING!

Fire Hazard

Only dry fabrics that have been washed with water.

Do not use heat to dry articles containing foam rubber or similarly textured

rubber-like materials. Dry on the Air Dry cycle.

A clothes dryer produces combustible lint and must be exhausted

outdoors. Take care to prevent the accumulation of lint around the exhaust

opening and in the surrounding area.

Do not use fabric softeners or products to eliminate static unless

recommended by the manufacturer of the fabric softener or product.

Failure to follow these instructions can result in death or personal injury.

To reduce the risk of fire in a tumble dryer the following should be observed:

Do not place items in a tumble dryer that have previously been cleaned in, washed in, soaked

in, or spot cleaned with flammable liquids or solids. They are a fire or explosion hazard.

Highly flammable substances commonly used in domestic environments include acetone,

denatured alcohol, gasoline, kerosene, some brands of spot removers and dry cleaning solvents,

turpentine, waxes, wax removers, vegetable oil, fish oil, massage oil, and cooking oil.

Do not leave hot oil-affected items in a pile or stack. This can prevent heat from escaping and

can create a fire hazard. Oil-affected items can ignite spontaneously, especially when exposed

to heat sources such as a tumble dryer. The items become warm causing an oxidation reaction

in the oil. This oxidation creates heat. If the heat cannot escape the items can become hot

enough to catch fire.

Do not use heat to dry items containing rubber, foam rubber, plastic or similar materials, (such

as padded bras, bath mats, rugs, bibs, baby pants, plastic bags, pillows etc), as these materials

might melt or burn. Some rubber materials when heated can under certain circumstances

produce fire by spontaneous combustion. Dry only on the AIR DRY cycle.

Unless specifically recommended by their manufacturer, do not use fabric softeners or similar

products in a tumble dryer.

Do not store or use gasoline or other flammable gases and liquids near this or any other

appliance.

Keep the area around and underneath your dryer free from the accumulation of combustible

materials such as lint, paper, rags, chemicals etc.

Do not store any items that may burn or melt (such as paper materials, plastics or plastic

containers etc) next to the dryer.

Empty the lint bucket before the lint reaches the top of the transparent section (usually once a

week).

The dryer must be exhausted to the outside. Carefully follow the venting details in the

Installation instructions.

Keep the floor around your dryer clean and dry to reduce the possibility of slipping.

If your dryer is running and you want to unload or add clothes, press START/PAUSE and wait

until the machine has unlocked the lid. Do not force it open.

6Important safety instructions

Do not reach into the appliance if the drum is moving.

Close supervision is necessary if this dryer is used by or near children. Do not allow children to

play inside, around or with this dryer or any other appliance.

Never climb on, climb into, or stand on the dryer top, lid or drum.

Undergarments that contain metal reinforcements should not be placed directly in the dryer.

Damage to the dryer can result if the metal reinforcements come loose during drying.

The interior of the appliance and exhaust duct should be cleaned periodically by qualified

service personnel.

Before the appliance is removed from service or discarded remove the lid and the drum door to

the drying compartment.

SAVE THESE INSTRUCTIONS

WARNING! – Risk of fire

Clothes dryer installation must be performed by a qualified installer.

Install the clothes dryer according to the manufacturer’s instructions and local codes.

Do not install a clothes dryer with flexible plastic venting materials. If flexible metal

(foil type) duct is installed, it must be of a specific type identified by the appliance

manufacturer as suitable for use with clothes dryers. Flexible venting materials are known

to collapse, be easily crushed, and trap lint. These conditions will obstruct clothes dryer

airflow and increase the risk of fire.

To reduce the risk of severe injury or death, follow all installation instructions.

SAVE THESE INSTRUCTIONS

Read the important safety instructions on pages 3 – 6 before you start installing the dryer

Check to make sure you have all the tools and parts necessary to correctly install this appliance.

Tools required

¼’’ nut driver or socket wrench

Phillips screwdriver

Flat-blade screwdriver

Adjustable wrench 8” or 10” (200 mm or 250 mm) for gas connections

Pipe joint compound (pipe dope or tape) for gas pipe connections that is resistant to

LP Propane, Butane and Natural Gas (Gas models only)

Level

Caulking gun and compound (for installing new exhaust vent)

Gloves

Safety glasses

Knife

Duct tape

Parts supplied

2 feet inserts for front feet.

A power supply cord is supplied already connected to the gas dryer (Gas models only)

Check to make sure all parts have been supplied.

Accessories

Mobile Home Installation Kit Part No 395488

Natural Gas to LP Conversion Kit Part No 395489 (Gas models only)

LP to Natural Gas Conversion Kit Part No 395490 (Gas models only)

Kit Element 208V Part No 395500 (Electric models only)

Parts needed

If you need to purchase a power supply cord kit or power supply cable, they must meet the

requirements outlined on page 21 (power supply). Check with local codes and read electrical, gas

and venting requirements before purchasing parts.

Installation instructions

Fig.2 Power supply cord

8Installation instructions

To the installer

The correct installation of the dryer is your responsibility.

Be sure you read the following instructions carefully before you start to install the dryer. These

instructions should be left with the home owner for future reference.

It is your responsibility to:

Observe all governing codes and ordinances.

Check code requirements. Some codes limit or do not permit installation of clothes dryers in

garages, closets, mobile homes or sleeping quarters. Contact your local building inspector.

Adhere to these installation instructions.

Allow for spacing requirements with side by side installations (refer page 9).

Make sure you have all items necessary for correct installation.

Properly install the dryer.

Contact a qualified installer to ensure that the electrical and gas installation meets all national

and local codes and ordinances. (See page 4).

Location requirements

WARNING!

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from the dryer.

Place dryer at least 18 inches (460 mm) above the floor for a garage

installation.

Failure to do so can result in death, explosion, fire, or burns.

The dryer must be installed or stored in an area which is not exposed to water or weather.

It is extremely important that the dryer is installed in a well ventilated location. This dryer must

exhaust air outdoors. Do not install the dryer in any room or closet which does not permit the

free flow of replacement air.

The free area of any opening for the introduction of outside air shall not be less than twice the

area of the dryer exhaust outlet.

Before installing the dryer ensure that there is sufficient height to fully open the lid. Allow

sufficient room behind the dryer for the exhaust. The air intake is at the rear of the dryer. Ensure

that there is a sufficient air passage on each side of the dryer for intake air.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Secadora de Fisher & Paykel

Fisher & Paykel

Fisher & Paykel Smartload DEGX1 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DE7060P1 Manual de usuario

Fisher & Paykel

Fisher & Paykel SmartLoad DE62T27GW1 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DE8060P Manual de usuario

Fisher & Paykel

Fisher & Paykel AeroSmart Series Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DE09 Manual de usuario

Fisher & Paykel

Fisher & Paykel DC8060P1 Manual de usuario

Fisher & Paykel

Fisher & Paykel DH9060P Manual de usuario

Fisher & Paykel

Fisher & Paykel DE60F60NW1 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DG60FA2 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel Smartload DGGX1US Manual de usuario

Fisher & Paykel

Fisher & Paykel DG7027G1 Manual de usuario

Fisher & Paykel

Fisher & Paykel DE4024P1 Manual de usuario

Fisher & Paykel

Fisher & Paykel Intuitive DEIX2 Manual de usuario

Fisher & Paykel

Fisher & Paykel DE60F60EW1 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DH9060FS Manual de usuario

Fisher & Paykel

Fisher & Paykel DG60FA27AW2-96979 Manual de usuario

Fisher & Paykel

Fisher & Paykel Smartload DEGX1 Manual de usuario

Fisher & Paykel

Fisher & Paykel AeroSense Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DE4060M1 Manual de usuario

Fisher & Paykel

Fisher & Paykel AeroSmart DE27CW1 Manual de usuario

Fisher & Paykel

Fisher & Paykel DE8060P2 Manual de usuario

Fisher & Paykel

Fisher & Paykel Smartload DEGX1 Instrucciones de montaje

Fisher & Paykel

Fisher & Paykel DE4060M Instrucciones de montaje

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
