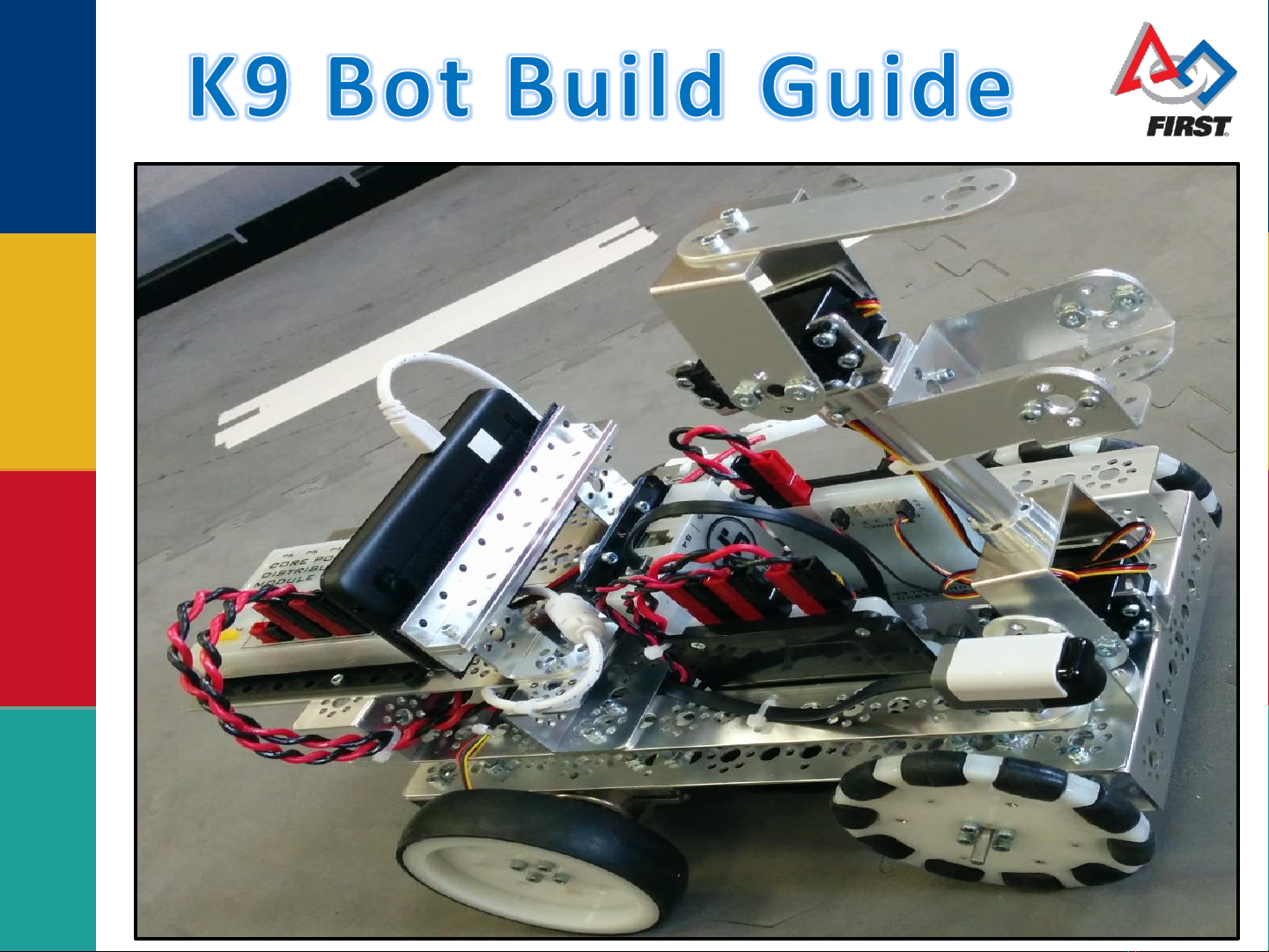

First K9 Manual de usuario
1x
1x
Attach one LEGO® hard point connector to the 166 mm C
channel.
1x
2x
Connect the LEGO® 9 hole straight beam to the hard point connecter with
the two pegs.
1x
Bolt the servo mount to the 166 mm C
channel.

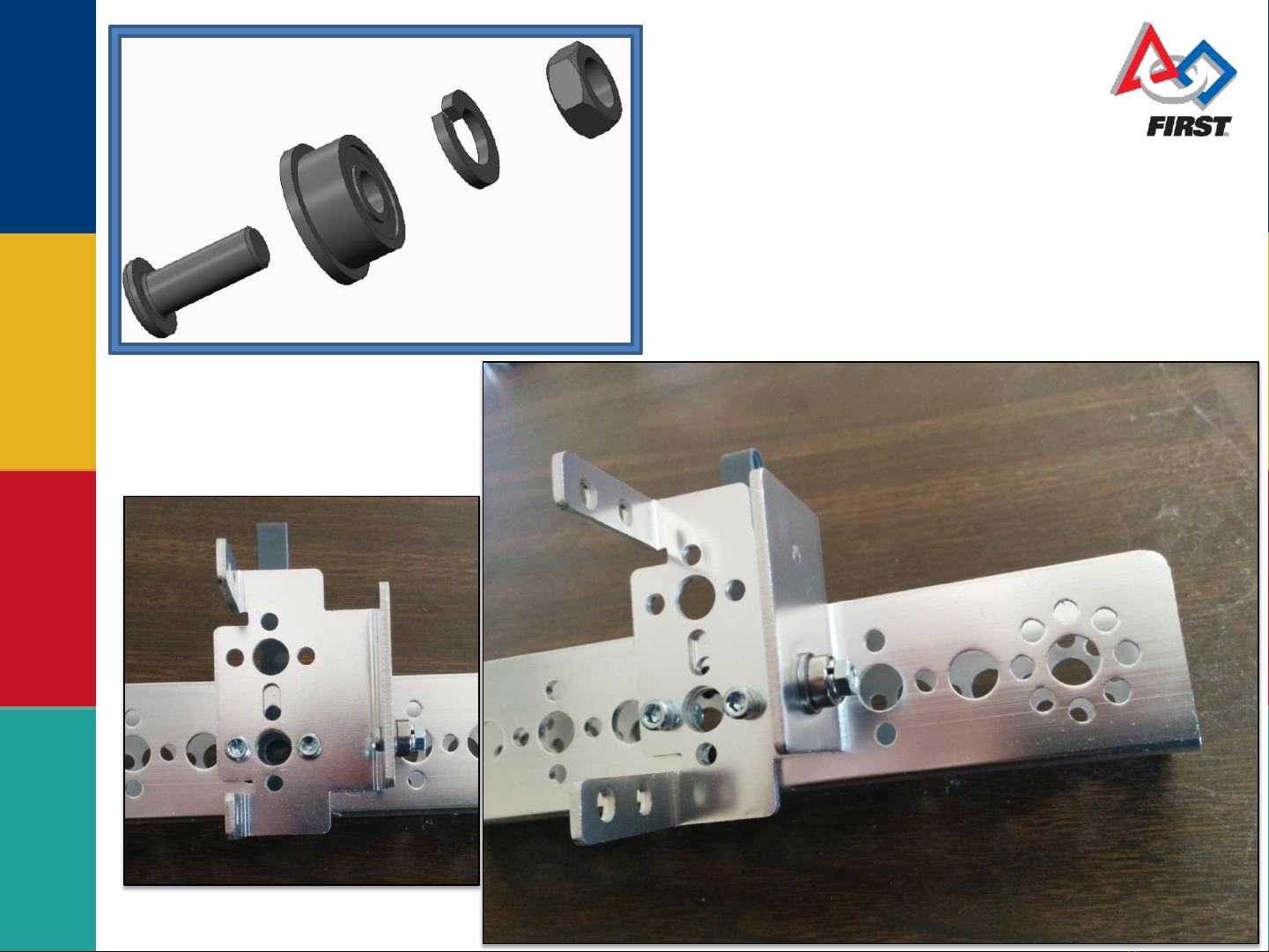

Assemble the baring package by connecting it
to the servo mount.
1x
Bolt a servo on to the
servo mount.
1x
2x
Attach two 288mm C channels
to the 166mm C channel.
1x
A second 166mm
C channel is
added to the
288mm C
channels.
The motor mounts
are connected to
the bottom of the
288mm C channels.
2x
1x
Bolt the 144mm L bracket to the
244mm C channels in front of the
motor mounts. This will be used
later to mount the 12V battery.
