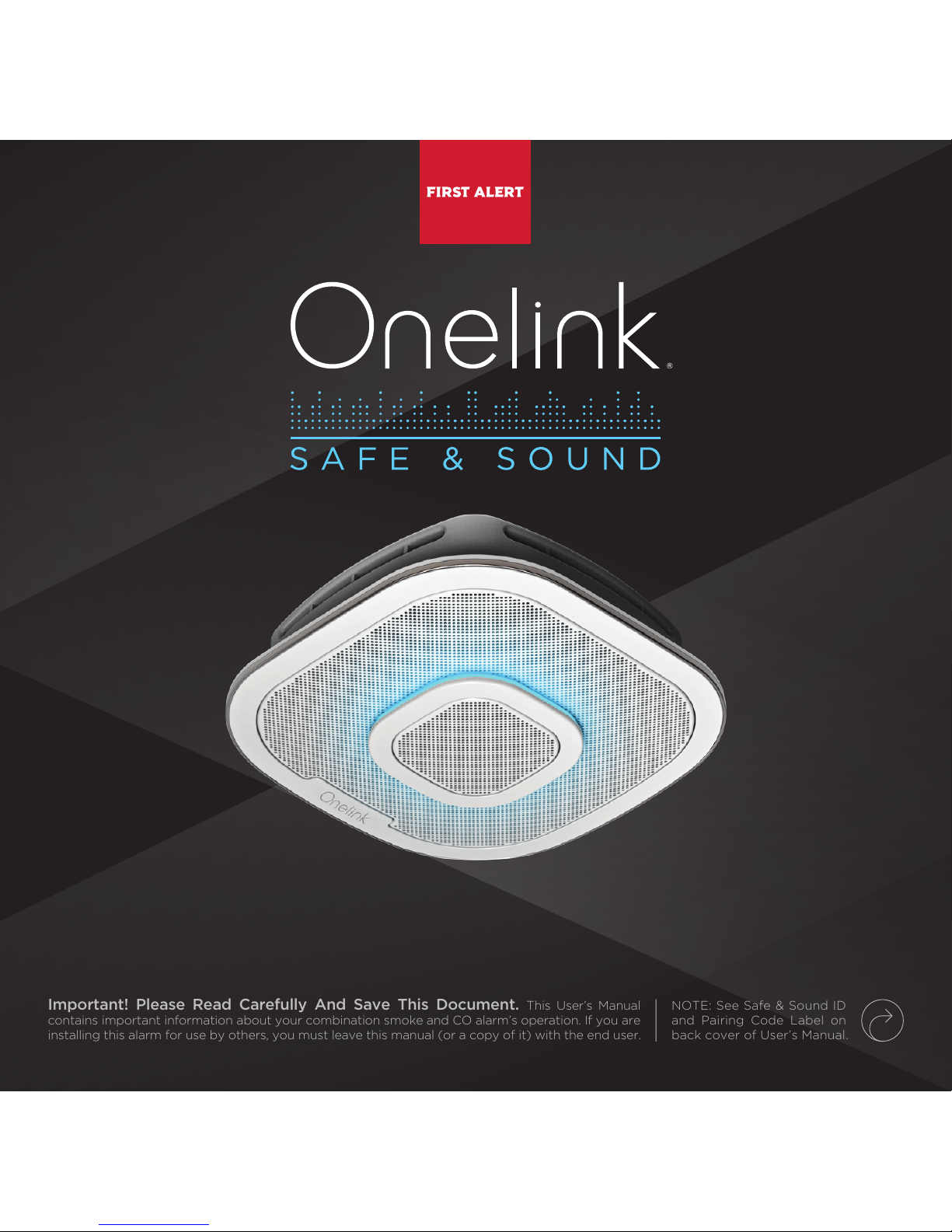

First Alert Onelink Safe & Sound Manual de usuario

User’s Manual

Important! Please Read Carefully And Save This Document. This User’s Manual

contains important information about your combination smoke and CO alarm’s operation. If you are

installing this alarm for use by others, you must leave this manual (or a copy of it) with the end user.

NOTE: See Safe & Sound ID

and Pairing Code Label on

back cover of User’s Manual.

User’s Manual Model: 1039102

Installed On

Replace By

Table of Contents

Welcome 4 - 5

Parts of This Alarm 5

Smoke & Carbon Monoxide Alarm 6

Where to Install 7

Where Not to Install 8

Setup and Installation 9 - 13

When the Alarm Sounds 14

Using the Silence Feature 15

Factory Reset 15

Weekly Testing 16

Regular Maintenance 17

Alarm End of Life 17

Ionization and Photoelectric Technology 18

Fire Safety Tips 18 - 19

What You Need to Know About CO 20

Potential Sources of CO in the Home 21 - 22

Regulatory Information 23 - 25

Special Compliance 26 - 27

General Limitations 27 - 28

Troubleshooting Guide 29

Limited Warranty 30

Welcome

Welcome to your Onelink Safe & Sound alarm. Thank you for choosing Onelink by First

Alert for your safety needs. In addition to the alarm sounds, you can receive notiﬁcations

in case of an emergency to help provide a warning of a ﬁre or carbon monoxide while you

are home or away. Please take time to read this manual and make this alarm an integral

part of your family’s safety plan. Visit onelink.ﬁrstalert.com for additional information.

Amazon Alexa

Contents

Alexa is built in the cloud, so it is always getting smarter. The more you use Alexa,

the more Alexa adapts to your speech patterns, vocabulary, and preferences with

new features continually being added. Ask Alexa to answer questions, play music,

hear the news, get weather and trac reports, control your smart home, and more.

Onelink Safe & Sound Mounting Bracket Power Connector / Adapter Plugs

Get Started

with Alexa

“Alexa, what’s in

the news?”

Junction Box Screws User’s Manual Alexa Quick Start Guide

Parts of this Alarm

System Requirements

Wireless Network Android or iOS Device Onelink Home App

Required to use a 2.4 GHz wireless

connection and a compatible

802.11 b/g/n/ac router.

You can use your Onelink Safe

& Sound with Android 5 or later

and with iOS 10 or later.

Search and download the

Onelink Home app from the

App Store or Google Play.

1. Speaker

2. Color Indicator Ring

3. Test/Silence Button

(on the side of the product)

4. Hot (black) AC Wire

5. Neutral (white)

AC Wire

6. Interconnect

(orange) AC Wire

7. Quick Connect

Power Connector

8. Mounting Bracket

9. Mounting Slots

10. Turn Alarm Clockwise

on Bracket to Attach

11. Turn Alarm Counter

Clockwise to Remove

from Bracket

Smoke & Carbon Monoxide Alarm

LED Color

Patterns Smoke / CO Events Voice Guide

Power Up Power Up

Programming, Silencing & Pairing “[Location, example: “Hallway”] Location saved.”

Testing

“The testing is complete.”

[Test Complete - interchanging to next test/Safe & Sound out of

alarm mode]

Welcome

Hello and welcome to your Onelink Safe & Sound. Download

the Onelink Home App through the App Store or Google

Play. The app will walk you through the process.

Power Indicator and Night Light N/A

Pairing N/A

Testing “This is only a test. The alarm will sound and for your protection

is very loud. The test will start in 5 seconds. 5...4...3...2...1.”

Power Indicator when

Night Light is Off N/A

Testing

“Testing smoke” [beep beep beep!]

“Testing carbon monoxide” [beep beep beep beep!]

“Evacuate, evacuate, there’s ﬁre in the [Location]!”

“Highest carbon monoxide level was 0 PPM.”

Emergency

“Evacuate! Evacuate! There is smoke [or

carbon monoxide] in the [Location!]!”

“Highest carbon monoxide level was [Number] PPM.”

Malfunction

“Error, please see users manual or contact customer service.”

“Alarm has reached its end of life. Replace your alarm.”

Low Battery N/A

Main Alexa Color Patterns For When You Are Using Alexa On Your Safe & Sound

Solid Blue with Cyan

Alexa is busy processing your request.

The device is starting up.

Half Red Mute: You have turned off the microphones on your device [tone].

*Note: Two (2) LEDs will remain red while the device is muted.

Where to Install

Minimum coverage for smoke alarms, as recommended by the National Fire Protection Association (NFPA), is one smoke alarm on

every level, and in every bedroom (See “Regulatory Information For Smoke Alarms” for details on the NFPA recommendations).

For CO alarms, the National Fire Protection Association (NFPA) recommends that CO alarms be installed on every level

and in the central location outside each bedroom. For added protection, install additional CO alarms in every bedroom.

NOTE: For added protection, install an additional smoke/CO alarm at least 20 feet (6 meters) away from the furnace

or fuel burning heat source where possible. In smaller homes or in manufactured homes where this distance cannot

be maintained, install the alarm as far away as possible from the furnace or other fuel burning source. Installing the

alarm closer than 20 feet (6 meters) will not harm the alarm, but may increase the frequency of unwanted alarms.

In General, Install Combination Smoke and Carbon Monoxide Alarms:

• On every level of your home, including ﬁnished attics and basements.

• Inside every bedroom, especially if people sleep with the door partly or completely closed.

• In the hall near every sleeping area. If your home has multiple sleeping areas, install a unit

in each. If a hall is more than 40 feet (12 meters) long, install a unit at each end.

• At the top of ﬁrst-to-second ﬂoor stairs.

• At the bottom of the basement stairs.

• For additional coverage, install alarms in all rooms, halls, and storage areas, where

temperatures normally remain between 40˚ F and 100˚ F (4.4˚ C and 37.8˚ C).

Recommended Placement

• Ceiling installation only: Place the alarm

as close to the center as possible.

• See Avoiding “Dead Air” Spaces

for more information.

NOTE: For any location, make sure no door

or other obstruction could keep carbon

monoxide or smoke from reaching the alarm.

PLACE HERE

DO NOT PLACE

IN THIS AREA

CEILING

(102 mm)

minimum

*For ceiling installation only.

Where Not to Install

Do Not Place Your Smoke & CO Alarm:

• In garages, furnace rooms, crawl spaces and unﬁnished attics. Avoid extremely dusty, dirty or greasy areas.

• Where combustion particles are produced. Combustion particles form when something burns. Areas

to avoid include poorly ventilated kitchens, garages, and furnace rooms. Keep units at least 20 feet (6

meters) from the sources of combustion particles (stove, furnace, water heater, space heater) if possible.

In areas where a 20 foot (6 meter) distance is not possible – in modular, mobile, or smaller homes, for

example – it is recommended the smoke alarm be placed as far from these fuel-burning sources as

possible. The placement recommendations are intended to keep these alarms at a reasonable distance

from a fuel-burning source, and thus reduce “unwanted” alarms. Unwanted alarms can occur if a smoke

alarm is placed directly next to a fuel-burning source. Ventilate these areas as much as possible.

• Within 5 feet (1.5 meters) of any cooking appliance. In air streams near kitchens. Air currents

can draw cooking smoke into the smoke sensor and cause unwanted alarms.

• In extremely humid areas. This alarm should be at least 10 feet (3 meters) from a shower, sauna,

humidiﬁer, vaporizer, dishwasher, laundry room, utility room, or other source of high humidity.

• In direct sunlight.

• In turbulent air, near ceiling fans or open windows. Blowing air may prevent CO/smoke from reaching the sensors.

• In areas where temperature is colder than 40˚ F (4.4˚C) or hotter than 100˚ F (37.8˚C). These areas include non

air conditioned crawl spaces, unﬁnished attics, uninsulated or poorly insulated ceilings, porches, and garages.

• In insect infested areas. Insects can clog the openings to sensing chamber.

• Less than 12 inches (305 mm) away from ﬂuorescent lights. Electrical “noise” can interfere with the sensor.

• In “dead air” spaces. See below for additional information.

• On walls.

Setup & Installation

DANGER: ELECTRICAL SHOCK HAZARD. Turn o power to the area where

you will install this unit at the circuit breaker or fuse box before beginning installation. Failure to

turn o the power before installation may result in serious electrical shock, injury or death.

WARNING: Make sure the alarm is not receiving excessively noisy power. Examples of noisy power

could be major appliances on the same circuit, power from a generator or solar power, light dimmer on the

same circuit or mounted near ﬂuorescent lighting. Excessively noisy power may cause damage to your alarm.

WARNING: Installation of this unit must conform to the electrical codes in your area; Article

760 of NFPA 70 (NEC), NFPA 72, NFPA 101; SBC (SBCCI); UBC (ICBO); NBC (BOCA); OTFDC

(CABO), and any other local or building codes that may apply. Wiring and installation must be

performed by a licensed electrician. Failure to follow these guidelines may result in injury or

property damage. This unit must be powered by a 24-hour, 120VAC pure sine wave 60Hz circuit.

Be sure the circuit cannot be turned o by a switch, dimmer, or ground fault circuit interrupter.

Failure to connect this unit to a 24-hour circuit may prevent it from providing constant protection.

Tools You Will Need:

• Needle-nose pliers or utility knife •Wire strippers

• Standard phillips screwdriver •Ladder

Before you begin, ensure the Android device is updated to 5 or later and iOS device is updated to iOS 10.0 or later, then

download the free Onelink Home App from the App Store or Google Play and follow the installation and setup instructions.

NOTE: You must enable iCloud Keychain to use Onelink Safe & Sound on an iOS device. On your iOS device, tap

Settings > [your name] > iCloud, tap Keychain and slide to turn on iCloud Keychain, follow onscreen instructions.

This smoke/CO alarm is designed to be mounted on any standard wiring junction box up to a 4-inch (10 cm)

size, on the ceiling. Read “Where to Install” and “Where Not to Install” before you begin installation.

Setup & Installation (Continued)

Installing the Mounting Bracket

Step 1 Turn o power.

Step 2 Remove existing alarm and mounting bracket (if necessary).

Step 3 Attach the Onelink mounting bracket to the junction box.

Stand-Alone Alarm Only:

• Connect the white wire on the power connector to the neutral wire in the junction box.

• Connect the black wire on the power connector to the hot wire in the junction box.

• Tuck the orange wire inside the junction box. It is used for interconnect only.

NOTE: Visit www.ﬁrstalert.com/product/safe-sound to view alarms compatible with Onelink Safe & Sound.

Strip o about 1/2" (12 mm) of the plastic coating on the orange wire on the power connector.

• Connect the white wire on the power connector to the neutral wire in the junction box.

• Connect the black wire on the power connector to the hot wire in the junction box.

• Connect the orange wire on the power connector to the interconnect wire in the junction box.

Repeat for each unit you are interconnecting. Never connect the hot or neutral wires in the junction

box to the orange interconnect wire. Never cross hot and neutral wires between alarms.

Interconnected Units Only:

WARNING: Improper wiring of the power connector or the wiring leading to the

power connector will cause damage to the alarm and may lead to a non-functioning alarm.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de seguridad de First Alert

First Alert

First Alert FA140C Manual de usuario

First Alert

First Alert ReadyGuard-REN Manual de usuario

First Alert

First Alert SC9120B Manual de usuario

First Alert

First Alert FA 270 Manual de usuario

First Alert

First Alert FA168CPS / FA168CPSSIAA168CPSSIAA168CPSSIAA168CPSSIAFA148CP / FA148CPSIAFA148CP /... Instrucciones de montaje

First Alert

First Alert FA168CPS Series Manual de usuario

First Alert

First Alert FAS-124 Manual de usuario

First Alert

First Alert 8800 Manual de usuario

First Alert

First Alert ReadyGuard-R Manual de usuario

First Alert

First Alert FA120C Manual de usuario

First Alert

First Alert First Alert CO400 Manual de usuario

First Alert

First Alert FA147C Manual de usuario

First Alert

First Alert FA168CPS Series Manual de usuario

First Alert

First Alert 3035DF Cómo utilizar

First Alert

First Alert FA1200CV Manual de usuario

First Alert

First Alert 4800 Manual de usuario

First Alert

First Alert CO600 Manual de usuario

First Alert

First Alert FA1600C Manual de usuario

First Alert

First Alert ReadyGuard-R Manual de usuario

First Alert

First Alert FA148CP Series Manual de usuario

First Alert

First Alert Hearing Impaired Strobe Lights SL177 Manual de usuario

First Alert

First Alert FA148C Manual de usuario

First Alert

First Alert CO615 Manual de usuario

First Alert

First Alert FA148CP Series Manual de usuario

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
