Fireye MBCE-110UV Series Manual de usuario



DESCRIPTION

The MBCE-110/230UV modules provide visual indication and electrical outputs that

signal the user regarding flame presence in a combustion chamber. The module uses

Fireye UV scanners to sense flame presence independently or as components in a

burner management system. Many operational characteristics are provided including:

• CE certified

• Self-contained: 110 VAC, 50/60 Hz: MBCE-110UV-1, MBCE-110UV-2

MBCE-110UV-3, MBCE-110UV-4

230 VAC, 50/60 Hz: MBCE-230UV-1, MBCE-230UV-3

• UV scanner compatible*

• Flame ON/OFF LED indicator

• 4-20mA output permits direct reading of flame signal strength

• Uses CE certified 11-pin relay base

• Panel surface or DIN-rail mounting

• Flame pull-in threshold adjustment

The module provides a cost effective method of monitoring flames using UV sensing.

The MBCE-UV is intended for non-permanent operation (burner must be recycled at

least once every 24 hours). The MBCE-UV is ideally suited for flame detection in nat-

ural gas applications; however, it can be used for flame detection in propane and light

fuel oil applications.

Check with Fireye for more details by contacting your local distributor or by check-

ing the Fireye home page at: www.fireye.com.

NOTE: When the MBCE-110/230UV modules are used, additional means must be furnished to provide

those functions usually provided by flame safeguard control systems to meet local regulations (i.e.:

safe start check, valve closure, starting and running interlocks, safety timings, etc.).

The MBCE-UV shall be powered continuously from a separate source other than the Burner control

per EN 298. * see ordering information

NOTICE: When Fireye products are combined with equipment manufactured by others and/

or integrated into systems designed or manufactured by others, the Fireye warranty, as stated

in its General Terms and Conditions of Sale, pertains only to the Fireye products and not to any

other equipment or to the combined system or its overall performance.

MBCE-110/230UV

Flame Sensor

Module

MBCE-1002

FEBRUARY 3, 2017



ORDERING INFORMATION

PRODUCT SPECIFICATIONS

Supply Voltage:MBCE-110UV - 110 VAC (+20%, -15%), 50/60 Hz

(@ 0.02 Amp consumption)

MBCE-230UV - 230 VAC (+10%, -15%), 50/60 Hz

(@ 0.01 Amp consumption)

Flame Relay Output: SPDT 1 Amp Resistive @ 110VAC, 1 Amp @ 30VDC

SPDT 1 Amp Resistive @ 230VAC, 1 Amp @ 30VDC

Flame Failure Response Time: 1 or 3 seconds-depending on part number (-1, -3) for CE

1, 2, 3, or 4 seconds-depending on part number (-1, -2, -3, -4) for UL

Operating Temperature:-40°F to 150°F (- 40°C to 65°C)

Storage Temperature: - 58°F to 185°F (- 50°C to 85°C)

Humidity: 85% RH (max), non-condensing.

Agency Approvals: MBCE-110UV UL

MBCE-230UV CE / EN298:2012

Shipping Weight: 1 lb (.5 Kg)

UV Scanner: S1 = Terminal 4

S2 = Terminal 8

UV tube excitation Terminals 4 and 8, +300 VDC (max)

IP-Rating IP-20

Test Jacks: Standby/No flame 4mA

Flame signal (Min) 5.5mA

Flame signal (Max) 20mA

PART NUMBER DESCRIPTION BULLETIN

Flame Sensor

MBCE-110UV-1 Single channel module, 110 VAC 50/60 Hz, use with UV scanner, 1 sec. FFRT. MBCE-1002

MBCE-110UV-2 Single channel module, 110 VAC 50/60 Hz, use with UV scanner, 2 sec. FFRT. MBCE-1002

MBCE-110UV-3 Single channel module, 110 VAC 50/60 Hz, use with UV scanner, 3 sec. FFRT. MBCE-1002

MBCE-110UV-4 Single channel module, 110 VAC 50/60 Hz, use with UV scanner, 4 sec. FFRT. MBCE-1002

MBCE-230UV-1 Single channel module, 230 VAC 50/60 Hz, use with UV scanner, 1 sec. FFRT. MBCE-1002

MBCE-230UV-3 Single channel module, 230 VAC 50/60 Hz, use with UV scanner, 3 sec. FFRT. MBCE-1002

Wiring Base

60-2886 Plug in wiring base, DIN rail or panel surface mount complete with retaining kit. MBCE-1002

Mounting Rails

60-2539-12 DIN style mounting rail, 12 inches, mounts up to 4 modules.

60-2539-24 DIN style mounting rail, 24 inches, mounts up to 8 modules.

60-2539-36 DIN style mounting rail, 36 inches, mounts up to 12 modules.

UV Scanner

UV90L-1 UV scanner, front and side viewing. SC-108

UV5-1 UV scanner, front and side viewing. SC-108

UV1AL-3 UV scanner, 1/2” NPT, 36” (915mm) shielded leads. SC-108

UV1AL-6 UV scanner, 1/2” NPT, 72” (1830mm) shielded leads. SC-108

4-742-1 Replacement tube for UV90L-1.

NOTICE: MBCE-UV module does not have any user serviceable parts. If the unit has a problem,

return the unit to your local distributor, or contact Fireye directly.

Adequate disconnect means and overload protection is required. A 1 amp external fuse is

recommended on terminal 10 for over-current protection.



FIGURE 1. DIMENSIONS OF DIN RAILS, WIRING BASES AND FLAME SWITCH MODULES SHOWN IN INCHES (MM)

CERTIFICATION:

The MBCE-230UV-1 & MBCE-230UV-3 have been evaluated to EN 298:2012 by DIN DVGW, and

meet the Gas Appliance Directive (2009/142/EC)

CE Certificate # CE-0085CR0115

DIN DVGW Certificate # NG-4131CR0016

DIN CERTCO Certificate # 5F249

1.4

1.38

1.06

DIN RAIL MOUNT

60-2539-12

60-2539-24

60-2539-36

L = 12" (305)

L = 24" (610)

L = 36" (914)

PART NO. LENGTH

(35)

(7.5)

(25)

(36)

(5)

(27) DIMENSIONS IN INCHES (MM)

(50.8mm) (76.2mm)

(101.6mm)

.13

DIA. TYP.

3.18

2.96 75.06

.14 3.56

1.46 37.08

1.49 37.82

1.03 26.09

STYLE: 11 pin octal, snap-mount/surface mount

TYPE OF CONNECTION: Screw connection

STRIPPING LENGTH: 10mm

SCREW THREAD: M3

WIRE SIZE: Maximum up to 2 - #14AWG each terminal

ELECTRICAL RATING: 400V, 10A

To secure MBCE-110/230UV to socket use retaining kit P/N 60-2886

NOTICE: The MBCE-UV is designed to be used with a compatible UV scanner in order to sense

the flame activity in a combustion chamber. The MBCE-UV is not designed to replace a burner

control system, and it cannot assume the responsibilities of a burner control system, including

burner safe start check.

NOTICE: Consult national or local codes for proper selection of the MBCE-UV modules. Some

codes require that the flame failure detection time should not be greater than 1 second.

WA R N I N G : The equipment described in this manual is capable of causing property damage, severe

injury, or death. It is the responsibility of the owner or operator to ensure that the equipment is

installed, operated and commissioned in compliance with the requirements of all national and local

legislation, which may prevail.

Installation, commissioning or adjustment of this product MUST be carried out by suitably trained

engineer or personnel qualified by training or experience.



FLAME SCANNERS

INSTALLATION - UV SCANNERS

Where possible, obtain the burner manufacturer’s instructions for mounting the UV scanner. This

information is available for most standard burners. The UV scanner mounting must comply with the

following general instructions:

1. Position the UV1AL, UV5, or UV90L scanner within 30 inches of the flame to be monitored.

2. Select a scanner location that remains within the ambient temperature limits of the UV Scanner.

If cooling is required, use an insulating coupling (Fireye #35-69 for UV1AL to reduce con-

ducted heat).

3. The UVlAL Scanner is designed to seal off the sight pipe up to 1 PSI pressure. Higher furnace

pressures must be sealed off. To seal off positive furnace pressure up to 100 PSI for UV1AL

Scanner, install a quartz window coupling (#60-1257). Add cooling air to reduce the scanner

sight pipe temperature.

4. Install the scanner on a standard NPT pipe (UV1AL) whose position is rigidly fixed. If the scan-

ner mounting pipe sights through the refractory, do not extend it more than halfway through.

Swivel flanges are available if desired (#60-302 for UV1AL) . The sight pipe must permit an

unobstructed view of the pilot and/or main flame. Both pilot and main flames must completely

cover the scanner field of view

FIGURE 1. AIMING YOUR SCANNER.

5. Smoke or unburned combustion gases absorb ultraviolet energy. On installations with negative

pressure combustion chambers, a small hole drilled in the UV1AL sight pipe keeps the pipe

clean and free from smoke. For positive pressure furnaces, provide clean air to pressurize the

sight pipe, if necessary.

6. To increase scanner sensitivity with UV1AL, use a union with quartz lens (Fireye #60-1290).

This should facilitate the location of the scanner at twice the normal distance. Use l/2" x 1 l/2"

pipe nipple between UV1AL Scanner and the coupling.

7. Request the assistance of any Fireye field office for recommendations of a proper scanner instal-

lation on a non-standard application.

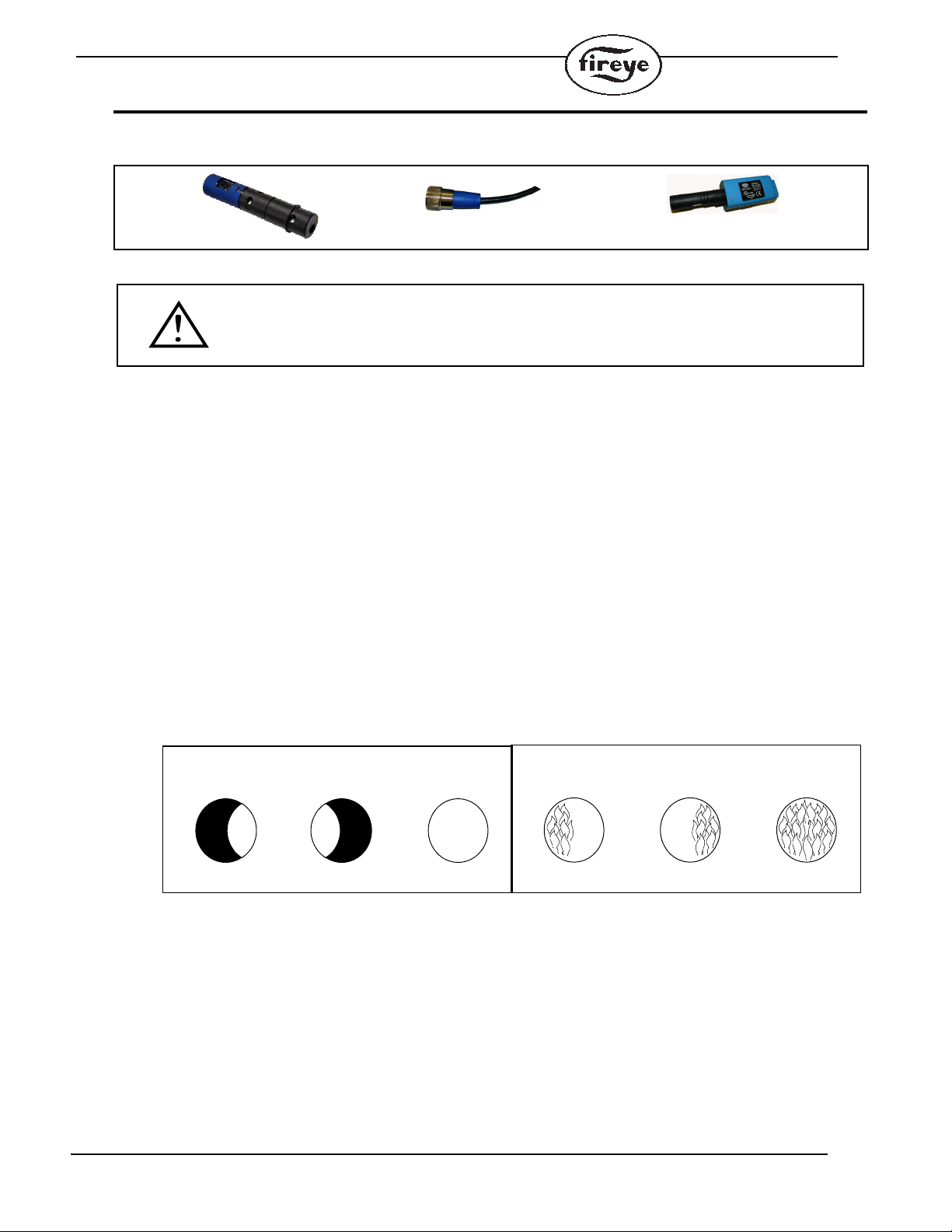

UV90L-1 UV1AL UV5-1

CAUTION: The UV90L-1, UV1AL, and UV5-1 flame scanners are non-self checking UV

sensors. Use these only on burners that cycle often (e.g.: a minimum of once every 24 hours)

in order for the external safety checking circuit to be exercised.

SCANNER MUST HAVE UNOBSTRUCTED

VIEW OF FLAME

NOT THIS NOT THIS BUT THIS

FLAME MUST COMPLETELY COVER

SIGHT OPENING

NOT THIS NOT THIS BUT THIS



FIGURE 2. TYPICAL SCANNER INSTALLATIONS

WIRING - UV SCANNERS

To connect the scanner to the control, the UV1AL Scanner is supplied with 36"(.9m) or 72" (1.8m)

of cable. The UV5-1 scanner is supplied with an 80” (2m) cable. The UV90L-1 provides field wire-

able terminal block.

If it is necessary to extend the scanner wiring, the following instructions apply:

Scanner wires should be installed in a separate conduit. The wires from several scanners may be

installed in a common conduit.

1. Selection of Wire

a. Wiring: For extended scanner wiring up to 500 feet, and for shorter lengths to reduce signal

loss, use a shielded wire (Belden 8254-RG62 coaxial cable, or equal) for each scanner wire of

UV1AL. The ends of the shielding must be taped and not grounded.

b. Asbestos insulated wire should be avoided.

c. Multiconductor cable is not recommended without prior factory approval.

2. High voltage ignition wiring should not be installed in the same conduit with flame detector

wires.

The maximum UV signal

from a flame is found in the

first one-third of the visible

flame taken from the point

where the flame begins. The

scanner sight pipe should be

aimed at this area.

DO NOT EXTEND

MORE THAN

HALF-WAY INTO

REFRACTORY

SCANNER

FORCED

CLEAN AIR

(FROM DISCHARGE

OF FAN)

METHODS OF COOLING SCANNER

INSULATING

TUBING

SEALING

UNION FORCED

AIR

EXTEND SIGHTING TUBE

6”(152.4) OR 8”(203.2)

DO NOT EXTEND MORE THAN

HALF-WAY INTO REFRACTORY

WARNING: Incorrect MBCE-UV scanner installation can result in the generation of a false

flame signal, causing unburned fuel to collect in the combustion chamber. The result can be

explosions, injuries and property damage. Be certain that the UV scanner detects only pilot

and/or main flames.



3. Route scanner wiring a sufficient distance from ignition and other high voltage or high current

wiring to avoid electrical interference. Interference from ground currents, nearby conductors,

radio-frequency emitters (wireless devices), and inverter drives can induce false flame signals.

In some applications shielded cables can help reduce interference with the shield connected to

ground at the control end only. The wire type and its capacitance (picofarads or microfarads) to

ground may cause low signal problems, so a grounded shield can decrease the signal due to the

cable's internal capacitance. Multiple sensor leads run together without shielding may cause

interference or “cross talk”, so the shield or flexible armor must be grounded to prevent this sit-

uation.

THRESHOLD ADJUSTMENT

The MBCE-UV module is equipped with a flame pull-in threshold adjustment capability. This fea-

ture allows the user to dial in the appropriate flame signal threshold for the internal flame relay to

engage. When set, the flame signal strength must be greater than the threshold before the MBCE-UV

can signal "FLAME ON".

The adjustment can be made at the front faceplate potentiometer with the aid of a small flat blade

screwdriver. A clockwise adjustment of the potentiometer decreases the flame pull-in threshold of

the MBCE-UV module allowing the MBCE to pull-in at “small” flame conditions. Likewise, a

counter-clockwise adjustment of the potentiometer increases the flame pull-in threshold of the

MBCE-UV module allowing the MBCE to pull-in at “big” flame conditions. The 4-20mA output of

the MBCE-UV module signals 5.5mA at the pull-in threshold.

0°

270°

view showing “clockwise”

adjustment - decreasing

pull-in threshold.

• Apply proper grounding technique when adjusting the threshold potentiometer

• The adjustment potentiometer is recessed about 3/8” from the surface. Do not

screw driver into the product as this may damage the product.

• Ensure that the screw driver is centered on the adjustment slot to facilitate

• Do not apply excessive force as only a minimum force is needed for adjustment.

• The overall rotational angle of adjustment is three quarter turn (270 degrees).

over extend the

proper adjustment.

NOTICE

Do not over extend.



INDICATION LEDS

The MBCE-UV Flameswitch contains two bi-color LEDs. These are used to provide flame status

and alarm conditions. See the following table.

View the LEDs through the cutout located on the top side of the unit.

Table 1:

NOTE: power cycling the unit should reset some system faults. If problem persists,

please contact local distributor or factory.

FIGURE 2. FLAME SIGNAL STRENGTH vs. 4-20mA OUTPUT

LED COLOR DEVICE STATUS

LED 1

(SYSTEM LED)

GREEN SYSTEM OK

BLINKING RED/ORANGE SYSTEM FAULT

SOLID RED/ORANGE

LED 2

(FLAME LED)

SOLID GREEN GOOD FLAME

BLINKING GREEN WEAK FLAME

BLINKING RED/ORANGE SYSTEM FAULT

SOLID RED/ORANGE

OFF FLAME OFF



WIRING BASE PINOUT INFORMATION

The following table shows the wiring information and the ratings. To guarantee proper operation, the

MBCE-UV module MUST NOT be operated above its maximum rating.

4-20mA measurements can be taken from the test jack connector located at the faceplate of the unit.

Measurements can also be taken using the dedicated 4-20mA OUT & 4-20mA COM terminals

located at the wiring base.

TERMINAL NO. TERMINAL NAME DESCRIPTION DIRECTION RATING

1(11) OPEN UNUSED N/A

2(A1) 4-20mA COM 4-20mA COMMON RETURN

3(14) 4-20mA OUT 4-20mA OUTPUT OUTPUT 28 VDC, 20mA max

4(12) S1 UV TUBE EXCITATION OUTPUT 300 VDC, 2mA max

5(22) EEARTH EARTH

GROUND

6(21) L2 NEUTRAL INPUT

7(24) L1 LINE VOLTAGE SUPPLY INPUT 110 VAC (+20%,-15%) 50/60 Hz

230 VAC (+10%-15%) 50/60 Hz

8(32) S2 UV TUBE RETURN

9(34) NO FLAME RELAY

NORMALLY OPEN (N.0.)

OUTPUT 110 VAC, 1A max

230 VAC, 1A max

30 VDC, 1A max

10 (A2) COM FLAME RELAY

COMMON

INPUT 110 VAC, 1A max

230 VAC, 1A max

30 VDC, 1A max

11 (31) NC FLAME RELAY

NORMALLY CLOSED (N.C.)

OUTPUT 110 VAC, 1A max

230 VAC, 1A max

30 VDC, 1A max

NOTICE: The 4-20mA output on the faceplate/wiring base is not evaluated for its isolation from

to the 4-20mA current loops shall be insulated from other circuits, user accessibility, and/or earth

by protective separation meeting the requirements of double or reinforced insulation (except, only

basic is required for isolation from earth) according to DIN EN/UL 61010, DIN EN 50178,

DIN EN/UL 60730-1 or DIN EN/UL 60950.

mains voltage and there is a risk of electrical shock under single fault conditions. Any connection

NOTICE: The 4-20mA return path is labeled “GND” on the faceplate. This is simply a local return

forms of ground connection. Likewise, 4-20mA COM is the return path at the wiring base and

MUST NOT be attached or referenced to earth ground or other forms of ground connection.

Only one 4-20mA loop device/PLC is allowed to be connected to the 4-20mA interface.

path for the 4-20mA current and it MUST NOT be attached or referenced to earth ground or other

The connection can be at the terminal or through the face plate. DO NOT connect loop devices

to the terminals and face plate interface simultaneously.



FIGURE 3. TYPICAL APPLICATION - MBCE-110/230UV

CAUTION: SPECIAL CONDITIONS OF USE

1The equipment, wiring base, and its enclosure are considered hazardous live parts and shall be

installed in compliance with the enclosure, mounting spacing and segregation requirements of

the ultimate application to protect the user against electric shock and the equipment against

ingress of water and dust.

2. Line voltage and extra-low voltage wiring to and from this device is intended to be wired in the

field to become part of a Class 1 circuit only.

3. A 1 amp external fuse is suggested on terminal 10 (flame relay common) for over-current

protection



NOTICE When Fireye products are combined with equipment manufactured by others and/or integrated into systems designed or man-

ufactured by others, the Fireye warranty, as stated in its General Terms and Conditions of Sale, pertains only to the Fireye

products and not to any other equipment or to the combined system or its overall performance.

WARRANTIES FIREYE guarantees for one year from the date of installation or 18 months from date of manufacture of its products to

replace, or, at its option, to repair any product or part thereof (except lamps, electronic tubes and photocells) which is found

defective in material or workmanship or which otherwise fails to conform to the description of the product on the face of its

sales order. THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES AND FIREYE MAKES NO WAR-

RANTY OF MERCHANTABILITY OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED. Except as specifically

stated in these general terms and conditions of sale, remedies with respect to any product or part number manufactured or sold

by Fireye shall be limited exclusively to the right to replacement or repair as above provided. In no event shall Fireye be liable

for consequential or special damages of any nature that may arise in connection with such product or part.

FIREYE MBCE-1002

3 Manchester Road FEBRAURY 3, 2017

Derry, New Hampshire 03038 USA supersedes May 12, 2016

www.fireye.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Fireye

Fireye

Fireye MBCE-110FR Manual de usuario

Fireye

Fireye BurnerLogiX YB110 Manual de usuario

Fireye

Fireye EP160 Manual de usuario

Fireye

Fireye FLAME-MONITOR E210 Manual de usuario

Fireye

Fireye FlameWorx MBUV-100D Manual de usuario

Fireye

Fireye MicroM Series Manual de usuario

Fireye

Fireye D30 Series Manual de usuario

Fireye

Fireye SureFire Manual de usuario

Fireye

Fireye D40 Series Manual de usuario

Fireye

Fireye YZ300 Manual de usuario

Fireye

Fireye SB Series Manual de usuario

Fireye

Fireye M4RT1 Manual de usuario

Fireye

Fireye E300 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
