FIFOTRACK A100 Manual de usuario

FIFOTRACK VEHICLE GPS TRACKER

Model: A100

Version: V1.1

www.fifotrack.com

A100 USER GUIDE

All copyrights belong to Shenzhen fifotrack Solution Co., Ltd. You are not allowed

to revise, copy or spread this file in any form without consent of fifotrack.

is trademark of fifotrack, protected by law.

Please read this user guide carefully before installation to avoid any possible

personal injury or property loss.

Revision History

Version Author Revision Date Description of change

V1.1 Cici Wu August 17, 2015 Initial revision

Related Files

Version File Remarks

V1.2

<fifotrack A100 GPRS Protocol and Command

List>

GPRS protocol between terminal and

server, command details of

GPRS/SMS/COM

V1.1 <fifotrack Parameter Tool User Guide>

PC software tool for parameters

configuration

V1.1

How to install USB cable driver

V1.1 <Firmware Upgrade Guide> How to upgrade firmware

Download link: http://www.fifotrack.com/Support/Userguide/

Related Software

Version

Software

Remarks

V1.0

< Parameter Tool >

Parameter configuration tool on PC

V1.11.0 < PL2303_Prolific_DriverInstaller > Driver for USB cable

V1.0 < Firmware Upgrade Suite> Tool for firmware upgrade

Download link: http://www.fifotrack.com/Support/Userguide/

A100 USER GUIDE

Contents

1 Product Overview.......................................................................................................4

2 Product Functions.......................................................................................................4

2.1 Tracking Functions ........................................................................................................... 4

2.2 Alarms.............................................................................................................................. 4

2.3 Other Functions ............................................................................................................... 5

3 Product and Accessories ............................................................................................5

3.1 Standard Packing Box....................................................................................................... 5

3.2 Optional Accessories........................................................................................................ 5

4 Product Appearance...................................................................................................6

5 PCB Overview and Hardware Design.........................................................................7

5.1 Hardware Design Highlight .............................................................................................. 7

6 LED Light .....................................................................................................................8

7 Specification ...............................................................................................................8

8 First Use ......................................................................................................................9

8.1 Charging ........................................................................................................................... 9

8.2 Installing the SIM Card..................................................................................................... 9

8.3 Installing GSM/GPS Antenna ......................................................................................... 10

8.4 Tracking by Calling ......................................................................................................... 10

8.5 SMS Reply Contents Example ........................................................................................ 11

8.6 Tracking by SMS Command - C01 .................................................................................. 12

8.7 Configuration by PC ....................................................................................................... 13

8.8 Platform Tracking........................................................................................................... 13

9 Device Installation ....................................................................................................14

9.1 I/O Installation ............................................................................................................... 14

9.2 Power/Ground Cable ..................................................................................................... 15

9.3 Positive/Negative Digital Input（IN1/IN2/IN3）.......................................................... 15

9.4 Analog Input( AD) .......................................................................................................... 15

9.5 Output control (out1/out2) ........................................................................................... 16

9.6 Installing Microphone or Speaker (Optional) ................................................................ 16

A100 USER GUIDE

1 Product Overview

A100 is a multifunctional model which is suitable for fleet management, public transportation

management, school bus management, taxi operation management, vehicle insurance company

management, rent car management and private car antitheft, etc. It can integrate with different

sensors and collect the specific data as per customers’ requirements. Besides, A100 has core

functions to meet users’ demands, such as harsh acceleration/braking alarm, driving behavior

analysis, custom digital input, jamming detection, two-way calling and OTA. A100 uses own

FIFOTRACK GPRS PROTOCOL which is simple and practical, this enables the customers to integrate

on their own platform efficiently.

2 Product Functions

2.1 Tracking Functions

GPS+GSM Base Station Dual Tracking

Real Time Tracking

Time Interval Tracking

Distance Tracking

Direction Change Tracking

Mobile Phone Tracking

2.2 Alarms

SOS Alarm

GPS Antenna Cut Alarm

External Power Cut Alarm

Engine/Door Status Alarm

Maintenance remind

GEO-Fence Alarm

Speeding Alarm

Idling Alarm

Fatigue Driving Alarm

Harsh Acceleration Alarm

Harsh Braking Alarm

Parking Overtime Alarm

A100 USER GUIDE

GPS Jamming Alarm

GSM Jamming Alarm

Internal Battery Low Alarm

External Battery Low Alarm

2.3 Other Functions

Stop Car Remotely

Fuel monitoring

8 MB Flash Memory

Custom Digital Input

Detect ACC Status to Inhibit Static Drift

OTA

Uploading Mode Settings for ACC ON/ACC OFF

Roaming Time Interval Setting

Mileage And Running Time Settings

Voice monitoring (Optional)

Two-way Calling (Optional)

3 Product and Accessories

3.1 Standard Packing Box

Main Unit Wire GPS Antenna GSM Antenna

3.2 Optional Accessories

USB Cable Relay Microphone Speaker

A100 USER GUIDE

AS10 Fuel sensor

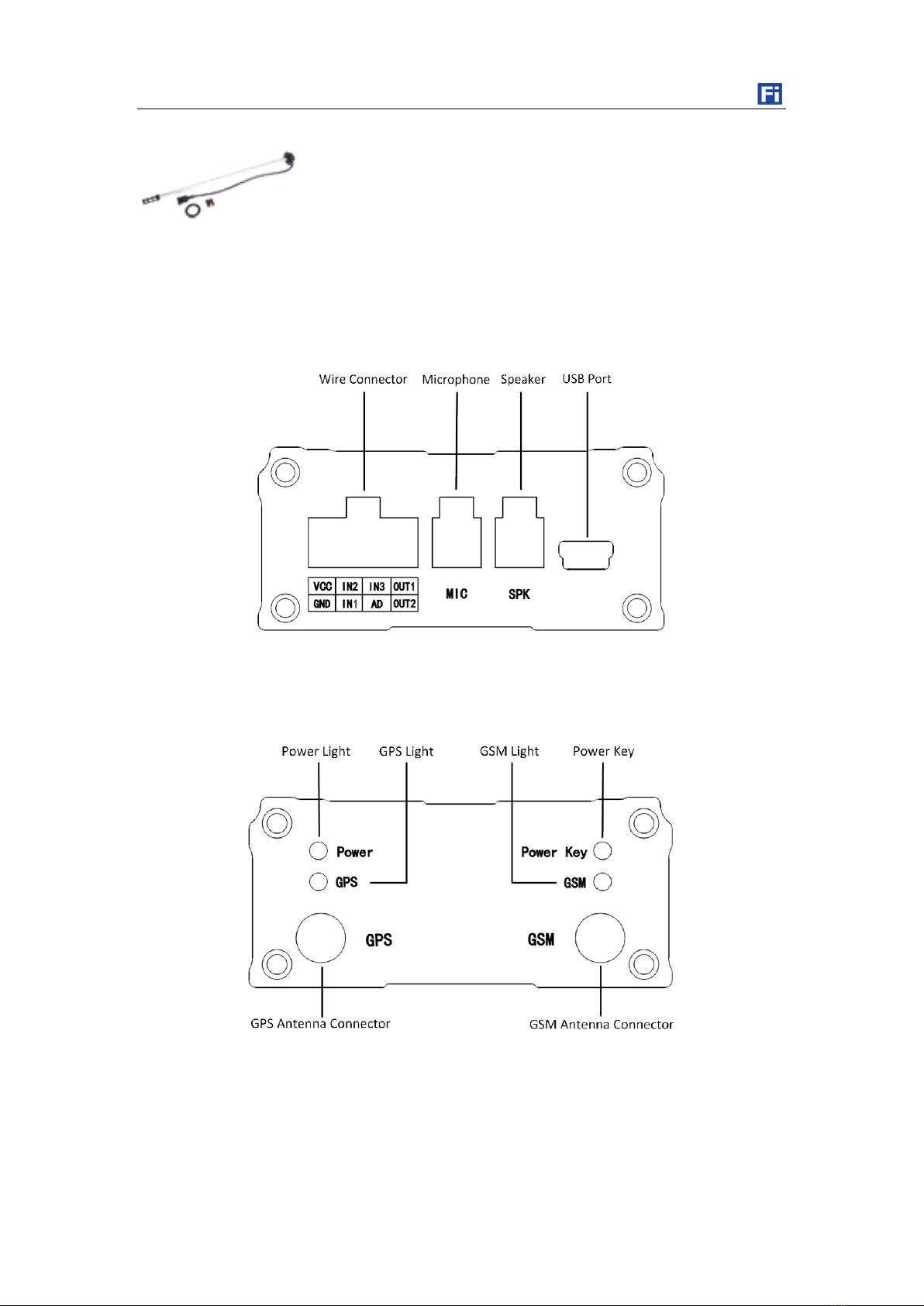

4 Product Appearance

A100 USER GUIDE

5 PCB Overview and Hardware Design

5.1 Hardware Design Highlight

Protection for sudden-change of auto power supply: When the vehicle starts or is running, the

power voltage will have a wave of change. Our product supports voltage 11V-36V. When the

external power supply is below 10.5V, with low voltage detection, it will be automatically cut. When

external power supply is over 36V or has high voltage peak, the product will trigger high-voltage

protection through clamping, anti-pulse, and high voltage detection. This ensures the product to

operate normally under high voltage.

Auto power transient pulse: When the vehicle starts or is running, it will generate high-voltage

transient pulse with a range of hundreds of volts. If the product’s circuit is not well designed, it is

very easy to get damaged, and can’t be used. Through multistage transient pulse protection and

anti high-voltage surge protection, the product’s power circuit is well protected, and it can operate

stably.

Electromagnetic immunity: When the vehicle starts, the clock, RF, display screen and USB are very

easy to be interfered by electric spark, which causes the product to operate unstably. Through PCB

layout and ground wire handling, the product can work stably under interfered environment.

Anti static: The vehicle product’s working condition is complex. It is very easy to be influenced by

static, which causes damage to the product’s peripheral interfaces. Through ESD protection on

A100 USER GUIDE

circuit and ground wire handling, the static in the range of 8KV-15KV won’t cause damage to

product. This ensures the product’s stability under complex working condition.

6 LED Light

GPS Light (Green)

Off Power off or sleep

Flash 0.1s on and 3S off GPS valid

Flash every 0.1s GPS antenna cut

Flash 2s on and 2s off

No GPS signal

GPS module power problem

GSM Light (Orange)

Off

Power off or sleep

Flash 0.1s on and 3s off GSM available

Flash every 0.1s Device is initialing

Flash 2s on and 2s off No GSM

External Power Light (Red)

Off External power cut

Flash every 0.1s External power low

External power normal

7 Specification

Item

Specification

Dimension 90*60*27mm

Weight 140g

GSM Module SIMCOM800

GPS Module U-blox7Q

Input Voltage DC 11~36V/1.5A

Internal Battery 600mAh/3.7V

Power

Consumption

30-35mA standby current

Internal Battery Life

15 hours in sleep mode, and 6 hours in normal working mode.

Operating

Temperature

-20

℃

~70

℃

Humidity 5%~95%

LED Light 3 LED lights indicating GPS/GSM/External power status

Button/ Switch 1 SOS Button, 1 power switch

Flash Memory 8MB (GPRS data 16000 units, SMS data 4000 units)

A100 USER GUIDE

Sensor 3D Accelerator Sensor

GSM Frequency

Band

GSM 850/900/1800/1900MHz

GPS Sensitivity

-161dBm

GPS Start Speed Cold start 35s

Hot start 1s

Position Accuracy

10m

I/O Port

3 Digital inputs - 1negative input, 1positive input, 1custom input

(Default positive input)

1 Analog input,voltage range is 0-12V

2 Output

1 Microphone port

1 Speaker port

1 USB port

8 First Use

8.1 Charging

First time use A100, please connect positive wire(+ Red) and ground wire(-black) to 12V or 24V

external power supply, charging device at least 2 hours, 3 hours is suggested. Before installation,

ensure all of the parameters setting and test are finished.

8.2 Installing the SIM Card

Device can’t support 3G or 4G network. Make sure the SIM card supports 2G.

Ensure the SIM card has enough balance.

Ensure PIN code has been closed.

Authorization SOS numbers can’t work well if SIM card doesn’t have caller ID service. E.g.:

device can’t reply SMS to authorization SOS number because SIM card can’t identify incoming

call.

SIM card should have GPRS function for platform tracking.

Turn off device before SIM card installation.

A100 USER GUIDE

8.3 Installing GSM/GPS Antenna

Connect GSM Antenna to SMA connector with “GSM” silk. The GSM antenna’s signal is

omnidirectional, you can hide it anywhere that is far from the power supply.

Connect GPS Antenna to SMA connector with “GPS” silk. GPS antenna should face to the sky for

stronger GPS signal reception, and the silvery silk side should be downward. Fix GPS antenna with

double sided tapes for stable signal reception.

Don’t install the GPS antenna where shielded by metal. For example, inside a metal can.

8.4 Tracking by Calling

Call the SIM card number inside A100, you will get a SMS reply with Google map link. Click it for

Insert SIM card into SIM card slot

Make sure the chip

is facing to PCB. Pay

attention to the cutaway angle direction of SIM

Close front cover and lock the screw

Screw off and open the front cover
