Fiamma F45eagle Guía de configuración

Awnings

Repair instructions EN

KIT UPGRADE

F45eagle

98655A017

FIAMMASTORE

2

3x

AB

1x

C1x

D

1x

PACKAGE CONTENTS

Package contents / Necessary tools p. 2

Installation instructions p. 4

Safety instructions p. 19

Warranty p. 19

A. Fuse holder

B. Plastic rivet

C. Aluminium rivet

D. New winch (grey)

8 mm

ø 3,5 mm

Crank

Handle

FIAMMASTORE

3

Characteristics

Power Supply 12 V

Absorption 12 A

Absorbed power 144 W

Protection fuse T 6,3A L 250V

VIDEO TUTORIAL

hiips://www.ﬁ amma.it/videotutorial/f45

NECESSARY TOOLS

FIAMMASTORE

4

1

2

Check that nothing has been damaged or deformed during shipping.

In the event of doubts or questions concerning the installation, use or limitations of the product, contact the

dealer. We recommend that the installation is carried out by qualiﬁed personnel and in compliance with current

local regulations.

WINCH REPLACEMENT

Warning: before starting, when the awning is closed, remove the 12 Volt

power supply

Install fasteners or safety belts, or alternatively, keep the lead bar closed with adhesive tape

(removable). The operation of the winch replacement can be carried out either with closed

awning, but with safety fasteners, or with the awning open. We recommend performing

the repair with the awning closed as it makes, the next operations for centring the winch

easier. If adhesive tape is used, position it so that it adheres well to the aluminium (pulling

the lead bar does not move).

FIAMMASTORE

5

3

3x

1x

Take off the front cover from the Motor Kit removing the plastic rivets (by using a

screwdriver). If the aluminium rivet is in place on the cover, remove it using the drill with the

tip 3.5 mm.

FRONT COVER

8 mm

FIAMMASTORE

6

4

5

Remove the attaching screws from the rear cover.

Take the 8 mm combination wrench and the ratchet wrench with the 8 mm socket and

unscrew the ﬁxing screws securing the engine frame, holding ﬁrmly with one hand, the part

that will be removed.

REAR COVER

FIAMMASTORE

7

6

7

Take off the winch assembly (winch + ﬂange). Pull out the planetary gearbox.

Marking the position of the screws with a marker (these marks will be used to mount the

new winch on the ring nut).

WINCHENGINE GROUP RING NUT

FIAMMASTORE

8

8

9

NEW WINCH

COLOUR: GREY

D

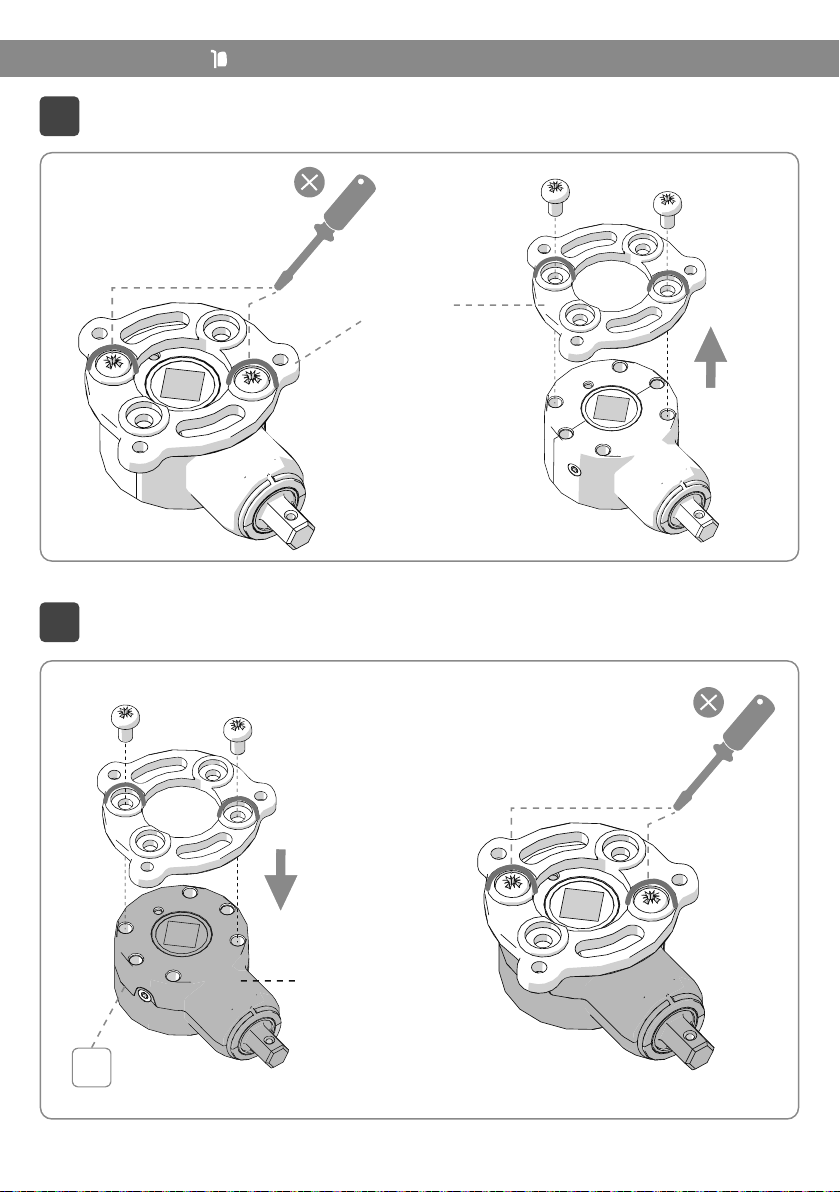

Remove the ring nut from the winch (white).

Replace the new winch (grey) on the ring nut, aligning it using the marks previously made

with the marker.

RING NUT

FIAMMASTORE

9

10

11

Before reassembling the group winch, move the engine group close to the planetary

gearbox, to see if there is proper alignment between the gearbox pin and internal compass

on the winch.

Reﬁt the whole winch assembly, while holding the gearbox square and taking care to

ensure the alignment of the pin with the sleeve of the motor kit group.

GEARBOX PIN

FIAMMASTORE

10

12

8 mm

Holding the winch assembly with one hand, tighten the ﬁxing screws securing the motor

unit.
