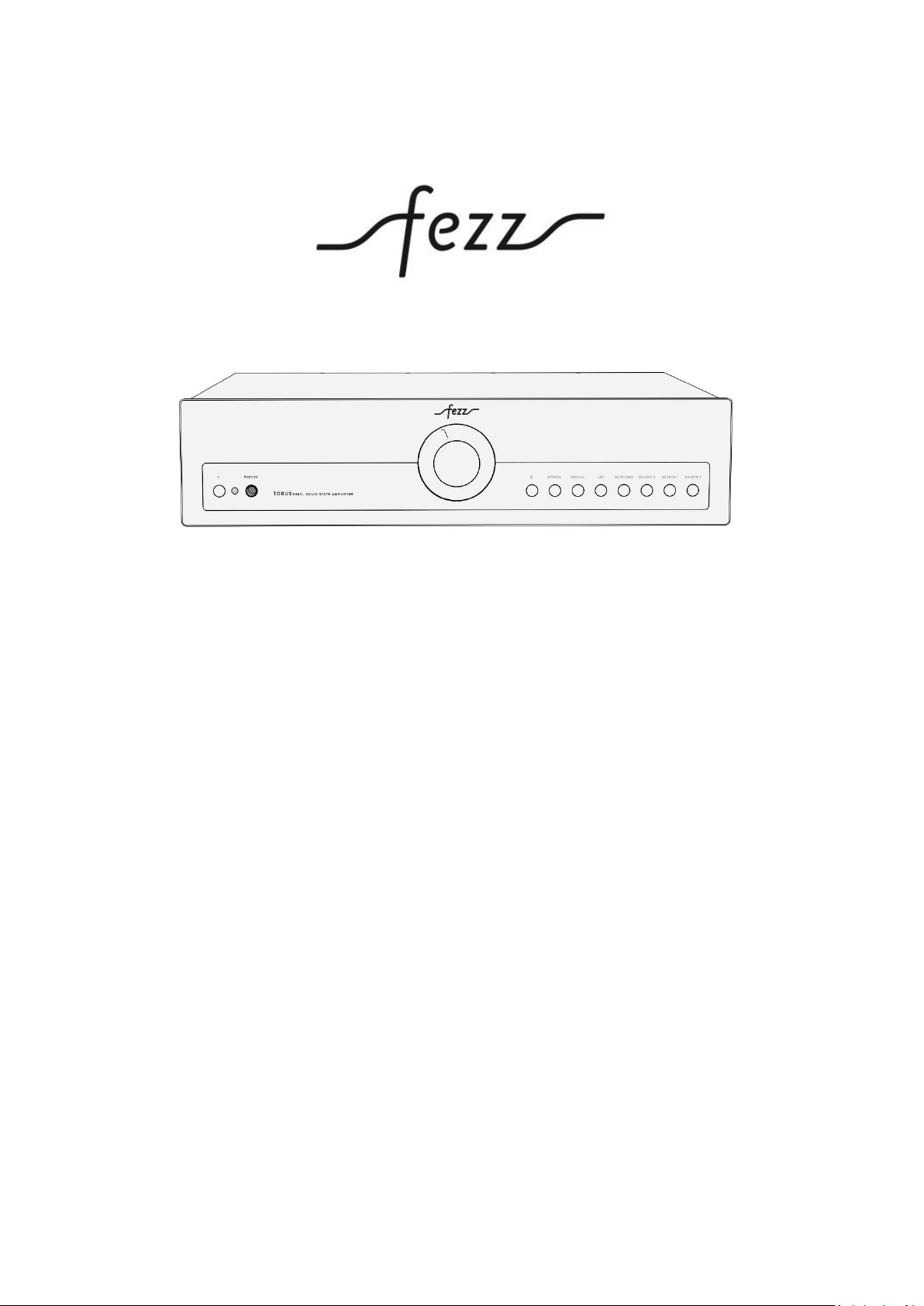

Fezz Audio Torus 5060 Manual de usuario
Torus
5060 / 5050 / 5040
USER’S MANUAL
2
SAFETY TIPS______________________________________________
•Never place the Fezz Audio Torus amplifier near heat sources, such as radiators,
heaters or direct sunlight. Ensure adequate ventilation and airflow
•We also warn against exposure of the amplifier to conditions such as very low
temperatures and/or high humidity.
• The amplifier should be plugged directly into a wall socket. If you must use an
extension cord, please make sure that it has load parameters sufficient to ensure
proper handling of current delivery to the device.
• When cleaning, always disconnect the Torus from the power source. Use a dry, soft
cloth. Do not use water or cleaning agents.
• If your amplifier starts to misbehave or to work incorrectly, if it’s temperature gets
too high or you start feeling smoke - immediately disconnect the device from the
mains.
• Due to the risk of exposure to high voltages – please do not open the lid of the
amplifier. ATTENTION: This warning remains in force also in a situation where the
device is already disconnected from the wall outlet.
• Always replace fuses in accordance with the original, intended specification.
• Do not make repairs on your own, or adjustments beyond those as described in this
manual. Execution of any unauthorized repairs or modifications of the device result in
a loss of warranty.
3
TABLE OF CONTENTS_______________________________________
SAFETY TIPS 2
INSTALLATION OF THE DEVICE 4
Unpacking 4
Contents of the package 4
Where to place the amplifier 4
Description of elements of the amplifier 5
INTERCONNECTIONS 6
FIRST POWER-UP AND GETTING STARTED 7
OPTIONAL EQUIPMENT 7
Remote control 7
TROUBLE-SHOOTING GUIDE 8
TECHNICAL DATA 8
DECLARATION OF CE CONFORMITY 9
W
YGRZEWAN
IE WZMACNIACZA ___15___
WARUNKI GWARANCJI OGRANICZONEJ ___18___
4
INSTALLATION OF THE DEVICE_______________________________
UNPACKING
Please kindly check if the packaging of the Torus amplifier has not been damaged during
transit. If you find any damages, please immediately contact your dealer. Remove the
preamplifier and accessories from the packaging. Make sure that the content is not damaged.
Please do not dispose of the original packaging, so as to facilitate possible shipment of the
device in the future.
CONTENTS OF THE PACKAGE
The package should contains:
•Fezz Audio Torus amplifier
•power cord
•user’s manual
•remote control (5050 & 5040 optional)
If any of the above items are missing in your package, contact your dealer immediately.
WHERE TO PLACE YOUR AMPLIFIER_______________________
Always provide adequate ventilation for your Torus amplifier. Cool operation ensures the
longest possible operating life for any electronic equipment. Do not install the Torus
amplifier directly above a heat generating component such as a high powered amplifier.
5
DESCRIPTION OF ELEMENTS OF THE AMPLIFIER
1 ) RCA line inputs
2 ) Speakers terminals
3 ) Bluetooth antenna
4 ) IEC power supply cord socket
5 ) Mains switch
6 ) Fuse compartment
7 ) Bluetooth ON/OFF switch
8 ) DAC inputs
9 ) Phono stage ON/OFF switch
10) Phono ground
11) Preamp inputs with ON/OFF switch
12) Cassette tape deck record output
13) Subwoofer output
8)
1 ) Power switch
2 ) IR remote
3 ) Phones input
4 ) Volume knob
5 ) Source select buttons
6
CONNECTIONS____________________________________
The figures above shows the rear panel view of the Fezz Audio Torus amplifier, together with
the description of the basic inputs and outputs allowing for connection of the elements of your
audio system.
Follow the instructions below to connect Your sound system correctly.
STEP 1 / CONNECT LOUDSPEAKERS
Important Note: When using a banana plug, make sure the speaker terminals are completely
tightened before inserting the plug.
7
Please connect the wires from your left channel loudspeaker to the Left + & - terminals, and the wires
from the right channel loudspeaker to the Right + & - terminals. In each case, the red terminal is the
positive output and the black terminal is the negative output. Please ensure no stray strands of wire
short the speaker outputs together. Please ensure that the loudspeaker terminals have been
tightened completely to provide a good electrical connection.
STEP 2 / CONNECT THE ANALOG SOURCES
These inputs (1-4) are suitable for any 'line level' source equipment such as CD players, DAB or
FM/AM tuners etc.
Note: These inputs are for analogue audio signals only. They should not be connected to the digital
output of a CD player or any other digital device.
The quality of the connecting cable is important. Please pay attention to the output cable quality as it
can have an impact on the performance qualities of the sound.
STEP 3 / CONNECT THE TURNTABLE
8
Torus amplifier is eqipped with MM/MC HO PHONO STAGE SECTION. You can connect turntable
directly to the source number 4.
This input is switchable. To activate the phono stage please switch the phono button (9)
Important - Do not operate the phono switch with the volume control turned up.
STEP 4 / CONNECT DIGITAL COURCES
Torus amplifier is eqipped with high quality digital – analogue converter ( DAC )
USB, OPTICAL, CO-AXIAL digital inputs. For coaxial connection – please use a high quality 75 ohm
digital RCA Phono interconnect cable (not one designed for normal audio use). This input is suitable
for 16/24 bit content up to 192kHz.
TOSLINK S/PDIF Optical – Use a high quality TOSLINK fibre optic interconnect cable designed
specifically for audio use. This input is suitable for 16/24 bit content up to 192kHz
USB AUDIO IN - B type socket is installed to the Torus to enable the playback of audio from a
personal computer running Microsoft Windows OS.
Bluetooth audio streaming - selecting this funcion allows Torus to receive Bluetooth audio from most
phones, tablets and laptops. Please turn the bluetooth power ON switch (7). Next step is pairing.
PAIRING
To start streaming high quality music from your device it will first need to be paired with the Torus.
Turn the Bluetooth mode ON (on your device) and scan for Bluetooth devices. You will see “Fezz
Audio” on the device list. Select, connect and pair both devices.
9
STEP 5 / OTHER AUDIO SIGNAL CONNECTIONS
TAPE OUT – line signal output for recording by the external tape deck. Tape out is a fixed volume
output.
SUB OUTPUT - connect to the input on an active subwoofer if required.
PREAMP INPUT - for connection to the unbalanced inputs of a power amplifier. To activate preamp
input, please push the switch located next to the preamp inputs.
STEP 6 / CONNECT THE POWER SUPPLY CORD
Make sure that the amplifier is switched off. Connect the power cord to the IEC socket (4) on
the rear panel of the preamplifier.
The preamplifier is designed to operate at a rated voltage of 230V / 50Hz. Connecting the
device to a mains network with incorrect parameters can lead to damage that is not covered
by manufacturers warranty.
FIRST POWER-UP AND GETTING STARTED______________________
Make sure that all of your wiring is connected in accordance with the information as provided
above.
Set the volume control to minimum. Turn on the mains power at the back of the Torus
amplifier. (5) After this time the light will turn red. Push power buton (1) to turn-ON the
10
amplifier. Make sure the sound source is turned on, select source number, then gradually
increase the volume level by turning the potentiometer.
OPTIONAL EQUIPMENT_________________________________
REMOTE CONTROL
The IR remote control enables adjustment of the volume level, selecting sources and power
ON/OFF the amplifier.
TROUBLE-SHOOTING GUIDE_________________________________
If your amplifier does not work as it is supposed to, it is fairly easy to diagnose and remedy
some of the common malfunctions, by following procedures as outlined in this following.
THE PROBLEM
PROBABLE REASON
THE SOLUTION
After turning the power switch to the ON
position, the amplifier does not switch on.
A blown fuse
Please exchange to faulty fuse to a new one
(3,15 T), within the fuse holder as depicted
with index 6 on page 6 of this user’s
manual.
An improper connection of the mains cable
Please check if the plugs of the mains cable
are properly inserted into the electrical
mains socket and to the socket as depicted
with index 5 on page 5 of this user’s
manual.
If You have verified the aforementioned situations, and your problem still persists, please
contact Your local Fezz Audio dealer.
