CBS-2021eSeries

Programming Guide

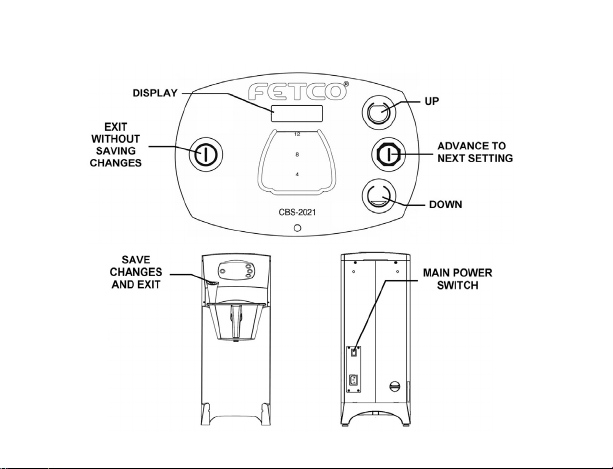

Controls

Programming Mode

 To enter Programming mode, turn the main power switch OFF.

(The main power switch is on the back of the unit.)

 Press and hold the STOP button while turning the main power

switch ON.

 Release the STOP button when the software version is displayed.

Example: VER 32.A

 The STOP button is used to advance from one setting to the next.

It is illuminated green when in Programming mode.

 The BREW buttons are used to change each setting up or down.

 To exit Programming, press and hold the HOT WATER button for

approximately 2 seconds.

 The ON/OFF switch may be used to exit programming without saving

new settings.

Batch Settings

 Press STOP to continue.

 Batches are numbered

1(top switch)

and 2(bottom switch)

 Next, the first batch parameter is displayed – batch 1, brew volume

Use the UP and DOWN buttons to adjust. Display: 1.1 64

• Press the STOP button to go to the next parameter – brew time.

Display: 1.2 04.00

 Repeat the last step until all parameters are programmed for batch #1.

(See the chart below for an explanation of each parameter.)

 Next, batch #2 programming begins. Display: 2.0 OFF

Batch 2 may be disabled by leaving it set to “OFF”.

Change to “ON” to enable. Batch 1 cannot be disabled.

 After both batches are programmed, the temperature settings are next.

Display: 7 200

Batch Parameters (X = Batch Number)

Parameter Name Range Default Comment

X.0 Batch Enabled

or Disabled

On/Off On This option is for batch

2 only.

X.1 Brew Volume

ounces:

liters:

32 – 80

0.92 – 2.32

64 oz.

1.9 ltr.

To change from ounces

to liters, see Advanced

Setting 59.

X.2 Brew Time

(Min: Sec)

01:30 –

05:00

04:00

X.3 Bypass Percent Off – 30% Off Percentage of total

brew volume.

X.4 Prewet Percent Off – 25.% Off Percentage of total

brew volume.

X.5 Prewet Delay

(Min:Sec)

00:00 –

03:00

00:00 The time between

prewetting and start of

brew cycle.

X.6 Drip Delay

(Min:Sec)

01:00 –

03:00

1:30 The time to allow for

dripping after the brew

cycle.

Temperature Settings

Parameter Name Range Default Comment

7 Water Temp.

176°-

204°F

201°F Inside tank. Will be slightly

lower at spray head. To

display in Celsius, see #

58 in Advanced Settings.

8 Hot Water

Service

Auto

Off

ON Auto= Faucet will

dispense only

when not brewing.

On=Faucet always

enabled.

Off=Faucet always

disabled.

9 Brew

Temperature

Protection

On / Off On ON= Will brew only at set

temperature.

OFF= Will brew at any

temperature.

Note: Changes will not

take effect until the

next brew cycle is

complete.

10 Enter Advanced

Settings &

Diagnostics

On / Off Off OFF = Skip Advanced

Settings & Diagnostics.

Loop back to start of batch

programming.

ON = Enter Advanced

Settings & Diagnostics.

Press STOP to continue.

Important! After programming, you must press and hold the HOT WATER

button to save the settings and exit programming mode, or

changes will be lost.

Advanced Settings and Diagnostics

Address Description Range Default Comment

50 Water Resistance

(KΩ)

0 - 200 Displays the electrical

resistance of the water in

kilohms as measured

between the water level

probe and the tank. If

greater than 200, or if the

tank is not full, the display

will read – – – .

51 Water Level

Sensitivity

LO - HI LO LO – 50 KΩ+/- 5KΩ

HI – 130 KΩ+/- 5KΩ

If water resistance (address

50) is greater than 25 KΩ,

set on HI to prevent

unwanted filling of tank.

55 Tank

Temperature

XXX°X Displays current tank

temperature in °F or °C.

57 Reload Defaults 0 - 1 0 Changes all settings to

default factory settings.

0 = Do not reload defaults

1 = Reload all defaults

If 1 is selected, you must

advance to the next

address for this change to

take effect.

58 Temperature

Scale

F or C F F = Fahrenheit

C = Celsius

59 Water Volume

Scale

oz or

LTR

oz oz = Displays volume in

ounces.

LTR = Displays volume in

liters.

60 Brew Valve

Flow Rate

17 – 51

If #59 is

oz.

0.50 –

1.50

If #59 is

LTR.

1.05

62 Bypass Valve

Flow Rate

17 – 51

If #59 is

oz.

0.50 –

1.50

If #59 is

LTR.

1.30

Use this to compensate for

minor discrepancies in

actual volume versus

programmed volume.

Set lower to increase

volume, higher to decrease

volume.
