2 WIRE SYSTEM

FVQ-6020APP KIT

FVQ-6020 KIT

VIDEO DOOR PHONE SYSTEM

FVQ-6016KP

FVQ-6013/9013WIFI

Please read the manual carefully before using the product.

Please note that images and sketches in this manual may be different from the actual products

INSTALLER MANUAL

Contents

Monitor Description...................................................................................................................................................... 3

Door Station Description............................................................................................................................................... 4

Addressing the monitors (When using more than one monitor): ................................................................................ 5

Impedance Switch......................................................................................................................................................... 5

Viewing Multiple Door Stations On The Monitor ......................................................................................................... 6

Wiring Diagrams............................................................................................................................................................ 7

Lock Wiring..................................................................................................................................................................16

Summary Keypad door station codes ......................................................................................................................... 23

Detailed Keypad Codes ...............................................................................................................................................24

Wi-Fi Configuration.....................................................................................................................................................27

Monitor Description

Name

Description

Micro SD

Socket for Micro SD

Power Indicator

White LED when power on

Do Not Disturb

Purple LED when function is enabled

Message Indicator

Green LED when you have missed calls

Microphone

Screen

7 Inch Digital TFT LCD

Switch

Bit 1- Bit 5 – Home address

Bit 6 – Bit 7 – Master and slave selection

Connection Point

BUS1&BUS2 – System connection bus

24V & GND – External Power supply (Not needed)

COM & NO – Connector for external speaker

SW+ & SW- : Connector for external door bell

Speaker

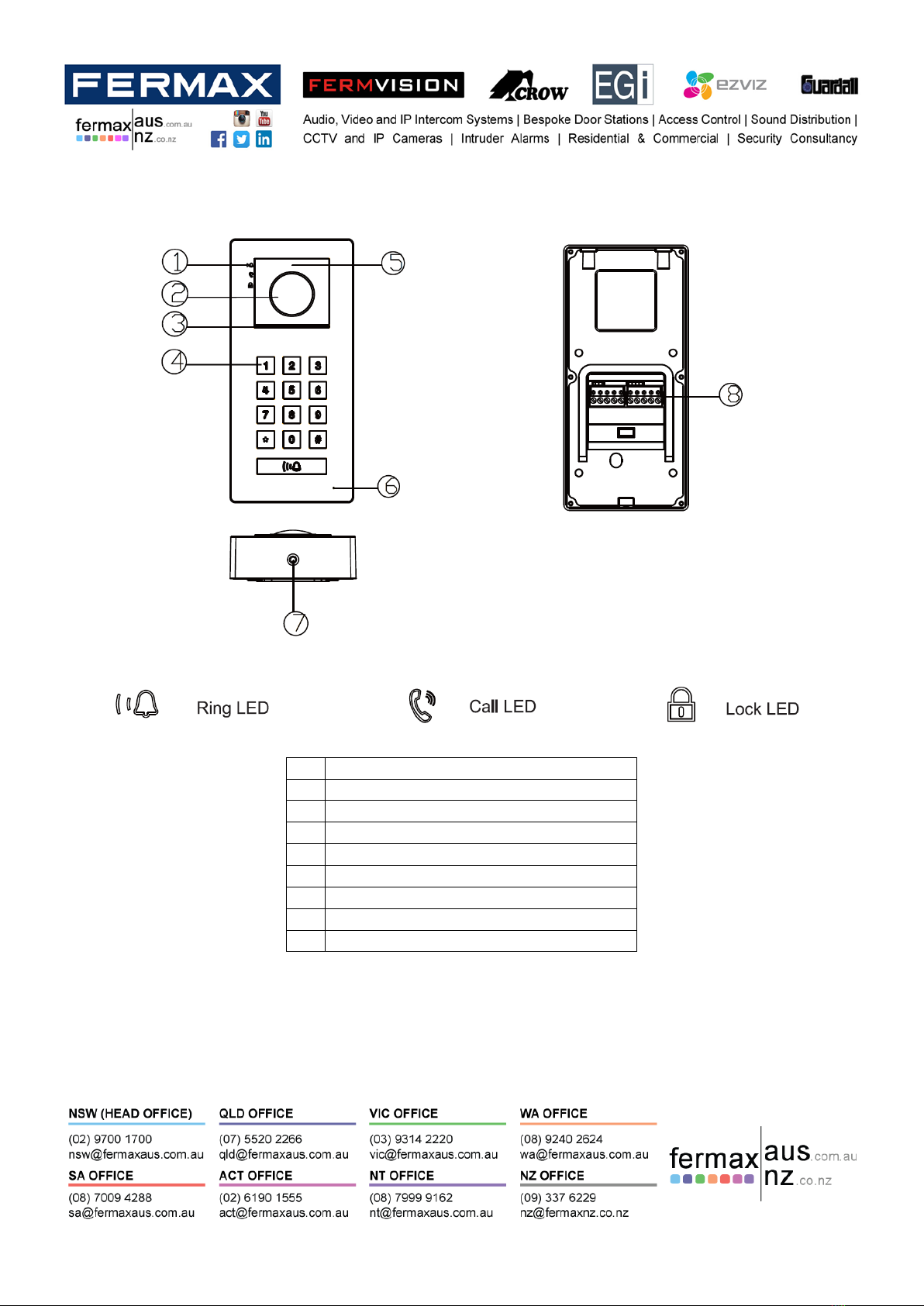

Door Station Description

Name

Status Indicator

Camera

Speaker

Keypad

LED’s (Sensor located in middle)

Microphone

Fixing screw

Connection Port

Addressing the monitors (When using more than one monitor):

This is controlled by dip switch 6 & 7 on the back of the monitor

Type

Dip Switch Setting

Master Monitor

Slave Monitor 1

Slave Monitor 2

Slave Monitor 3

Impedance Switch

Only turn to the on position when the monitor is the end of line. This is controlled by dip switch 8 on the back of

the monitor.

Type

Dip Switch Setting

Impedance Off

Impedance On

6 7

Viewing Multiple Door Stations On The Monitor

When using multiple door station you need to activate the door station to view on the monitors.

Using the settings menu on each individual monitor type in the following code depending how many door station

you have. (Default 4 Door Stations)

Door Station

Code (On)

Code (Off)

DS 1

0111

0110

DS 2

0131

0130

DS 3

0151

0150

DS 4

0171

0170

Wiring Diagrams

Notes:

When using more than 1 door station you require a 4 branch Door station module FVQ-6012D

When using more than 1 monitor in star configuration you require a 4 branch monitor module FVQ-6011M

Door Station is addressed as number 1 by default

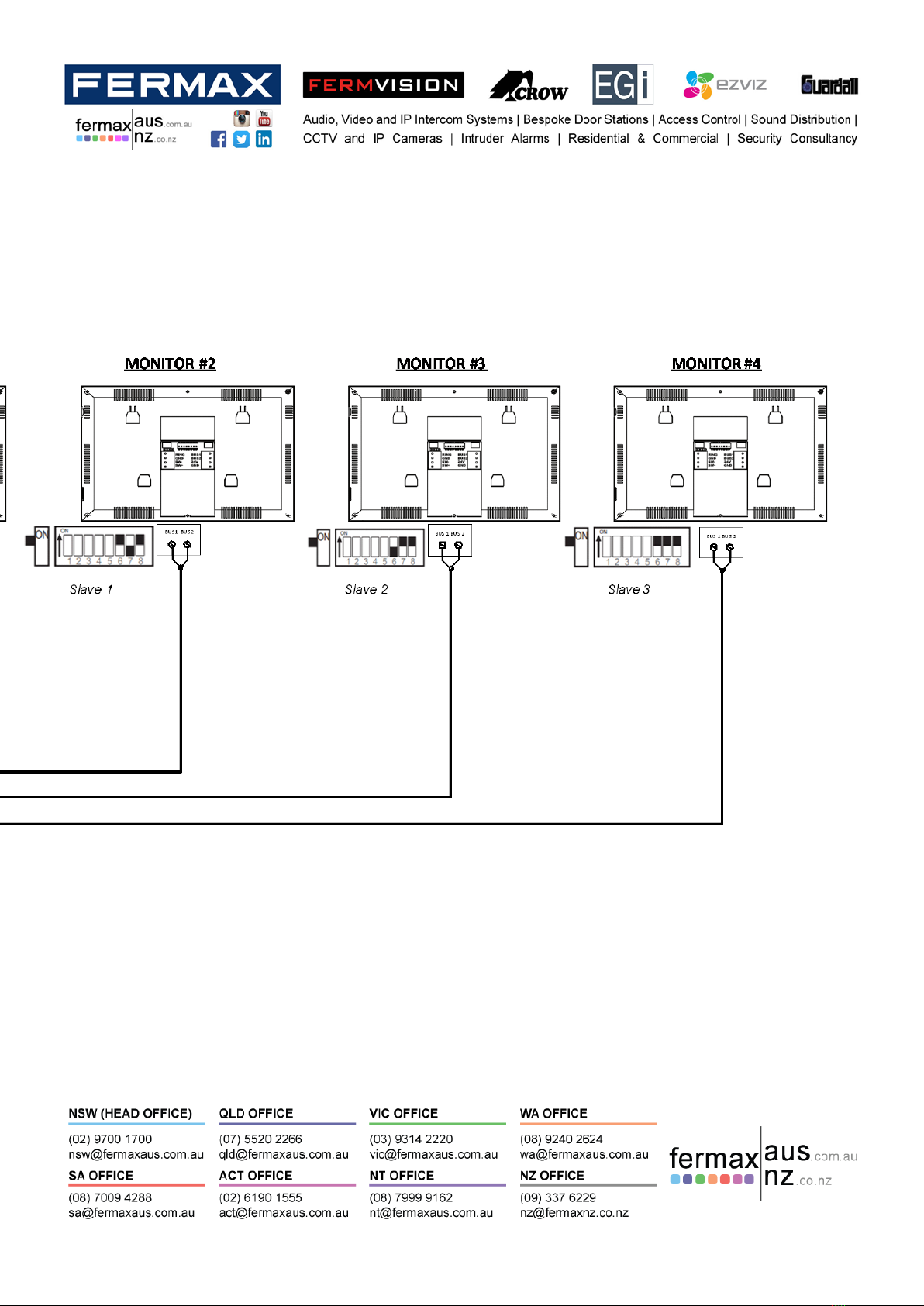

1 Door Station to 4 Monitors (Star Configuration)

1 Door Station to 3 Monitors (Series)
