FeiYu Tech QING Manual de usuario

Intelligent Gimbal for Camera

Instructions

EN V1.0

Catalogue

1. Overview ………………………………………………………… 2

2. Start to Use ……………………………………………………… 4

2.1 Charging……………………………………………………………………… 4

2.2 Unlock/Lock ………………………………………………………………… 5

2.3 Battery Installation ………………………………………………………… 5

2.4 Camera Installation and Balance ………………………………………… 6

2.5 Power On/O󽗈 ……………………………………………………………… 8

3. Function & Operation …………………………………………… 9

3.1 Function/Modes Introduction …………………………………………… 9

3.2 Function Operation of Remote Control ………………………………… 12

3.3 Remote Control Touch Screen …………………………………………… 16

3.4 Modes Setting ……………………………………………………………… 17

3.5 Gimbal Initialization ………………………………………………………… 21

4. Accessories ……………………………………………………… 22

4.1 Brushless Follow Focus (AKF II) …………………………………………… 22

4.2 Wireless MIC Kit …………………………………………………………… 23

5. Speci󽗉cations …………………………………………………… 25

Compatible Cameras for Reference …………………………… 26

Disclaimer …………………………………………………………… 28

www.feiyu-tech.com 12

QING is a professional gimbal for DSLR/mirrorless camera. It is compatible with

popular DSLR camera on the market. It is available to install on the tripod or

other carrier to extend its shooting function.

It has a oversized touch screen on remote control, allows users to switch work

modes, control rotating direction and set up parameters on it directly and visibly.

Users can also control camera's follow focus and zooming after connecting

camera to QING via cable.

Suggestion

Feiyu Qing includes below information, please read

the information before using the gimbal:

1. Quick start guide

2. Online instruction

3. Tutorial

The tutorial videos can be watched at FeiyuTech o󽗋cial

website https://www.feiyu-tech.com/play/

or scan the QR code.

www.feiyu-tech.com 2

1. Overview

* The product is NOT included the camera.

www.feiyu-tech.com 32

www.feiyu-tech.com 4

2. Start to Use

TIPS

· Please install the camera and balance it before power on the gimbal.

· Please do not touch tilt motor and gears to avoid gripping.

· When the battery is low, please charge the battery.

· When not in use, power o󽗈 the gimbal and then remove the batteries.

2.1 Charging

Please fully charge the dedicated battery before power on the gimbal

for the 󽗉rst time.

Please choose the suitable charger when quickly charging.

2.1.1 Charging for the Gimbal

Using USB 2.0 to Type-C cable to charge the dedicated battery, support 5V/3A

input.

Battery Indicator: All the 3 indicators turn on when battery is full

Function Indicator:

quickly 󽗊ashing: Low battery and please charge in time

slowly 󽗊ashing: Pan mode

constant on: Lock mode

www.feiyu-tech.com 54

2.1.2 Charging for the Remote Control

Using USB 2.0 to Micro cable to charge the remote control, support 5V/3A input.

2.2 Unlock/Lock

There is a position lock on the tilt axis, which is convenient for locking the

position, installation, storage.

Unlock the gimbal before powering on it.

2.3 Battery Installation

Please fully charge the dedicated battery before power on the

gimbal for the 󽗉rst time.

Install the battery: Push the battery in along the slot ①, and after that, the battery

lock ② will rebound to prevent battery from falling.

Remove the battery: Unlock the battery lock ② and pull the battery out.

www.feiyu-tech.com 6

①

②

2.4 Camera Installation and Balance

TIPS

· Make sure the battery and memory card are loaded before camera

installation.

· Before balancing the gimbal, the lens cover should be removed from

the camera and the memory card needs to be inserted to the camera to

complete all the cable connections to ensure that the camera is ready for

shooting.

· During balancing the gimbal, make sure the camera is power o󽗈 and the

gimbal is turned o󽗈.

· If add accessories after the balance is completed, please re-balance.

In order to get ideal shooting, please balance the gimbal before using. And the

gimbal with perfect balance will have longer battery life.

Step 1: Keep the gimbal horizontal as the figure shows, then lock the position

lock ①.

www.feiyu-tech.com 76

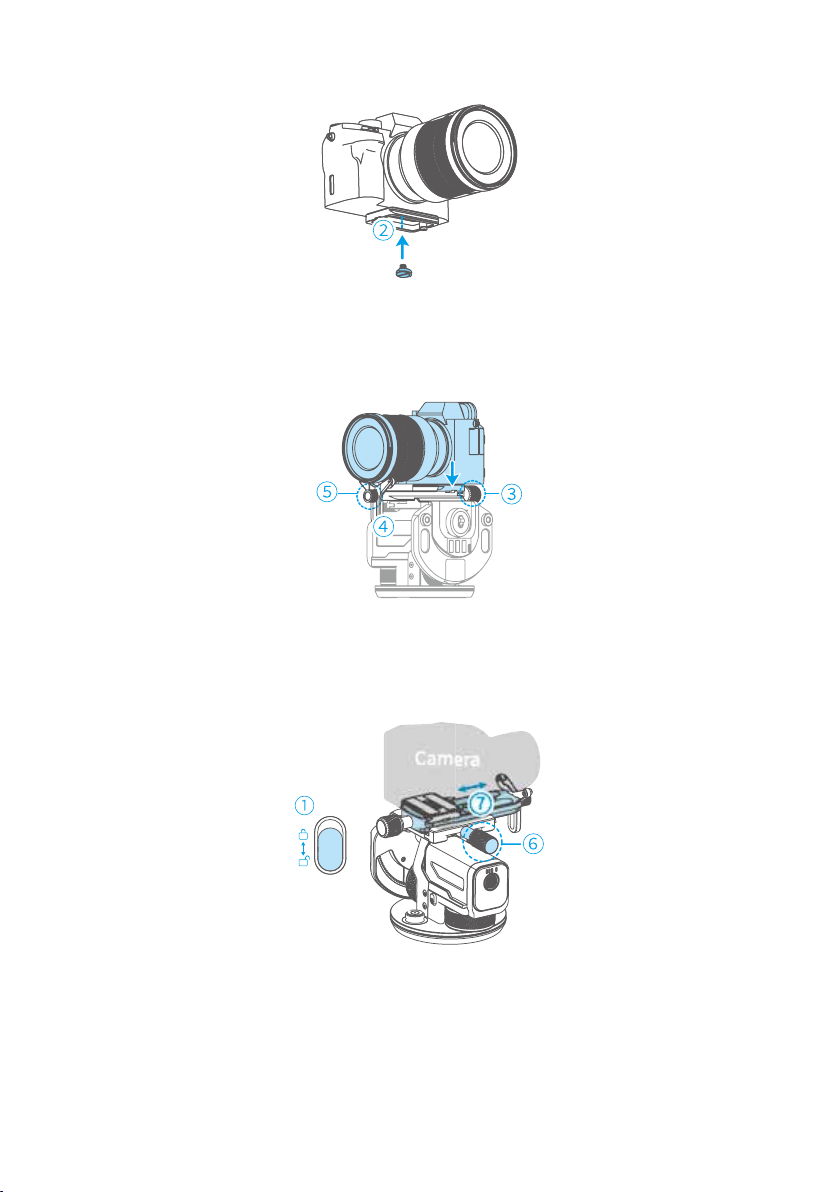

Step 2: Mount camera on ARCA quick release plate ②, and tighten it.

Step 3: Install the ARCA quick release plate on the quick release plate, and tighten

the ARCA quick release plate safety lock ③. Install the lens holder ④ and tighten

the thumb screw ⑤ to hold the lens 󽗉rmly.

Step 4: Unlock the position lock ①, and loose the thumb screw ⑥. Slide the

slide arm ⑦ to balance, and tighten the thumb screw ⑥ after the balancing is

completed.

If the camera can stay stable after moving your hand away, which means

balanced.

www.feiyu-tech.com 8

2.5 Power On/O󽗈

Please release the tilt motor lock before powering on.

Please do not touch tilt motor and gears to avoid gripping.

Steps:

(1) Gimbal:

Install the dedicated battery and long press the power button and release it when

the battery indicator and function indicator turn on together and hear the tone.

Long press again to power o󽗈.

(2) Remote Control:

Long press the power button, release it when the touch screen shows .

Long press again to power o󽗈.
