Fein KBM80U Manual de usuario
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011
KBM 80 U / KBM 80 Auto
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011
Contents
1. Technical data
2. Maintenance
3. General checks
4. Disassembly
4.1. Disassembly - Tank /
Electronics
4.2. Disassembly - Feed unit
4.3. Disassembly - Drill motor
4.4. Disassembly - Gearbox
4.5 Disassembly - Drill jig
5. Assembly
5.1. Assembly - Drill jig
5.2. Assembly - Drill motor
5.3. Assembly - Gearbox
5.4. Assembly - Feed unit
5.5. Assembly -Electronics / Tank
6. Tools
You will find a drawing and list of spare parts online
www.fein.de / FEIN Service / Start ETK
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011
1. Technical data
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011
2. Maintenance
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011
3. General checks
Rated voltage 220 - 240 V
Test voltage / 10 % 230 V
Idling current / 10 % (3.40 –4.00 A) 3.7 A
Idling speed, first gear / 5% (162 - 198 rpm) 180 rpm
Main switch on
Voltage on X5 10% (90-110 VDC) 100 VDC
Release force of magnet >= 3,500 N
Current consumption of magnetic foot Approx. 0.15 A / AC
Main switch on, motor on
Voltage on X5 10% (180-220 VDC) 200 VDC
Resistance of magnetic foot per coil 22 ohms
Test voltage - motor without electronics 145 VAC
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011
4. Disassembly
Before starting to repair or disassemble the tool,
you must remove the mains plug from the socket
and remove the drill bit from the tool.
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011
4.1. Disassembly - Tank / Electronics
Lift coolant tank up with screwdriver and pull upwards by hand
until tank is disengaged from lock at top end. (Yellow circle)
The tank can then be removed from the tool.
Tools:
- slotted screw driver
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011
4.1. Disassembly - Tank / Electronics
Remove screws from cover of drill jig.
Pull out coolant hose.
Fold metal cover and foam cover forwards and down.
Tools:
- torx screw driver TX 20
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011
4.1. Disassembly - Tank / Electronics
Remove cable from terminal
Pull out coolant hose
Remove plug for coolant pump and speed cable from circuit board
Disconnect earthing conductor from coolant pump
Tools:
- slotted screw driver small
- cross sloted screw driver PH 1
FEIN –REPAIR - TOOLS
All rights reserved by FEIN, especially in case of industrial rights registration.
Any power of disposition such as copying and right of transfer is situated with FEIN. Sahre / MVK 05 / 2011

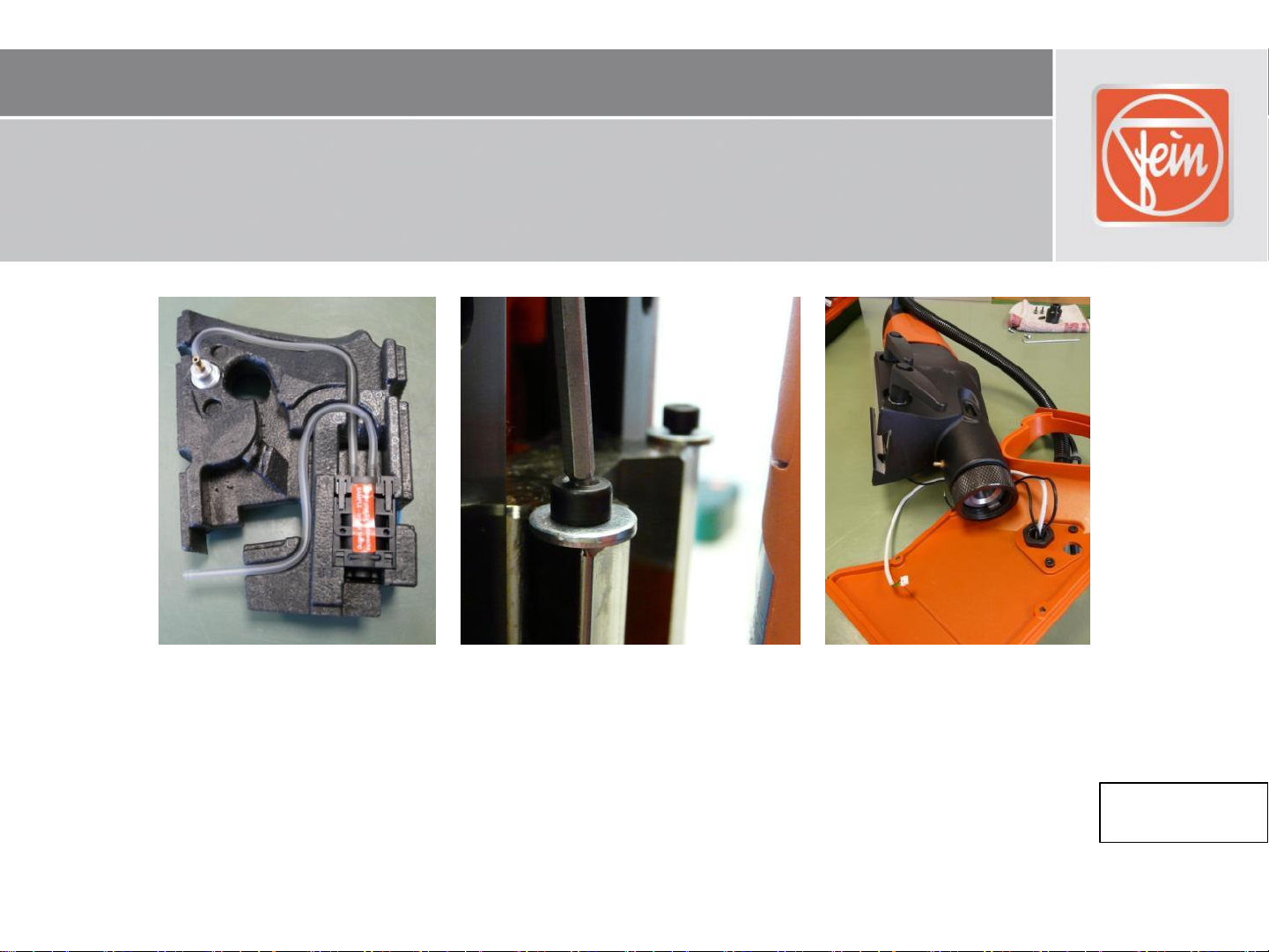

4.1. Disassembly - Tank / Electronics
Remove electronics cover with coolant pump and hoses
Loosen and remove screws for fall protection on dove-tail
guide
Remove cover of drill jig and drill motor from drill jig Tools:
- allen key 3 mm
