Fein ASW14-6 Guía de configuración
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 1/42
Repair instructions
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 2/42
1. Models described
2. Technical data
3. Notes / requirements
4. Tools required
5. Lubricants and auxiliary substances required
6. Disassembly
7. Assembly
8. Troubleshooting
9. Connection diagram
Contents
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 3/42
These instructions describe how to repair the following models:
Model Order no.
ASW 14-6 7 112 40 00 95 0
ASW 14-10 7 112 42 00 95 0
ASW 14-14 7 112 58 00 95 0
ASW 14-6-PC 7 112 50 00 95 0
ASW 14-10-PC 7 112 51 00 95 0
ASW 14-14-PC 7 112 52 00 95 0
1. Models described
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 4/42
2. Technical data
Technical data
The complete technical data can be found in the operating instructions for the model.
Test data
Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service → Repair Guides).
Lubricants
The lubricants and container sizes available from FEIN can be found on the FEIN Extranet
(Customer Service → Repair Guides).
Lists of spare parts
Lists of spare parts and exploded views are available online at www.fein.com
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 5/42
3. Notes / requirements
Note
These instructions are only intended for persons with suitable technical training. It is assumed
that the reader has mechanical and electrical training.
Only use original FEIN spare parts!
Requirements
Please note that power tools may only be repaired, maintained and checked by a trained
electrician, as improper repair can result in serious risks to the user.
The provisions set out in DIN VDE 0701-0702 should be observed after repairs.
The relevant accident prevention regulations of the employers’ liability insurance associations are
to be observed when commissioning.
The German Equipment and Product SafetyAct applies for correct use.
Outside Germany, the regulations applicable in the relevant country must be observed!
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 6/42
Standard tools Special tools
- Torx 10 screwdriver
- Small slotted screwdriver
- Circlip pliers
- Circlip pliers (ground)
- Open-ended spanner 26 mm
- Flat-nose pliers
- Feeler gauge
- Torque wrench 3 21 23 002 00 6
- Drawing-off socket cap 6 41 04 150 00 8
- Puller 6 41 07 019 00 7
NOTE
You can only order special tools with an order number from FEIN.
4. Tools required
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 7/42
Lubricants
Grease 3 21 600 14 23 0 0.6 g Tool holder; switch ring; cam ring
5. Lubricants and auxiliary substances required
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 8/42
6. Disassembly
Removing the angled head
1. Loosen the thread ring (1).
2. Remove the angled head (2) and the clutch part (3).
3. Lever the coded sleeve (4) down.
Tools:
- Open-ended spanner 26 mm
- Slotted screwdriver
2
4
3
1
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 9/42
6. Disassembly
Removing the housing
1. Loosen the eight screws (1).
2. Remove the upper section of the housing (2). Tools:
-Torx T10 screwdriver
1
2
ASW 14-6, 14-6-PC, 14-10, 14-10-PC, 14-14, 14-14-PC
C-SC_CSSM VERSION 1.0 13-07-18 All rights reserved by FEIN, especially in case of industrial rights registration.
FEIN retains all rights of disposal, such as copying and circulation. 10/42
6. Disassembly

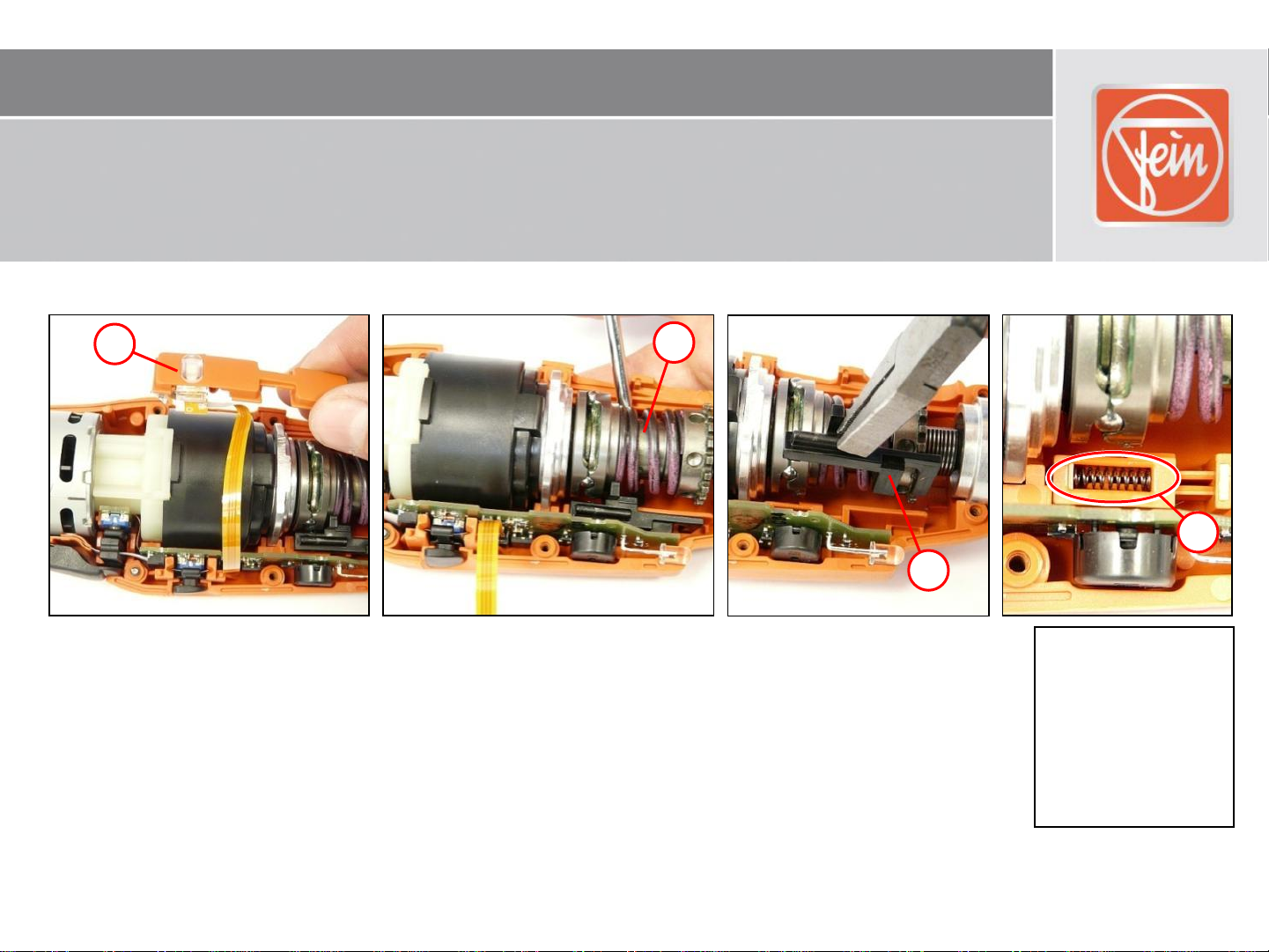

Removing the clutch
1. Carefully remove the electronic strip (1).
2. Lift the clutch (2) slightly with a screwdriver.
NOTE
When the slide switch is removed, the spring (4) may jump out slightly.
3. Remove the slide switch (3).
4. Remove the spring (4).
Tools:
- Slotted screwdriver
- Flat-nose pliers
2
1
3
4
