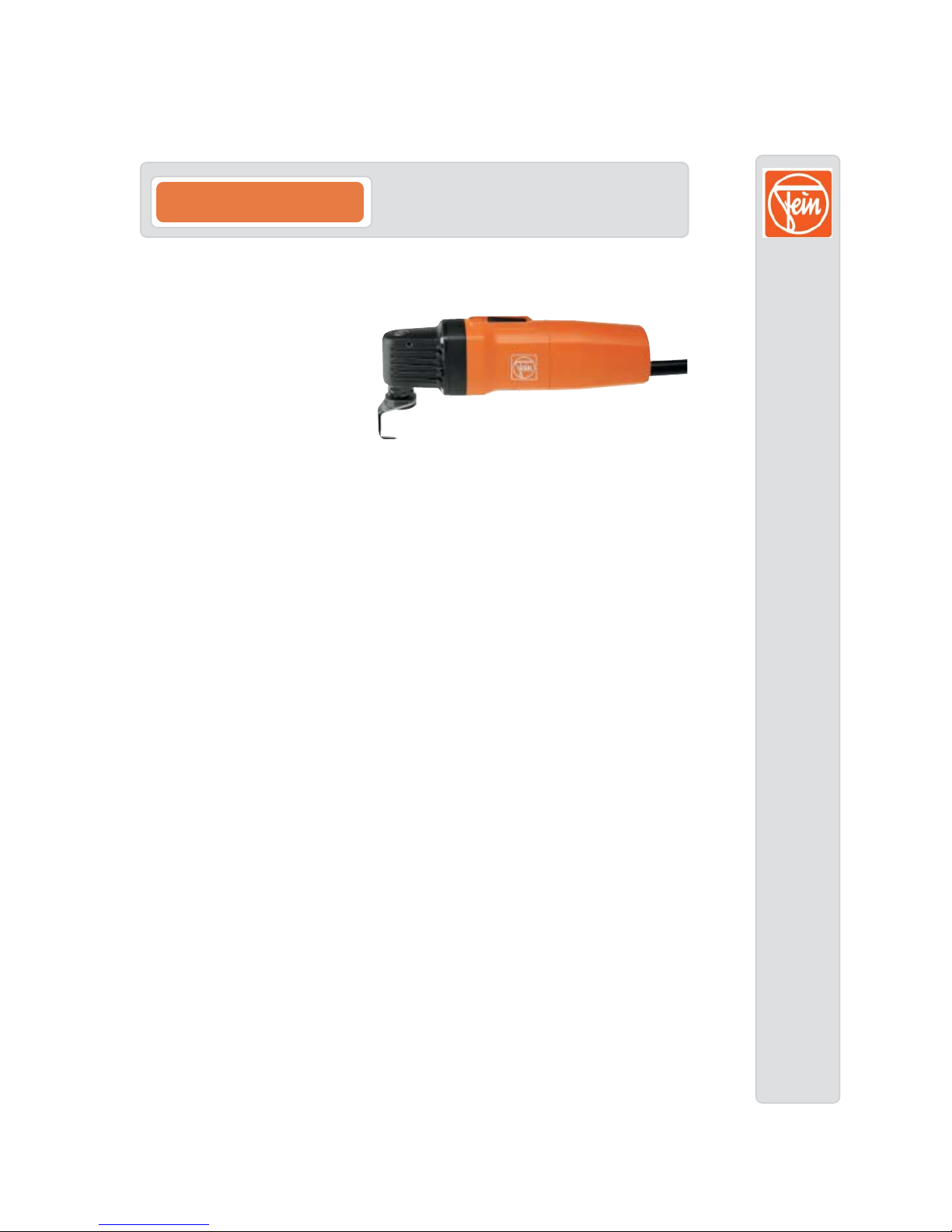

Fein AStlxe 638 Guía de inicio rápido

SERVICE

Tool service and maintenance must be performed only by qualified

repair personnel.

When servicing a tool, only use identical replacement parts available

from FEIN.

Repairs on FEIN Power Tools required the use of special tools (pulling devices

and bearing press). Authorized repair centers have trained repair technicians

andequipmentnecessarytoper-formtheserepairs.Serviceorrepairsperformed

by unqualified persons could result in operator injury.

For the location of the repair center near you, please call 1-800-441-9878.

Monday thru Friday, 9AM to 5PM EST. Or, look on our web site at

www.feinus.com and follow the link to “AuthorizedWarranty Repair Centers”

Phone: 412-922-8886 Fax: 412-922-8767 Toll Free: 1-800-441-9878

FEIN Power Tools

1030 Alcon Street

Pittsburgh, PA 15220

November 24, 2003

AStlxe 638

Special Cutter

Fein Power Tools

Astlxe 638 Special Cutter - Parts Lis

Item Item Numbe

Description Reqd

10 3-19-01-093-00-0 MOTOR HOUSING 1

20 3-28-05-128-00-3 TRIGGER 1

30 3-28-16-049-00-0 SWITCH LEVER 1

40 5-1-268-001-11-2 FIELD COIL 1

50 4-30-70-004-00-1 SCREW 1

70 3-14-28-075-00-7 AIR CONDUCTING RING 2

80 3-07-19-448-01-7 CONNECTION CABLE 2

100 3-07-62-242-02-9 SPEED CONTROL 1

110 3-09-02-040-00-4 SPRING 1

120 3-07-12-095-01-7 BRUSH HOLDER 2

130 3-07-11-140-00-0 CARBON BRUSH 2

140 3-24-31-036-00-8 CABLE BRIDGE 1

150 3-07-07-101-01-2 CABLE 1

160 3-14-13-007-00-7 STRAIN RELEASE 1

170 3-12-01-072-01-4 COVER 1

171 3-14-15-065-00-2 CUSHION 1

180 4-30-70-001-00-6 SCREW 2

210 3-07-19-340-02-4 CONNECTION CABLE 2

250-270 5-3-268-001-11-4 ARMATURE 1

260 3-34-05-031-00-9 PINION 1

270 4-30-64-001-99-3 SCREW 3

300 3-15-06-309-00-3 INTERMEDIATE PLATE 1

320 3-15-08-227-00-1 GEARHOUSING 1

330 3-32-18-057-00-7 LEVER 1

340 4-17-06-033-00-3 NEEDLE BEARING 1

350 3-23-13-045-01-2 PISTON 1

360 4-02-38-017-00-4 CLAMPING SLEEVE 1

370 3-05-07-180-00-8 BUSHING 1

380 4-17-05-022-00-5 NEEDLE BEARING 1

390 3-34-06-247-00-4 OUTPUT SHAFT 1

400 4-06-12-129-00-1 O RING 1

410 4-17-01-007-03-8 BALL BEARING 1

420 4-06-08-054-00-9 SEAL 1

430 3-05-09-041-00-0 THREADED SLEEVE 1

500 4-17-01-004-24-6 BALL BEARING 1

510 4-17-01-001-17-2 BALL BEARING 1

520 3-26-03-035-00-2 BALANCING RING 1

530 3-14-28-076-01-9 MAGNET RING 1

540 4-06-12-089-00-6 O RING 1

550 4-06-08-059-00-2 SEAL 1

560 4-06-12-088-00-2 O RING 1

610 3-30-24-062-00-4 CLAMPING BOLT 1

620 4-30-70-007-00-2 SCREW 4

630 4-30-70-004-00-1 SCREW 2
