Feider Machines FBVE3000 Manual de usuario
ORIGINAL INSTRUCTIONS
INSTRUCTION MANUAL
SILENT SHREDDER
FBVE3000
READ THIS INSTRUCTIONS MANUAL BEFORE USE THE TOOL
FEIDER
32, rue Aristide Bergès - ZI 31270 Cugnaux – France
Made in PRC
DEFINITONS OF SYMBOLS
Caution! Read the instruction manual and follow the warning and safety instructions!
Keep bystanders away!
Danger – Rotation blades. Keep hands and feet out of openings while machine is
running.
Wear eye and ear protection
Caution! Remove plug from the mains immediately if cable is damaged or cut.
Degree of protection against water: IPX4
Sound power level, measured according to 2000/14/EC
Safety instructions
Warning! Please read and follow the safety instructions
carefully.
1. The shredder must be assembled correctly before use.
2. Warning! This appliance must be earthed!
3. Warning! Use only three-core extension cables with
the earth wire connected.
4. Only use extension cables that are approved for outdoor
use and check that they are in good condition before use.
5. Protect the cables from any damage by excessive
mechanical stress, sharp edges, contact with moving parts
and corrosive liquids, etc.
6. Warning! Do not use an extension cable that shows any
signs of damage. Fit a complete new cable - do not
undertake any permanent or temporary repairs. Have the
cable replaced by a qualified technician.
7. Before inserting the plug into the mains socket, make sure
that the socket ratings are correct and correspond to those
indicated on the rating label of the shredder.
8. Never move the shredder by pulling the cables.
9. Always disconnect the machine from the mains supply
before transporting it to other places.
10.Always switch off the shredder before disconnecting any
plug and socket connector or extension cables.
11.Explanation of the safety switch on the collection box: The
switch is in the “Lock is on” position: The collection box is
locked. The shredder can be switched on. The switch is in
the “Lock is off” position: The collection box is not locked
and can be removed. The shredder cannot be switched on.
12.Never leave the shredder unattended while it is switched
on.
13.Before leaving the shredder, switch off the motor and
unplug the connection cable. Proceed in the same way in
the event of a power failure.
14.Keep children and pets away. All onlookers should be kept
at a safe distance away from the shredder when it is in use.
15.Do not allow children or any person who has not read this
instruction leaflet, or who is not familiar with the shredder,
to operate it.
16.The operator is responsible for any third parties while
working with the shredder.
17.Only use the shredder for its designated purposes.
18.Caution! This machine contains a rotating chopping
knife.
19.Caution! This knife does not stop immediately after
switching off.
20.Always switch off the shredder, unplug the connection
cable and wait until the chopping knife comes to stop
before carrying out any maintenance or cleaning work.
21.Be careful when cleaning the shredder or performing any
maintenance. DANGER! Watch your fingers! Wear
gloves!
22.It is forbidden to move or modify any of the electrical and
mechanical safety devices.
23.The shredder must stand on level and solid ground during
operation.
24.Use it only in daylight or good artificial light.
25.Wear gloves and safety goggles while shredding.
26.We recommend the use of earmuffs.
27.Caution! The hopper must be completely fitted and
tightened before use.
28.Neither put your hands in the feed funnel nor in the
discharge chute.
29.During operation, ensure that no foreign objects (such as
stones, glass, metal, earth, plastics) are fed into the
shredder as such foreign bodies could cause blunting of
the chopping knife and seriously damage the motor. Do
not use your shredder for any purposes other than having
been designed for.
30.If the shredder should start to vibrate abnormally,
immediately switch off the motor and check for the cause.
In general, vibration is a warning of trouble.
31.Ensure the chopping knife is secure before shredding any
material. Do not operate the shredder if the chopping knife
is not properly mounted.
32.The shredder should be checked carefully before use.
Never work with a shredder that is not in good repair. If
you notice any defect of the machine that may cause
danger to the operator, do not use the shredder until such
defects have been rectified.
33.Replace any worn-out or damaged parts for your safety.
Use original spare parts only. Parts not produced by the
manufacturer may fit poorly and can possibly cause
injuries.
34.Work with your shredder only in places where it is
protected from water and never use it outdoors in rainy
weather.
35.Store it in a dry and safe place out of the reach of children.
36.Caution! Always wear safety goggles, ear muffs, protective
gloves and heavy-duty work clothes! We recommend use
of headgear.
37.WARNING! This machine produces an electromagnetic
field during operation. This field may under some
circumstances interfere with active or passive medical
implants. To reduce the risk of serious or fatal injury, we
recommend persons with medical implants to consult their
physician and the medical implant manufacturer before
operating this machine.
38.Attention!
Through poor conditions of the electrical MAINS, shortly
voltage drops can appear when starting the EQUIPMENT.
This can influence other equipment (eg. Blinking of a
lamp). If the MAINS-IMPEDANCE Zmax<0.376OHM(MK-
L772), such disturbances are not expected. (In case of
need, you may contact your local supply authority for
further information).

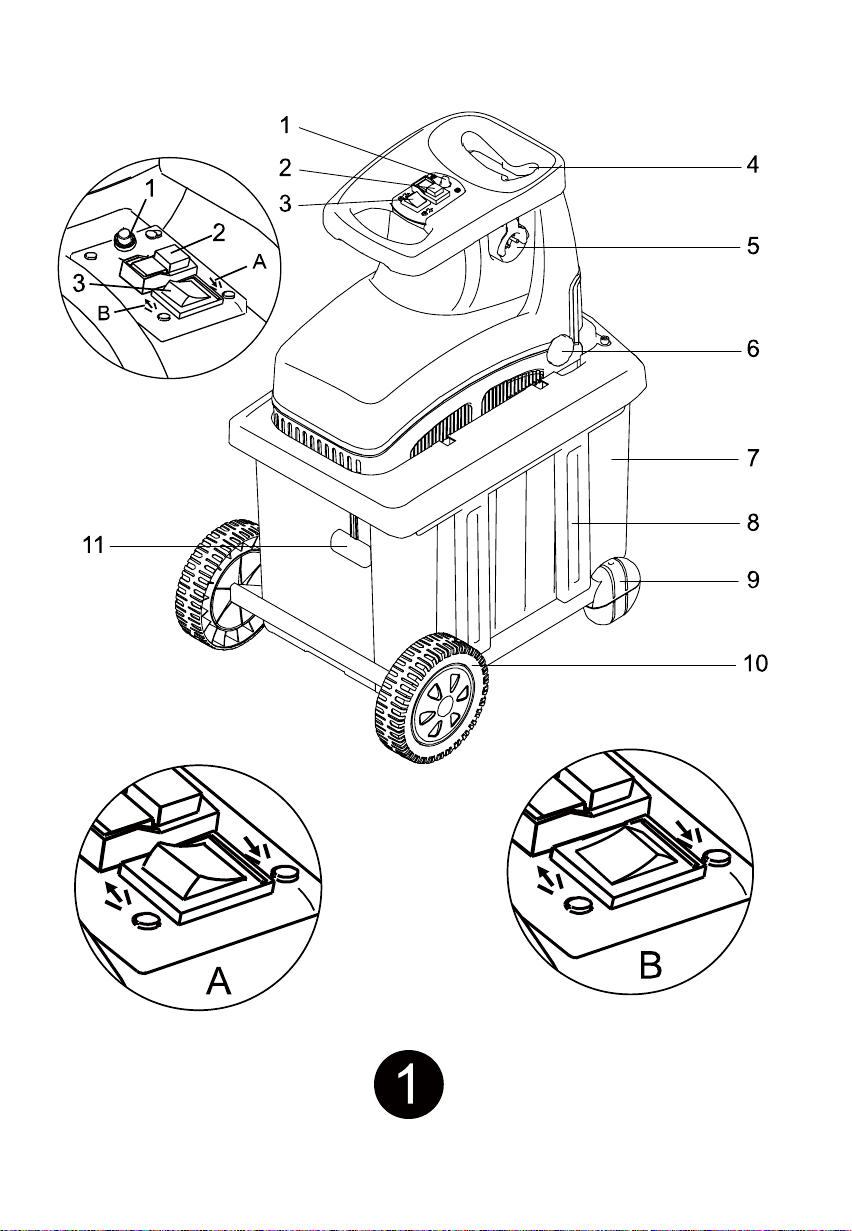

Description (Fig. 1)
1. Overload protector
2. On/off switch
3. Reversing switch
4. Feeding tunnel
5. Electric plug
6. Adjuster
7. Collection box
8. Base frame
9. Front wheel
10. wheel
11. Safety switch
Technical data
Mains voltage / frequency:
230 V ~ 50 Hz
Rated power:
2800 W S6(40%)
2300 W S1
No-load speed:
40 min-1
Branch diameter:
Max. 45 mm
Weight:
29.0 kg
Sound power level - measured:
86.80dB(A), K=1.93dB(A)
The guaranteed value
LWA= 89dB(A)
The S 6 duty cycle (40 %) indicates a load profile of 4 min. running under load and 6 min. of
idle time. The maximum branch diameter depends on the hardness of the wood.
