VoIP Phone C66
Quick Installation Guide
C66
VoIP Phone
VoIP Phone C66
Instruction

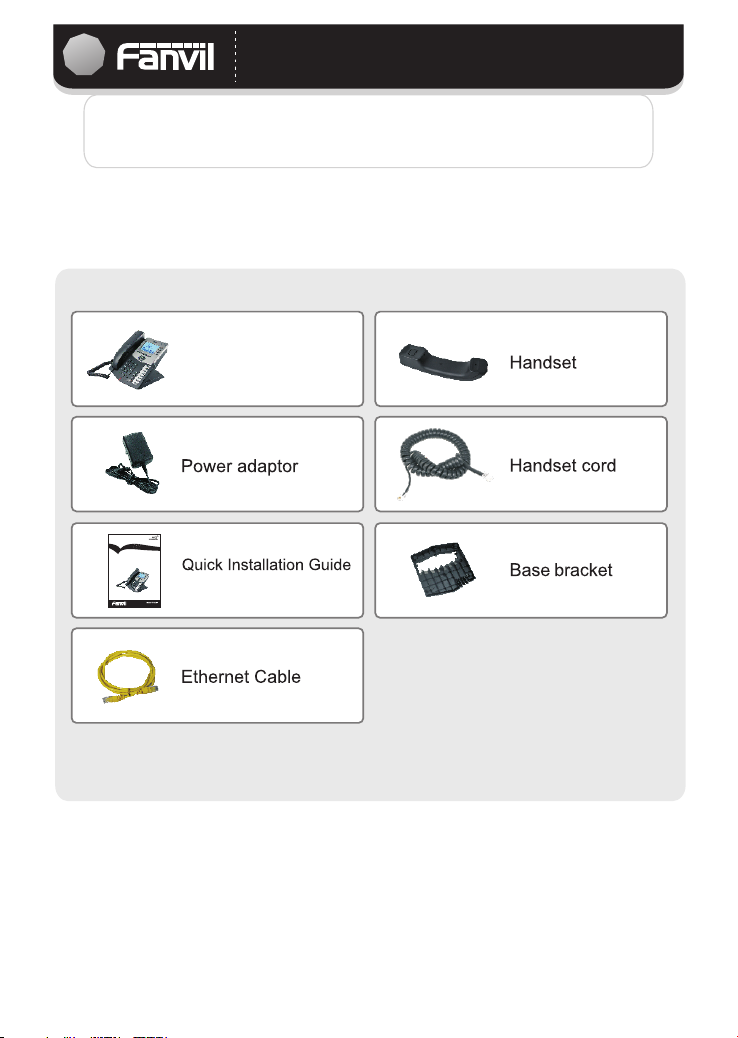

Check Your Package Contents
This phone can be setted through the LCD or web page.
If you own this product to make some VoIP calls, an Ethernet-based Cable or a DSL
modem with an active connection to the Internet are necessary.
These are the items included with your C66 IP Phone purchase:
1
VoIP Phone C66
Quick Installation Guide
C66
VoIP Phone
Handset
Mute Key
Number Keypad
Speaker Key
Phonebook Key
Call Logs Key
Soft Function Keys LCD Screen
Indicator Light
Volume Control Keys
Redial Key
Programmable Keys
Navigation Keys
Line1-4
Text Mode
Key Normal(ABC) Numeric(0-9)
Text Mode
Key Normal(ABC) Numeric(0-9)
1
2
3
4
5
6
7
8
9
0
*
#
ABCabc
DEFdef
GHIghi
JKLjkl
MNOmno
PQRSpqrs
TUVtuv
WXYZwxyz
You can press these number keys one or more times to complete the corresponding input
when you want do some input on the LCD.
OK Key
EXT Console
Router/LAN
LAN port
WAN port
Handset Port
Headset Port
3
Power switch
IP Phone Setup Menu(1)
Network mode Settings diagram:
Press Menu Key
Select Settings
Select WAN
ADSL DialUP
Enable/Disable
Enable Disable
DHCP
Enable/Disable
Disable
Enable
Network
Configuration:Auto
Select Net Mode
IP/Netmask/
Gateway/DNS Set
Select Static Set
Select Password:
********
Select PPPoE Set
Select Account:
username
4
Select Advanced
Settings
Select Network
IP Phone Setup Menu(2)
The menu of phone Structure:
Keyboard
Screen Settings
Ring Settings
Voice Volume
Time &Date
Greeting Word
Language
Mode
WAN IP
Firmware
Network
Accounts
Phone
Expansion Module
TR069
Status
Settings
Applications
Menu
Basic Settings
Advanced Settings
SMS
Memo
Voice Mail
Ping
All Contacts
Groups
Blacklist
Remote Phonebook
LDAP
Speed Dial
Features
Phonebook
Call Logs
Agent
Call Logs
Missed Calls
Dialed Calls
Received Calls
Accounts
Network
Security
Maintenance
Factory Reset
Call Forwarding
Auto Answer
Auto Handdown
Call Waiting
DND
Ban Anonymous Call
Ban Outgoing
Hotline
Dial Plan
Dial Peer
Intercom
Auto Redial
Call Completion
Ring From Headset
Power Light
Hide DTMF
Password Dial
Pre Dial
Call Logs
Default Line
Auto Switch Line
5
Reboot System
User
Passwd
Number
Line
Configuration(1)
Web Login
The configuration menu of C66 can be accessed using the convenient and userfriendly interface
of a web browser.
Open the browser and type into the IP address which can be found in the status of the
LCD menu(e.g. http://192.168.1.16) to visit the Web page and make some configuration.
Enter the username and password, and both of the default username and password are
"admin". After your logon, the Web page will be displayed as follows.
6
Network - PPPoE Setting
Configuration(2)
Select Network from the main menu.
Select PPPoE as network connection type if your ISP uses PPPoE. (Most DSL users use PPPoE.)
Select Static as network connection type if all Wide Area Network IP is provided to you by
your ISP.
Network - Static Setting
7
SIP Settings
Configuration(3)
Select SIP settings from the main menu. The follow fields such as Server Address Server Port,
Authentication User Authentication Password and SIP User are required. Then check Enable
Registration and click Apply to register your phone to the SIP server.
Server Address SIP server address
Server Port SIP server port number
Authentication User Username for logging into the SIP server
Authentication Password Password for logging into the SIP server
SIP user SIP phone number
Network - DHCP Setting
Select DHCP as network connection type if your access network supports DHCP.
8
Make a Phone Call
IP Address:
1.Lift the handset or press the speaker button or headset button to enter the dialer interface.
2. Dial IP address.
For example: Input #192.168.0.1# in the dialer interface, will call the device
whose IP address is 192.168.0.1.
SIP Number:
Note: You have to register with SIP server to use SIP number.
1.Lift the handset or press the speaker button or headset button to enter the dialer interface.
2.Dial SIP number.
For example: Input 1866
3.Press "#" button or wait until the timer expires.
9
