Fantom FM760 Manual de usuario

iNSTRUCTION MANUAL

VACUUM CLEANER F7

Contents

IMPORTANT SAFETY INSTRUCTIONS ..........1

NAME OF EACH PART .......................................... 3

PREPARATION BEFORE USE ............................. 4

USING THE VACUUM CLEANER ..................... 6

USING THE ATTACHMENTS ............................ 8

EMPTYING THE DUST COMPARTMENT .......9

CLEANING THE FILTERS .................................. 10

CLEARING BLOCKAGES IN THE

SUCTION HOSE AND CLEANING THE ........ 11

AG ITATO R ASSEMBLY

REPLACEMENT INSTRUCTIONS ................... 12

TROUBLESHOOTING ........................................ 16

REPLACEMENT PARTS ..................................... .16

LIMITED WARRANTY ......................................... 17

I HOUSEHOLD USE ONLY I

When using an electrical appliance, basic precautions should always be

followed, including the following.

READ ALL INSTRUCTIONS

BEFORE USING THISVACUUM CLEANER

WA RN IN G - To reduce the risk of fire, electric shock or injury:

1. Do not leavethe vacuum cleaner when plugged in. Unplug itfrom the outlet

when not in use and before servicing.

2. Do not use outdoors oron wet surfaces.

3. Do not allow it to be used as a toy. Close attention is necessarywhen used

by or near children or infirmed persons.

4. Use only as described inthis manual. Use onlythe manufacturer's

recommended attachments.

5. Do not use with a damaged cord or plug. If the vacuum cleaner is not working

as it should, or if it has been dropped, damaged, left outdoors or dropped into

water, return to FANTOM at 94 Main Mill street, Door 16, Plattsburgh, NY 12901.

6. Do not pull or carry by the cord, use the cord as a handle, close a dooron the

cord, or pull the cord around sharp edges or corners. Donotrunthevacuum

cleaner overthe cord. Keep the cord away from heated surfaces.

7. Do not unplug by pulling on the cord. To unplug, grasp the plug, notthe cord.

8. Do not handle the plug or the vacuum cleanerwith wet hands.

9. Do not put any objects into the openings. Do not usewith anyopening

blocked: keep free of dust, lint, hair and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers and all the parts of your body away from

openings and moving parts.

11. Do not pick up anything that is burning or smoking, such as cigarettes,

matches or hot ashes.

12. Do not use without dust compartment and filters in place.

13. Turn off all controls before unplugging.

14. Use extra carewhen cleaning on stairs.

15. Do not use to pick up flammable or combustible liquids such as gasoline, or

use in areas where they may be present.

1 REV. 05/02B

16. Do not touch the agitatorwhile it is spinning.

17. Do not place any heavy items on top of the vacuum cleaner.

18. Do not step on the hose or pull it too strongly.

19. Do not pick up items such aspiecesofwastepaperorclothwhichlookas

though they may cause the hose to become blocked.

20. Do not clean or store the vacuum cleaner in places where there are high

temperatures.

21. Store the vacuum cleaner away from excessive humidity.

22. When carrying the vacuum cleaner, hold it bythe carrying handle.

23. Before servicing the vacuum cleaner, allowall metal parts to cool first.

24. Always place foot on handle release when adjusting the handle position

of the vacuum cleaner.

25. If the supplycord ofthis appliance is damaged, it must only be replaced by

FANTOM , because special purpose tools are required.

SAVE THESE INSTRUCTIONS

This vacuum cleaner is intended for household use only.

Note to user concerning attachment plug:

To reducethe riskof electric shock, this appliance hasa polarized plug (one

blade iswider than the other). This plugwill fitin a polarized outlet only one

way. If the plug does not fitfully in the outlet, reverse the plug. If it still does

not fit, contact a qualified electrician to install the proper outlet. Do not

change the plug in any way.

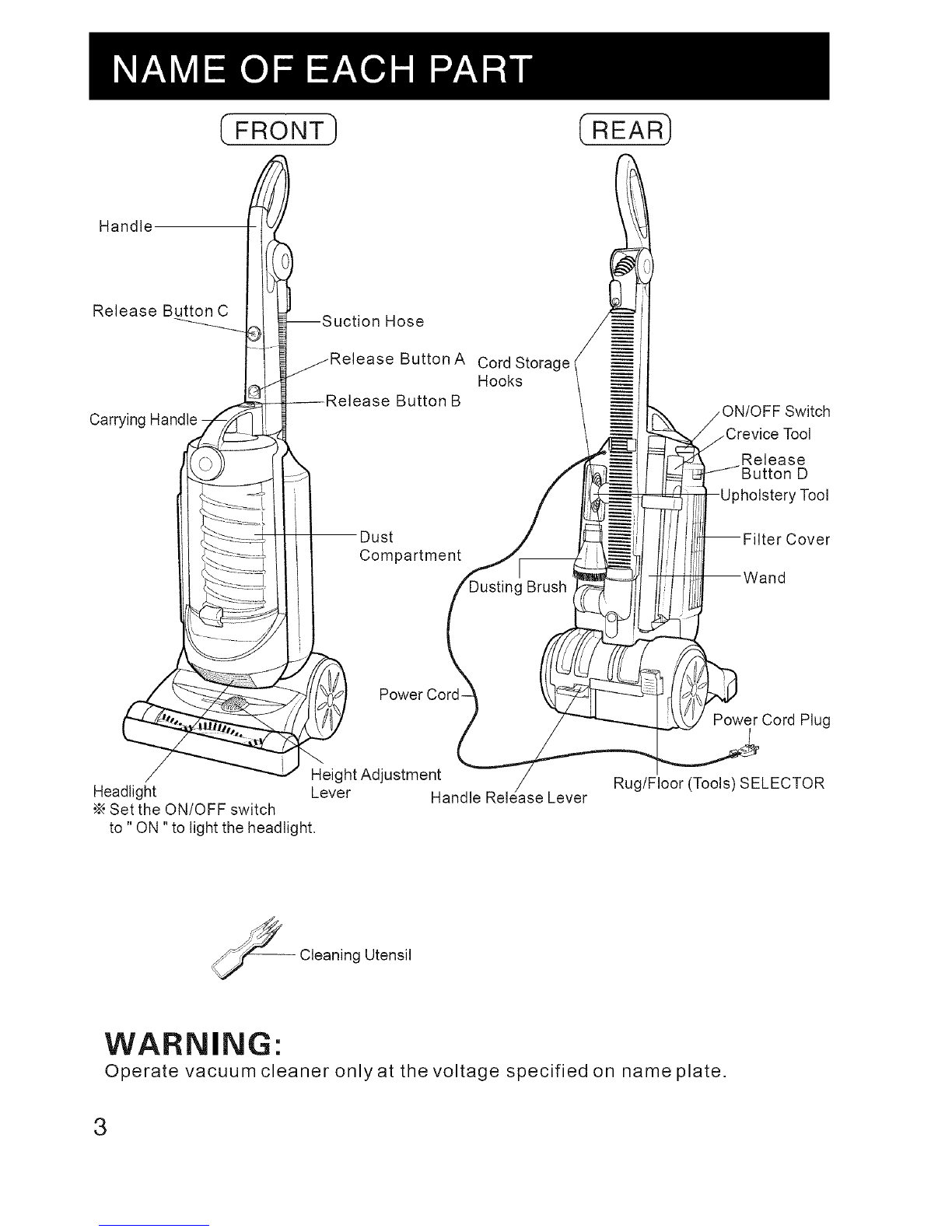

(FRONT) (REAR 1

Handle

Release Button C

Carrying Handle

Hose

Button A

Button B

-- Dust

Compartment

Cord Storage

Hooks

Switch

..Crevice Tool

Release D

'Tool

--Filter Cover

Power Cord Plug

Height Adjustment

Headlight Lever

•_ Set the ON/OFF switch

to" ON "to light the headlight.

Lever Rug/Floor (Tools) SELECTOR

g Utensil

WARNING:

Operate vacuum cleaner only at the voltage specified on name plate.

Caution: Do not connect the power cord plug to the wall outlet until assembly

is completed.

Attaching the handle

Set the vacuum cleaner

to the upright position. Insert the handle

as shown in the illustration.

WINDING THE POWER CORD

Hook the power cord over

the clip which is located on

the upper cord storage

as shown.

Wind the power cord around the cord

storage hooks.

oSecure the power

cord plug on the

power cord.

Cord StoraG

Hooks

RELEASING THE POWER CORD

Rotate the upper cord storage hook 2Return the hook to the

downward, upright position before

Upper Cord

Storage

attempting to rewind the

power cord.

INSERTINGTHE POWERCORD PLUG

WARNING: To reduce the risk of electric shock, this

appliance has a polarized plug (one blade is wider

than the other). This plug will fit in a polarized outlet

only one way. tf the plug does not fit fully in the

outlet, reverse the plug. If it still does not fit, contact

a qualified electrician to install the proper outlet. Do

not modify the plug in any way.

ON/OFF SWITCH

® Start or stop vacuum cleaner by pushing

on the switch.

ADJUSTING THE HANDLE

The handle ofthis vacuum cleanercan be setto one of

three positions -Upright, Normal or Parallel. Place your foot

on handle release lever as shown and pull backon the handle

until it releasesfrom its upright position.

Handle Release Lever

Upright position

The handle is normally locked inthis

position forstorage orwhen using the

attachments.

Push the handle forward

until it locks.

Normal position

This position is used for normal cleaning.

Parallel position Handle R_EeaseLever

This position is used for cleaning under

furniture.

HEIGHT ADJUSTMENT LEVER

Height Adjustment Lever-_

• The nozzle head can be (__._

adjusted to four different _ -_-'--_._...._

height settings.

LO_ i|

C_RPET _H_GH

_ARPET

_N aution:

Before using the height adj-

ustment lever,please make

sure the nozzle head is tilted

backward from the floor.

ozzle Head

CARPET] Set the height adjustment to the

appropriate carpet length.

IHARDFLOOR I Use the 3rd(_)height

setting. ".......

IATTACHMENTSIUsethe 4_h(_-_)height

setting. T....

LECTOR

The RUG/FLOOR(TOOLS)selectorshould only be

adjusted while the vacuum cleaner is turned on RUG Position FLOOR Position

and in the upright position. __)

When cleaning a rugor carpet,first turn the

ON/OFF switch to the ON position,and then

set the RUG/FLOOR(TOOLS)selector to the

RUG position.

When cleaning a barefioor orwhen using

one of the attachments, set the RUG/FLOOR RUG/FLOOR(TOOLS)selector

(TOOLS)selector tothe FLOORposition.

Caution: Do not change the setting ofthe RUG/FLOOR(TOOLS)selectorwhile the vacuum

cleaner isturned off.

EDGE CLEANING

r This vacuum clea

near baseboards and stationary furniture.

Caution: When using one of theattachmentsduringcleaning,setthevacuum

cleaner to the upright position.

Remove the attachments from the

vacuum cleaner.

Press the release button C to

disconnect the handle from the

vacuum cleaner.

Caution:

When removing the attachments,pull

them in the directions shown in the Upholstery Tool

illustration.Pulling them in the wrong |/

direction or pulling them forcefully may

cause damage to the attachment clamp.

Dusting Brush_

Attachment Clamp

WandCrevice Tool

Release

Button C

Attach the attachments on the handle.

eAttachtheattachments as shown below.

Suction Hose

]_.[

Wand Crevice Tool

X'°-°o _____ _ i

..... [_U pholstery Tool

...... _usting Brush

When you have finished using the attachments,replace them

in their original positions as shown on page 4.

Caution: Be sure to turn the ON/OFF switch to the "OFF" position and disconnectthe

power cord from the wall outlet before cleaning.

Empty the dustcompartmentwhen _ Press the release button A meanwhile

contents reach the MAX mark. _- press the release button B to remove

the dust compartment.

MAX mark

MAX

Button A

Button B

Press the release lever to the

open

trapdoor. Turn the spinner handleseveral times in the

direction shown to empty the dust

compartment.

Trapdoor Handle

Reattaching the Dust Compartment

Close the trapdoorand insert the projection on the

dust compartment intothe groove onthe main body. Push the dust compartment into

the main body as shown to

reattach.

- Groove
