F&F BIS-413M Manual de usuario
- 1 -
Electronic bistable pulse relay BIS-413M allows switching on or
off the lighting or other device from several different points by
parallel connected, momentary (bell) control switches.
The receiver is switched on after a current pulse caused by pres-
sing any momentary (bell) button connected to the relay. The
receiver is turned off after the next impulse or automatically
after the set off time. A longer pressing of the momentary but-
ton, lasting at least 2 seconds, turns on the relay permanently.
The relay will be turned off only after pressing the momentary
button again (or after a power supply failure). The supply vol-
tage is indicated by the illumination of the green LED marked
as U. Switching the relay on and the countdown to automatic
switch-off is signalled by the blinking of the red LED. Permanent
switching of the relay is signalled by continuous lighting of the
red LED.
Purpose
Functioning
F&F Filipowski sp. j.
Konstantynowska 79/81, 95-200 Pabianice, POLAND
phone/fax (+48 42) 215 23 83 / (+48 42) 227 09 71
www.fif.com.pl; e-mail: biuro@fif.com.pl
Do not dispose of this device in the trash along with other waste! According to the Law on
Waste, electro coming from households free of charge and can give any amount to up to
that end point of collec� on, as well as to store the occasion of the purchase of new equip-
ment (in accordance with the principle of old-for-new, regardless of brand). Electro thrown
in the trash or abandoned in nature, pose a threat to the environment and human health.
BIS-413M 24V
Bistable relay with timing
switch and „memory”
contact position
- 2 -
The relay has the feature of the so-called „memory” of the con-
tact position, which means when the power supply is switched
back on, the relay will be restored to the state it was in when the
power supply was switched off.
1.Disconnect the power supply.
2.Fix the relay on a rail in the control box.
3.Connect the power wires to terminals 1-3, any polarity for AC
voltage and for DC voltage: connect „+” to terminal 3, „–” to
terminal 1.
4.Momentary switches connected in parallel connect to terminal
6 and the wire, to which terminal 3 is connected.
5.Powered receiver connect in series to terminals 11-12.
6. Set the switch-off time with the potentiometer.
BIS-413M 24V is not compatible with backlit buttons.
Mounting
Contact configuration
- 3 -
1-3 relay power supply 9÷30 V AC/DC
6 control input
10 output – break contact (passive)
11 input – COM power supply contact
12 output – closing contact (active)
Wiring diagram
- 4 -
power supply 9÷30 V AC/DC
contact separated 1×NO/NC
maximum load current (AC-1) 16 A
activation delay 0.1÷0.2 s
adjustment time 1÷12 min.
power indication green LED
signalling activation red LED
power consumption
standby 0.15 W
on 0.8 W
terminal 2.5 mm² screw terminals
tightening torque 0.4 Nm
working temperature -25÷50°C
dimensions 1 module (18 mm)
mounting on TH-35 rail
ingress protection IP20
Technical data
- 5 -

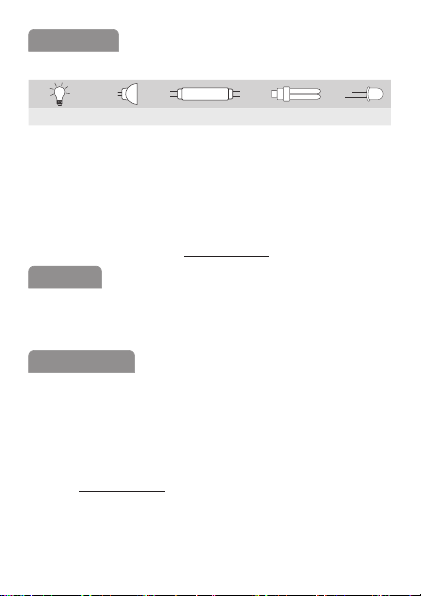

Table for loads supplied with 230 V AC:
tungsten halogen fluorescent energy-saving LED
2000 W 1250 W 1000 W 500 W 250 W
The above data are indicative and will heavily depend on the
design of a specific receiver (that is especially important for
LED bulbs, energy-saving lamps, electronic transformers and
pulse power supply units), switching frequency and operating
conditions.
For more information visit: www.fif.com.pl.
The F&F products are covered by a warranty of the 24 months
from the date of purchase. Effective only with proof of purchase.
Contact your dealer or directly with us.
F&F Filipowski sp. j. declares that the device is in conformity
with the essential requirements of The Low Voltage Directive
(LVD) 2014/35/EU and the Electromagnetic Compatibility (EMC)
Directive 2014/30/UE.
The CE Declaration of Conformity, along with the references to
the standards in relation to which conformity is declared, can be
found at www.fif.com.pl on the product page.
Power table
Warranty
CE declaration
