FAAC 202025 Manual de usuario

E024 U

Control Board

UL325 - UL991

(800) 878-7829

www.FastGateOpeners.com

SETTING

J24

DL19 DL20 DL21 DL22DL14 DL15 DL16 DL17 DL18

Main power supply 115/230 V~ 50/60 Hz switchable

Secondary power

supply

24 Vdc - 16 A max.

(min. 20 Vdc. - max. 36 Vdc.)

Power consumption stand-by = 4W max. = 400 W

Max load per motor 7 A

Accessory power

supply 24 Vdc - 500 mA

Battery charge current 150 mA

Operating temperature -4 °F.........+131 °F

Protection fuses All self-resetting

Main power fuse 2.5 A Timed

Operating Logics E, A, S, EP, AP, SP, B, C

Operating time out 10 min.

Pause time Programmable (0 to 4 min)

with trimmer

Motor force, speed,

obstacle sensitivity,

closing delay

Programmable with

dedicated trimmer

Connector inputs Power supply, Battery,

Radio receiver, USB

Terminal strip inputs Encoder, Open A, OpenB, Stop,

Open safety fotocell, Closing safety

fotocell, Limit switches

Terminal strip outputs Lamp, Buzzer, Motors, Lock,

Programmable OUT,

accessory power supply

Programming With trimmers,

dipswitches

and pushbutton

RADIO Connector for the radio receiver

BATTERY Connector for the backup battery

J24 Jumper to disable battery charging

(With the jumper present the battery

is charged)

POWER SUPPLY DC Power supply input

TR1 to TR6 Programming Trimmers

+24 LED DC power indicator

SW1 - SETUP Pushbutton for automatic setup

DS1 - DS2 Programming dipswitches

LED ERROR Troubleshooting indicator

USB A USB connection for software upgrade

On the radio connector it’s possible to plug in receivers RP

and RP2. With a single channel radio RP it will be possible to

activate only the OPEN A input, with a dual channel radio RP2

it will be possible to activate both OPEN A and OPEN B inputs.

Plug in the radio board with the component side towards the

internal part of the board.

Make sure you insert or disconnect the board ONLY with the

power off.

1. E024U CONTROL BOARD DESCRIPTION & CHARACTERISTICS

1.1 TECHNICAL SPECIFICATIONS 1.2 LAYOUT AND COMPONENTS

1.3 RADIO CONNECTION

Fig. A1

A2 E024U CONTROL BOARD

(800) 878-7829

www.FastGateOpeners.com

A B STP CL OP

OPEN FSW

Fig. A2

PIN LABEL FUNCTION

2 EASY 2 EASY Input for bus 2easy accessories (encoder)

1OPEN A N.O. Contact for total opening command

2 OPEN B /

OPEN B: N.O. Contact for opening of leaf 1 only

(with only one leaf the opening stops at 50% of traveling)

CLOSE (LOGIC B-C): N.O. Contact for closing command

3 STOP N.C. Contact for stop command

4 FSW CL N.C. Contact for closing safety

5 FSW OP N.C. Contact for opening safety

6 GND (-) 24 Vdc negative

7 GND (-) 24 Vdc negative

8 + 24 24 Vdc positive

9 OUT (-) Programmable output (See: DS1 SW 11-12)

10 FCA 1 Open limit switch Motor 1

11 GND (-) 24 Vdc negative

12 FCC 1 Close limit switch Motor 1

13 FCA 2 Open limit switch Motor 2

14 GND (-) 24 Vdc negative

15 FCC2 Close limit switch Motor 2

LAMP LAMP Audio alarm output (DS1 SW11=OFF)

Output for ashing light 24Vdc 15W max (DS1 SW11=ON)

LOCK LOCK Output for electrical lock, max 5A pulse (DS2 - SW 4=OFF) 12 Vac / 24Vdc

Always ON (maglock): max 1 A (DS2 - SW 4=ON) 24 Vdc

MOT1 MOT 1 Motor 1 output ( rst moving motor )

MOT2 MOT 2 Motor 2 output ( second moving motor )

USB A USB Firmware upgrade input

2. INPUT / OUTPUT DESCRIPTION

E024U CONTROL BOARD

(800) 878-7829

www.FastGateOpeners.com

FSW

STP CL OP

How to connect Normally Open contacts.

(Connect them in parallel) How to connect Normally Close contacts.

(Connect them in series)

The photocells must be connected depending on which area

they must protect. (See Fig. A5)

Closing Safety D : These photocells protect the area covered

by the gate during the closing movement. They have no effect

during the opening movement.

Opening Safety B-C : These photocells protect the area covered

by the gate during the opening movement. They have no effect

during the closing movement.

Opening/Closing Safety A : These photocells protect the area

covered by the gate both during the opening and the closing

movements.

The E024U board allows the connection of several safety devices

(for example photocells). With photocells you can activate the

FAILSAFE function, which, before each movement of the ope-

rator, tests each fotocells. In case the test fails the movement

is inhibited. To activate this function set to ON the dip-switch N.

11 and 12 of DS1, and connect the negative of the transmitter

to the OUT pin (No.9).

Fig. A3

Fig. A5

Fig. A4

Connection of a pair of closing photocells and a pair of opening/closing photocells

To use the FAIL-SAFE mode connect the negative power supply of the transmitters to OUT (pin 9), and set dip-

switch 11 and 12 to ON on DS1

Fig. A6

RX= Photocell Receiver

TX= Ptotocell Transmitter

CL= Closing

OP= Opening

3. PHOTOCELLS CONNECTIONS

3.1 CONNECTIONS TO NORMALLY CLOSE (N.C.) PHOTOCELLS

A4 E024U CONTROL BOARD

(800) 878-7829

www.FastGateOpeners.com

FSW

STP CL OP

FSW

STP CL OP

Connection of two pairs of closing photocells

Connection of a pair of closing photocells, a pair of opening photcells and a pair of opening/closing photocells

Other optional safety devices to connect in series

Fig. A7

Fig. A8

To use the FAIL-SAFE mode connect the negative power supply of the transmitters to OUT (pin 9), and

set dip-switch 11 and 12 to ON on DS1

When using the FAIL-SAFE mode also the safety inputs not used (FSW CL , FSW OP) must be connected

to OUT (pin No. 9)

To use the FAIL-SAFE mode connect the negative power supply of the transmitters to OUT (pin 9),

and set dip-switch 11 and 12 to ON on DS1

RX= Photocell Receiver

TX= Ptotocell Transmitter

CL= Closing

OP= Opening

RX= Photocell Receiver

TX= Ptotocell Transmitter

CL= Closing

OP= Opening

E024U CONTROL BOARD

(800) 878-7829

www.FastGateOpeners.com

FSW

STP CL OP

FSW

STP CL OP

FSW

STP CL OP

FSW

STP CL OP

To use the FAIL-SAFE mode connect the negative power supply of the transmitters to OUT (pin 9), and set dip-

switch 11 and 12 to ON on DS1

Connection of a pair of closing photocells and a pair of opening photocells

Fig. A9

Connection of no safety or stop devices

(NOT RECOMMENDED)

Connection of one pair of opening photocells

Other optional safety devices to

connect in series

Fig. A10

Fig. A11 Fig. A12

To use the FAIL-SAFE mode connect the ne-

gative power supply of the transmitters to OUT

(pin 9), and set dip-switch 11 and 12 to ON on

DS1

When using the FAIL-SAFE mode also the

safety inputs not used (FSW CL , FSW OP)

must be connected to OUT (pin No. 9)

RX= Photocell Receiver

TX= Ptotocell Transmitter

CL= Closing

OP= Opening

Connection of a generic closing safety device and a generic

open safety device

A6 E024U CONTROL BOARD

(800) 878-7829

www.FastGateOpeners.com

4. PROGRAMMING

OPERATING LOGIC

DS 1: SW 1 - SW 2 - SW 3

LOGIC SW

PAUSE

TIME DESCRIPTION

E (default)

Semiautomatic OFF OFF OFF NO One command opens, the next one closes. A command du-

ring opening stops the gate

Automatic ON ON ON 0 - 4

min

One command opens, waits for the pause time an then closes

automatically

Security OFF OFF ON 0-4

min

One command opens, waits for the pause time and then clo-

ses automatically. If the closing safety is activated or another

command is given during the pause time it closes

Semiautomatic

step by step

OFF ON OFF NO One command opens, the next one closes. During the move-

ment a command stops the gate

Automatic

step by step

OFF ON ON 0-4

min

One command opens, waits for the pause time and then clo-

ses automatically. A command during the pause time holds

the gate open

Security

step by step

ON OFF OFF 0-4

min

One command opens, waits for the pause time and then

closes automatically. If the closing safety is activated during

pause time the gate closes in 5 s. A command during pause

time holds open the gate

Manned Pulsed ON OFF ON NO An open A command opens the gate, an open B command

closes the gate

Manned Constant ON ON OFF NO Holding open A active opens the gate, holding Open B active

closes the gate

For more details on the operating logics please refer to Chapter 12 - Function Logics

4.1 DIP SWITCH DS1 SETTINGS FOR OPERATING LOGIC

E024U CONTROL BOARD

(800) 878-7829

www.FastGateOpeners.com

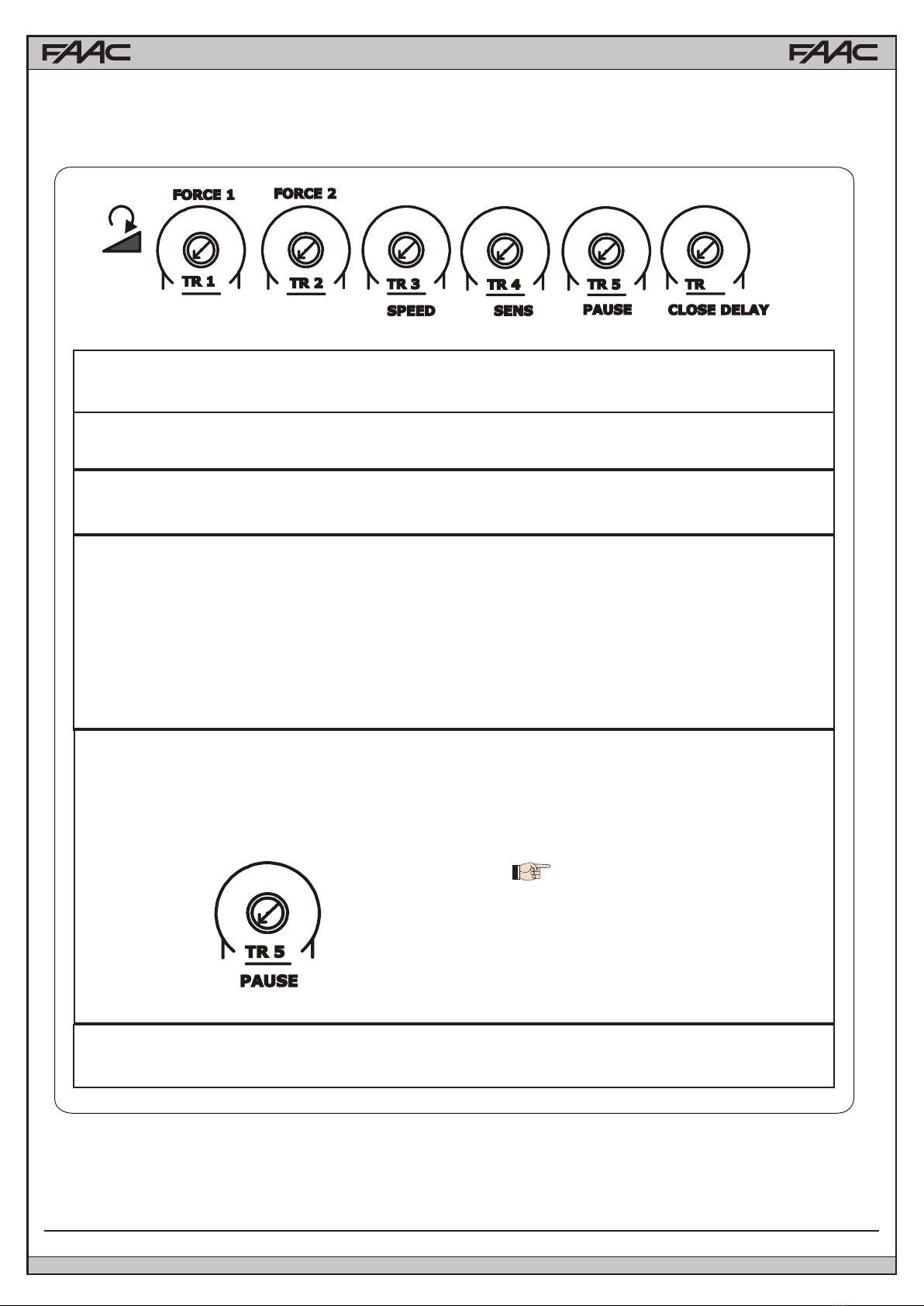

TR 3 – SPEED ADJUSTMENT FOR MOTOR1 AND MOTOR 2

Turn clockwise to increase the opening and closing speed

TR 4 – SENSITIVITY ADJUSTEMENT FOR OBSTACLE DETECTION FOR MOTOR 1 AND MOTOR 2

Turn clockwise to increase the sensitivity for obstacle detection.

With this trimmer you can adjust the reaction time for the board to invert the motion of the gate in case of

obstacle detection, or the complete stop in case the board is in the positive stop detection zone.

If an obstacle is detected during the gate movement the board will invert the motor rotation until the gate goes

back to the original starting position. If in the successive movement an obstacle is detected again the board

will be put in alarm mode and won’t take any more commands until the STOP input is activated (Alarm Reset)

or power is cycled

TR 5 – PAUSE TIME ADJUSTMENT ( 0 - 4 min. )

Turn clockwise to increase the pause time.

TR6 - CLOSING DELAY OF LEAF 1 OVER LEAF 2 ADJUSTMENT ( 0 - 15 sec )

Turn clockwise to increase the delay

TR1 – FORCE ADJUSTMENT MOTOR 1

Turn clockwise to increase the opening and closing force

1 min

2 min

3 min

4 min0 sec

30 sec

TR 2 – FORCE ADJUSTEMENT MOTOR 2

Turn clockwise to increase the opening and closing force

4.2 ADJUSTING TRIMMERS

Dip switches DS1: 1 to 3 need to

be set for an operating mode with

PAUSE time for this adjustment

to have any effect

E024U CONTROL BOARD

(800) 878-7829

www.FastGateOpeners.com

BOARD SETUP

DS 1: SW 4 to SW 12

OPENING DELAY SW 4 The opening of leaf 2 is delayed after the opening of leaf 1. This is to avoid

that the gate’s leafs interfere with each other during the initial part of the

movement. In case there is only one leaf is has no effect.

0 sec (default) OFF

2 sec ON

REVERSE AND LAST STROKE SW 5 If active, before opening, while the gate is closed, the motors thrust to

close for 2 s to facilitate the release of the electric lock. At closing the

motors are activated for a nal stroke after slowdown to facilitate locking

of the electric lock.

inactive (default) OFF

active ON

MAX THRUST AT STARTUP SW 6 With this fuction active the motors work at maximum force at startup

(regardless of the force setting) during the initial phase of the movement.

Useful for heavy leafs

inactive (default) OFF

active for 3 sec ON

AUTOMATIC OPENING IN CASE OF

POWER FAILURE

SW 7 If active and with the optional backup battery installed, the board will

open the gate after one minute from the power failure and keep it open.

Within the minute wait it’s always possible to open and close the gate

with a command. If the logic used has a pause time the board will close

the gate when the power comes back.

inactive (default) OFF

active ON

CLOSING SAFETY LOGIC SW 8 With this function you can choose the behaviour of the closing safety. With

SW8 OFF the gate movement will be reversed as soon as the safety is active,

with SW8 ON the gate will stop when the safety is active and it will reverse

only when the safety is deactivated again.

immediate reverse (default) OFF

reverse when cleared ON

PREFLASHING SW 9 This function activates the ashing lamp for 5s before the movement of

the gate

inactive (default) OFF

active for 5 sec ON

EXTRA SENSITIVITY TO

OBSTACLE DETECTION

SW 10 If active this function allows to have an immediate reverse in case the

gate hits a rigid obstacle, while keeping the motor active in case of a

gradual increment of resistance, like with wind pressure on the gate or

increased friction

inactive (default) OFF

active ON

ORANGE TERMINAL FUNCTION SW 11 If OFF after the second consecutive obstacle detection this output is

activated until the STOP contact is open or the power is cycled

if ON the output can be connected to a warning lamp.

NOTE: for UL325 compliance this switch must be left OFF

Audio Alarm (default) OFF

Warning Lamp ON

OUT FUNCTION (pin 9)

max 100mA

SW 12 if OFF: use pin 9 as power supply negative for a warning lamp. The

lamp will be active during opening, pause and stop. Flashing during

close, off when the gate is closed

If ON: use pin 9 as power supply negative for the safety photocells.

Before any movement the board will check for the presence of the

safety photocells. If the test fails the gate will not move.

Lamp OFF

Photocells FAIL SAFE active ON

4.3 DIP SWITCH DS1 SETTINGS FOR BOARD SETUP

E024U CONTROL BOARD

(800) 878-7829

www.FastGateOpeners.com

DS2

SETTING

J24

78910

DL19 DL20 DL21 DL22

DL14 DL15 DL16 DL17 DL18

DS 2

OPERATOR SELECTION

OPERATOR TYPE SW 1 SW 2 SW 3

S450H, S800H OFF OFF OFF

S418 OFF OFF ON

415, 390, 770 ON OFF OFF

DS 2

LOCK OUTPUT MODE

OUTPUT MODE SW 4

Active only for 3 sec. after an open impulse

(from gate closed)

OFF

Active always except 3 sec. before an opening ON

SETTING

DL 1 DL 2 DL 3 DL 4 DL 5

J2 4

IMPORTANT

BUS

DEVICE

4.4 DIP SWITCH DS2 SETTINGS FOR OPERATOR TYPE AND LOCK MODE

5. LED DIAGNOSTICS

A10 E024U CONTROL BOARD

(800) 878-7829

www.FastGateOpeners.com

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de FAAC

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
