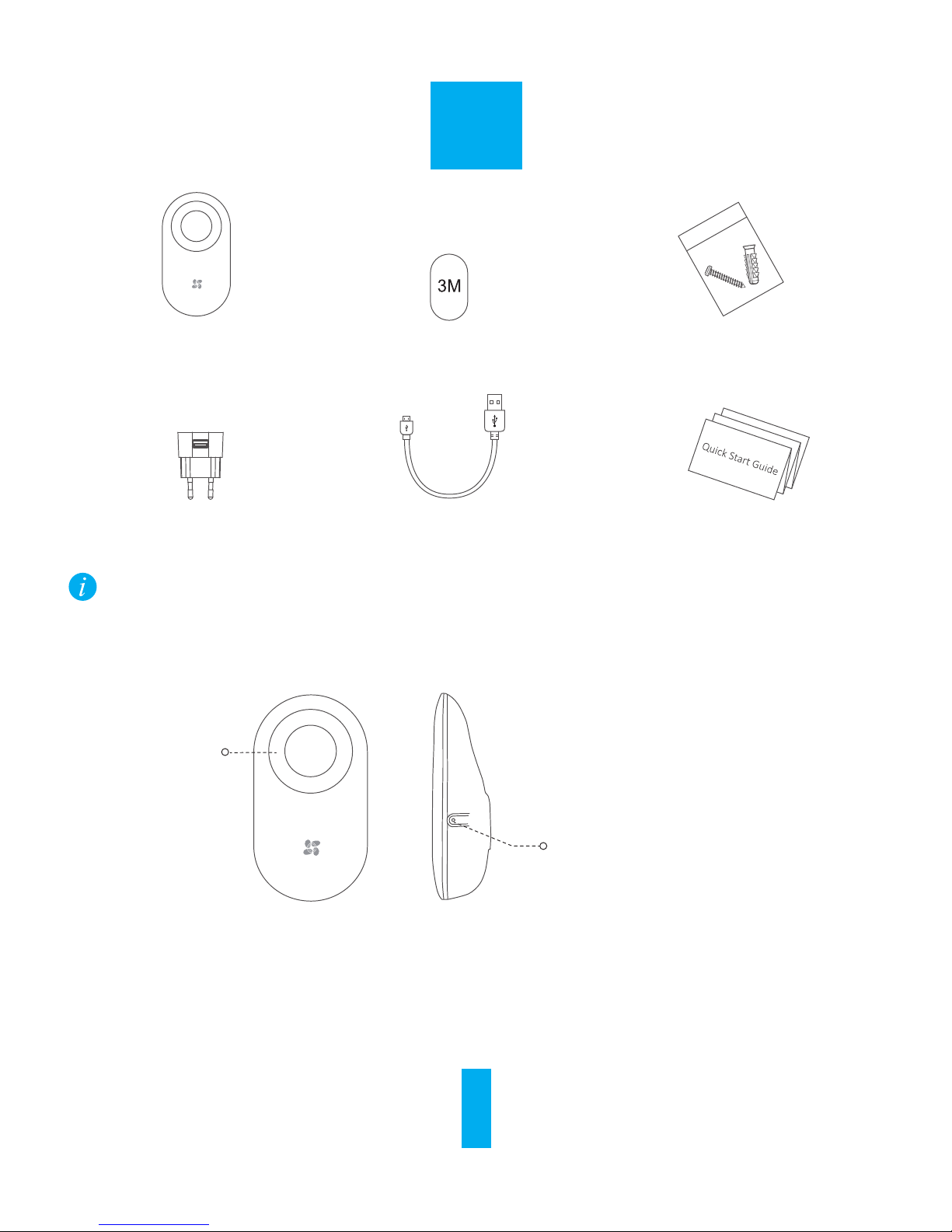

T9 x1 Foam Sticker x1
USB Cable x1
Power Adapter x1
Box Contents
Screw Kit x1
Quick Start Guide x1
ENGLISH
The figures in this manual are for reference only and may differ from the actual
product.
Basics and Functions
Setting Button
Press Once: Add T9 to the Internet Alarm
Hub
Press and Hold for 1s: Mute
Red Indicators
If the connected Internet Alarm Hub receives alarms from other detectors, T9 will be
triggered and start to alarm.
Functions
1
Operations

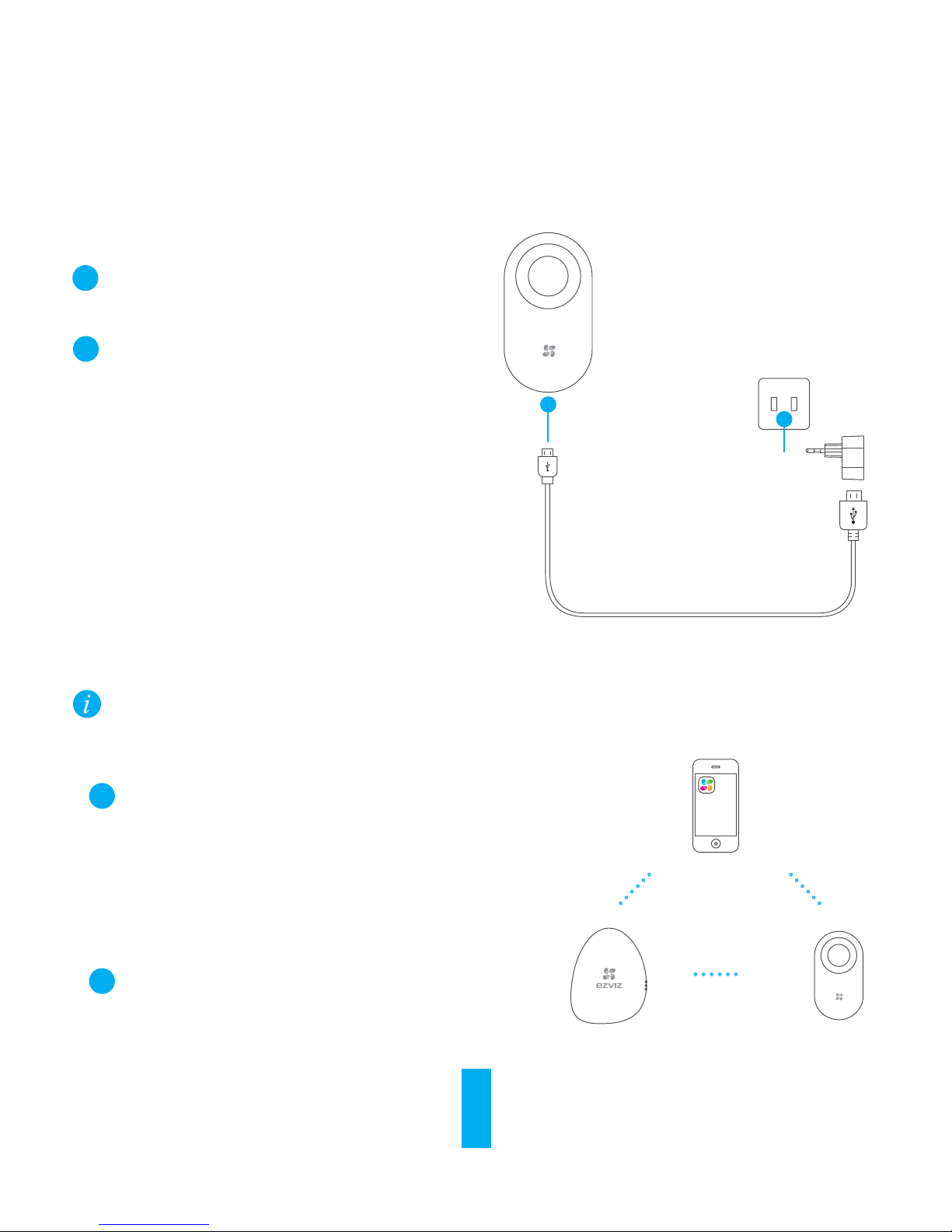

Connect the T9 to the power adapter with the
power cable.
Power Socket
Step 1 Starting T9
1
2Plug the power adapter into the power socket
to power on the T9. The red indicator lights on
for 2 seconds indicating the T9 has started up.
The T9 should be used cooperating with an Internet Alarm Hub (such as A1) and other detectors (such
as magnetic contact and IR detectors). And they are required to be purchased separately.
……
……
……
Step 2 Adding to Internet Alarm Hub
Installing the EZVIZ App
- Connect your mobile phone to Wi-Fi.
- Download and install the EZVIZ app by searching
the “EZVIZ” in App Store (iOS version) and Google
PlayTM (Android version).
- Start the app and register for an EZVIZ user
account.
Option 1 (Recommended) Adding by EZVIZ App
1
Adding T9
Log in the EZVIZ app and scan the device QR code to
add it to the Internet Alarm Hub.
2
2
Enable the “Adding Detectors Mode” of your Internet Alarm Hub. Refer to Quick Start Guide of your
Internet Alarm Hub for details.
The Internet Alarm Hub issues a voice prompt of the device type and serial No. indicating T9 is
added.
Option 2 Adding by Operating the Internet Alarm Hub
1
Within 50CM
Internet
Alarm Hub
Seng Buon
1
Take T9 close to the Internet Alarm Hub (within 50cm) and press the button on the T9, the red
indicators flicker once indicating the adding signal is sent.
2
3
4You can test the device after the installation.
- Press the Emergency button on the remote control of the Internet Alarm Hub to trigger an
emergency alarm. If the T9 starts to alarm, it has been added to the Internet Alarm Hub
successfully.
- Press the Mute button on the remote control of the Internet Alarm Hub to clear the alarm. And
then the T9 will stop alarm.
3
Working Current Static: 22mA Maximum: 200mA
Working Temprature -10°C to 55°C (14°F to 131°F)
Working Environment Indoor
Working Humidity 10% to 90%
-20°C to 70°C (-4°F to 158°F)
77g
Alarm Volume 85dB (within 3 m)
Storage Temperature
Alarm Light Red indicators blink when alarm occurs.
67 mm*33mm*121mm (2.6"*1.3" *4.8")
Weight
Dimension (H*W*D)
Power Voltage DC 5V (Micro USB)
Specifications
Picking an Installation Place
Pick a clean and plat place to install T9.
Installing T9
1
Installing T9

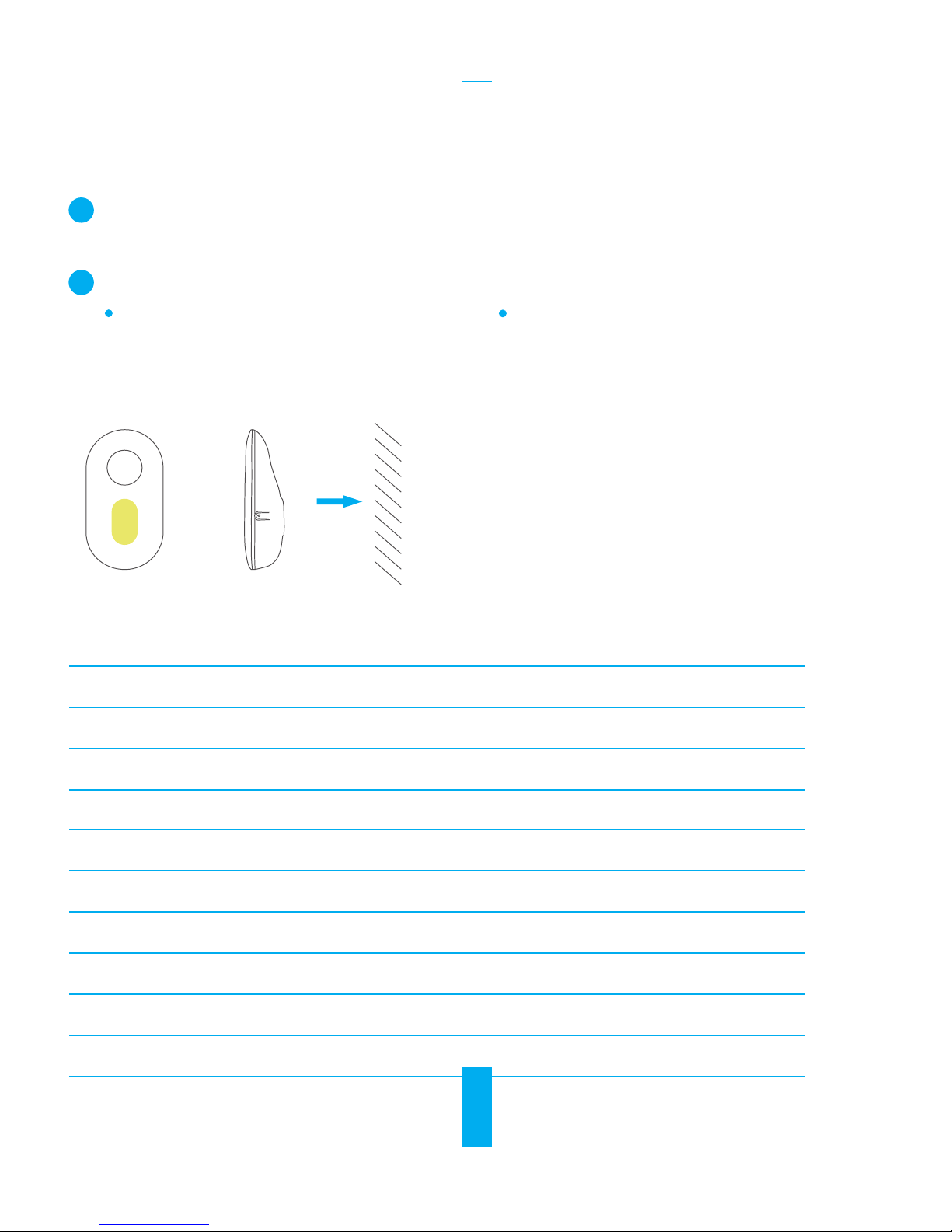

Paste the foam sticker onto the back of T9 and
stick T9 to the installation place, as shown in
the figure below.
2
Wall
Option 1 (Recommended)
- Drill a screw hole in the installation place.
- For the cenment wall, push the expansion
screw into the hole.
- Push the screw into the hole or the
expansion hole.
- Hang the T9 onto the fixed screw.
Option 2
4
5
박스 내용물
T9 x1
전원 어댑터 x1
발포 스티커 x1
USB 케이블 x1
나사 세트 x1
퀵스타트 가이드 x1
이설명서에 있는 그림은 참고용이며 실제 제품과 다를 수있습니다.
기본 사항 및기능
빨간색 표시등
설정 버튼
한번누름: 인터넷 경보 허브에 T9 추가
1초간 길게 누름: 음소거
기능
연결된 인터넷 경보 허브가 다른 탐지기에서 경보를 수신하면 T9가작동하여 경보를
울립니다.
한국어
6
작동
1단계 T9 부팅
전원 소켓
1전원 케이블을 사용해 T9를전원 어댑터에
연결합니다.
2전원 어댑터를 전원 소켓에 꽂아 T9를켭니다.
T9 부팅 완료를 나타내기 위해 빨간색 표시등이
2초간 켜집니다.
2단계 인터넷 경보 허브에 추가
T9는인터넷 경보 허브(A1 등) 및다른 탐지기(자기 접점, 적외선 탐지기 등)와함께 사용해야
합니다. 이러한 장비는 별도 구매품입니다.
• 옵션 1(권장) EZVIZ 앱을 통한 추가
⋯⋯
⋯⋯
⋯⋯
1EZVIZ 앱설치
- 모바일 폰을 Wi-Fi에연결합니다.
- App Store (iOS 버전) 및Google PlayTM(Android
버전)에서 “EZVIZ”를검색하여 EZVIZ 앱을
다운로드한 다음 설치합니다.
- 앱을 실행하고 EZVIZ 사용자 계정을 등록합니다.
2T9 추가
EZVIZ 앱에 로그인한 다음 장비 QR 코드를 스캔하여
인터넷 경보 허브에 장비를 추가합니다.
