DTP T USW 233 • Setup Guide

This guide provides instructions for an experienced installer to set up and operate the

Extron DTP T USW 233 switching video transmitter. The DTP T USW 233 transmitter switches among

an analog video and two digital (HDMI) video inputs and, paired with a compatible receiver, can

extend the selected signal up to 230 feet (70 m). If the selected input is HDMI, the extended video

signal is HDCP-compliant.

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources and mount the transmitter as required.

Step 2 — Making Connections

Inputs

AInput 1 (RGB) connector — Connect a VGA cable between this port and the VGA output port of the analog video source.

BInput 2 and 3 (HDMI) connectors — Connect HDMI cables between these ports and the HDMI output ports of the digital video

sources.

NOTE: See the LockIt®Lacing Brackets on page 3 of this guide to securely fasten the HDMI connectors to the transmitter.

CTP function switch —

If the receiving device is in the Extron DTP series, set this switch to DTP. The TP output consists of HDMI with embedded audio,

analog audio, RS-232 and IR, and remote power. The transmitter and receiver can be powered by one 12 VDC power supply

connected to either unit.

For an HDBaseT-enabled receiver type, set this switch to HDBT position. The TP output consists of HDMI with embedded audio plus

RS-232 and IR. The transmitter and receiver each requires its own 12 VDC power supply.

ATTENTION:

• Position this switch BEFORE connecting the appropriate device to the TP connector. Failure to comply can damage the

endpoint.

• Positionnez le sélecteur AVANT de connecter l’appareil approprié au connecteur TP. Ne pas respecter cette procédure

pourrait endommager le point de connexion.

DAudio input — Connect an unbalanced stereo audio source to this 3.5 mm mini stereo jack for an analog audio input.

NOTE: Analog input audio is not embedded in the HDMI signal; it is transmitted separately and is present for any selected input.

Over DTP RS-232 and IR pass-through

ERS-232 and IR connector — To pass serial or infrared data or control signals on the Over

DTP RJ-45 output, connect the controlling device to the transmitter via the RS-232 and IR

captive screw connector. Connect the device to be controlled to the receiver.

POWER

12V

--A MAX

Rx GTx RxTxG

RS-232 IR

RxTx

RGB HDMI HDMI

HDBT

DTP

SIG LINK

DTP OUT

AUDIO

CONTACT RS-232TALLY

123G 123+V

RESET

INPUTS

OVER DTP REMOTE

AAKKDD CC

BBBBFFEEGGHHJJII

TxRx

RxTx

Gnd

IR Device

RS-232 Device

RxTx RxTxG

RS-232 IR

OVER DTP

DTP T USW 233 • Setup Guide (Continued)

DTP output to receiver

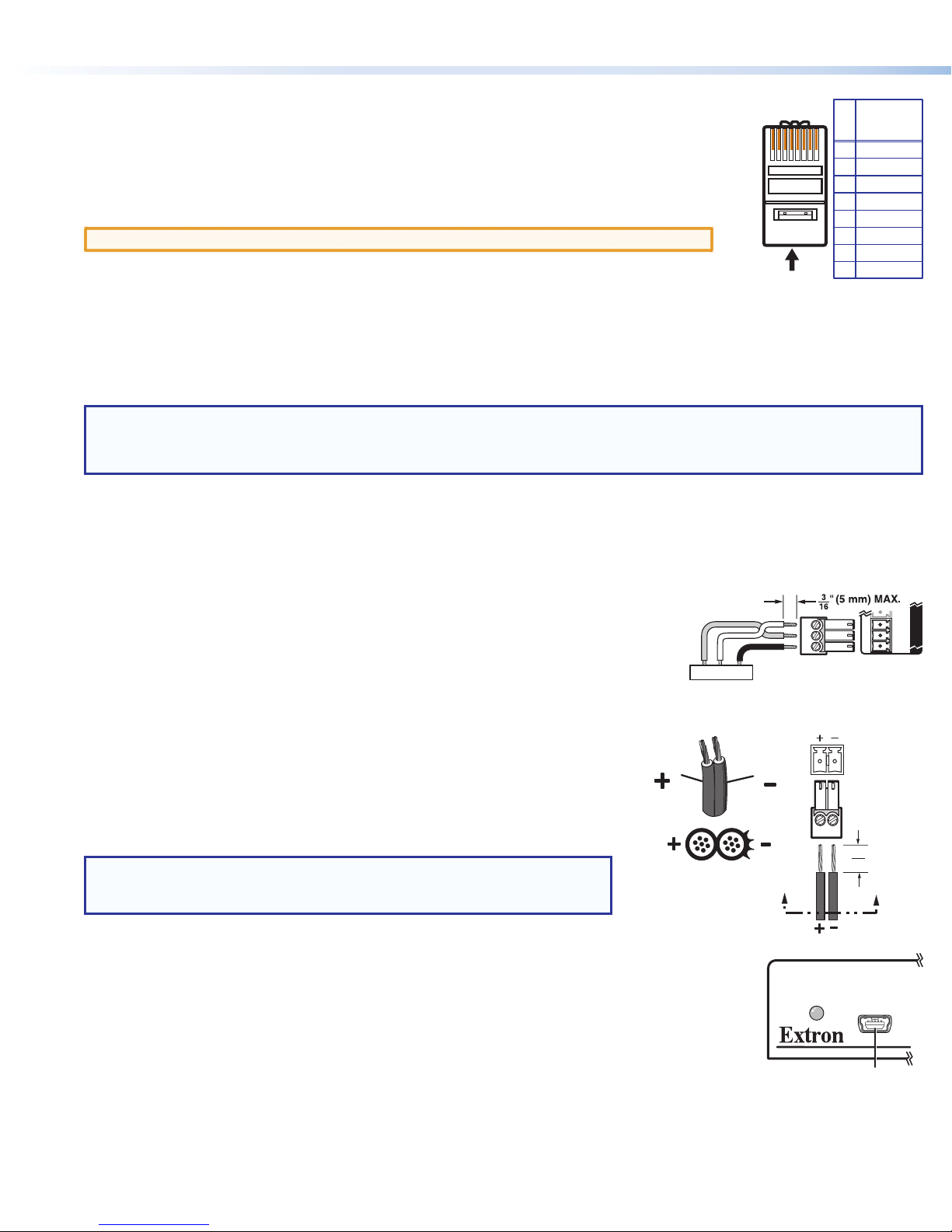

FDTP RJ-45 connector — Connect the transmitter DTP Out port to the DTP In port on the receiver. Extron

recommends that you terminate both cable ends in accordance with the following specications, at a

minimum:

• TIA/EIA T 568B •Shielded cable

• 24 AWG, solid conductor

ATTENTION: Do not connect this device to a computer data or telecommunications network.

Signal LED — Lights when the unit is outputting a TMDS clock signal on the DTP output.

Link LED — Lights when a valid link is established between the units on the DTP cable.

Remote control

GRemote Contact port — If desired, for contact closure control, plug a locally-contructed contact closure control device into this

3.5 mm, 4-pole captive screw port. Momentarily short the pin for the desired input (1, 2, or 3) to G to select that input. To force an

input to be always selected, leave the short in place.

NOTES:

• Contact closure control overrides front panel input selections.

• For contact closure control, auto-input switching mode must be off (see Selecting the switch mode on the next page).

HRemote Tally port — If desired, to remotely identify the currently selected input, plug a locally-constructed device into this 3.5 mm,

4-pole captive screw connector. Connect the power wire for the device into the +V pin and connect the ground wire for each indicator

into the corresponding tally output pin: 1, 2, or 3.

When an input is selected, by either contact closure or front panel selection, the corresponding tally output pin shorts to ground,

closing the circuit and lighting the connected indicator (LED).

IRemote RS-232 port — Plug a serial RS-232 device into the switching transmitter via this

rear panel 3.5 mm, 3-pole captive screw connector for remote control of the switching

transmitter.

Reset button

JReset button — This button initiates two levels of reset. For different reset levels, use an

Extron Tweeker or small screwdriver to press and hold the recessed button while the switcher

is running or while applying power. See the DTP T USW 233 User Guide, available at

www.extron.com, for details.

Power

KPower connector — Connect an IEC power cord between the included 12 VDC

power supply and a 100-240 VAC, 50-60 Hz source. Connect the power supply to

either unit, transmitter or receiver, as shown at right. Use the included tie-wrap to

strap the cord to the captive screw connector.

NOTE: Only one power supply is required. A single power supply connected to

either unit in the Tx/Rx pair powers both units. A power supply is included

with the transmitter.

Front panel Conﬁguration port

AConfiguration port — Plug a PC or other controlling device into the switching transmitter via this front

panel mini-USB connector for remote conguration of the switching transmitter.

Power Supply

Output Cord

Ridges

Smooth

Captive

Screw

Connector

16 (5 mm) Max.

SECTION A–A

REMOTE

RxTx Gnd

RS-232 Device

GRxTx

RS-232

AUTO

SWITCH

CONFIG

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Blue

TIA/EIA T

568B

TP Wires

12345678

Pins:

MODE NORMAL

AUTO

Press the button.

The LED lights

green.

123

MODE NORMAL AUTO

AUTO

SWITCH

Press and HOLD the Mode button

and either the Auto or Normal button.

Release the buttons.

uto Switch lights (auto)

or goes out (normal).

seconds

MODE NORMAL AUTO

Press the and

HOLD

the all three Input buttons.

All three LEDs flash three times. Release the Input buttons.

HDCP

SIGNAL

STATUS

123

Operation

Switching inputs

Select the desired input by pressing the associated input button. Observe that the

LED for the selected input lights.

NOTE: The switcher must be in normal (manual) mode (see below).

Selecting the switch mode

In auto-input switching mode, the switcher selects to the

highest numbered input with a sync signal present. Turn

auto-input switching mode on and off as follows:

1. Press and hold the Mode (Input 1) button and the

button below for the desired mode for approximately

5 seconds:

Auto (Input 3) — The Auto Switch LED lights.

Normal (Input 2) — The Auto Switch Active LED goes off.

2. Release the buttons.

Locking and unlocking the front panel (Executive mode)

The switcher has a front panel lock feature that locks the front panel. If you try to make

front panel input selections when the panel is locked, all front panel LEDs ash three

times. Toggle the front panel lock on and off by pushing and holding all three Input

buttons simultaneously for 5 seconds. All front panel LEDs ash three times.

Release the buttons.

Interpreting the Status LEDs

Signal LEDs (1 through 3) —Indicate that the switcher detects horizontal sync

(Signal LED 1) or TMDS clock (Signal LED 2 and Signal LED 3) signals on the associated input.

HDCP LEDs (2 and 3) —Indicate that the corresponding input signal is HDCP encrypted.

LockIt®Lacing Brackets

Use the included LockIt Lacing Brackets to securely fasten both HDMI cables as follows.

1. Plug the HDMI cable into the panel connection (1).

2. Loosen the HDMI connection mounting screw from the panel enough to allow the LockIt lacing

bracket to be placed over it (2). The screw does not have to be removed.

3. Place the LockIt lacing bracket on the screw and against the HDMI connector, then tighten the

screw to secure the bracket (3).

ATTENTION: Do not overtighten the HDMI connector mounting screw. The shield it fastens to

is very thin and can easily be stripped.

4. Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as

shown (4).

5. While holding the connector securely against the lacing bracket, use pliers or similar tools to

tighten the tie wrap, then remove any excess length (5).

68-2490-50

Rev. C

11 15

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Korea

+82.2.3444.1571

+82.2.3444.1575 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

Application Diagram

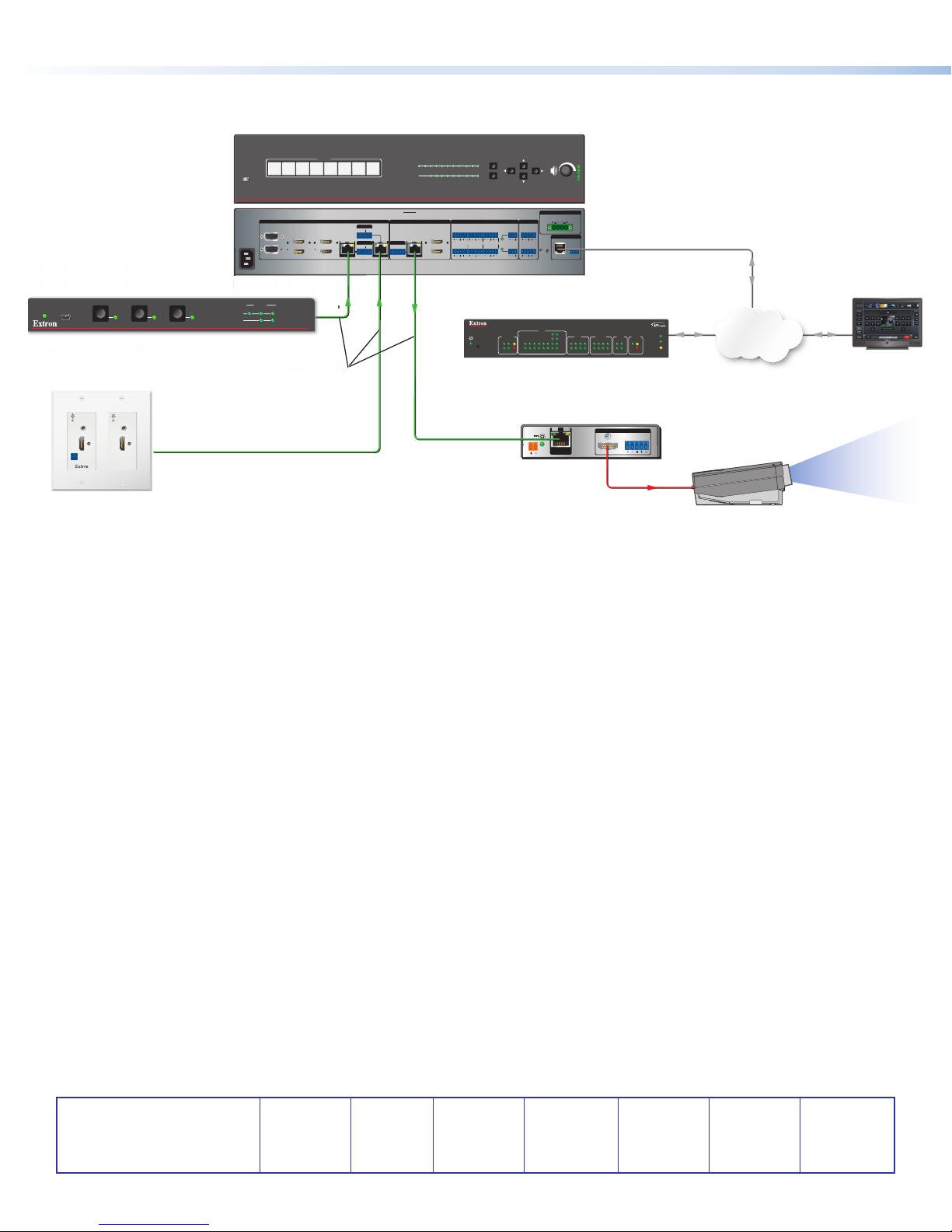

Figure 1. Typical Switching Transmitter Application

AUTO SW

CONFIG

IR OUT

HDMI IN

AUDIO IN

HDCP

HDMI IN

AUDIO IN

HDCP

TLP 1000

IPCP 505

IN1608

DTP HDMI 230 Rx

Projector

100-240V ~ -- A MAX

CONFIGURABLE

HDMI HDMI

RS-232 IR

RS-232IR

Tx Rx Tx RxG

Tx Rx Tx RxG Tx Rx Tx RxG

HDMI

INPUTS OUTPUTS

Tx Rx

RS-232

LAN

2x25W(8Ω)/2x50W(4Ω)

RESET

AUDIO INPUTS OUTPUTS

REMOTE

LL1R R

L2 R

CLASS 2 WIRING

L4R

L5R

+48V

VARIABLE

IN1608 SA

MIC/LINE

L6R

SIG LINK

DTP IN

SIG LINK

DTP IN

SIG LINK

DTP OUT

50/60 Hz

RS-232IR

OVER DTP

AMPLIFIED OUTPUT

VOLUME

SCALING PRESENTATION SWITCHER

IN1608

INPUTS

HDCP

SIGNAL

OUTPUTS

ENTER

Extron

2 3 4 5 6 7 8 A B C

INPUTS

1 2 3 4 5 6 7 8

CONFIG

Ext

ron

DTP T U

SW 233

ansmitter

Extron

DTP T HWP 232 D Tx

Transmitter

Ethernet

Network

POWER

12V

0.7A MAX

AUDIO

SIG LINK

DTP IN

OUTPUTS

XTP DTP 24 Cable

230'

HDMI

12345678

100

LINK

ACT

COM

IR/S

RTS

CTS

RELAY FLEX

I/O

eBUS

ACT LIMIT

OVER

SWITCHED

12VDC

OVER

LIMIT

IPCP 505

608

DTPIN

60 H

xtron

TP T U

W 233

ransmitter XTPDTP 24 Cabl

230

AUTO

SWITCH

DTP T USW 233

12 3

CONFIG

231

STATUS

SIGNAL

HDCP

Otros manuales de Cambiar de Extron electronics

Extron electronics

Extron electronics SW12 VGA Ars Manual de usuario

Extron electronics

Extron electronics System 5 IP Series Manual de usuario

Extron electronics

Extron electronics FOX3 Matrix Series Manual de usuario

Extron electronics

Extron electronics IN1608 HDBT Series Manual de usuario

Extron electronics

Extron electronics in1608 series Manual de usuario

Extron electronics

Extron electronics VSW 2VGA A Manual de usuario

Extron electronics

Extron electronics FOX T USW 203 Manual de usuario

Extron electronics

Extron electronics IN1808 Series Manual de usuario

Extron electronics

Extron electronics PVS 204SA Plus Instrucciones de instalación y funcionamiento

Extron electronics

Extron electronics MPS 602 Manual de usuario

Extron electronics

Extron electronics FOX SW8 Manual de usuario

Extron electronics

Extron electronics MediaLink Controllers MLC 104 Series Manual de usuario

Extron electronics

Extron electronics SW2 HDMI Manual de usuario

Extron electronics

Extron electronics System 5 IP Series Manual de usuario

Extron electronics

Extron electronics System 10 Plus Manual de usuario

Extron electronics

Extron electronics SW8 HD 4K PLUS Manual de usuario

Extron electronics

Extron electronics SW AV Series Manual de usuario

Extron electronics

Extron electronics DTP2 T 212 Manual de usuario

Extron electronics

Extron electronics Matrix 12800 Series Manual de usuario

Extron electronics

Extron electronics A-3 Manual de usuario

Extron electronics

Extron electronics System 8 Plus Manual de usuario

Extron electronics

Extron electronics SW 4 AR MX HV Manual de usuario

Extron electronics

Extron electronics MPS 601 Manual de usuario

Extron electronics

Extron electronics PVS 407D Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
