Extron electronics VersaTools MTP DA4 Manual de usuario

IMPORTANT:

Go to www.extron.com for the

complete user guide and installation

instructions before connecting the

product to the power source.

IMPORTANT:

Go to www.extron.com for the

complete user guide and installation

instructions before connecting the

product to the power source.

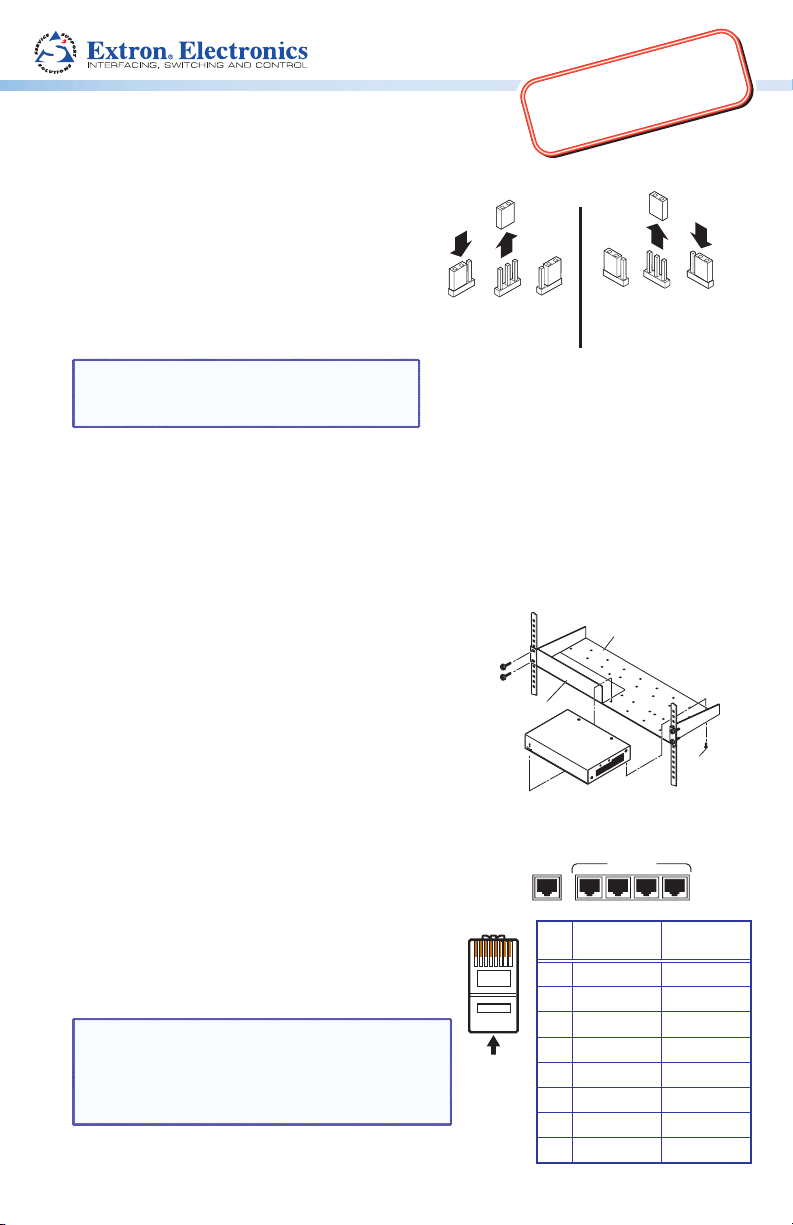

MTP DA4 and DA8 • Setup Guide

This guide provides basic instructions for

Disable

Mute

(Default)

or Enable

Mute

Serial or Audio

(Default)

an experienced installer to set up and operate

the Extron MTP DA distribution amplifier.

Pre-installation — Jumpers

See figure 1at the right or see “Termination

and Mute Jumpering” in the MTP DA4 and

DA8 User Guide for more information.

NOTE: The jumpers have no effect when

the DA is part of an MTP CV/SV series, or

VTT001/VTR001 system.

Jumper J3

This sets the DA to properly terminate RGB video as well as the audio (default) or serial

portion of the input signal.

Jumper J9

This sets the DA to always pass the audio or serial link regardless of the contact closure

mute status (default). It can also be set to mute the audio or serial link when its video mute

function is activated.

Use 2 mounting holes on

opposite corners.

1/2 Rack Width False Front

Face Plate

(2) 4-40 x 3/16" screws

6" Deep Rack Shelf

MTPDA SERIES

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources

and mount the MTP DA as required. A mounting

example is at the right (see figure 2). See “Mounting”

in the user guide for more mounting options.

Step 2 — Input from the Transmitter

Terminate a TP cable as shown in figure 3. Connect

the cable into a MTP transmitter and into the AV

A/V INPUT A/V OUTPUTS

Insert

TP Wires

Pins:

12345678

input connector.

Step 3 — Outputs to the Receivers

Terminate up to four or eight (depending on

model) TP cables as shown in figure 3. Connect

the cables into the DA AV output ports and into

receivers that are compatible with the transmitter.

NOTES: •The inputs and outputs should be

terminated using the same standard on both

ends of the cable.

• Only use the TIA/EIA T568A standard

when using Enhanced Skew-Free™ AV cable.

Pin T568 A

Wire Color

T568 B

Wire Color

1 White-green White-orange

2 Green Orange

3 White-orange White-green

4 Blue Blue

5 White-blue White-blue

6 Orange Green

7 White-brown White-brown

8 Brown Brown

Figure 1. Jumpers

Figure 2. 6-inch Deep Rack

Shelf Mount

Figure 3. TP Cable Termination

MTP DA4 and DA8 • Setup Guide

This guide provides basic instructions for

Disable

Mute

(Default)

or Enable

Mute

Serial or Audio

(Default)

an experienced installer to set up and operate

the Extron MTP DA distribution amplifier.

Pre-installation — Jumpers

See figure 1at the right or see “Termination

and Mute Jumpering” in the MTP DA4 and

MTP DA8 User Guide for more information.

NOTE: The jumpers have no effect when

the DA is part of an MTP CV/SV series, or

VTT001/VTR001 system.

Jumper J3

This sets the DA to properly terminate RGB video as well as the audio (default) or serial

portion of the input signal.

Jumper J9

This sets the DA to always pass the audio or serial link regardless of the contact closure

mute status (default). It can also be set to mute the audio or serial link when its video mute

function is activated.

Use 2 mounting holes on

opposite corners.

1/2 Rack Width False Front

Face Plate

(2) 4-40 x 3/16" screws

6" Deep Rack Shelf

MTPDA SERIES

Installation

Step 1 — Mounting

Turn off or disconnect all equipment power sources

and mount the MTP DA as required. A mounting

example is at the right (see figure 2). See “Mounting”

in the user guide for more mounting options.

Step 2 — Input from the Transmitter

Terminate a TP cable as shown in figure 3. Connect

the cable into an MTP transmitter and into the AV

A/V INPUT A/V OUTPUTS

Insert

TP Wires

Pins:

12345678

input connector on the DA.

Step 3 — Outputs to the Receivers

Terminate up to four or eight (depending on

model) TP cables as shown in figure 3. Connect

the cables into the DA AV output ports and into

receivers that are compatible with the transmitter.

NOTES: •The inputs and outputs should be

terminated using the same standard on both

ends of the cable.

• Only use the TIA/EIA T568A standard

when using Enhanced Skew-Free™ AV cable.

Figure 1. Jumpers

Figure 2. 6-inch Deep Rack

Shelf Mount

Pin T568 A

Wire Color

T568 B

Wire Color

1 White-green White-orange

2 Green Orange

3 White-orange White-green

4 Blue Blue

5 White-blue White-blue

6 Orange Green

7 White-brown White-brown

8 Brown Brown

Figure 3. TP Cable Termination

MTP DA4 and DA8 • Setup Guide (Continued) MTP DA4 and DA8 • Setup Guide (Continued)

68-975-50

Rev. C 1211

68-975-50

Rev. C 12 11

Extron USA Headquarters Extron USA - West Extron USA - East

+800.633.9876 (Inside USA/Canada Only) +1.714.491.1500 +1.919.863.1794

+1.714.491.1517 FAX +1.919.863.1797 FAX

Extron USA Headquarters Extron USA - West Extron USA - East

+800.633.9876 (Inside USA/Canada Only) +1.714.491.1500 +1.919.863.1794

+1.714.491.1517 FAX +1.919.863.1797 FAX

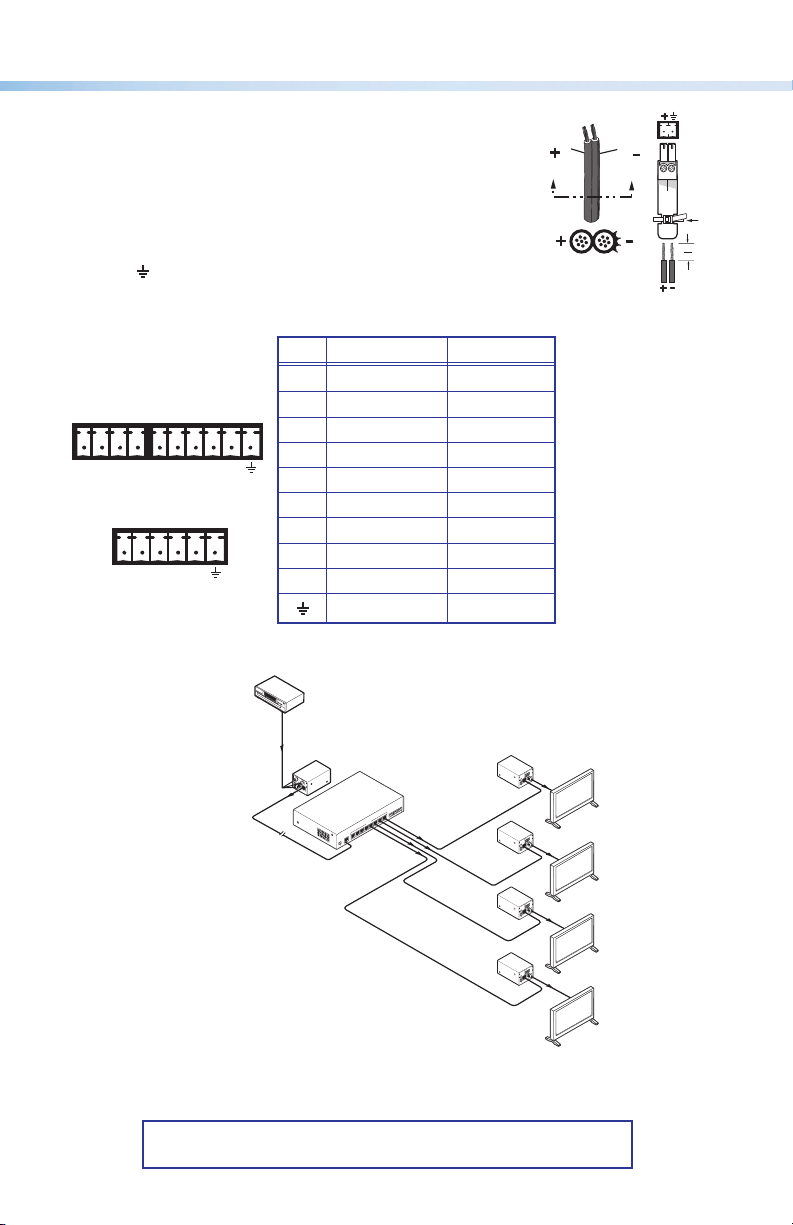

Step 4 — Power

Wire the 2-pole captive screw connector for the external

Power Supply

Output Cord

SECTION A–A

Ridges

Smooth

Captive

Screw

Connector

Tie Wrap

16 (5 mm) Max

12 VDC power supply as shown in figure 4. Plug it into

the DA.

Operation — Mutes

To mute an output, tie the Output Mute pin to the

ground ( ). To mute all outputs, tie the A pin to the

ground (see figure 5for more information).

1 2 3 4 5 6 7 8 A

MTP DA8

Output Mute Connector

1 2 3 4 A

MTP DA4

Output Mute Connector

Pin Contact Closure Function

1 Out #1 Mute output #1

2 Out #2 Mute output #2

3 Out #3 Mute output #3

4 Out #4 Mute output #4

5 Out #5 Mute output #5

6 Out #6 Mute output #6

7 Out #7 Mute output #7

8 Out #8 Mute output #8

A Out All Mute all output

Gnd Ground

Figure 4. Power Connection

Wiring

0.5AMAX

12V

POWER

OUTPUTMUTE

12345678A

INPUT 1 2 345 6 7 8

OUTPUTS

OUTPUT

SHARP

INPUT VIDEO

12V

0.5aMAX

MTPRSV A

OUTPUT

SHARP

L R

INPUT VIDEO

12V

0.5aMAX

MTPRSV A

OUTPUT

SHARP

L R

INPUT VIDEO

12V

0.5aMAX

MTPRSV A

OUTPUT

SHARP

INPUT VIDEO

12V

0.5aMAX

MTPRSV A

INPUT

MTPT SV A RCA

VIDEO OUTPUT

L R

12V

0.5aMAX

Flat Panel

Display

Extron

MTP DA8

Twisted Pair

Distribution Amplier

Up To

8 Receivers

Extron

MTP T AV RCA

Twisted Pair

Transmitter

DVD

Extron

MTP R AV

Twisted Pair

Receivers

TP Cable

Figure 5. Mute Connector and Pinout

Figure 6. Example of a Typical MTP DA8 Application

Step 4 — Power

Wire the 2-pole captive screw connector for the external

Power Supply

Output Cord

SECTION A–A

Ridges

Smooth

Captive

Screw

Connector

Tie Wrap

16 (5 mm) Max

12 VDC power supply as shown in figure 4. Plug it into

the DA.

Operation — Mutes

To mute an output, tie the Output Mute pin to the

ground ( ). To mute all outputs, tie the A pin to the

ground (see figure 5for more information).

1 2 3 4 5 6 7 8 A

MTP DA8

Output Mute Connector

1 2 3 4 A

MTP DA4

Output Mute Connector

Pin Contact Closure Function

1 Out #1 Mute output #1

2 Out #2 Mute output #2

3 Out #3 Mute output #3

4 Out #4 Mute output #4

5 Out #5 Mute output #5

6 Out #6 Mute output #6

7 Out #7 Mute output #7

8 Out #8 Mute output #8

A Out All Mute all output

Gnd Ground

0.5AMAX

12V

POWER

OUTPUTMUTE

12345678A

INPUT 1 2 345 6 7 8

OUTPUTS

OUTPUT

SHARP

INPUT VIDEO

12V

0.5aMAX

MTPRSV A

OUTPUT

SHARP

L R

INPUT VIDEO

12V

0.5aMAX

MTPRSV A

OUTPUT

SHARP

L R

INPUT VIDEO

12V

0.5aMAX

MTPRSV A

OUTPUT

SHARP

INPUT VIDEO

12V

0.5aMAX

MTPRSV A

INPUT

MTPT SV A RCA

VIDEO OUTPUT

L R

12V

0.5aMAX

Flat Panel

Display

Extron

MTP DA8

Twisted Pair

Distribution Amplier

Up To

8 Receivers

Extron

MTP T AV RCA

Twisted Pair

Transmitter

DVD

Extron

MTP R AV

Twisted Pair

Receivers

TP Cable

Figure 4. Power Connection

Wiring

Figure 5. Mute Connector and Pinout

Figure 6. Example of a Typical MTP DA8 Application
