Manual M-series

MA1479-1.doc

Monitoring M-series

Manual

19” and Wall

English

Manual for M-series monitoring unit

with firmware ver. 102 and later.

For support and information:

Extron AS

Tel: (+47) 63 83 33 90

Mobile: (+47) 90 03 23 94

[email protected]

www.extron.no

Nedre Rælingsvei 261

N-2008 FJERDINGBY

Manual M-series

MA1479-1.doc

2/15

Foreword

M-series are monitoring units for DC-systems with voltage range 9 – 300 VDC.

For monitoring of DC-voltage, DC-current, earth fault and AC-voltage and also triggering of

battery test. Settings are easily made with buttons on the front panel and momentary

value/setting is shown in the display. For advanced settings there is a service menu.

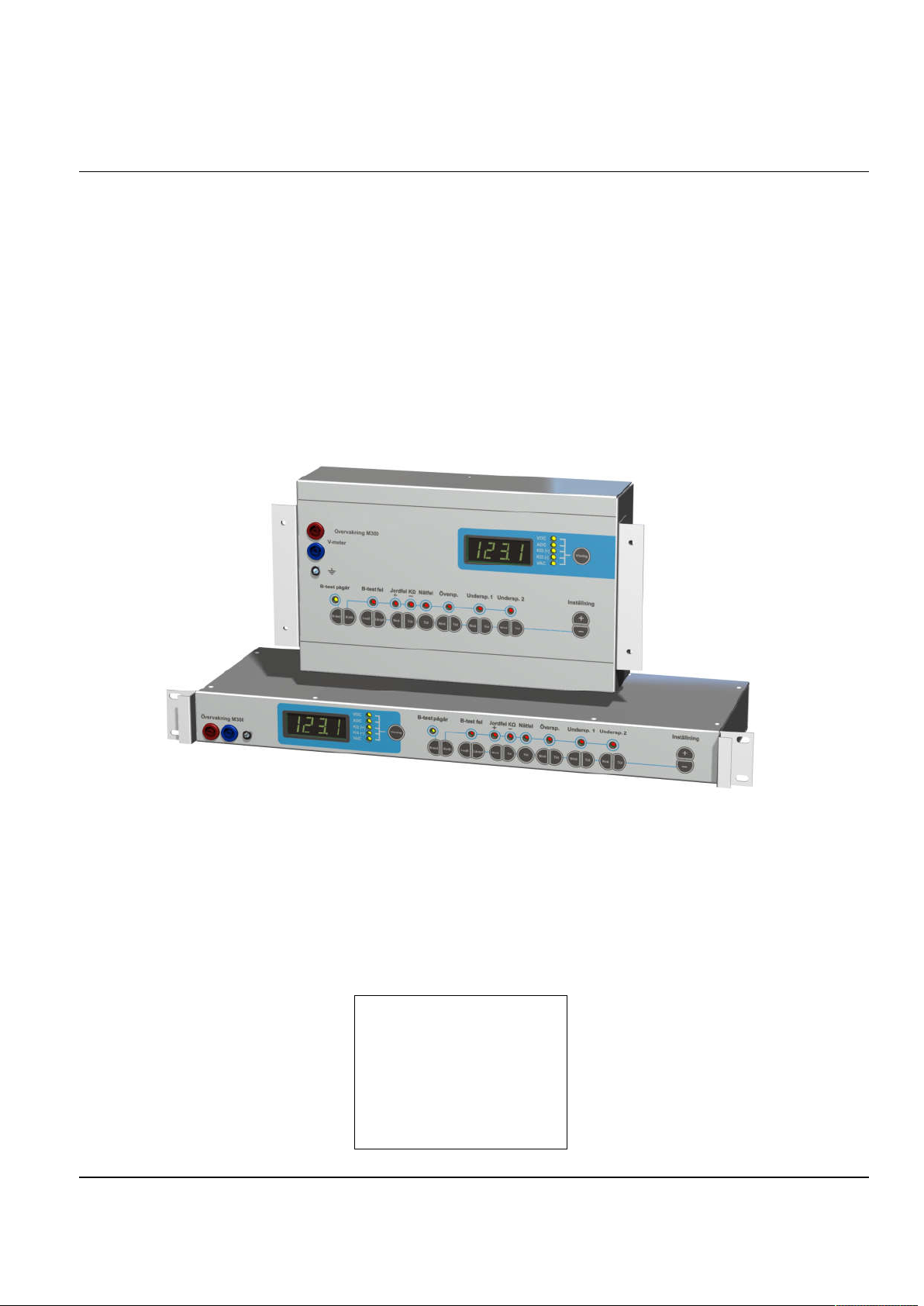

M-series is available both as 19” and wall-mount.

Difference between the M-series models

M100

M200

M300

Display of DC-voltage ● ● ●

Display of current

●

Display of AC-voltage

●

Display of earth fault value ● ● ●

High DC voltage alarm

●

Low DC voltage alarm 1 ● ● ●

Low DC voltage alarm 2

●

Earth fault

●

Battery test (circuit/capacity) ●

Mains fault

●

Separate relays for every alarm

●

Sum alarm relay

●

The front panels are different according to illustration below. M300 has all that M100/M200

offers and also display of current, mains voltage and buttons for battery test (start/stop,

interval, length) and mains fault delay. Levels for battery test and mains fault are adjusted in

the service menu (see other chapter).

M300 M200

M200

M300

Manual M-series

MA1479-1.doc

3/15

Installation 19”

Unpack

Open box and find follow parts:

1 pcs. monitoring unit M-series

1 pcs. manual

1 pcs. set of male connectors for connection on backside

1 pcs. connected cable for earth fault sensing

1 pcs. set of attached nuts and washers on earth bolt

Install the unit in the 19” rack and connect safety earth cable, DC-power and signaling

cables.

Never do a high-pot test without disconnecting the earth fault sensor cable.

Disconnect this cable before doing the test.

The unit starts automatically when DC-power is connected.

Installation Wall

Unpack

Open box and find follow parts:

1 pcs. monitoring unit M-series

1 pcs. manual

1 pcs. set of male connectors for connection inside

1 pcs. connected cable for earth fault sensing

Option: 2 pcs. of brackets for door-mounting incl. screws and washers

Wall-mounting

Unscrew the screws on the four sides and remove the front panel. Fasten the back side

against the wall by using the four holes at each corner inside. Connect the cables for safety

earth (preferably the same screw as for earth sensor), DC-power and signaling. Use the wire

pull protections. Finally fasten the front panel again with the four screws.

Door mounting

Unscrew the screws on the four sides and remove the front panel. Fasten the mounting

brackets (option) with the screws. Fasten the front panel against the door. Connect the

cables for safety earth (preferably the same screw as for earth sensor), DC-power and

signaling. Use the wire pull protections. Fasten the back side using the screws.

Never do a high-pot test without disconnecting the earth fault sensor cable.

Disconnect this cable before doing the test.

The unit starts automatically when DC-power is connected.

Manual M-series

MA1479-1.doc

4/15

Connections left

Illustration for M300 19”. M100/200 has fewer connections which is shown by the label on

the unit. The wall model has the corresponding connectors internally as the 19”. For

connection of the safety earth on Wall model use the same screw as for earth fault sensing.

Mains alarm relay in/out (only M300), Used with

external main fault relay. UT gives 5V which are

connected to the relay and returned to IN. The input

can be inverted with a setting in the service menu. Do

not use at the same time as AC-input (see below.

Shunt +/- (only M300), for connection of current

shunt. The shunt must be connected to minus side.

Different values for shunts can be used. Max 60mV.

The unit is precalibrated for 100A/60mV. Calibration

for other shunts are made in the service menu.

Earth fault sensing, connects to the safety earth bolt.

Disconnect when doing hi-pot test.

DC, for powering the unit and for measuring of DC-

voltage. Depending on model: 9-36VDC, 30-75VDC or

70-300VDC.

AC N and L (only M300), for connecting of mains

voltage to measure voltage level and mains fault. Not

used for powering the unit. Do not use at the same

time as external main fault relay (see above).

Earth stud, connection of safety earth and earth fault

sensor.

Manual M-series

MA1479-1.doc

5/15

Connections left

Illustration for M300 19”. M100/200 has fewer connections which is shown by the label on

the unit. The wall model has the corresponding connectors internally as the 19”.

Relay outputs

B open when alarm

S closed when alarm

G common

Mains fault (only M300)

Low DC voltage 2 (only M200/300)

Battery test, for triggering a rectifier (only M300)

Battery test, for faulty battery test (only M300)

High DC voltage (only M200/300)

Low DC voltage 1 (only M200/300)

Earth fault (only M200/300)

Sum alarm (all models)

Manual M-series

MA1479-1.doc

6/15

Front panel

Below is explanation of front panel. The different models in the M-series are different in form

and function and all features may not be present on delivered unit.

Measurement connectors, display, display indicators and display button

Alarm indicators and the battery test indicator

Buttons for choosing what to display

Indicators for what is displayed

The display shows momentary values or adjustment

value (by pressing adjustment button. VDC: 0-

300VDC. ADC: depends on shunt. KΩ(+)KΩ(-): 0-

1000KΩ, above 1000KΩ display shows ”----”. VAC:

0-250VAC, above 250 VAC display shows ”----”.

Earth connector (not for safety earth)

Measurement connector for V-meter. Short circuit

protected.

Red alarm indicators. Flashes when each alarm

has been triggered. If set delay is reached the

indicator goes into latched state (and the relay is

closed) and does not stop flashing until the alarm

is gone and the reset-button is pressed. Note:

battery fault goes into latched state instantly

without delay. Automatic resetting (no latching)

can be enabled in the service menu.

Yellow battery test indicator. Flashing when

battery test is in progress. Manually started or

auto.

Manual M-series

MA1479-1.doc

7/15

Buttons

B-test: Start/stop battery test. If no battery

test is in progress the battery test is started

with the length that is set by using the

”length-button”. If pressed while battery test

is in progress the battery test is stopped.

Both manual and automatically started tests

can be stopped.

Reset: Alarm reset. Flashing alarm

indicators with no alarms active stops

flashing.

I-val: Battery test interval. For setting of

time between start of battery tests.

Possible: Off, 1 day, 30 days, 90 days and

180 days.

Length: Battery test length. Possible: 5 sec

(circuit test), 15 min, 30 min, 1 hour, 2

hours, 4 hours.

Level buttons for earth fault, high DC

voltage, low DC voltage 1 and low DC

voltage 2.

Earth fault: 50-1000Kohm.

High DC voltage, low DC voltage and low

DC voltage 2: 1-300VDC

Delay buttons. Delay of earth fault, mains

fault, high DC voltage, low DC voltage 1

and low DC voltage 2. Possible: 1-1800

sek. Above 1800 sec blocks the alarm and

is indicated with ”bloc” in the display.

Blocking blocks both alarm indicators and

relay.

Button (+) and button (-), press each

adjustment button to the left and press

these buttons to increase (+) and decrease

Manual M-series

MA1479-1.doc

8/15

Service menu

The service menu is used for calibration and other settings. It is used when testing the unit

before leaving the factory and can be used when the installer wants to adapt the units in a

more advanced way than is being offered by only using the normal settings. Use the service

menu with care.

Enter/exit the service menu and navigation

Enter the service menu by holding in the level

buttons for high DC voltage and for low DC voltage

2. The display shows an animation. Keep holding

the buttons until ”On” is displayed. Release the

buttons. The number ”0” is shown which is the

service menu.

Navigate to the menus with +/-. Then push the

button “Display” and use +/- to change the setting.

Available menus are listed on next page.

The service menu is exit the same way as it is

entered. By holding in the level buttons for high DC

voltage and for low DC voltage 2. The display

shows an animation. Keep holding the buttons until

”Off” is displayed. Release the buttons.

The service menu is automatically shut off after 5

minutes of no button presses.

Manual M-series

MA1479-1.doc

9/15

List of service menu settings

Choose the menu by pressing +/-. Start adjusting the setting by pressing Display button and

+/-.

LED/indicator test.

All indicators on the front panel and all segments in the 4-digit display is lit.

Relay-test.

Press the Display button and push +/- to test each relay. Which relay that is tested is

indicated on the indicators for each alarm and also with words in the 4-digit display.

Set all levels to factory default.

Recalls the factory defaults for high DC voltage, low DC voltage 1, low DC voltage 2 and

battery test depending on selected nominal voltage. Press display button and use +/-.

Voltage

High DC voltage

Low DC voltage 1

Low DC voltage 2

Battery test

12 V

14.0 V

11.4 V

10.2 V

11.8 V

24 V

28.0 V

22.8 V

20.4 V

23.5 V

36 V

41.9 V

34.2 V

30.6 V

35.3 V

48 V

55.9 V

45.6 V

40.8 V

47.0 V

60 V

69.9 V

57.0 V

51.0 V

58.8 V

108 V

125.8 V

102.6 V

91.8 V

105.8 V

120 V

139.8 V

114.0 V

102.0 V

117.6 V

216 V

251.6 V

205.2 V

183.6 V

211.7 V

The nominal voltage is set from factory if specified by order specifications. If no order

specification is told then the voltages are: 12-24: 24V, 36-60V: 48V, 110-220V: 108V.

M-series model.

M100, M200 or M300. Governs the different choices possible for display values and which

alarm can be used. Press Display button and use +/-. The correct model is set from the

factory.

Manual M-series

MA1479-1.doc

10/15

Calibration of DC-voltage.

Connect calibrated V-meter in the V-meter output. Press Display button and use +/- to set

the same value in display as the V-meter is showing. Release Display button. Calibration is

finished. Calibration of earth fault display is recommended after calibration of voltage. The

unit is calibrated before delivery from factory.

Calibration of earth fault.

Check that no earth fault is present or disconnect the earth fault sensing cable. Press

Display button (without holding) to start the calibration. The display shows an animation and

the calibration is done automatically. The calibration is done when “done” is shown in the

display. Make sure the calibration if DC-voltage is done before calibration of earth fault. The

unit is calibrated before delivery from factory.

Calibration of current display zero-value (only M300).

This menu is not active in units with firmware ver. 102 and later. The Display button can be

pressed and Done will be shown in order to replicate earlier versions but it doesn’t do

anything.

Calibration of current display (only M300).

Use calibrated A-meter as reference. Increase the current over the shunt to max. Press

Display button and use +/- to set the same value in the display as the A-meter is showing.

Release Display button. The calibration is now finished. If the display current value is still not

correct try calibrating the zero-value first and retry calibrating the current display. The unit is

calibrated for a 100A/60mV shunt from factory.

Calibration of mains voltage display (only M300).

Connect external V-meter to the main voltage. Press Display button and use +/- to set the

same value as the V-meter is showing. Release Display button. The calibration is now

finished.

The unit is calibrated before delivery from factory.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
