IMPORTANT:

Go to www.extron.com for the complete

user guide, installation instructions, and

specifications before connecting the

product to the power source.

UCS FT 901 and UCS FR 902 • Setup Guide

This guide provides basic instructions for an experienced technician to install and

congure the Extron UCS 900 Series. The UCS FT 901 and UCS FR 902 extends USB

signals from USB 3.2, 2.0, and 1.1 peripheral devices located up to 820 feet (250 meters)

away to a USB 3.2 host computer over multimode ber optic cable, with a SuperSpeed

data transfer rate of up to 5 Gbps. The transmitter features a USB Type-C connector.

The receiver features a built-in active two-port hub that supplies up to 5 V, 1.5 A from

each port to power attached devices.

See the UCS FT 901 and UCS FR 902 User Guide, available at www.extron.com, for more information.

NOTE:

• This product supports USB data ONLY. DisplayPort Alt Mode and Power Delivery are NOT supported.

• The use of a USB 2.0 hub on the UCS FR 902 is not recommended. If a hub is needed in the system, Extron

recommends the use of a USB 3.2 hub. Please contact your Extron AE for more details.

Installation

ATTENTION: Installation and service must be performed by authorized personnel only.

ATTENTION : L’installation et l’entretien doivent être effectués uniquement par un technicien qualifié.

Mounting

The UCS FT 901 and UCS FR 902 can be rack mounted, furniture mounted, or placed on a tabletop with the provided rubber feet.

For ZipClip mounting instructions, see the UCS FT 901 and UCS FR 902 User Guide at www.extron.com.

Connecting Cables

WARNING: Fiber optic connectors emit continuous invisible light, which may be harmful to the eyes; use with caution. Do

not look into the fiber optic cable connectors or into the fiber optic cables themselves. Plug the attached dust caps into the

optical transceivers when the fiber cable is unplugged.

ADVERTISSEMENT : Les connecteurs de fibre optique émettent une lumière invisible continue, qui peut être dangereuse

pour les yeux ; à utiliser avec précaution. Ne pas fixer directement les connecteurs optiques ou les câbles fibre optique.

Branchez les protections contre la poussière dans l’ensemble émetteur/récepteur lorsque le câble fibre optique est

débranché.

The illustration below shows connections for the UCS FT 901 and UCS FR 902.

POWER

12V

HOST

USB-C

SS 5G Tx

OUTPUT

POWER

12V

1.0A MAX

INPUT

OUTPUTS

WER

A MAX

INPUT

UTPUT

POWER

12V

DEVICES INPUT

1.5 A

1.6A MAX

Ground

+12 VDC input

External Power Supply

(12 VDC, 2.0 A max.)

Ground all

Devices

Ground

+12 VDC input

External Power Supply

(12 VDC, 0.5 A max.)

Ground all

Devices

0.1A MAX

USB

USB Camera

Receiver

USB

Laptop

Transmitter

Multimode Fiber Optic Cable

Compatible with USB 3.2, 2.0, 1.1

peripheral devices

Compatible with USB 3.2

host ports ONLY

68-3621-50 Rev. B

04 21

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

All trademarks mentioned are the property of their respective owners.

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876

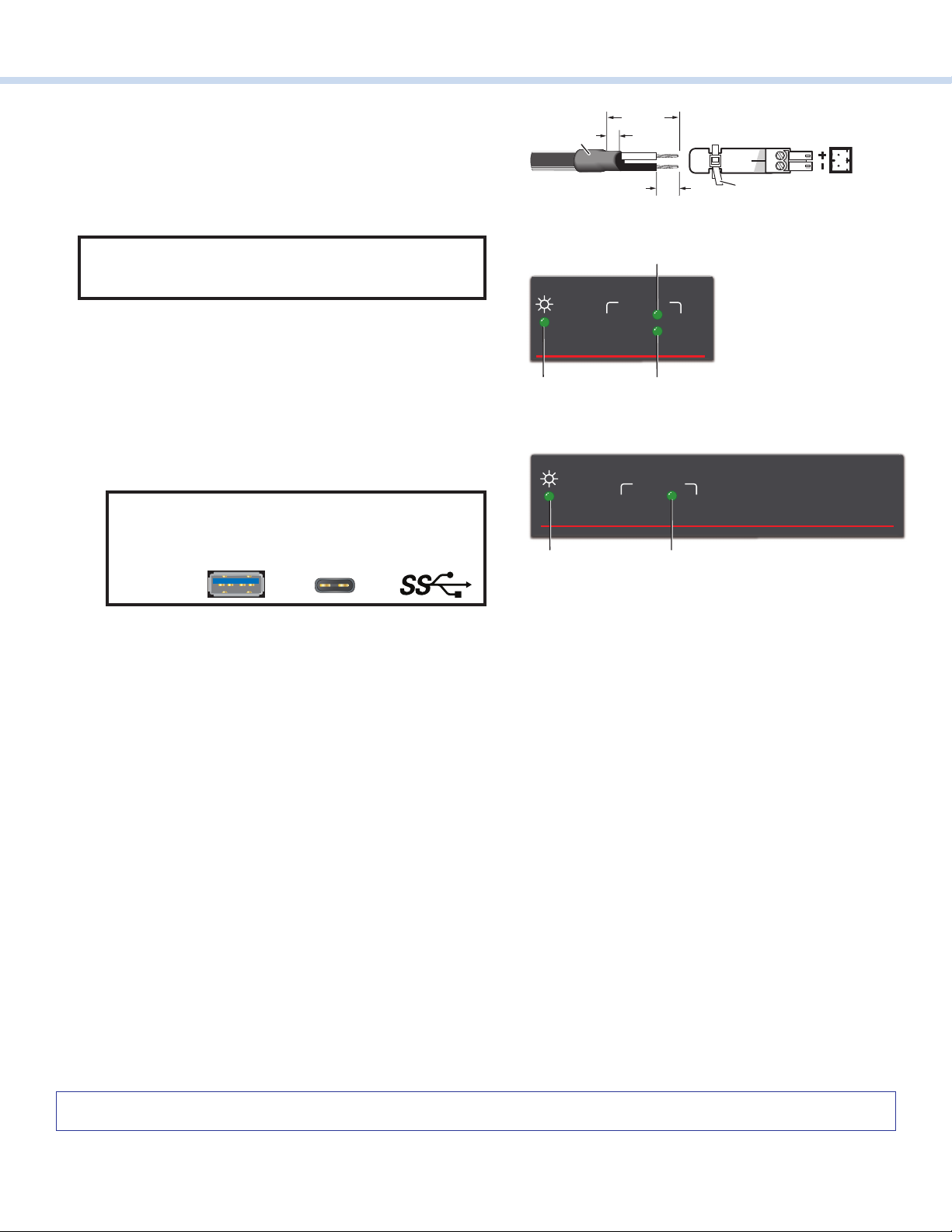

Connecting Power

Power off all devices that will be directly connected to the receiver.

Wire the 24 W power supply (see previous page, 1) to the

transmitter 2-pole captive screw connector (3), and the 6 W

power supply (2) to the receiver (see the illustration at right for

wiring instructions).

NOTE: The UCS FT 901 (transmitter) can also be powered

by the Host device, without the need for the external

power supply.

Once a unit receives power, the front panel Power LED (see the

unit illustrations on the right, A) lights.

Connecting the Host (Transmitter)

1. Connect a USB Type A-to-C (or Type C-to-C) cable from the

Host device to the transmitter Host port (4). The Host LED

on the transmitter (B) lights as communication between the

transmitter and host device is established.

NOTE: The transmitter is compatible with USB 3.2

host ports ONLY. USB 3.2 ports are either blue Type

A, Type C, or labeled with a SuperSpeed trident logo

(see below).

2. Connect a multimode fiber optic cable from the output port of the transmitter to the input port of the receiver (5).

3. Once the cable is connected to both the transmitter and receiver, the front panel Link LEDs light steadily (C).

4. Mount the devices, if appropriate.

5. Power on the host device. The transmitter (UCS FT 901) Host LED (B) lights when the computer recognizes the transmitter.

Connecting the Devices (Receiver)

Connect up to two USB peripheral devices to the receiver devices ports (6). The order of connection does not matter.

The UCS FR 902 (receiver) supplies up to 5 V, 1.5 A to each connected peripheral device.

The system is now ready to operate.

Captive Screw Connector

Tie Wrap

Heat

Shrink 1/8"

(3 mm)

7/8"

(22 mm)

3/16"

(5 mm) Max.

eUCS FR 902

LINK

STATUS

POWER

12V

--A MAX

DEVICES INPUT

1.5 A

A C

UCS FT 901e

LINK

HOST

STATUS

POWER

12V

0.1A MAX

HOST

USB-C

SS 5G Tx

OUTPUT

A B C

A B
