DTP T UWP 4K D Series • Setup Guide

This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP T UWP 4K D series of

Twisted Pair (TP) wallplate extenders.

Installation

Step 1 — Disconnect Power

Disconnect all equipment power sources.

Step 2 — Prepare the Mounting Surface

ATTENTION:

• Installation and service must be performed by

authorized personnel.

• L’installation et l’entretien doivent être effectués

par le personnel autorisé uniquement.

• The unit must be installed in accordance with the

National Electrical Code and with local electrical

and safety codes.

• L’unité doit être installée conformément au

National Electric Code et aux normes électriques

et de sécurité locales.

NOTE: Use a wall box with a depth of at least 3.0 inches (7.6 cm). Alternatively, the included mud ring (MR 200) can be

used. For more information, see the DTP T UWP 4K D Series User Guide at www.extron.com.

a. Place the wall box against the installation surface and mark the opening guidelines.

TIP: Use a level to mark the opening.

b. Cut out the material from the marked area.

c. Secure the wall box to the wall stud with 10-penny nails or #8 or #10 screws, leaving the front edge ush with the

surface.

d. Run all required cables (see steps 3, 4, and 5) and secure them with cable clamps.

TIP: In order to t the unit in the junction box, do not install boots on TP cables and RJ-45 connectors.

TLP 1000T

IPCP 505

IN1608

DTP HDMI 4K 230 Rx

Projector

100-240V~ -- A MAX

CONFIGURABLE

HDMIHDMI

RS-232 IR

Tx Rx Tx RxG

Tx Rx Tx RxG Tx Rx Tx RxG

HDMI

INPUTS OUTPUTS

Tx Rx

RS-232

LAN

2x25W(8Ω)/2x50W(4Ω)

RESET

AUDIO INPUTS OUTPUTS

REMOTE

LL1R R

L2 R

CLASS2 WIRING

L4R

L5R

+48V

VARIABLE

IN1608SA

MIC/LINE

L6R

SIG LINK

DTPIN

SIG LINK

DTPIN

SIG LINK

DTPOUT

50/60Hz

RS-232 IR

OVERDTP

AMPLIFIED OUTPUT

VOLUME

SCALINGPRESENTATION SWITCHER

IN1608

INPUTS

HDCP

SIGNAL

OUTPUTS

ENTER

2 3 4 5 6 7 8 A B C

INPUTS

1 2 3 4 5 6 7 8

CONFIG

Extron

DTP T UWP 4K 232 D

TransmitterEthernet

Network

POWER

12V

0.7A MAX

AUDIO

SIG LINK

DTP IN

OUTPUTS

XTP DTP 24 Cable

230'

HDMI

12345678

100

LINK

ACT

COM

IR/S

RTS

CTS

RELAY FLEX

I/O

eBUS

ACTLIMIT

OVER

SWITCHED

12VDC

OVER

LIMIT

IPCP 505

AUTOSW

CONFIG

HDMI IN

AUDIO IN HDCP

AUDIO IN

VGA IN

Signal Output

Cable

Clamp

Decora Faceplate

Extron

DTP UWP 4K 232 D

Extron

DTP HWP 232 D

Screws or

Nails

Wall opening is

ﬂush with edge of box.

Wall Stud

Signal Output

Cable

Clamp

Decora Faceplate

Screws or

Nails

Wall opening is

ﬂush with edge of box.

Wall Stud

AUTOSW

CONFIG

HDCP

HDMI IN

AUDIO IN

VGA IN

AUTOSW

CONFIG

HDCP

IROUT

HDMI IN

AUDIO IN

DTP T UWP 4K D • Setup Guide (Continued)

Step 3 — Connect Inputs to the Transmitter

Front Panel

A Audio input connector — Connect an unbalanced stereo

audio source to this 3.5 mm mini stereo jack.

B HDMI input connector — Connect an HDMI cable between

this port and the output port of the digital video source.

C VGA input connector — Connect a VGA cable between this

port and the output port of the video source.

D Mini USB port — Connect a male Mini USB-B cable to this

port for SIS conguration and rmware updates.

Rear Panel

A DC power input connector — Wire and plug the included external

12 VDC power supply into either this 2-pole connector or the power

input connector on the receiver (see the DTP T UWP 4K D Series User

Guide at www.extron.com for wiring information).

B Over DTP connector — Connect an RS-232 device to this 3-pole,

3.5 mm captive screw connector for pass-through RS-232 control.

C Remote connector — Connect an RS-232 device, contact closure

device, or both to this 5-pole, 3.5 mm captive screw connector to

control switching on the unit. Wire the connector as shown in the

diagram below.

• RS-232 — To control the unit through this port, connect an RS-232

device and congure it as follows: 9600 baud rate, 8 data bits,

1 stop bit, no parity.

• Contact — Momentarily short pins 1 or 2 to ground (G) to select

the corresponding input.

D Grounding Screw — Connect a grounding wire from this screw to the

wall box to ground the unit.

E DTP OUT connector — Connect one end of a twisted pair cable to this

RJ-45 connector and the opposite end to a compatible receiver.

ATTENTION:

• Do not connect these outputs to a telecommunications or computer data network.

• Ne connectez pas ces appareils à des données informatiques ou à un réseau de

télécommunications.

NOTES:

• The DTP T UWP 4K 232 D model can transmit video, control, and audio (if applicable)

signals up to 230 feet (70 meters).

• The DTP T UWP 4K 332 D model can transmit video, control, and audio (if applicable)

signals up to 330 feet (100 meters).

F Reset button — To perform a factory reset, use an Extron Tweeker or small screwdriver to press and hold this recessed

button for 6 seconds while the switcher is running.

AUTO SW

CONFIG

IR OUT

HDMI IN

AUDIO IN

HDCP

2HDMI IN

AUDIO IN

DTP T HWP D

Front Panel

AUTO SW

CONFIG

HDMI IN

AUDIO IN HDCP

AUDIO IN

VGA IN

DTP T UWP 4K D

Front Panel

Reset

DTP OUTREMOTEOVER

DTP SIGLINK

RS-232

CONTACT

DTP T UWP 4K 232 D

Tx Rx

Tx Rx G

POWER

12V

0.9 A MAX

+–

G12

DTP OUTREMOTEOVER

DTP SIG LINK

RS-232

CONTACT

DTP T UWP 232 D

Tx Rx

Tx Rx G

POWER

12V

A MAX

0.9

+–

G12

A/S

DTP T UWP 4K D

Rear Panel

DTP T UWP 232 D

Rear Panel

Ground

Receive pin on connected unit

Transmit pin on connected unit

Connected RS-232 and

Contact Closure Device Pins

Tx/Rx

Pins

Pin 1 for contact closure contro

Pin 2 for contact closure contro

RxTx

RS-232 Contact

A DC power input connector

B Over DTP connector

C Remote connector

D Grounding screw

E DTP OUT connector

F Reset button (page 3)

SIG LINK

DTP OUT

SIG LINK

DTP IN

DTP T UWP 4K D • Setup Guide (Continued)

Step 4 — Run Cables Between Units

Connect the rear panel transmitter output to a rear panel receiver input using twisted pair cable.

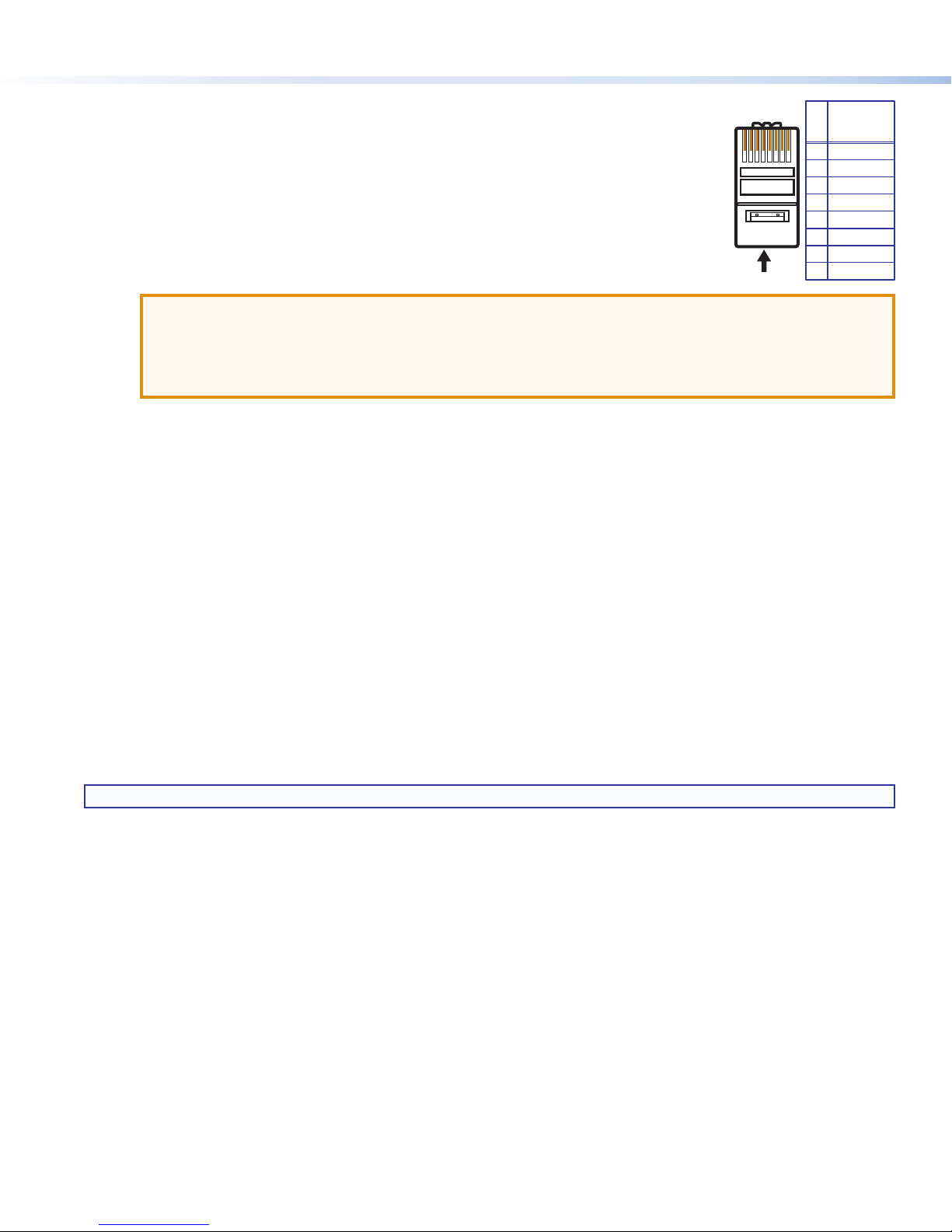

Wire the cable as shown in the diagram to the right.

For optimal performance, Extron highly recommends the following:

zRJ-45 termination with shielded twisted pair cable must comply with TIA/EIA-T568B wiring

standard for all connections.

For more information on TP cable wiring and termination, see the full product user guide.

zUse shielded twisted pair cable, 24 AWG solid conductor or better, with a minimum cable

bandwidth of 400 MHz.

ATTENTION:

• Do not use Extron UTP23SF-4 Enhanced Skew-Free AV UTP cable or STP201 cable to link the device with

DTP transmitters or receivers.

• N’utilisez pas le câble AV Skew-FreeUTP version améliorée UTP23SF d’Extron ou le câble STP201 pour relier

le appareil avec les émetteurs ou les récepteurs DTP.

zUse shielded RJ-45 plugs to terminate the cable.

zLimit the use of RJ-45 patches. Overall transmission distance capabilities vary depending on the number of patches

used. If possible, limit the number of patches to two total.

zIf RJ-45 patches must be used in the system, shielded patches are recommended.

Step 5 — Connect the Outputs from a Compatible Receiver

a. Connect a DVI or HDMI cable (depending on your receiver type) between the receiver output port and the input port of

the display.

b. Connect a stereo audio device to the 3.5 mm mini stereo jack to receive the passed-through unbalanced audio.

c. Connect an RS-232 and contact closure device to the rear RS-232/Contact port (see the DTP T UWP 4K D Series

User Guide for wiring details).

Step 6 — Power the Units

The units can be powered one of two ways:

zLocally with the included power supply. A compatible receiver can then be powered remotely through the DTP line.

zRemotely via the DTP line by a locally powered DTP 230 or 330 compatible device.

NOTE: See the DTP T UWP 4K D Series User Guide for wiring information.

Step 7 — Final Installation

a. Make all connections, power the units, and test the system for satisfactory operation.

b. At the power outlet, unplug the power supply.

c. Mount the transmitter into the wall box, and attach the supplied decorator-style faceplate to the unit.

d. At the power outlet, reconnect the power supply. This powers up both units.

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown

Brown

Blue

TIA/EIA

T568-B

TP Wires

12345678

Pins:

68-3157-50 Rev. A

10 17

Extron Headquarters

+800.633.9876 Inside USA/Canada Only

Extron USA - West Extron USA - East

+1.714.491.1500 +1.919.850.1000

+1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040

+31.33.453.4050 FAX

Extron Asia

+65.6383.4400

+65.6383.4664 FAX

Extron Japan

+81.3.3511.7655

+81.3.3511.7656 FAX

Extron China

+86.21.3760.1568

+86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800

+971.4.299.1880 FAX

Extron Australia

+61.8.8113.6800

+61.8.8351.2511 FAX

Extron India

1800.3070.3777

(Inside India Only)

+91.80.3055.3777

+91.80.3055.3737 FAX

Operation

NOTES:

• Input switching can be performed only via auto switch, RS-232, or contact closure through the rear panel connectors.

• Auto switching can be activated or deactivated only via SIS commands. The default is ON with highest input as priority.

After all devices are powered up, the system is fully operational.

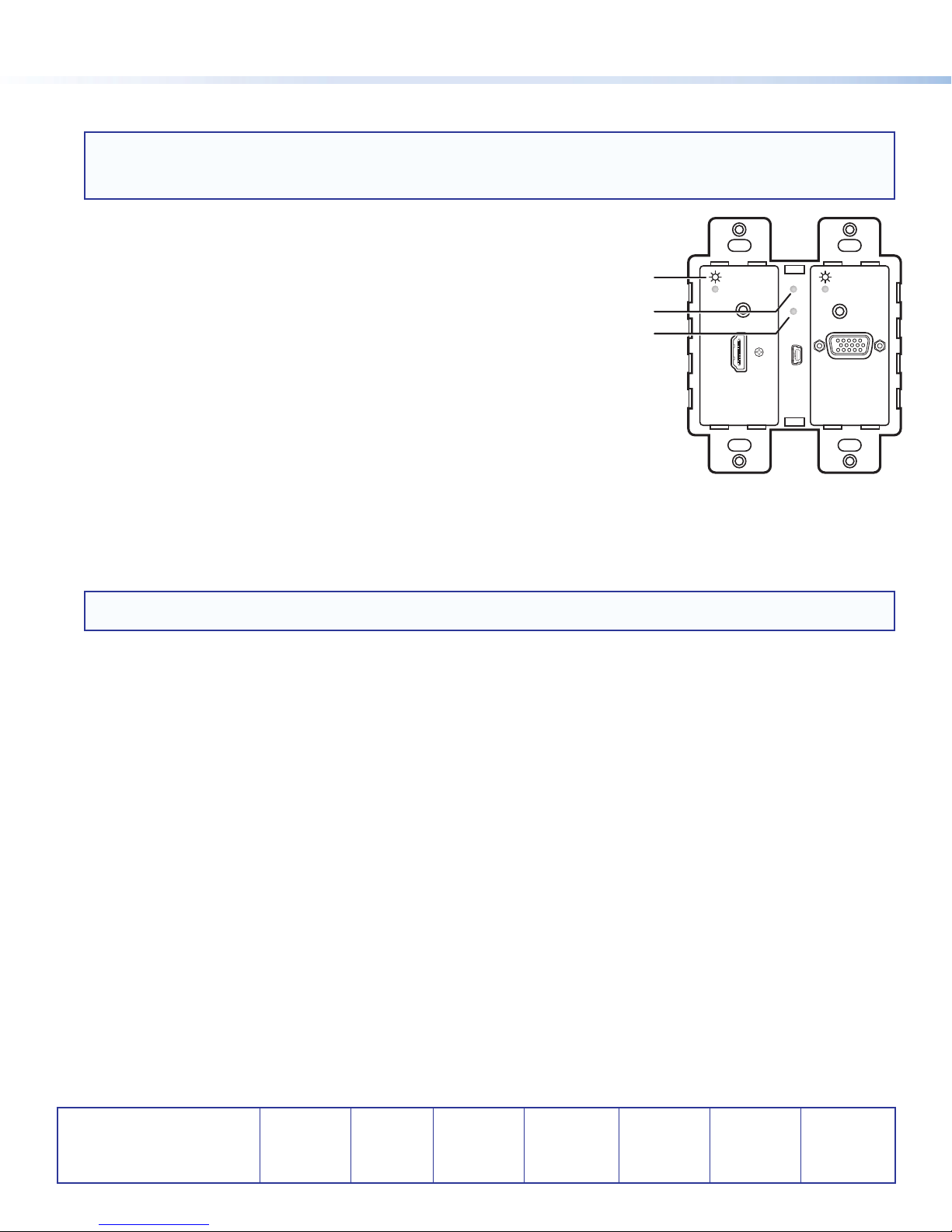

Transmitter LEDs

A Power LEDs — These two-color front panel LEDs on the transmitters light to

indicate signal and

power status as follows:

Amber — The unit is receiving power but there is no signal on the HDMI

or VGA inputs.

Green — The unit is receiving power and a signal is present on the HDMI

or VGA inputs.

B Auto Switch LED — Lights green when auto switch is active (see Rear Panel

Con page 2).

C HDCP LED — Lights green when HDMI input has been authenticated on the

source device.

Audio Conﬁguration

The DTP T UWP 4K D series of products can embed analog audio inputs onto the digital video output. Use Extron PCS software

(available at www.extron.com) or SIS commands (see the DTP T UWP 4K D Series User Guide) to select the desired embedded

audio mode.

NOTE: If no VGA or HDMI signal is present, analog audio will be transported over the DTP connection to the analog audio

output of the receiver.

When an input is selected, audio transport over HDMI can be congured to operate in one of three modes. Each input can be

congured individually for any of the three modes.

zTransport embedded digital audio (default) — The embedded digital audio content on the digital video input is transported.

Analog audio is still separate from the digital embedded audio on the HDMI signal and transported simultaneously over the

DTP output, not embedded onto the digital output.

zEmbed analog audio input — The analog audio input is always embedded to the digital output, replacing whatever content

is already present on the embedded digital audio. Analog audio is also transported over the DTP output as a simultaneous

output.

zAuto select between analog audio and digital audio — When both analog audio and digital embedded audio on HDMI are

present, embedded digital audio on the HDMI signal takes priority. Analog audio is transported simultaneously with the digital

embedded audio content that is already present on the DTP output.

AUTO SW

CONFIG

IR OUT

HDMI IN

AUDIO IN

HDCP

2HDMI IN

AUDIO IN

AUTO SW

CONFIG

HDMI IN

AUDIO IN HDCP

AUDIO IN

VGA IN

DTP T HWP D

Front Panel

DTP T UWP 4K D

Front Panel

Este manual sirve para los siguientes modelos

Otros manuales de Extensor de Extron electronics

Extron electronics

Extron electronics PowerCage FOX HDMI Manual de usuario

Extron electronics

Extron electronics XTP T HWP 101 Manual de usuario

Extron electronics

Extron electronics FOX 3G HD-SDI Manual de usuario

Extron electronics

Extron electronics FOX3 101 Manual de usuario

Extron electronics

Extron electronics DTP DVI 330 Manual de usuario

Extron electronics

Extron electronics DTP HDMI 301 Manual de usuario

Extron electronics

Extron electronics FOXBOX HDMI Manual de usuario

Extron electronics

Extron electronics FOXBOX Tx VGA MM Manual de usuario

Extron electronics

Extron electronics DTP HWP 4K 231 D Manual de usuario

Extron electronics

Extron electronics DTP DVI 330 Manual de usuario

Extron electronics

Extron electronics Fiber Optic DVI Extenders DVI 104 RX Manual de usuario

Extron electronics

Extron electronics VGAUXGA Line Drivers With Audio Extender... Manual de usuario

Extron electronics

Extron electronics DTP T 3G-SDI 230 Manual de usuario

Extron electronics

Extron electronics HDMI 230 D Manual de usuario

Extron electronics

Extron electronics DTP DVI 4K 330 Manual de usuario

Extron electronics

Extron electronics DTP HDMI 4K D Series Manual de usuario

Extron electronics

Extron electronics FOXBOX Tx HDMI Manual de usuario

Extron electronics

Extron electronics FOX3 SR 20 Manual de usuario

Extron electronics

Extron electronics Extender Wall Mount Series Manual de usuario

Extron electronics

Extron electronics UCS FT 901 Manual de usuario

Extron electronics

Extron electronics FOX 500 DVI Manual de usuario

Extron electronics

Extron electronics DVI 104 Rx Manual de usuario

Extron electronics

Extron electronics DTP HDMI 330 Manual de usuario

Extron electronics

Extron electronics HDMI 230 D Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
