IMPORTANT:

Go to www.extron.com for the

complete user guide and installation

instructions before connecting the

product to the power source.

HD CTL 100 Workspace Controller • Setup Guide

Attaching a Logitech®SmartDock

This is a supplementary setup guide for how to properly set up the HD CTL 100 with the Logitech SmartDock.

The Extron HD CTL 100 is a compact workspace controller

designed for automatic display control in small meeting

rooms and huddle spaces. It features an HDMI pass-through

port that detects signal presence and can facilitate automatic

display power. When an active signal is connected to the

HDMI input from the Logitech SmartDock, the HD CTL 100

automatically turns on the display via CEC control. When

no signal is detected, the HD CTL 100 powers off the display

after a predetermined period.

For advance room automation and integration with optional

room occupancy sensors or control of display via RS-232

or infrared using the Conguration Program, reference the full

HD CTL 100 Workspace Controller Setup Guide, 68-3064-50,

available at www.extron.com.

NOTE: For more details about installation, conguration,

and operation, see the HD CTL 100 User Guide, available

at www.extron.com.

HD CTL 100 Panels

The front and rear panel connectors include:

POWER

12V

0.3A MAX

INPUT

OUTPUT

+V OUTDIGITAL I / O

HDMI/CECHDMI

G24

IR / S

21G43G

AA BB CC DD EE FF

CONFIG

RSIGNAL

HD CTL 100

II JJ

Rear Panel Front Panel

APower input connector EVoltage output connector HReset button

BHDMI input connector FIR/S control connector IUSB configuration port

CHDMI/CEC output connector GPower LED JSignal LED

DDigital I/O ports

Figure 1. HD CTL 100 Rear and Front Panels

Connecting the Logitech SmartDock to the HD CTL 100

1. Connect the supplied Logitech power supply to the SmartDock PWR connector (see figure 2).

Figure 2. SmartDock Rear Connections

2. If needed, the SmartDock offers the ability for external source devices to be presented on the presentation display. Connect

a source device, such as a laptop, to the HDMI IN connector of the SmartDock. If using a Logitech MeetUp camera, connect

the device to a USB port on the SmartDock.

RegionalSales

120

150 SOUTH

NORTH

EAST

WEST

logitech

Logitech

SmartDock

Laptop

(HDMI)

HD CTL 100

(HDMI & CEC)

logitech

Logitech

MeetUp

Example Logitech SmartDock Room Setup

HD CTL 100 with Logitech SmartDock • Setup Guide (Continued)

3. For a Single Display system, connect an HDMI cable from either of the SmartDock’s HDMI OUT connectors to the Input

connector on the HD CTL 100 (see figure 2 and figure 3).

POWER

12V

0.3A MAX

INPUT

OUTPUT

+V OUTDIGITAL I / O

HDMI/CECHDMI

G24

IR / S

21G 43G

HD CTL 100

Workspace

Controller

HDMI

Logitech SmartDock

Display

Laptop

HDMI/CEC

Logitech MeetUp

MODEL80

FLATPA NEL

USB

logitech

Figure 3. HD CTL 100 Cabling Diagram (Single Display)

4. For a Dual Display system, you will need a second HD CTL 100. Connect HDMI cables from both of the SmartDock’s HDMI

OUT connectors to the Input connectors of the two HD CTL 100s (see figure 2 and figure 4).

POWER

12V

0.3A MAX

INPUT

OUTPUT

+V OUTDIGITAL I / O

HDMI/CECHDMI

G24

IR / S

21G 43G

HD CTL 100

HDMI

Logitech SmartDock

DisplayDisplay

Laptop

HDMI/CEC

POWER

12V

0.3A MAX

INPUT

OUTPUT

+V OUTDIGITAL I / O

HDMI/CECHDMI

G24

IR / S

21G 43G

HDMI

HDMI/CEC

HD CTL 100

Logitech

MeetUp

USB

logitech

MODEL80

FLATPANEL

MODEL80

FLATPA NEL

itech

logitech

logitec

ogitec

logitech

Figure 4. HD CTL 100 Cabling Diagram (Dual Display)

NOTE: Figure 3 and gure 4 above illustrate a cabling diagram showing the laptop (source device), the SmartDock, the

HD CTL 100(s), a Logitech MeetUp camera, and the display(s). The control of each display is via CEC. For displays that

have limited or no CEC control, use software to congure the HD CTL 100 to communicate to the display via IR or one-way

serial control.

SmartDock System Setup Conﬁguration

1. With the SmartDock powered up, from the main presentation window, select the Gear icon (1) at the bottom right.

2. Select Settings (2). (Enter Admin credentials if needed.)

3. Select Windows Settings (3) from the menu on the left of the screen.

4. From the window to the right of that screen, select Go to Admin Sign-in (4).

Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92905, 800.633.9876

68-3064-51 Rev. A

11 18

HD CTL 100 with Logitech SmartDock • Setup Guide (Continued)

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the

Extron Safety and Regulatory Compliance Guide on the Extron website.

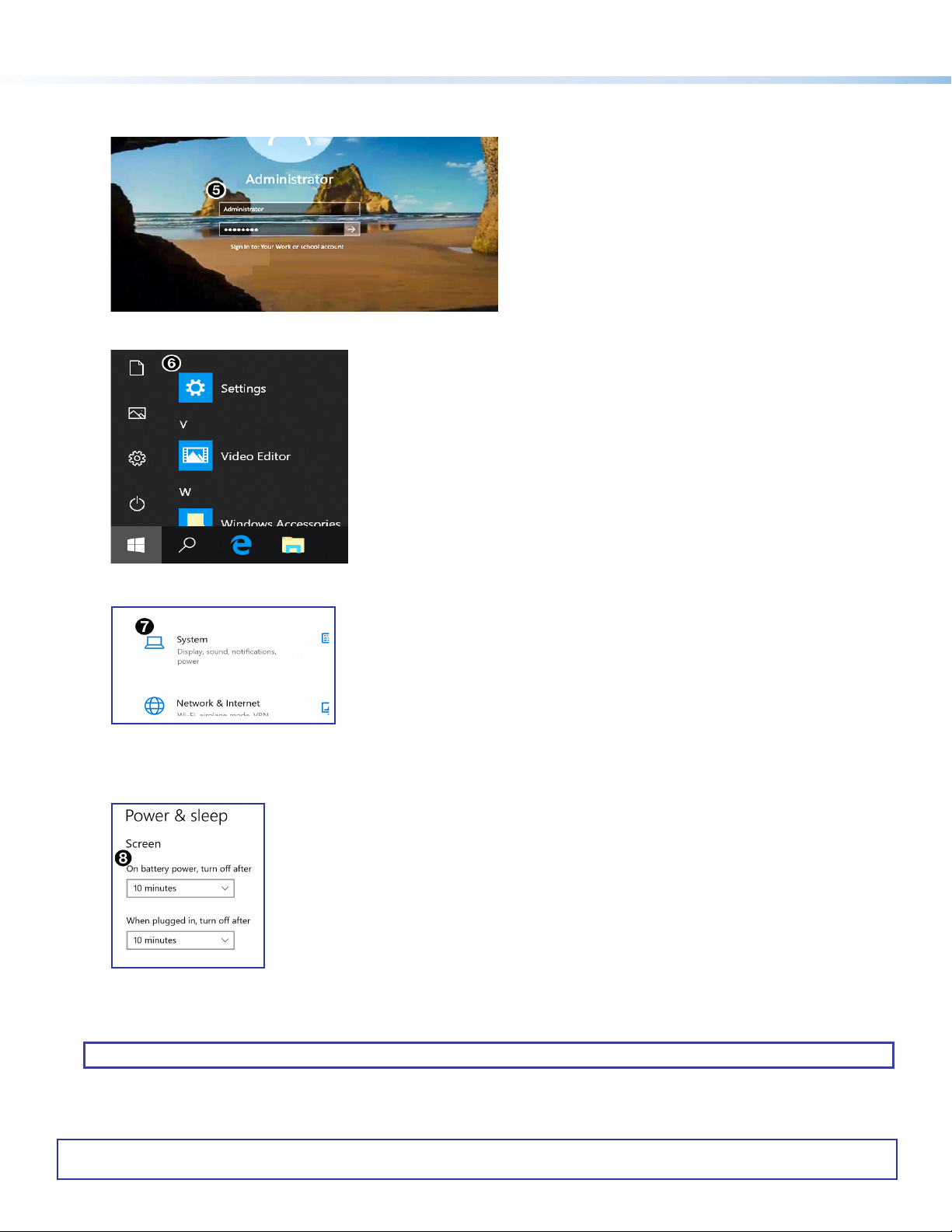

5. On the Windows login page, select the appropriate user account to sign in as administrator and enter Admin credentials.

Select the Right Arrow (5) when done.

6. From the Windows Start menu in the lower left corner, select Settings (6) from the list of applications.

7. Select System (7).

8. To ensure the system turns off the presentation display when not in use, select Power and sleep on the System menu. The

Screen times (8) have to be set for a specific value (something other than Never) using the drop-down list. The suggested

Screen time is 10 minutes for both battery and plugged-in power.

9. With motion detected from the motion sensor on the SmartDock, the video then outputs a signal to the HD CTL 100. The

HD CTL 100 sends a power command to the display, and the Main Skype Room screen is then displayed on the display

monitor.

NOTE: Plugging in a source device, such as a laptop, when the screen is in sleep mode, does not wake the SmartDock.
