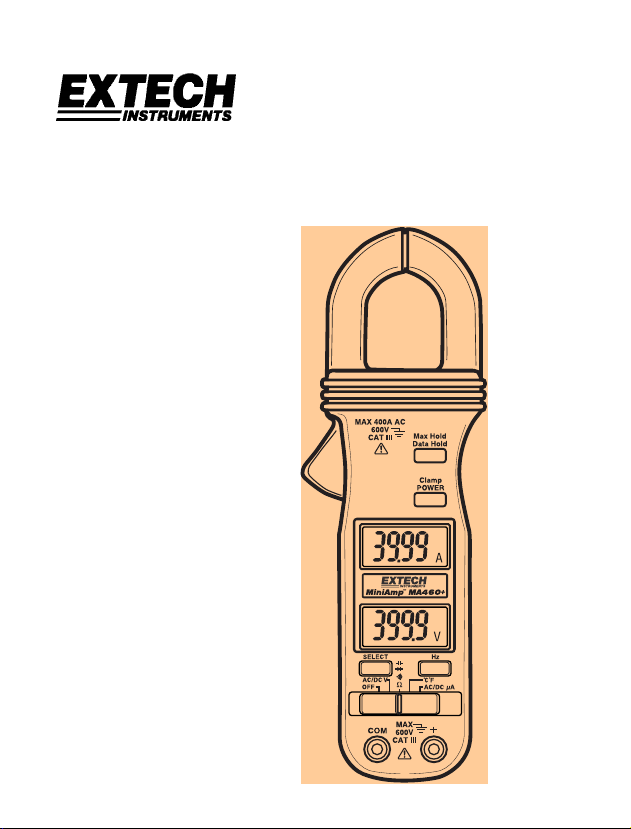

Extech Instruments MiniAmp Series Manual de usuario
MA Series V2.0 7/02
2
WARRANTY
EXTECH INSTRUMENTS CORPORATION warrants this
instrument to be free of defects in parts and workmanship for one
year from date of shipment (a six month limited warranty applies
on sensors and cables). If it should become necessary to return
the instrument for service during or beyond the warranty period,
contact the Customer Service Department at (781) 890-7440 ext.
210 for authorization. A Return Authorization (RA) number must
be issued before any product is returned to Extech. The
sender is responsible for shipping charges, freight, insurance and
proper packaging to prevent damage in transit. This warranty does
not apply to defects resulting from action of the user such as
misuse, improper wiring, operation outside of specification,
improper maintenance or repair, or unauthorized modification.
Extech specifically disclaims any implied warranties or
merchantability or fitness for a specific purpose and will not be
liable for any direct, indirect, incidental or consequential damages.
Extech's total liability is limited to repair or replacement of the
product. The warranty set forth above is inclusive and no other
warranty, whether written or oral, is expressed or implied.
Copyright © 2001 Extech Instruments Corporation. All rights
reserved including the right of reproduction in whole or in
part in any form.
MA Series V2.0 7/02
3
Introduction
Congratulations on your purchase of Extech model MA400,
MA420, MA440 or MA460+ clamp-on multimeter. Properly used,
this meter will provide many years of reliable service.
Clamp meter functions common to all meters:
Autoranging
AC Current Measurements
Data Hold
Auto Power Off
Maximum Hold captures 30ms peaks
1.1" (28mm) Jaw size
MultiMeter functions common to all models:
AC/DC Voltage to 600V
Resistance to 40MΩ
Capacitance and Frequency tests
Features unique to the MA440 and MA460+ models:
Twin 4000 count LCD displays
Simultaneous display of Current/Voltage, Current/Resistance, or
Current/Temperature (MA460+)
Features common to the MA400 and MA420 models:
Single 4000 count LCD display
Relative zero function
True rms (MA420) for current and voltage measurements
Safety
International Safety Symbols
!Caution ! Refer to the explanation in this Manual
Warning ! Risk of electric shock
Earth (Ground)
Double Insulation or Reinforced insulation
Fuse
AC--Alternating Current
DC--Direct Current
MA Series V2.0 7/02
4
Safety Precautions
1. Improper use of this meter can cause damage, shock,
injury or death. Read and understand this users manual
before operating the meter.
2. Make sure any covers or battery doors are properly closed
and secured.
3. Always remove the test leads before replacing the battery
or fuses.
4. Inspect the condition of the test leads and the meter itself
for any damage before operating the meter. Repair or
replace any damage before use.
5. Do not exceed the maximum rated input limits.
6. Use great care when making measurements if the voltages
are greater than 25VAC rms or 35VDC. These voltages are
considered a shock hazard.
7. Always discharge capacitors and remove power from the
device under test before performing Capacitance, Diode,
Resistance or Continuity tests.
8. Remove the battery from the meter if the meter is to be
stored for long periods.
9. To avoid electric shock, do not measure AC current on any
circuit whose voltage exceeds 600V AC.
10. Voltage checks on electrical outlets can be difficult and
misleading because of the uncertainty of connection to the
electrical contacts. Other means should be used to ensure
that the terminals are not "live".
11. The product is intended only for indoor use
12. If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment
may be impaired.
13. Pollution degree: 2
MA Series V2.0 7/02
5
PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY
OVERVOLTAGE CATEGORY I
Equipment of OVERVOLTAGE CATEGORY I is equipment for
connection to circuits in which measures are taken to limit the
transient overvoltages to an appropriate low level. Note –
Examples include protected electronic circuits.
OVERVOLTAGE CATEGORY II
Equipment of OVERVOLTAGE CATEGORY II is energy-
consuming equipment to be supplied from the fixed installation.
Note – Examples include household, office, and laboratory
appliances.
OVERVOLTAGE CATEGORY III
Equipment of OVERVOLTAGE CATEGORY III is equipment in
fixed installations.
Note – Examples include switches in the fixed installation and
some equipment for industrial use with permanent connection to
the fixed installation.
OVERVOLTAGE CATEGORY IV
Equipment of OVERVOLTAGE CATEGORY IV is for use at the
origin of the installation.
Note – Examples include electricity meters and primary over-
current protection equipment
MA Series V2.0 7/02
6
Specifications
DC Voltage
RANGE Accuracy
400.0mV 0.3% + 4d
4.000V, 40.00V, 400.0V 0.5% + 3d
600V 1.0% + 4d
NMRR: >50dB @ 50/60Hz, CMRR: >120dB @ DC, 50/60Hz,
Rs=1kΩ
Input impedance: 10MΩ, 30pF nominal, 1000MΩon the 400.0mV
range.
AC Voltage
RANGE (50Hz to 500Hz) Accuracy
4.000V, 40.00V, 400.0V 1.5% + 5d
600V 2.0% + 5d
CMRR: >60dB @ DC to 60Hz, Rs=1kΩ, Input Impedance:
10MΩ, 30pF nominal, True RMS models specified from 5% to
100% of range
AC Current (Clamp-on)
RANGE (50/60Hz) Accuracy
40.00A 1.9% + 8d
400.0A 1.9% + 8d*
600A** unspecified
True RMS model specified from 10% to 100% of range
*Accuracy specified to 350A continuous and 400A for 60 seconds
max with a 5 minute cool down interval.
** Added range to indicate instantaneous over-range current
values.
Resistance
RANGE Accuracy
400.0Ω0.8% + 6d
4.000kΩ, 40.00kΩ, 400.0kΩ, 0.6% + 4d
4.000MΩ, 1.0% + 4d
40.00MΩ, 2.0% + 4d
Open circuit voltage: 0.4V typical.
MA Series V2.0 7/02
7
Capacitance
RANGE Accuracy*
500.0nF, 5.000µF, 50.00µF, 500.0µF,
3000µF 3.5%* + 6d
50.00nF Not specified
*Accuracies with a film capacitor or better
*Specified with battery voltage above 2.8V (approximately half full
battery). Accuracy decreases gradually to 12% at low battery
warning voltage of approximately 2.4V.
Frequency
Function Sensitivity
(ACrms)
Range
400.0mV 150mV 10Hz to 2kHz
4.000V 3.2V 5Hz to 40kHz
40.00V 25V 5Hz to 100kHz
400.0V 100V 5Hz to 100kHz
600V 400V 5Hz to 5kHz
400µA (MA440&460+) 500µA 10Hz to 30kHz
2000µA (MA440&460+) 500µA 10Hz to 30kHz
400.0A (MA400&420) 55A 40Hz to 400Hz
Display counts: 4999, Max resolution: 0.001Hz,
Accuracy: 0.5% + 4d
Temperature (MA460+ only)
RANGE Accuracy
-4°F to 573°F 2% + 6°F
-20°C to 300°C 2% + 3°C
Accuracy does not include the type K thermocouple accuracy
DC µA (MA440 & MA460+ only)
RANGE Accuracy Burden Voltage
400.0µA 1.5% + 4d
2000µA 1.2% + 3d
2.8mV/µA
AC µA (MA440 & MA460+ only)
RANGE (50 to 500Hz) Accuracy Burden Voltage
400.0µA 2.0% + 5d
2000µA 1.5% + 5d
2.8mV/µA
MA Series V2.0 7/02
8
Accuracy Notes: Accuracy is ±(% reading digits + number of
digits), or as otherwise specified, at 23°C ±5°C < 75% R.H.
Model MA420 True RMS accuracies are specified from 10%
to 100% of range or as otherwise specified. Maximum Crest
Factor <1.75:1 at full scale & <3.5:1 at half scale (with
frequency component within the specified frequency
bandwidth for non-sinusoidal waveforms).
Audible Continuity: Threshold between 10Ωand 120Ω.
Response time < 100µs
Diode Test: Open circuit voltage < 1.6VDC; Test
current 0.25mA (typical)
Max Hold: Accuracy + 50 digits for changes >
25ms in duration
Digital Display: 4000-count LCD display(s); 3 per
second nominal refresh rate
Low Battery: Below approx. 2.4V
Operating Temperature: 32°to 104°F (0°to 40°C)
Storage Temperature: -4°to 140°F (-20 to 60oC), <80% R.H.
(with battery removed)
Relative Humidity: 80% to 88°F (31oC), decreasing
linearly to 50% at 104°F (40oC)
Altitude: Operating below 2000 meters
Temp. Coefficient: Nominal 0.15 x specified accuracy per
ºC (between 0 and 18oC or 28 to
40oC), or as otherwise specified
AC Sensing: True RMS on MA420, Average
sensing on MA400, MA440 and
MA460+
Auto Power Off: After 30 minutes of inactivity
MA Series V2.0 7/02
9
Safety: The MiniAmp™ Series meters meet
IEC61010-032(1994), EN61010-2-
032(1995), UL3111-2-032(1999).
MA440 and MA460+: Category III
600V AC & DC
MA400 and MA420: Category II 600V
AC & DC and Category III 300V AC &
DC
E.M.C.: Meets EN61326(1997, 1998/A1),
EN61000-4-2(1995), and EN61000-4-
3(1996)
In an RF field of 1V/m:
Capacitance function is not specified
µA function: Total accuracy = Acc.+50
digits
Other functions: Total acc. = Acc+ 30
digits
Performance above 1V/m is not
specified.
Overload Protection: ACA Clamp-on jaws; AC 400A
continuous
+, COM and µA terminals; 600VDC/AC
rms
Power Supply 1.5V alkaline button batteries (IEC/JIS
LR44, GAP76 or V13GA). Two
batteries for MA400 & MA420, four
batteries for MA440
3V CR2032 button battery x2 for
MA460+
Power Consumption: 2.5 mA typical. Power consumption
during auto-power off; 0.8µA (typical).
25µA typical on the MA460+
temperature function and 150µA
typical on the MA440 voltage and
current functions
Dimension: L7.5 x W2.5 x H1.26" (190mm x 63mm
x 32mm)
Weight: 6.6oz. (187g)
MA Series V2.0 7/02
10
Meter Description
MA440 and MA460+ (double display models)
1. Clamp jaw
2. Jaw trigger
3. ACA LCD display
4. Multimeter LCD display
5. Select button
6. Multimeter function switch
7. Multimeter input jacks
8. Hz button
9. Clamp power button
10. Data Hold/Max Hold button
MA400 and MA420 (single display models)
1. Clamp jaw
2. Jaw trigger
3. LCD display
4. Select button
5. Multimeter function switch
6. Multimeter input jacks
7. Hz button
8. Relative button
9. Data Hold/Max Hold button
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
Este manual sirve para los siguientes modelos
5
Tabla de contenidos
Otros manuales de Multímetro de Extech Instruments
Extech Instruments
Extech Instruments EX410 Manual de usuario
Extech Instruments
Extech Instruments EX360 Manual de usuario
Extech Instruments
Extech Instruments MN30 Manual de usuario
Extech Instruments
Extech Instruments 380900 Manual de usuario
Extech Instruments
Extech Instruments EX430A Manual de usuario
Extech Instruments
Extech Instruments 407303 Manual de usuario
Extech Instruments
Extech Instruments EX210 Manual de usuario
Extech Instruments
Extech Instruments Extech 470 Manual de usuario
Extech Instruments
Extech Instruments 382860 Manual de usuario
Extech Instruments
Extech Instruments SD750 Manual de usuario
Extech Instruments
Extech Instruments EX520-S Manual de usuario
Extech Instruments
Extech Instruments 407227 Manual de usuario
Extech Instruments
Extech Instruments EX570 Manual de usuario
Extech Instruments
Extech Instruments 401025 Manual de usuario
Extech Instruments
Extech Instruments MN26-NIST Manual de usuario
Extech Instruments
Extech Instruments EX320 Manual de usuario
Extech Instruments
Extech Instruments MN26 Manual de usuario
Extech Instruments
Extech Instruments MiniTec Series Manual de usuario
Extech Instruments
Extech Instruments 382100 Manual de usuario
Extech Instruments
Extech Instruments 38070 Manual de usuario
Manuales populares de Multímetro de otras marcas
Gossen MetraWatt
Gossen MetraWatt METRAmax 6 Manual de usuario
PeakTech
PeakTech 4000 Manual de uso y cuidado
YOKOGAWA
YOKOGAWA 90050B Manual de usuario
Gossen MetraWatt
Gossen MetraWatt METRALINE DMM16 Manual de usuario
Fluke
Fluke 8846A Manual de operación y mantenimiento
Tempo Communications
Tempo Communications MM200 Manual de usuario
