User's Manual

Model 382075

3φ/1φPower Clamp-on Meter

www.burntec.com

Introduction

Congratulations on your purchase of the Extech Model 382075 Auto Range Power Clamp-On Meter.

Careful use of this device, will provide years of reliable service.

Meter Functional Description

1. Transformer Jaw

Used to sense current signal. To measure current or power,

the conductor under test must be fully enclosed by the jaw.

2. Transformer Trigger

Press to open the jaw.

3. Data Hold Button

Press to freeze most recent reading on the LCD. Press

again to release.

4. Function Select and On/Off Switch

Select desired function, such as KW, V, A, KVA, or 3φ.

5. LCD Display

4-digit (9999 count) display with function symbols, units,

decimal point, low battery icon, and zero indication.

6. Units Symbols

Once a function is selected, the corresponding unit (KW, V,

A, Phase, KVA, or 3φ) will be displayed.

7. 3φ3W and 3φ4W Select Button

If the 3φsystem is not a balanced system, users can press

this button to select 3φ3W, 3φ4W or a balanced system.

Once the button is pressed, the LCD displays 3φ3W or

3φ4W depending on the function selected.

8. Read/Next Button

•When the rotary switch is set to the 3φfunction, the READ/NEXT button is used as a NEXT button.

In the 3φbalanced mode, pressing the NEXT button will display W+PF, KVA+KVAR, or V+A data.

•In the 3φ3W mode, pressing the NEXT button stores the measured values WRS(L1L2) and WTS(L3L2).

After two values are measured and stored, the meter adds the two values, displays the result with

the symbol WRST to represent W3φ3W. To start another W3φ3W measurement, press the NEXT button

again.

•In the 3φ4W system mode, press the NEXT button to store the measured values WR(L1), WS(L2) and

WT(L3). After three values are measured and stored, the meter adds the three values, displays the

result with the symbol WRST to represent W3φ4W. To start another W3φ4W measurement, press the

NEXT button again.

•If the rotary switch is not set to the 3φfunction, the READ/NEXT button is used as a READ button.

Stored data in memory (saved by pressing the REC button) can be read by pressing READ.

9. & 10. V and COM Input Terminals

Used as positive and negative (common) inputs for voltage measurements.

11. DC A/W ZERO button

Press this button once to zero the Amp or Watt display. While the meter is zeroing, the word ZERO

appears the LCD.

12. REC button

Press the REC button to store up to 4 data points in meter memory.

Figure 1

www.burntec.com

Operating Instructions

NOTE: Ensure that the jaws are clear of any conductors before applying power to the meter. The

meter performs an auto zero upon power-up to null any residual magnetism. If this is done with a

conductor inside the jaw area, the auto zero function will cause subsequent measurements to be

inaccurate.

DC/AC 1

2W Power (W) and Power Factor (PF) measurements

1. Apply power to the meter with the jaws clear of

any conductors.

2. Set the rotary switch to the Watts function

(KW).

3. If the watt reading is not zero, press the

DCA/DCW ZERO button once to zero it.

4. Insert the test leads into the input terminals.

5. Connect the COM (black) terminal to the

neutral line.

6. Connect the V (red) terminal to the power line.

7. Clamp on to the line where the V (red) terminal

is connected. The power clamp will

automatically select the proper measurement

range. Read the Watt and PF (Power Factor)

values displayed on the LCD.

NOTE: The "+" sign printed on jaw must face the power source for accurate measurements.

AC/DC Voltage Measurements

Voltage (V) and Frequency (Hz) Dual Display

WARNING: Maximum input voltages: 1000VDC and 750VAC. Do not attempt to measure voltage

that exceeds these limits.

1. Set the rotary switch to the Voltage position (V).

2. Insert the test leads into the input terminals.

3. Connect the test leads in PARALLEL with the circuit to be

measured.

4. The power clamp will automatically select the proper range.

5. Read the voltage and Frequency values displayed on the LCD.

NOTE: The sensitivity for voltage/frequency measurements

is 1V, and the frequency range is 10 - 400Hz. If the

frequency is < 10 Hz, the LCD will indicate 0 Hz. If the

frequency is > 400 Hz, LCD will show OL.

Voltage(V) / Current (A) Dual Display

Follow the instructions in the section entitled "3φBalanced Power

Measurements" to monitor V and A simultaneously.

Figure 3

1 Phase

Load

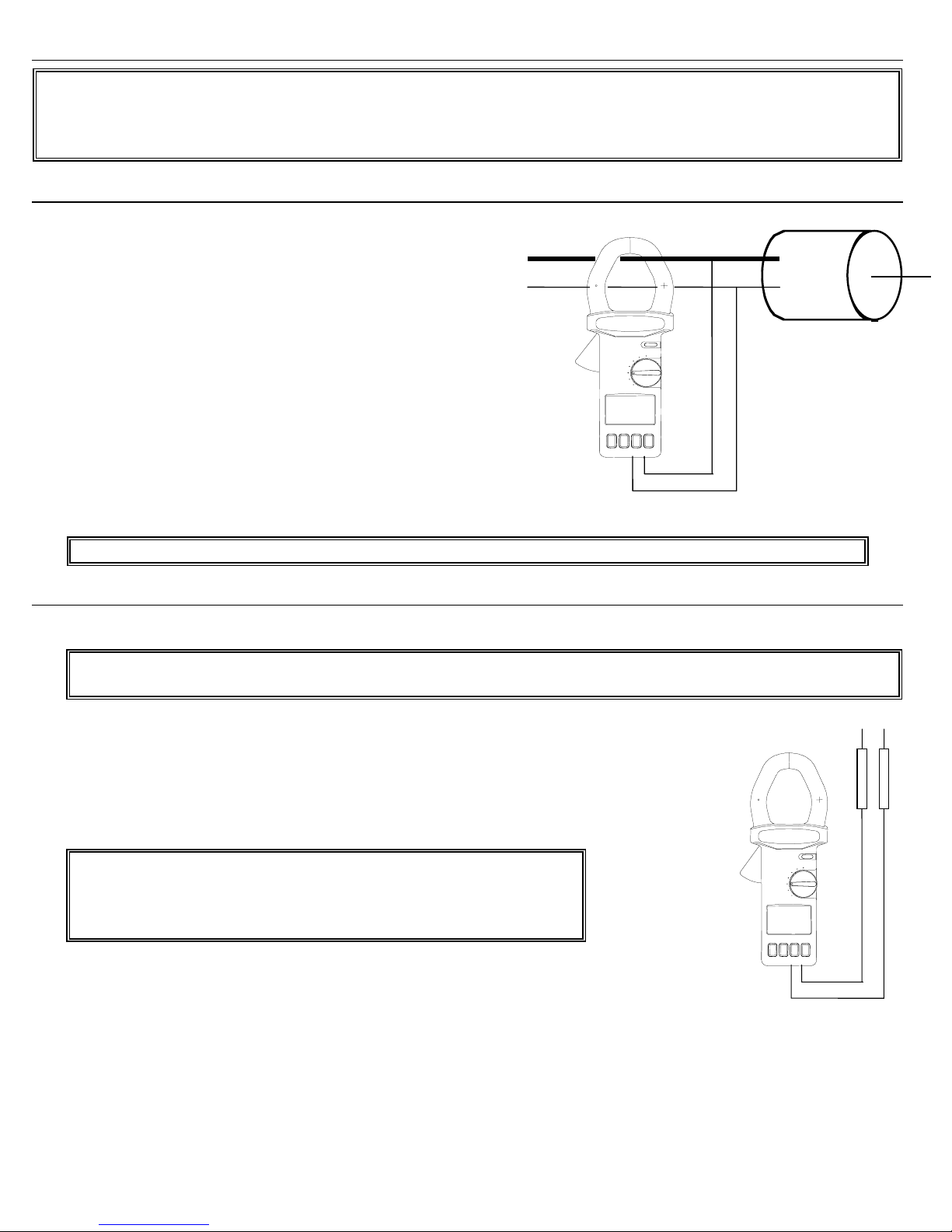

1 Phase 2 Wire Current >

Figure 2

www.burntec.com

AC/DC Current Measurements

Current (A) + Frequency (Hz) Dual Display

WARNING:

1. When applying power to the meter, make sure the clamp jaws are not near a conductor.

2. Make sure that test leads are disconnected from the meter during current measurements.

1. Set the rotary switch to the Amps position (A).

2. Push and hold the DCA/DCW ZERO button to zero the reading.

3. Press the trigger to open the jaw and fully enclose the conductor

to be measured. The Jaws must be completely closed to make a

measurement (see Fig.4).

4. Read the current/frequency values on the LCD.

NOTE: The sensitivity for current/frequency measurement is

5A, and the frequency range is 10 - 400Hz. If the frequency is

< 10 Hz, the LCD will display 0 Hz. If the frequency is > 400

Hz, LCD will display "OL".

Voltage (V) and Current (A) Dual Display

Follow the instructions in the section entitled "3φBalanced

Power Measurements" to monitor Voltage and Current simultaneously.

DC/AC 1

2W Apparent/Reactive Power Measurements (KVA+KVAR)

NOTE: Before taking any measurements, zero the current (A) reading and set the rotary switch to

the KVA position.

Follow the steps listed in section entitled DC+AC 1φ2W Power (W) and Power Factor (PF)

measurement for these measurements. KVAR is a calculated value, and its accuracy greatly depends

on the accuracy of the V, A, and KW readings. To obtain a more accurate KVAR value when PF is

greater than 0.91 (φ< 25°), measure the phase angle and obtain the KVAR from the following equation

for a pure sine wave:

KVAR = KVA * sin φ

Phase Angle Measurements

1. Set the rotary switch to the A position. If the current reading is not zero, press the DCA

ZERO button.

2. Set the rotary switch to the Phase position.

3. Insert the test leads into the input jacks.

4. Connect the test lead inserted in the COM (black)

terminal to the reference line.

5. Connect the test lead connected to the V (red)

terminal to the voltage signal under test.

6. Clamp on to the wire where the V (red) terminal is

connected (see Fig.5).

7. If current signal is detected from the jaws, the

phase angle will be displayed in degrees on the

LCD together with the frequency of the voltage.

8. If current is not detected, only the frequency of the

voltage will be displayed while the phase angle

display will be left blank.

NOTE: Zero the current (A) reading before measuring to avoid incorrect Phase Angle readings.

Figure 4

1 Phase

Load

1 Phase 2 Wire Current >

Figure 5

-23.8

www.burntec.com

INDUCTIVE LOAD: A negative phase angle indicates that the current signal lags the voltage

signal. A negative phase angle also indicates an inductive load.

CAPACITIVE LOAD: A positive phase angle indicates that the current signal leads the voltage

signal. A positive phase angle also indicates a capacitive load.

NOTE: The "+" sign printed on the clamp jaw must face the power source for correct readings.

Balanced Power Measurements

Power (W) and Power Factor (PF) Dual Display

1. Apply power to the meter with the jaw clear of any

conductors.

2. Set the rotary switch to the 3φposition.

3. The LCD will show 3φ3W, 3φ4W, and BAL

symbols to indicate balanced mode.

4. If the watt reading is not zero, press the DCA/DCW

ZERO button once to zero reading

5. Insert the test leads into the input terminals.

6. Select one phase (R or L1) as COM and Connect

the COM (black) terminal to the same phase just

selected (R or L1).

7. Connect another test lead to the second phase (S or L2). See Fig. 6.

8. Clamp on to the third phase (T or L3).

9. The power clamp will automatically select proper range.

10. Read the Watt and PF values displayed on the LCD.

11. To view the KVA and KVAR data, press the NEXT button.

12. To view V and A, press the NEXT button again.

13. To return to the W and PF display, press the NEXT button again.

KVA/KVAR Dual Display

Follow steps 1 through 10. in the above section and press the NEXT button. Wait approx. 2 seconds

for the LCD to display the KVA and KVAR.

Voltage (V) and Current (A) Dual Display

Follow steps 1 through 10 in the above section and press the NEXT button twice. Wait approx. 2

seconds for the LCD to display Voltage (V) and Current (A).

NOTE: Specific selection of each phase is not required in 3φbalanced power measurement

mode. As long as each test lead and the jaws are connected to different phases, the reading is

always correct. The "+" sign printed on jaw must face the power source for accurate

measurement.

NOTE: To find out if a load is capacitive or inductive, refer to the section entitled "Phase Angle

Measurements".

3W Unbalanced Power Measurements

Two measurements WRS (or WL1L2) and WTS (or WL3L2) are required. Refer to Fig. 7.

1. First measure WRS (or WL1L2)

a. Apply power to the meter with the jaw clear of any conductors.

b. Set the rotary switch to the 3φposition.

c. Press the 3φbutton once, the 3φ3W symbol will display on the LCD. At this moment, the WRS

symbol flashes prompting the user to begin measurement of WRS.

d. If the watt reading is not zero, press the DCA/DCW ZERO button once to zero reading

e. Insert the test leads into the input terminals.

Bal. Load

3-phase

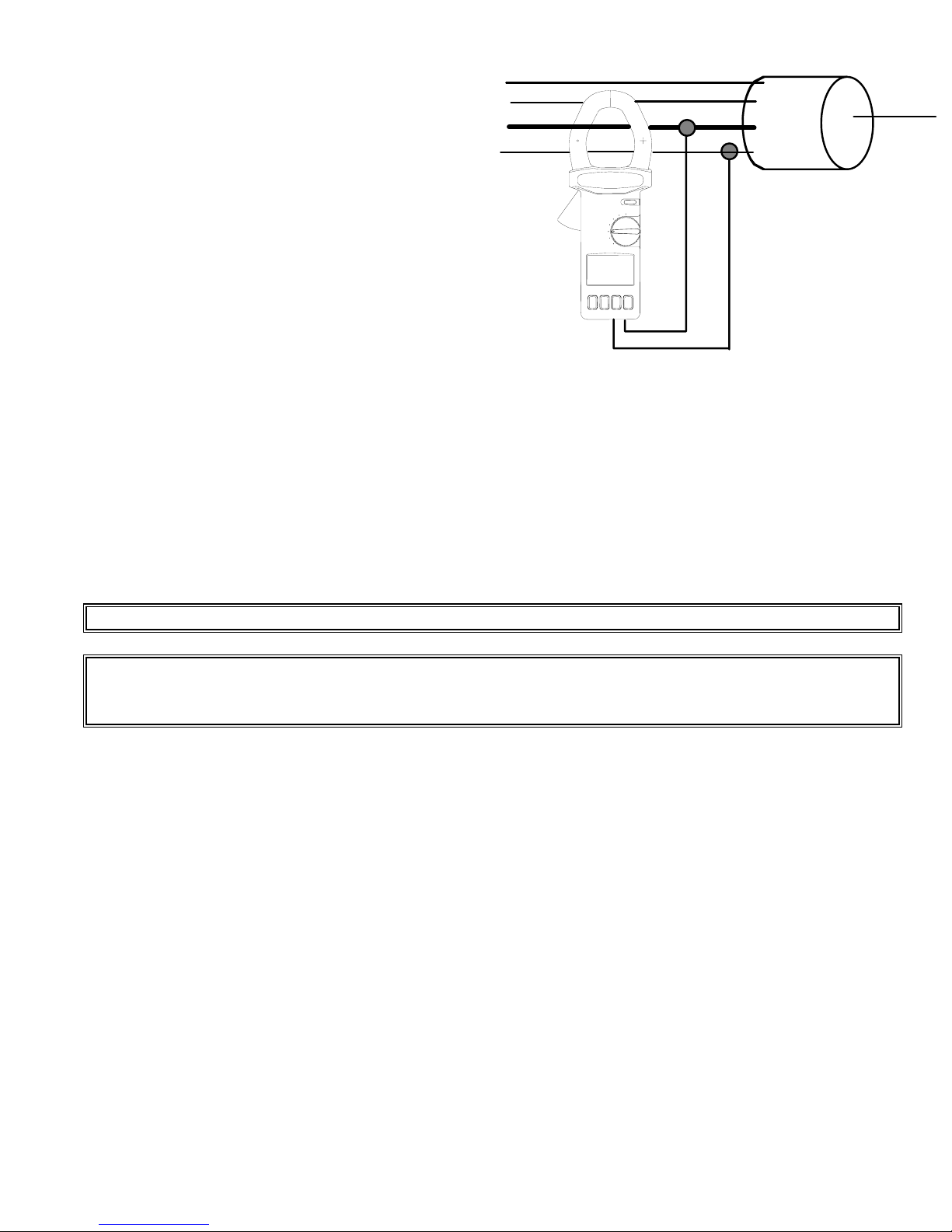

3 Phase 4 Wire

R(L1)

S(L2)

T(L3)

Current >

Figure 6

www.burntec.com

f. Select one phase (S or L2, for example) as COM and connect the COM (black) terminal to that

phase (S or L2).

g. Connect V (red) terminal to the second phase (R or L1).

h. Clamp on to the same phase as in step g. (R or L1).

The power clamp will automatically select the proper range.

i. Wait until the reading stabilizes, then press the NEXT button. The WRS (WL1L2) symbol will

disappear. At this moment, WRS is stored in memory, and the WT(WL3L2) symbol appears

flashing to prompt the user to take the WTS (WL3L2) measurement.

2. Secondly, measure WTS (or WL3L2 ). Refer to Fig. 8.

a. Disconnect the test leads and jaws from the lines in the previous measurement.

b. Connect the test leads to the third phase (T or L3).

c. Open and close the jaws, be sure that no conductor is in the jaws.

d. If the watt reading is not zero, press the DCA/DCW ZERO button once to zero the reading.

e. Clamp on to the third phase where the test lead is connected (T or L3)

f. The power clamp will automatically select proper range.

g. Wait until the reading stabilizes, then press the NEXT button. The WT(or WL3L2) symbol will

disappear. At this moment, WTS (or WL3L2) data are stored in memory,

Once the NEXT button is pressed (after measurements of WRS (or WL1L2) and WTS (or WL3L2)), the power

clamp will add the two values and display the result on the LCD. The WRST symbol appears indicating

that the reading shown is the wattage of the 3φ3W unbalanced Power. PF is not shown in the 3φ3W

unbalanced power mode.

NOTE: Once a phase is selected as the COMMON connection, users cannot change this

selection in the subsequent measurements. For example, if S (or L2) phase is selected, S (or L2)

phase is always connected to the COM of the power clamp during measurements of WRS (or

WL1L2) and WTS (or WL3L2) in 3φ3W unbalanced power mode.

NOTE: The "+" sign printed on the jaw must face the power source.

NOTE: In the 3φ3W unbalanced power measurement mode, WRS or WTS could be a negative

value. Users must make sure all the connections are correct to obtain correct power readings.

W3φW= WRST = WRS(L1L2)+ WTS(L3L2)

3 Phase

Load

3 Phase 3 Wire

Cur rent >

FIGURE 7

R(L1)

S(L2)

T( L3 )

RS (L1L2)

3 Phase

Load

3 Phase 3 Wire

Current >

FIGURE 8

R(L1)

S(L2)

T( L3 )

TS (L3L2)

www.burntec.com

4W Unbalanced Power Measurements

The measurements of WR(or WL1), WS(or WL2), and WT(or WL3) are required for these measurements.

1. First, measure WR(or WL1) (Fig. 9).

a. Apply power to the meter with the jaw clear of any conductors.

b. Set the rotary switch to the 3φposition.

c. Press the 3φbutton twice, and the 3φ4W symbol appears singularly on the left side of the LCD.

The WRsymbol will flash prompting the

user to take the WR. measurement

Note: If the watt reading is not zero, press the

DCA/DCW ZERO button once to zero

reading

d. Insert the test leads into the input terminals

e. Connect the neutral line to the COM

(black) terminal.

f. Connect the V (red) terminal test lead to

the first phase (R or L1).

g. Clamp on to the same phase (R or L1).

h. The power clamp meter will automatically

select the proper range.

i. Wait until the reading is stable, then press

the NEXT button. The WRsymbol will disappear. Now, WRis stored in the memory, and the WS

symbol flashes prompting the user to take the WSmeasurement.

2. Measure WS(or WL2) (Fig. 10).

a. Disconnect the test leads from the phase

where the jaw was clamped onto as

described in the section entitled "3φ3W

unbalanced power measurements".

b. Connect V (red) terminal to the second

phase (S or L2).

d. If the watt reading is not zero, press the

DCA/DCW ZERO button once to zero

reading

e. Clamp onto the phase where the test

lead is connected to (S or L2 phase)

f. The power clamp will automatically select

the proper range.

g. Wait until the reading stabilizes, then press the NEXT button. The WSsymbol will disappear. WS

is now stored in memory.

3 Phase

Load

3 Phase 4 Wire

Current >

FIGURE 9

R(L1)

S(L2)

T( L3 )

R (L1)

3 Phase

Load

3 Phase 4 Wire

Current >

FIGURE 10

R(L1)

S(L2)

T( L3 )

S (L2)

www.burntec.com

3.Thirdly, measure WT(or WL3). See Fig. 11.

a. Disconnect the test lead from the phase

where the Jaw was connected in the

section entitled "3φ3W Unbalanced

Power Measurements".

b. Connect the test lead inserted in the V

(red) terminal to the third phase (T or

L3 phase).

d. If the watt reading is not zero, press the

DCA/DCW ZERO button once to zero

reading

e. Clamp onto the phase where test lead

is connected to (T or L3).

f. The power clamp will automatically

select the proper range.

g. Wait until the reading stabilizes, then

press the NEXT button. The WTsymbol will disappear and WTwill be stored in memory,

4. Once the NEXT button is pressed (after measurements of WRWS, and WT), the power clamp will add

the three values WR, WS, and WTtogether and display the result on the LCD. The WRST symbol will

appear indicating that the reading shown is the wattage of the 3φ4W unbalanced circuit. PF is not

shown in the 3φ4W unbalanced power measurement mode.

NOTE: The "+" sign printed on jaw must face the power source.

NOTE: In the 3φ4W unbalanced power measurement mode, all three WRor WSand WTreadings

must be positive. If one is negative, check the connection of the test leads and the clamping of

jaw. Make sure test lead and clamp connections are correct to obtain useful power readings.

W3φW= WRST = WR(L1)+ WS(L2)+ WT(L3)

3 Phase

Load

3 Phase 4 Wire

Current >

FIGURE 11

R(L1)

S(L2)

T( L3 )

T (L3)

www.burntec.com

3W Power Measurement

1φ3W power measurements are similar to 3φ3W unbalanced power measurements except that the

nomenclature is different. Two measurements of WRS (or WL1G) and WTS (or WL2G) are required

1. First, measure WRS (or WL1G). See

Fig.12.

a. Apply power to the meter with

the jaw clear of any conductors

b. Set the rotary switch to the 3φ

position.

c. Press the 3φbutton once, and

the 3φ3W symbol will singularly

appear on the left side of the LCD.

The WRS symbol will flash

prompting the user to measure

WRS(L1G).

d. If the watt reading is not zero,

press the DCA/DCW ZERO button

once to zero it.

e. Insert the test leads into the input terminals.

f. Connect the COM (black) terminal to ground.

g. Connect the V (red) terminal to the second phase (L1).

h. Clamp on to the same phase as connected in step g. (L1).

i. The power clamp will automatically select the proper range.

j. Wait until the reading stabilizes, then press the NEXT button. The WRS (WL1G) symbol will

disappear and the WRS(L1G) reading will be stored in memory. The WT (WL2G) symbol will flash

prompting the user to take WTS (WL2G)

measurements.

2. Secondly, measure WTS (or WL2G). Fig. 13.

a. Disconnect the test leads from the

phase where the jaws were clamped

onto in the previous measurement.

b. Connect the test lead to the L2 line.

d. If the watt reading is not zero, press

the DCA/DCW ZERO button once to

zero reading

e. Clamp on to the L2 line where the

test lead is connected.

f. The power clamp will automatically

select the proper range.

g. Wait until the reading is stable, then

press the NEXT button. The WT(or

WL2G) symbol will disappear. At this

moment, WTS (or WL2G) is stored in the

memory,

3. Once the NEXT button is pressed after measurements of WRS (or WL1G) and WTS (or WL2G) are taken,

the power clamp will add the two values together and show the result on the LCD. The WRST symbol

will display along with the wattage of the 1φ3W unbalanced Power. PF is not shown in 1φ3W

unbalanced power mode. See equation below.

W1φW= WRST = WRS(L1G)+ WTS(L2G)

1 Phase

Load

1 Phase 3 Wire

Current >

FIGURE 12

1 Phase

Load

1 Phase

Load

1 Phase 3 Wire

Current >

FIGURE 13

1 Phase

Load

www.burntec.com

Calculation of 3

4W Power Factor (PF)

When measuring 3φ4W unbalanced power, use the REC button to record the individual power factors

(KWR(L1), PFR(L1), KWS(L2), PFS(L2), KWT(L3), and PFT(L3)) of each phase in memory. 3φ4W power factor can

be calculated using the following equation:

Improving the Power Factor of a 3

4W Power System

Measure the KVARR(or KVARL1), KVARS(or KVARL2 ), and KVART(or KVARL3) values of each phase.

Based upon the measured values, a 3φor 1φcapacitor at the rated voltage and frequency can be used

to improve the power factor. To find the value of capacitance, refer to the following equation.

Where:

f: frequency in Hz

V: phase voltage

It is recommended that the KVAR value of the capacitor a somewhat less than the value measured.

Improving the Power Factor of a 3

Balanced Power System

1. Measure the KVAR 3φvalue of a balanced system.

2. Based upon the measured value, a 3φcapacitor at the rated voltage and frequency can be used to

improve power factor.

3. To find the value of capacitance, refer to the equation in the section above.

4. It is recommended that the KVAR value of the capacitor be somewhat less than the value

measured.

Improving Power Factor of a 1

2W Power System

1. Measure KVAR value of a 1φ2W power system.

2. Based upon the measured value, users can purchase required capacitor at rated voltage and

frequency to improve power factor.

3. If value of capacitance is needed, obtain the value via the equation in the section entitled

"Improving Power Factor of 3-phase 4-wire System".

4. It is recommended that the KVAR value of the capacitor should be a little less than the value

measured.

NOTE: The indication of phase sequence is not limited to 3φbalanced power. It can be used in

general as long as the Power Factor is greater than 0.1.

KVAR(L1)=KWR(L1)

PFR(L1);KVAS(L2)=KWS(L2)

PFS(L2);KVAT(L3)=KWS(L3)

PFT(L3)

KVA3φW= KVAR(L1)+ KVAS(L2)+ KVAT(L3)

PF3φW= KW3φW

KVA3φW

Capacitance(Farad) = KVAR*1000

2πfV2

www.burntec.com

Otros manuales para 382075

Tabla de contenidos

Otros manuales de Multímetro de Extech Instruments

Extech Instruments

Extech Instruments MN16A Manual de usuario

Extech Instruments

Extech Instruments MiniAmp Series Manual de usuario

Extech Instruments

Extech Instruments 38073A Manual de usuario

Extech Instruments

Extech Instruments EX430A Manual de usuario

Extech Instruments

Extech Instruments 38390 Manual de usuario

Extech Instruments

Extech Instruments CMM-17 Manual de usuario

Extech Instruments

Extech Instruments MA200 Manual de usuario

Extech Instruments

Extech Instruments EX540 Manual de usuario

Extech Instruments

Extech Instruments EX410A Manual de usuario

Extech Instruments

Extech Instruments SDL350 Manual de usuario

Extech Instruments

Extech Instruments EX330 Manual de usuario

Extech Instruments

Extech Instruments MiniTec Series Manual de usuario

Extech Instruments

Extech Instruments 380947 Manual de usuario

Extech Instruments

Extech Instruments MiniTec Series Manual de usuario

Extech Instruments

Extech Instruments EX330 Manual de usuario

Extech Instruments

Extech Instruments 38070 Manual de usuario

Extech Instruments

Extech Instruments EX470A Manual de usuario

Extech Instruments

Extech Instruments 407303 Manual de usuario

Extech Instruments

Extech Instruments EX210 Manual de usuario

Extech Instruments

Extech Instruments EX410A Manual de usuario

Extech Instruments

Extech Instruments 38387 Manual de usuario

Extech Instruments

Extech Instruments EX623 Manual de usuario

Extech Instruments

Extech Instruments 380947 Manual de usuario

Extech Instruments

Extech Instruments EX310-NIST Manual de usuario

Manuales populares de Multímetro de otras marcas

Agilent Technologies

Agilent Technologies 34420A Manual de usuario

Fluke

Fluke 83 Manual de usuario

Hameg

Hameg HM 8012 Manual de usuario

Mastech

Mastech MY70 Manual de usuario

Steren

Steren MUL-300 Manual de usuario

Somogyi Elektronic

Somogyi Elektronic home SMA 92 Manual de usuario

Gossen MetraWatt

Gossen MetraWatt METRAmax 6 Manual de usuario

PeakTech

PeakTech 4000 Manual de uso y cuidado

YOKOGAWA

YOKOGAWA 90050B Manual de usuario

Gossen MetraWatt

Gossen MetraWatt METRALINE DMM16 Manual de usuario

Fluke

Fluke 8846A Manual de operación y mantenimiento

Tempo Communications

Tempo Communications MM200 Manual de usuario

Elenco Electronics

Elenco Electronics CM-1555 Manual de usuario

Mastech

Mastech MS8238C Manual de usuario

SDAR

SDAR 830A, 830B, 830D, 830C Manual de usuario

RS PRO

RS PRO RS-9519BT Manual de usuario

BGS technic

BGS technic 8890 Manual de usuario

Amprobe

Amprobe Hexagon 60 Manual de usuario
