USER GUIDE

USBTemperatureDatalogger



ModelTHD5



Introduction

Thankyouforselectingthe‘single‐use’ExtechModelTHD5USBTemperatureDatalogger.This

dataloggerisspecificallydesignedformonitoringthetransportationofproductssubjecttocold

chainrequirements.



TheTHD5isaneasy‐to‐use,waterproof(IP65),andportableUSBTemperatureDatalogger.The

THD5usesaUSB2.0connectorthatcanbepluggedintoaPCforuser‐customizeddatalogger

setup.TheTHD5canthenbeplacedinanareawheretemperatureistobemonitored.Once

placed,theusercanpresstheSTARTbuttontobeginrecording.Whencompleted,theTHD5can

thenbepluggedbackintothePCwhereaPDFreportofloggedtemperaturereadingscanbe

generated(AdobeReader®softwarerequired).



Ten(10)one‐time‐usedataloggersareprovided;eachcanlog8192temperaturereadings.This

deviceisshippedfullytestedandcalibrated.

www. .com information@itm.com1.800.561.8187

2 THD5-en-GB_V1.0 4/15

56 7

DataloggerDescription

1. USB2.0‘Plug&Play’connector.USBdriverisnotrequired.

2. LEDindicator:

Low/High:RedLEDblinkswhenmeasurementexceedsanalarmthreshold

GreenOK:GreenLEDblinksthreetimesevery5secondswhenloggerisinstandbymode.Whenlogging

isstarted,thegreenLEDblinksevery2seconds

RedLowBattery:RedLEDblinksevery2secondswhenpoweristoolowtoprovideaccuratelogging

3. NTCthermistorprovidesaccuratetemperaturemeasurements

4. Pre‐installedCR2032battery

5. START/STOPbutton:

Aftertheloggerisprogrammed,pressandholdthe‘START’buttonfor2secondstobeginlogging.To

stop,pressandholdthe‘STOP’buttonfor2seconds.

6. MARKbutton:

Thisbuttonisusedtomanuallyplacea‘bookmark’inthedatalogrecord.Thesetime‐stampedmarks

appearinthePDFreportthatcanbegeneratedonaPC.

7. IP65zippedplasticbag:

Openthebagandremovetheunitforprogramming.

Afterprogramming,returntheunittotheplasticbagandsealthebagbeforelogging.

www. .com information@itm.com1.800.561.8187

3 THD5-en-GB_V1.0 4/15

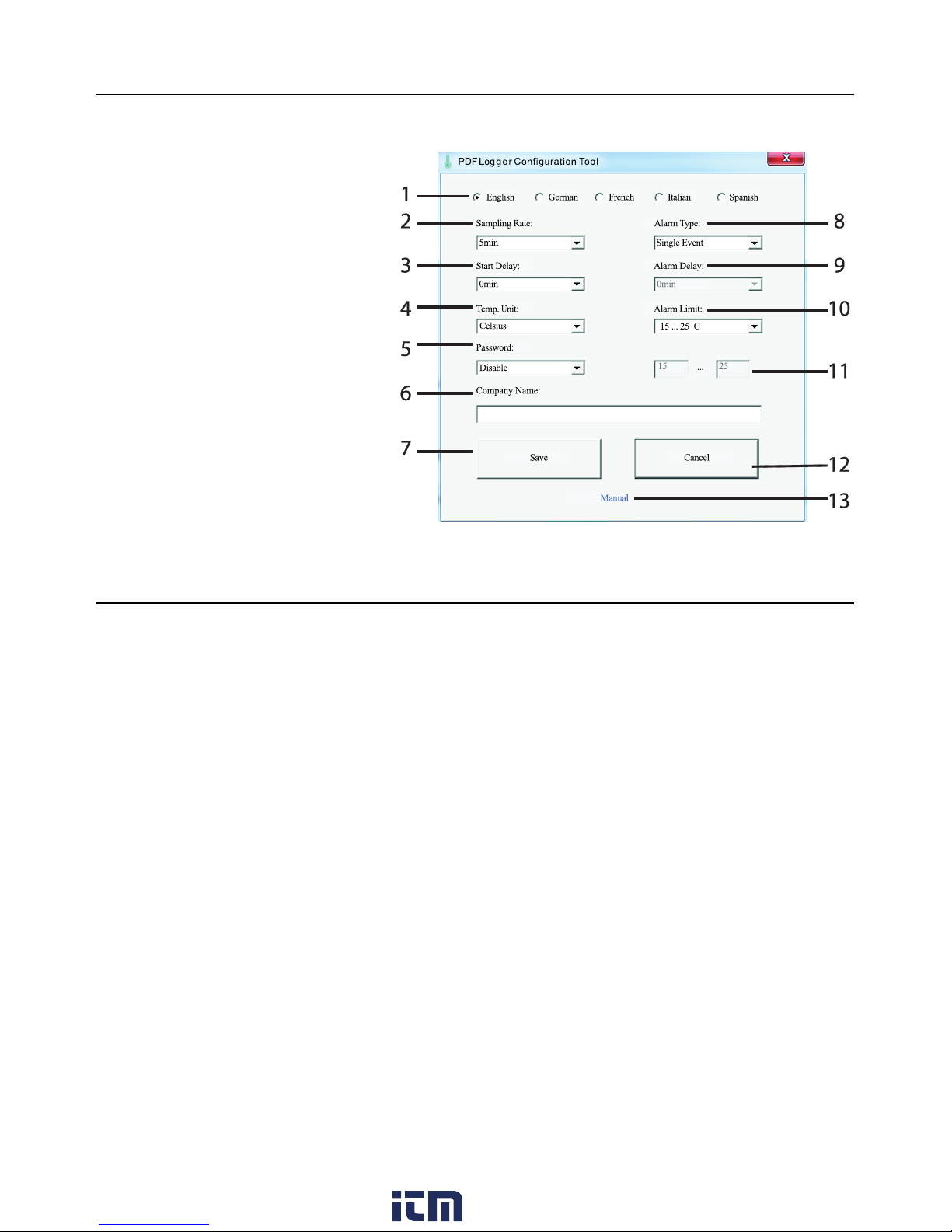

DataloggerConfigurationScreenDescription

ConnecttheTHD5tothePCviatheUSBporttoopenthisscreen.RefertotheOperationSection

belowfordetailsontheitemsshownonthisScreen:



1. Languageselection

2. Loggersamplingrate

3. Loggerstartdelaytime

4. Temperatureunitselection

5. Passwordmodeselection

6. User’scompanyname

7. Confirmsettings

8. Selectalarmtype

9. Setalarmdelaytime

10. Selecthighandlowalarm

thresholds

11. Alarmrange(forcumulative

alarmtype)

12. Cancelprogramming

13. OpenusermanualPDF

Operation

NOTES:

1.AdobeReader®softwareisrequired.

2.PleaseprogramtheloggerandgeneratethePDFreportatroomtemperatureonly.

3.Theprogrammingexecutablefilesareidentifiedbythe*.exeformat.



Configuringthedatalogger

Atanytimebeforeloggingisstarted,theloggercanbeprogrammedandre‐programmed.

1. ConnectthedataloggertoaPCviatheUSBport.

2. TheLoggerstatusLEDsblinktwice.

3. ThesoftwarewindowwillappearonthePC.

4. Clickon‘OpenFolder’toviewtheavailablefiles.

5. Openthefile"PDFLoggerConfigurationTool.exe".

6. ThedefaultlanguageisEnglish;selectGerman,French,Italian,Spanish,orPortugueseas

desired.ThegeneratedPDFreportformatwillmatchthelanguageselected.

7. Toreviewtheinstructionmanual,click‘Manual’tolinktotheUserManualPDFfile.

8. TheProgrammableParametersaredefinedbelow:

UserCompanyName

InputacompanynamethatwillbeprintedonthePDFreport(20charactersmax.).

Samplingrate

Selectthedataloggingsamplingrate(interval)from30secondsto2hours.

www. .com information@itm.com1.800.561.8187

4 THD5-en-GB_V1.0 4/15

Startdelay

SelectaperiodoftimethatmustelapsebeforerecordingcanbeginaftertheSTART

buttonispressed(selectfrom0minto2hours).

Alarmdelay

Thepresetalarmdelaytimeforsinglealarmtypeisalwayszero.

Theadjustablealarmdelaytimeforcumulativealarmtypeis5minutesto2hours.

Alarmtypes

Regardlessofwhatalarmtypeisselected,theLEDwillcontinueflashing(onceitis

triggered)evenwhenthemeasuredvaluelaterreturnstothenormalrange.

SingleAlarm:TheLEDalarmistriggeredimmediatelywhenthemeasuredvalue

exceedsthealarmthreshold.

Cumulative:TheLEDalarmisnottriggeredwhenthemeasuredvalueexceedsthe

alarmthreshold.TheLEDalarmistriggeredonlywhentheaveragevalue,duringthe

alarmdelaytime,exceedsthealarmthreshold.

Disable:NoLEDalarmfunctionduringtheloggingprocess

Alarmvalue

Selectthealarmthresholdvalue.Forexampleif2~8oCisselected:Whenthe

measuredvaluefallsbelow2oCorexceeds8oCtheLEDindicatorwilltrigger.

Unit

SelectthedesiredtemperatureunitforthePDFreport(CelsiusorFahrenheit).

TimeZone

TheTHD5LoggerautosynchronizesthetimezonewithaPCwhen‘Save’isselectedto

confirmasetting.Note:Timezonechangesoccurringduringloggingarenottakeninto

account.

Password

ThepasswordsecurityfunctionisOFFbydefault.Thepasswordfunctioncanbe

enabledanda16alphanumericcharacter(max.)passwordcanbeusedtoprevent

unauthorizedre‐programming



Oncealltheprogrammingiscomplete,press‘Save’toconfirmthesettings.Ifdesired,close

thesetupwindowandremovetheloggerfromthePCUSBport.



Thedefaultvaluesforaboveparameters:

Samplingrate 5minutes

Startdelay 0minutes

Alarmdelay 0minutes

Temp.Unit °C

AlarmLimits 15~25oC

AlarmType SingleEvent

Language English

Password Disabled

CompanyNameBlank



www. .com information@itm.com1.800.561.8187

5 THD5-en-GB_V1.0 4/15

StartDatalogging

1. WhentheTHD5issuccessfullyprogrammed,thegreenLEDblinksthreetimesevery5

secondstoindicatetheloggerisinstandbymode

2. Placetheunitintothesuppliedplasticbagandsealthezippedbagwell;thenpressand

holdthe‘START’buttonfortwosecondstostartthedatalogger

3. TheRedLEDswillflashthreetimestoindicatethatthedataloggerisactivate

4. Duringthedatalogging,thegreenLEDwillblinkeverytwoseconds.Ifbatterypoweris

toolowtomaintainnormaloperation,theredLEDwillblink

5. Toplaceabookmarkmanuallyduringdatalogging,pressthe‘MARK’button.Uptoeight

(8)bookmarkscanbeplacedinadatalogsession.



DownloadLoggedData(PDFReport)

Pressandholdthe‘STOP’buttonfortwosecondstostopthedatalogger(thelogger

automaticallystopswhenthelogreaches8192readings).Alternatively,plugtheloggerdirectly

intothePCUSBporttostoptheloggingandtogenerateaPDFreport.Afterafewsecondsthe

PDFreportwillbegenerated.ThePDFreportincludesreadingdataandtrendgraph.Thestatus

LEDswillblinkwhiletheloggerisgeneratingthePDFreport.



NOTE:OncetheDataloggerisStartedandthenStopped,theunitcannotbereused.Anewunit

wouldhavetobeusedtomakenewrecordings.Ten(10)loggersaresuppliedinthepackage.



www. .com information@itm.com1.800.561.8187

6 THD5-en-GB_V1.0 4/15

Specifications

TemperatureSensor NTCThermistor

Temperaterange  ‐30~70oC(‐22~158oF)

Temperatureresolution  0.1oC/oF

TemperatureAccuracy  ±0.5oC(0.9oF)

Loggertype   SingleUse

Dataloggercapacity  8192readings

Samplinginterval  30seconds,5,10,30,60,90,120minutes

Startdelay   0,5,30,45,60,90,120minutes

Alarmranges  ‐20~‐10oC,‐10~0oC,2~8oC,0~15oC,0~25oC,15~25oC,etc.

Alarmdelay   0,5,30,45,60,90,120minutes

Alarmtypes  Single,Cumulative,andDisable

OperationButtons  Two(2)Buttons:Start/Stop&Mark

LEDindicator  Record,LowBattery,andHigh/LowAlarm

NumberofsuppliedLoggers Ten(10)single‐useloggerssuppliedinthepackage

Operatingtemperature  ‐30~70oC(‐22~158oF)forlogging;

EnsureroomtemperaturewhenconnectedtoPC

OperatingRelativeHumidity <80%RH

Dimensions   80(L)x43(W)x2.5(D)mm(3.2x1.7x0.1”)

Weight   ~10g(0.4oz.)

Battery   One(1)3.0VCR2032battery(installedbeforeshipment)

Batterylife  One(1)year

SafetyCE;WaterproofIP‐65



Allrightsreservedincludingtherightofreproductioninwholeorinpartinanyform

www.extech.com
