Exor JSmart 710 Manual de usuario
JSmart700 Series
Operating Instructions
User’s Manual for JSmart700 Series Touchscreen Products
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A.
2
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
Copyright © 2019-2020 Exor International S.p.A. – Verona, Italy
Subject to change without notice
The information contained in this document is provided for informational purposes only. While efforts were made to verify the accuracy of the information
contained in this documentation, it is provided “as is” without warranty of any kind.
Third-party brands and names are the property of their respective owners.
www.exorint.com
Software available in these products is based on OpenSource. Visitoss.exorint.netfor more details.
3
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
Table of Contents
Introduction 4
Safety Guide 5
1 Product Overview 6
2 Standards and Approvals 7
3 Technical Specications 9
4 Technical Data 13
4.1 Dimensions 15
4.2 Installation Environment and Procedure 18
4.3 Safety instruction 19
5 Connections 20
5.1 Ethernet Port 20
6 Power Supply, Grounding and Shielding 21
7 Battery 22
8 Special Instruction for Use 24
9 Getting Started 24
10 System Settings 25
11 Unpacking and Packing Instructions 27
4
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
Introduction
The operational guidelines described below is information which relates to the device, installation, transpor-
tation, storage, assembly, use and maintenance.
This Operating Instruction describes the main features of the Exor operator panels. The Manual refers to
the following models:
JSmart707 Field-ready HMI 7” color TFT, PCAP touchscreen, Ethernet port PoE
JSmart710 Field-ready HMI 10.1” color TFT, PCAP touchscreen, Ethernet port PoE
JSmart715 Field-ready HMI 15.6” color TFT, PCAP touchscreen, Ethernet port PoE
JSmart721 Field-ready HMI 21.5” color TFT, PCAP touchscreen, Ethernet port PoE
5
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
Safety Guide
The manual contains safety standards that must be respected for the personal safety and to avoid damage.
Indications of attention are divided into three levels of severity:
DANGER: indicates a failure to observe safety rules and such failure may cause death or serious injuries.
ATTENTION: indicates a failure to observe safety rules and that deciency may cause damage.
CAUTION: indicates a failure to observe safety rules and that deciency may cause defects to the equipment
or inconsistencies.
CAUTION
ATTENTION
DANGER
!
!
6
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
1 Product Overview
JSmart700 products are ideal for eld installation in critical areas. High-resolution displays and multitouch
PCAP touchscreen with a robust glass front.
Power-over-Ethernet (PoE) for maximum simplicity of connection using standard shielded CAT 5 wiring. Full
IP protection with the use of dedicated connectors for the maximum flexibility of installation, from mounting
arm to a simple M22 hole. The product includes environment and motion sensors to make this device a true
IIoT edge device for Industry 4.0 applications.
The JSmart product family has been optimized for use as an embedded browser or as a JMobile HMI device.
• Open platform for Linux applications
• Performing HTML5-compatible browser with graphic accelerator
• JMobile runtime with OPC UA Server and Client
• Optional CODESYS V3 PLC for integrated HMI and control applications
• Built-in sensors (temperature and acceleration)
7
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
The products have been designed for use in an industrial environment in compliance with the 2014/53/EU
Directive.
The products have been designed in compliance with:
EN 61000-6-4
EN 61000-6-2
EN 61000-6-3
EN 61000-6-1
ETSI EN 301 489-1
ETSI EN 301 489-17
ETSI EN 300 328
EN 62311 *
EN 61010-1
EN 61010-2-201
* Standard radio signal and minimum distance from the body calculated according to EN 62311
Standard radio signal WiFi 2,4GHz
Minimum distance form the body (cm)* 2
* The WiFi antenna is positioned behind the black band above the display.
The products are in compliance with the Restrictions on Certain Hazardous Substances (RoHS) Directive
2011/65/EU
In compliance with the above regulations the products are CE marked.
2 Standards and Approvals
8
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
Product Identication
The product may be identied by the indications in the back cover. You will have to know the type of unit you
are using for correct usage of the information contained in the guide.
An example of the information reported is shown below:
product model name JSmart707
year/week of production 1920
serial number AA00012P9000000561AA
manufacturer address Exor International S.p.A.
Via Monte Fiorino 9
IT-37057 San Giovanni Lupatoto (VR)
Ordering code key
Example: +JS707BB1U5P1
2 Standards and Approvals
9
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
3 Technical Specications
Electromagnetic Compatibility (EMC)
Radiated disturbance test Class A CISPR 22
CISPR 16-2-3
Electrostatic discharge immunity test 8 kV (air electrostatic discharge) EN 61000-4-2
4 kV (contact electrostatic discharge)
Radiated, radio-frequency, 80 MHz ÷ 1 GHz, 10V/m EN 61000-4-3
electromagnetic eld immunity test 1,4 GHz ÷ 2 GHz, 3 V/m
2 GHz ÷ 2.7 GHz, 1 V/m
Burst immunity test ± 2 KV dc power port EN 61000-4-4
± 1 KV signal line
Surge immunity test ± 0,5 KV dc power port (line to earth) EN 61000-4-5
± 0,5 KV dc power port (line to line)
± 1 KV signal line (line to earth)
Immunity to conducted disturbances
inducted by radiofrequency eld 0.15 ÷ 80 MHz, 10V EN 61000-4-6
Power frequency magnetic eld
immunity test Enclosure, 50/60Hz, 30A/m EN 61000-4-8
Environmental conditions
Operating temperature (surrounding -20 ÷ +55°C (vertical installation) EN 60068-2-14
air temperature)
Storage temperature -30 ÷ +80°C (JSmart707, 710) EN 60068-2-1
-20 ÷ +70°C (JSmart715, 721) EN 60068-2-2
EN 60068-2-14
Operating and storage humidity 5 ÷ 85 % RH not-condensing EN 60068-2-30
Vibrations 5 ÷ 9 Hz, 7 mm p-p EN 60068-2-6
9 ÷ 150 Hz, 1 g
Shock ± 50 g, 11 ms, 3 pulses per axis EN 60068-2-27
Protection class IP67 (requires appropriate connectors EN 60529
and cables)
Touchscreen technology Projected capacitive - Multitouch
Back-up battery 3V 7mAh Vanadium-Lithium, rechargeable, not user-replacea
ble, model VL1220.
Flash 4GB (8GB for JSmart715 and JSmart721)
RAM 1GB (2GB for JSmart715 and JSmart721)
Hardware clock Clock/Calendar with back-up battery
Accuracy RTC (at 25°C) <100ppm
10
MANUGENJSMART7xxW - Version 1.02
© 2019-2020 EXOR International S.p.A. - Subject to change without notice
3 Technical Specications
Durability information
Backlight service life 40000 Hrs. or more
(LED type) (Time of continuos operation until the brightness of the
backlight reaches 50% of the rated value when the
surrounding air temperature is 25°C) - see Note 1
Note 1: Extended use in environments where the surrounding air temperature is 40°C or higher may
degrade backlight quality/reliability/durability.

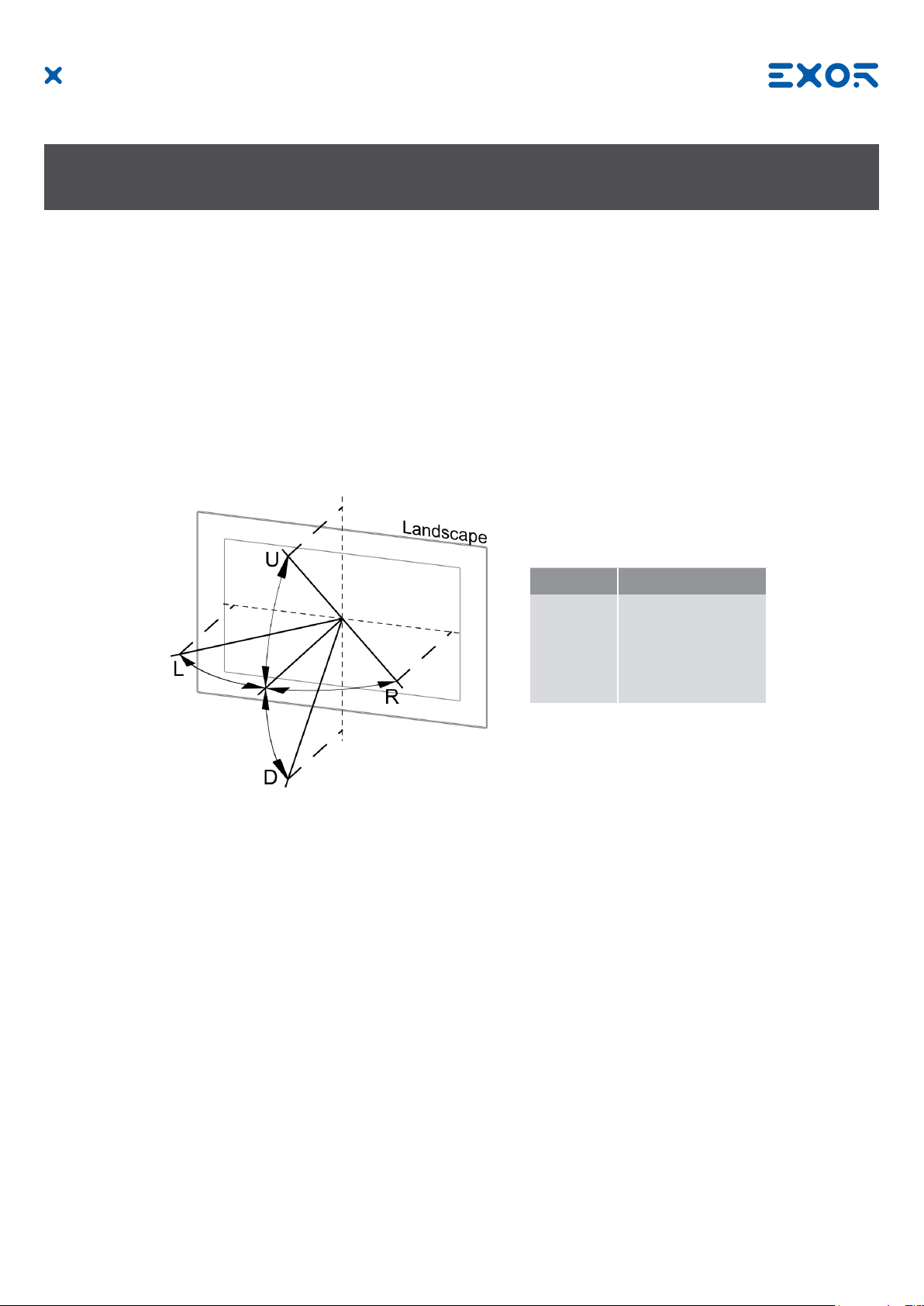

Viewing angles
For the viewing angles values (U,D,R,L) of the display types, see the technical data of the respective device.
The viewing angles are specied for the horizontal (L,R) and vertical (U,D) axes in reference to the vertical
axis of the display. The specied viewing angles above always refer to the standard mounting orientation.
Legend: Display viewing angle
U From top
D From bottom
LFrom left
R From right
