Exmark VIKING HYDRO Manual

VIKINGHYDRO™

SetupInstructions

ForSerialNos.314,000,000&Higher

WARNING

CALIFORNIA

Proposition65Warning

ThisproductcontainsachemicalorchemicalsknowntotheStateofCaliforniato

causecancer,birthdefects,orreproductiveharm.

TheengineexhaustfromthisproductcontainschemicalsknowntotheStateofCalifornia

tocausecancer,birthdefects,orotherreproductiveharm.

LooseParts

Usethechartbelowtoverifythatallpartshavebeenshipped.Partnumbersnotshownareavailableonthedealer

extranet.

DealerPack

Part#DescriptionQty.Use

323-4Screw,HH3/8-16x3/4inch8

3290-357Nut,Whizlock3/8-16inch8Installingthefrontcasterwheels.

107-4543Clamp,Tank2

322-10Screw,HH5/16-18x22

3256-3Washer,5/16Std2

104-8300Nut,Nyloc5/16-18Flg2

Installingthefueltank.

323-6Screw,HH3/8-16x1inch4

3290-357Nut,Whizlock3/8-16inch4

98–5975Washer,SpringDisc4

Installingthehandleassembly.

1-806003Hairpin,Cotter1InstallthePTOengagementlinkage.

1-806003Hairpin,Cotter1

1-808280Pin,Clevis1

3272-5Pin,Cotter3/32x1/2inch1

Installingthespeedcontrolrod.

322-9Screw,HH5/16-18x13/4inch2

3296-29Nut,Nyloc5/16-18inch2

3220-16Nut,Jam3/8-24inchLH2

Installingthewheeldrivelinkages.

1-303287Tie,Cable6Connectingthewireharness.

103-2106Key,ExmarkLogo1

1-603511Key,Standard1

Fillouttheonlinewarrantyregistration

formandplacekeysintoliterature

pack.

P .O.Box808

Beatrice,NE68310

PartNo.4501-701Rev.A

PrintedintheUSA

AllRightsReserved*4501-701*A

LiteraturePack

Manual,Operator's

Manual,EngineOperator's

UncratingtheUnit

1.Leavingtheunitonthepallet,placetheupperhandle

assemblyandthefueltankattherearofthemachine.

Placethecastersatthefrontoftheunit.

2.Placealengthof4inchx4inch(10cmx10cm)

blockbetweenthefrontofthemowerdeckandthe

pallet.

3.Removetheboltbagfromunderthemowerdeck

beltshield.

4.Refertothepartsmanualtohelpyouidentifyand

locatethepartsandtheirproperposition.

InstallingtheFrontCasterWheels

Installthecasterstothefrontofthedeckusingeight

3/8-16x3/4inchboltsandeight3/8inchwhizlock

nuts.Tightenthelowerfourboltsrst,thenthetopfour.

InstallingtheFuelTank

1.Installthefueltankontopofthefueltanksupport.

Secureeachsideofthetankwithaclamp,5/16-18x

2inchscrew ,washer,and5/16inchnylocnut.

2.Attachthefuelsupplyhosetothebottomtanktting

andsecurewiththeclampprovided.

3.Attachthepurgehosefromtheteeontheengine

(canisteronCAunits)tothetopttingofthefuel

tankasshowninFigure1.Pressthehoseintothe

slotonthetanktoretainit.

Figure1

1.Attachpurgehosetotoptting

InstallingtheHandleAssembly

1.Positionthelowerendofthehandleassemblyon

theoutsideoftheupperrearsectionofthefueltank

andhandlesupport.

2.Installfour3/8-16x1inchbolts,fourspringdisk

washersfromtheoutsidein.Secureusingfour

3/8-16whizlocknutsontheinsideofeachhandle

supportandtightenuntilthespringdiskwashersare

at(Figure2).

Note:Besuretheconeofthespringdiskwasheris

againsttheheadofthebolt.

Figure2

1.Frontoftheunit3.Upperhandle

2.Upperhandlemounting

tab

AttachingtheThrottleCable

1.Routethethrottlecablealongtherightsideofthe

upperhandle,underthefueltanksupport,and

positionthecableontheleftsideoftheengine.

2.Positionthethrottlecontrollever(locatedonthe

console)inthefullthrottleposition.Youwillfeela

detentwhenthethrottleleverispushedtowardsthe

upperendoftheslot.

3.Attachtheinnerwireofthethrottlecabletothetop

holeinthethrottlecontrolleverasshowninFigure3.

4.Loosentheclamp,installthethrottlecableonthe

bottomsideoftheclamp,andpullonthecableto

movethethrottlelinkagetothefullthrottleposition.

Tightenthecableclampscrew .

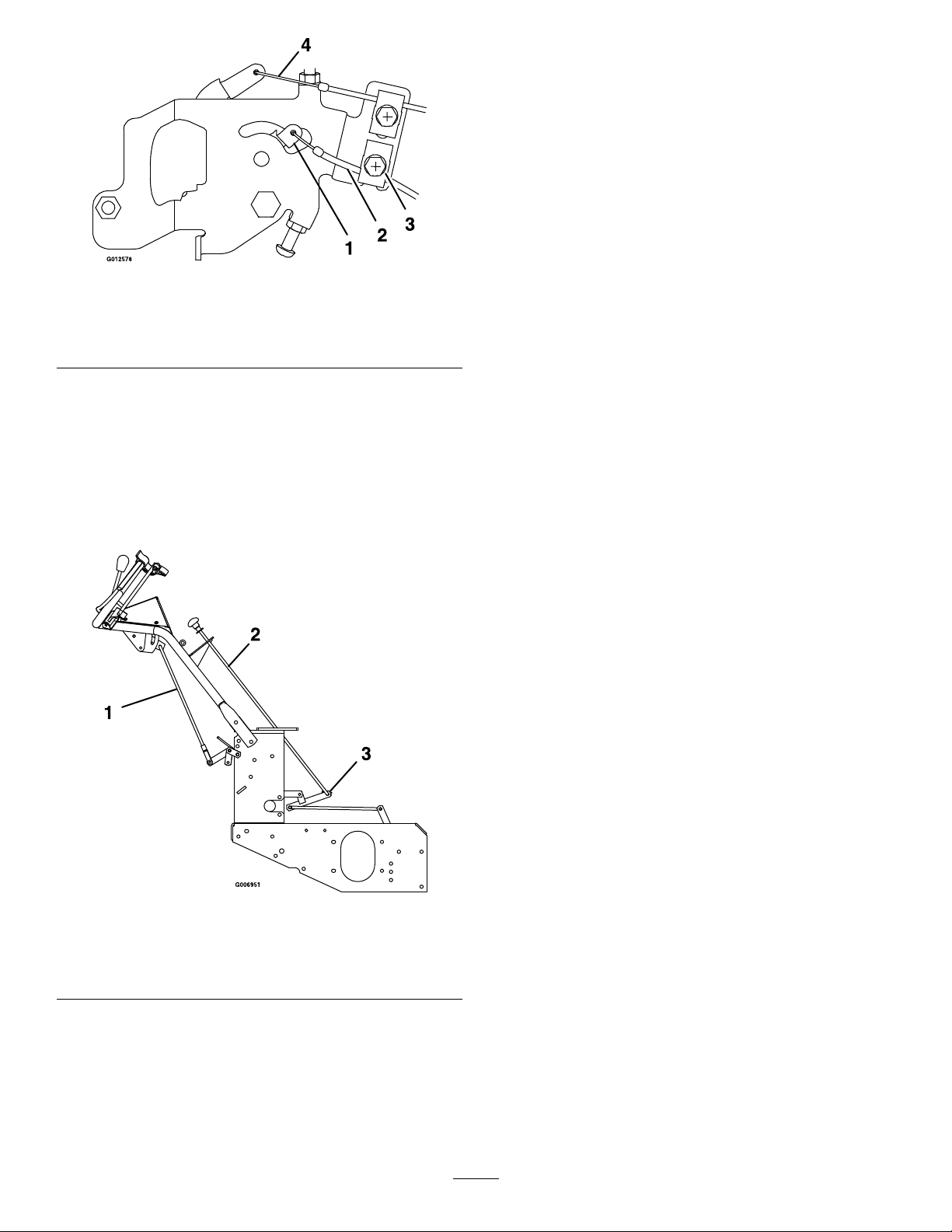

Figure3

1.Throttlecontrollever3.Clamp

2.Throttlecable—Located

onbottomsideofclamp.

4.Chokecable

InstallthePTOEngagement

Linkage

1.Installthebladeengagementlinkagetothebellcrank

ontheLeftHandsideoftheenginedeck.

2.Inserttherodthroughtheholefromtheoutsideand

fastenwithcotterhairpin(Figure4).

Figure4

1.Speedcontrolrod

assembly

3.Bellcrank

2.PTOengagementlinkage

InstallingtheSpeedControlRod

1.Locatethespeedcontrolrodassemblywithayoke

atoneend.

2.Inserttheendofthelinkageoppositetheyokeinto

theendofthespeedcontrolleverlocatedunderneath

thehandleconsolefromtherighthandsideand

fastenwithahairpinfromtheboltbag(Figure4).

3.Connectthelowerendofthespeedcontrollinkage

tothespeedcontrolcranklocatedatthetoprearof

thefueltanksupport.Securewithaclevispinand

3/32x1/2inchcotterpin.

InstallingtheWheelDrive

Linkages

1.Positionthespeedcontrolleverinneutral.

2.Positionthedriveleversinneutralandengagethe

neutrallocklatches(Figure5).

3.Threada3/8-24inchLHjamnut,fromtheboltbag,

ontothelowerendofeachdriveleverlinkage.

4.Identifythelowerballjointsinstalledonthehydro

controlarmweldments.Threadthelowerendof

eachdriveleverlinkageintothelowerballjointuntil

theholeinupperballjointalignswithholeindrive

lever.

5.Installa5/16-18x13/4inchhexcapscrewand

a5/8-18inchnylocnutoneachsideandtighten.

Thiswillgiveanapproximatesettingfordrivelever

linkages.

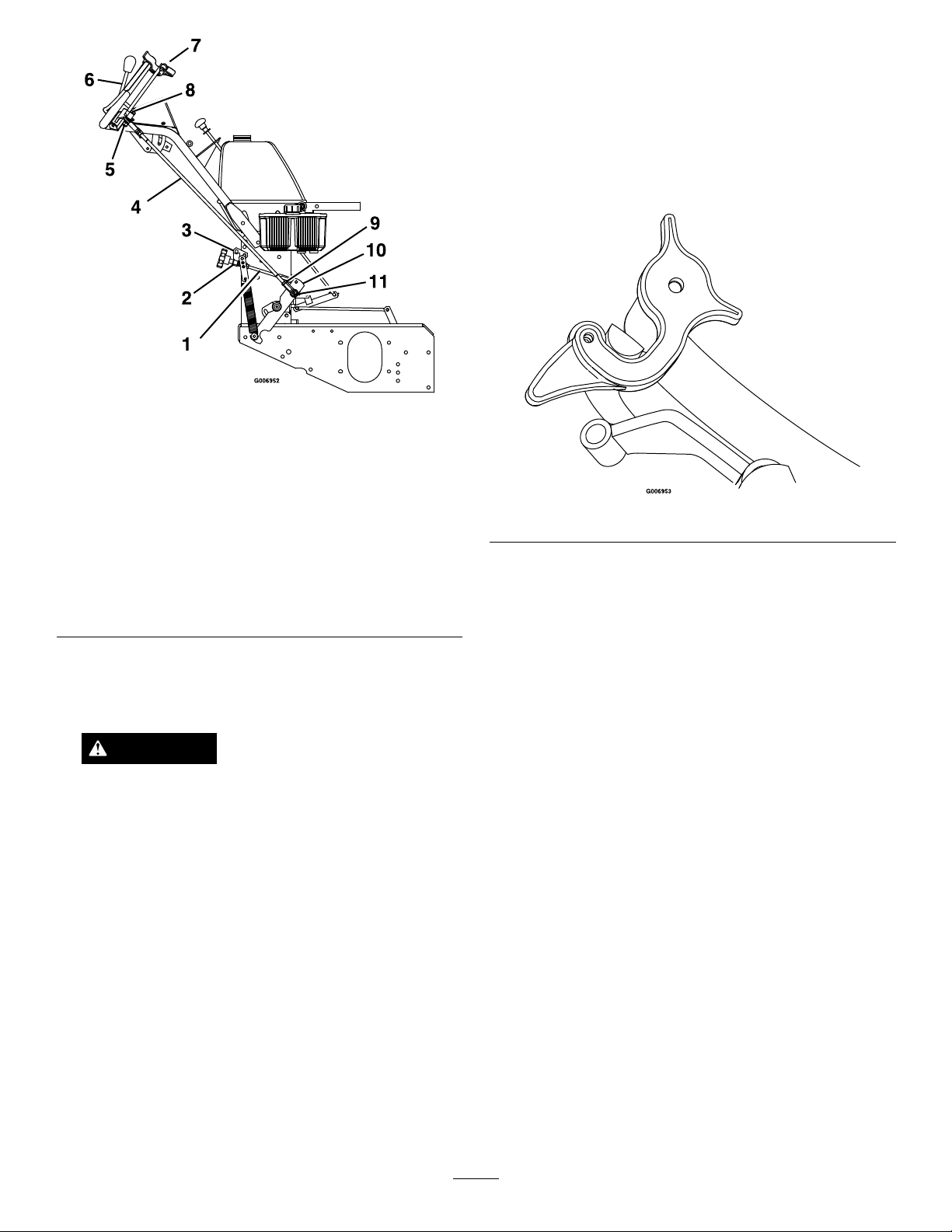

Figure5

RightHandSideofUnitShown

1.Hydrocontrollinkage7.Driveleversinneutral

2.Squareswivel8.5/16-18x13/4inchhex

capscrew

3.Shortcrankarm9.3/8-24inchLHjamnut

4.Driveleverlinkage10.Hydrocontrolarm

weldment

5.5/16-18inchnylocnut11.Lowerballjoint

6.Speedcontrolleverin

neutral

AdjustingtheDriveLeverLinkages

1.Raisetherearofmachineoffoftheground.

CAUTION

Raisingtherearoftheunitforassemblyrelying

solelyonmechanicalorhydraulicjackscouldbe

dangerous.Themechanicalorhydraulicjacks

maynotbeenoughsupportormaymalfunction

allowingtheunittofall,whichcouldcause

injury.

DoNotrelysolelyonmechanicalorhydraulic

jacksforsupport.Useadequatejackstandsor

equivalentsupport.

2.Withtherearofmachineonjackstandsandengine

runningatfullthrottle,disengagetheparkbrake

andmovethespeedcontrollevertothemidway

position.Movetherespectivedriveleverupward

untilitreachestheneutralpositionandengagethe

neutrallocklatches(Figure6).Ifthetirerotatesin

eitherdirection,thelengthofthedriveleverlinkwill

needtobeadjusted.

3.Adjustthelinkagelengthbylooseningthejamnuts

atbothendsofthelinkageandrotatingthelinkage

intheballjoints.Lengthenthelinkageifthetireis

turninginreverseandshortenthelinkageifthetire

iscreepingforward.Tightenthejamnutsatboth

ends.Releaseandre-engagetheneutrallocklatch

checkingthatthetirestops.Continuethisprocess

untilthetirenolongerrotates.

Figure6

4.Makethisadjustmentforbothsides.

InstallingtheParkBrakeLever

1.Installtheparkbrakelevertotheinsideofthepark

brakebracketwiththeleverfacingoutwardusingthe

hardwareinstalledintheparkbrakebracketpivot

(Figure7).

2.Installtheboltfromtheoutsidewiththewasher

undertheheadofthebolt.Installthenylocnutand

tighten.

3.Insertthelinkageintotheholeintheparkbrake

leverformtheoutsideandinstallthehairpin.

Figure7

RightHandSideofUnitShown

1.Parkbrakebracket3.Parkbrakelinkage

2.Parkbrakelever

ConnectingWireHarness

1.Routethelong,unattachedwiringharnessleadup

thelefthandsideofthehandle.

2.Connecttheconnectorontheendoftheshorter

leadtothekeyswitch.

3.ConnectthetwoagterminalstotheOPCswitch

inanyorder.

4.Continueroutingthisleaddowntherightsideofthe

handleandconnecttheconnectorontheendtothe

parkbrakeswitch.

5.Fastentheharnesstotheleftsideofhandlewithtwo

smallplasticties.Locateonetieattheupperendof

thehandlenexttotheconsoleandlocateonetieat

thelowerendofthehandleclosetothefueltank

support.

6.Repeatfortherightside.

7.Withtheremainingtwoplasticties,fastenthe

harnesstothetwosmallholesinthechannelunder

theconsole.

CheckingTirePressure

1.Checkthetirepressureinthedrivetires.Proper

inationfordrivetiresis12-14psi(83-97kPa).

2.Adjustifnecessary.

GreasingtheUnit

Note:Theunitisnotgreasedatthefactory.

LubricatettingswithNGLIgrade#2multi-purpose

gungrease.RefertothefollowingchartandFigure8for

ttinglocationsandinitialpumps.

LubricationChart

Fitting

Locations

Initial

Pumps

Numberof

Places

Service

Interval

1.FrontCaster

WheelBearings

122Daily

2.FrontCaster

Pivots

22Daily

3.PTO

Engagement

Bellcrank

11Monthly

4.PumpDrive

IdlerPivot

2140hours

5.PumpControl

Bearings

2240hours

6.MowerDeck

IdlerPivots

2140hours

Number4(PumpDriveIdlerPivot)Locatedunderthe

enginedeck.

Number4and6(IdlerArmPivots)Disassembleand

greaseonceamonthundera“NoLoad”condition.

Figure8

ServicingtheEngine

Theengineisshippedwithoil;checkoillevelandif

necessarylltotheappropriatelevel.Exmark4-Cycle

PremiumEngineOilisrecommended.Refertothe

EngineOwner’sManualforanacceptablealternative.

ServicingtheHydraulicOil

Themachineisshippedwithhydraulicoilinthe

reservoir.

1.Runthemachineforapproximately15minutesto

allowanyextraairtopurgeoutofthehydraulic

system.

2.Checkhydraulicreservoirandifnecessaryllthe

reservoirtotheappropriatelevelwithExmark

PremiumHydrooil.

3.Replacehydraulicreservoircapandtightenuntil

snug.DoNotovertighten.

Note:Thebafeislabeled“HOT”and“COLD”.

Theoillevelvarieswiththetemperatureoftheoil.

The“HOT”levelshowsthelevelofoilwhenitisat

225°F(107°C).The“COLD”levelshowsthelevelof

theoilwhenitisat75°F(24°C).Filltotheappropriate

leveldependinguponthetemperatureoftheoil.For

example:Iftheoilisabout150°F(65°C).Filltohalfway

betweenthe“HOT”and“COLD”levels.Iftheoilisat

roomtemperature(about75°F(24°C)),llonlytothe

“COLD”level.

FillingOuttheProduct

Registration

Fillouttheonlinewarrantyregistrationformandplace

keysintoliteraturepack.

Otros manuales para VIKING HYDRO

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortacésped de Exmark

Exmark

Exmark 790 Manual de usuario

Exmark

Exmark Metro 21 Series Manual de usuario

Exmark

Exmark Metro MG16KA362 Manual de usuario

Exmark

Exmark TURF TRACER X-SERIES LP Operators Manual

Exmark

Exmark ECSKA21 Manual

Exmark

Exmark NAVIGATOR Manual

Exmark

Exmark Metro 4500-352 Manual de usuario

Exmark

Exmark VANTAGE S Series Manual de usuario

Exmark

Exmark LAZER ZTM Manual de usuario

Exmark

Exmark M216H Manual de usuario

Exmark

Exmark Ultra VAC QDS LAZER Z Manual de usuario

Exmark

Exmark LAZER Z Manual de usuario

Exmark

Exmark M216KA, M216KASP Manual de usuario

Exmark

Exmark Cd42cd, Cd48cd Manual de programación

Exmark

Exmark METRO Manual de usuario

Exmark

Exmark LAZER Z SX Manual de usuario

Exmark

Exmark QSS708GEM42200 Manual de usuario

Exmark

Exmark Ultra Vac Lazer Z HP Manual de usuario

Exmark

Exmark TURF TRACER S-SERIES Operators Manual de lista de piezas

Exmark

Exmark Ultra Vac QDS Laser Z Manual de usuario

Exmark

Exmark VIKING HYDRO Manual de usuario

Exmark

Exmark Turf tracer Manual de usuario

Exmark

Exmark Lazer Z Air-cooled series Manual de usuario

Exmark

Exmark METRO Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
