UV/VISIBLE

RADIOMETER

250 - 600 nm

USER'S GUIDE

Model R5000

Table of Contents

1Introduction5

2Control Functions & Features6

3Familiarizing Yourself with

the EXFO Radiometer7

4Using the EXFO Radiometer10

4.1 Turning on the EXFO Radiometer10

4.2 Irradiance Measurement10

4.3 Power Measurement11

4.4 Peak Measurement11

4.5 Relative Measurement12

4.6 Using a Non-standard Light Guide13

5Glossary of Symbols/ Safety

Precautions14

6Technical Specifications16

6.1 Optical16

6.2 Electrical 16

6.3 Mechanical17

6.4 Environmental Conditions17

6.5 Regulatory Compliance 18

6.6 Feature Summary20

7Trouble Shooting Guide21

8Accessories23

9Warranty25

9.1 Contact Information26

9.2 Returning the EXFO Radiometer26

9.3 Servicing27

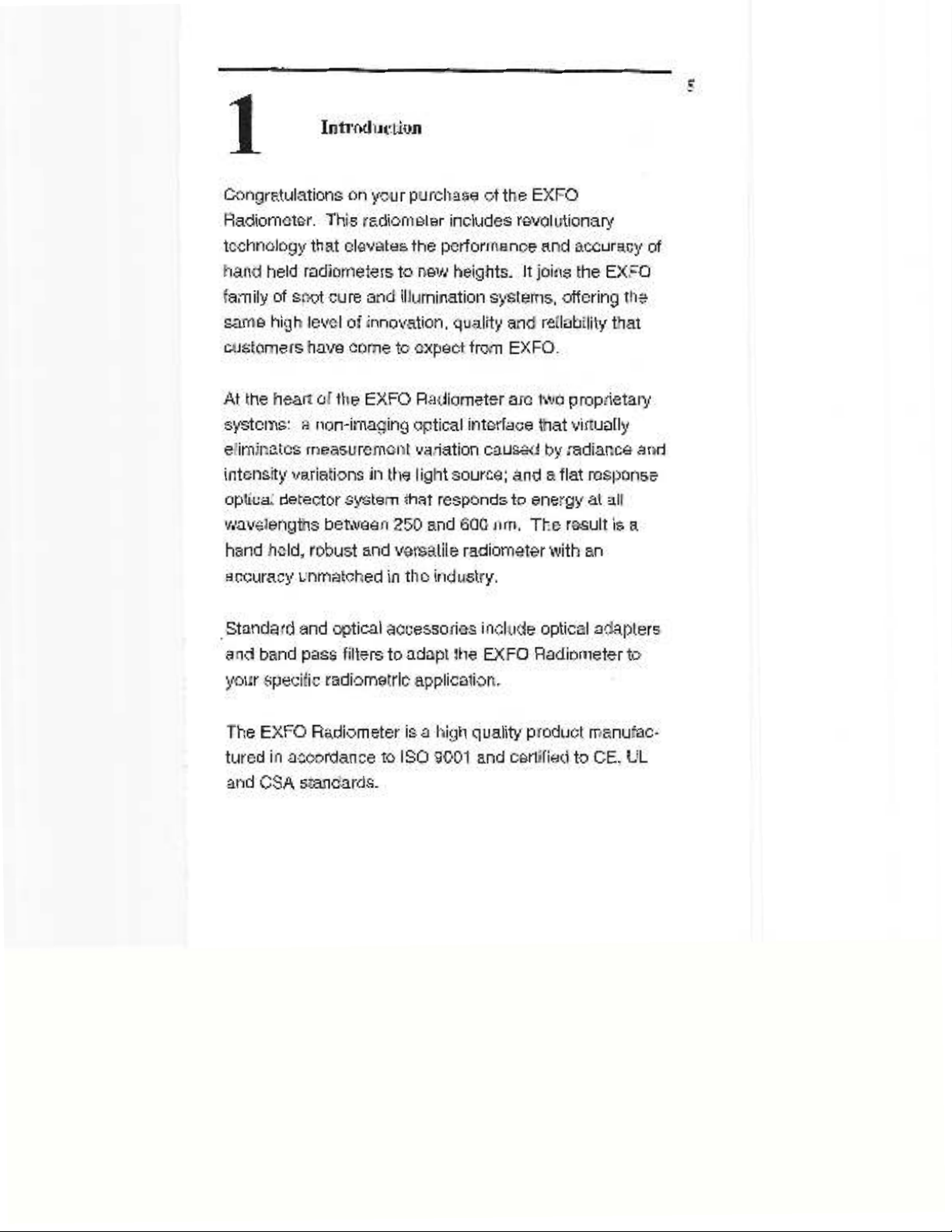

1Introduction

Congratulations on your purchase of the EXFO

Radiometer. This radiometer includes revolutionary

technology that elevates the performance and accuracy of

hand held radiometers to new heights. It joins the EXFO

family of spot cure and illumination systems, offering the

same high level of innovation, quality and reliability that

customers have come to expect from EXFO.

At the heart of the EXFO Radiometer are two proprietary

systems: a non-imaging optical interface that virtually

eliminates measurement variation caused by radiance and

intensity variations in the light source; and a flat response

optical detector system that responds to energy at all

wavelengths between 250 and 600 nm. The result is a

hand held, robust and versatile radiometer with an

accuracy unmatched in the industry.

Standard and optical accessories include optical adapters

and band pass filters to adapt the EXFO Radiometer to

your specific radiometric application.

The EXFO Radiometer is a high quality product manufac-

tured in accordance to ISO 9001 and certified to CE, UL

and CSA standards.

Features Benefits

Provides accurate broadband

measurements between

250-600 nm

Versatile measurement capability

suitable for many different light

sources

Measures power or irradiance Allows for industry specific

measures

Optical interface collects light

over a large area

Eliminates beam intensity and

radiance dependence

Externally changeable bandpass

filters used to select wavelength

ranges for measurement

Fast, simple filter changes

Auto-ranging Maintains precision over full range

Peak Hold Mode measures and

displays maximum value

Identification of maximum value in

achanging signal

Real-time Mode Allows for tracking of a varying

signal

Relative Mode References all measurements to a

pre-set value

Absolute Mode References all measurements to

NIST traceable units

Fits standard light guides

(3mm, 5mm, 8mm)

Automatically senses light guide

diameters & accommodates indus-

try standard light delivery systems

CE marked; complies with IEC,

Canadian and US Standards

Ready for use worldwide

Calibration traceable to NIST* Quality assurance

Auto turn on and auto turn off Extends battery life and makes

operation easier

2Control Functions & Features

*Using Blank removable filter.

3Familiarizing yourself with the

EXFO Radiometer

EMFO

AdinTomo2oa-

aia-daffirrsaro

RALAN PEN(L PpWER!

A) LCD Display:

3'/2 digit display with indicators for low battery, over

range, Peak Hold, % (for Relative mode), Power mode

and Irradiance mode.

Automatic scaling function -

Power: Low range: 10— 990 mW

High range: 1.0— 15.00 W

Irradiance: Low range: 50— 990 mW/cm2

High range: 1.0— 225 W/cm2

B) Bandpass Filters:

User selectable and convenient external installation.

The standard filter is blank. Refer to the accessories in

section 8 for available optional filters.

C) Light Guide Port:

Accepts industry standard light guides and automatically

senses 3, 5 and 8 mm light guide diameters.

(adapters provided for 3 & 5 mm)

D) Relative/Absolute Mode Keypad:

Enables the user to select either Absolute

mode for standard power or irradiance

readings, or Relative mode which displays

readings as a percentage of an

established reference. The display will indicate "%" in

Relative mode. Absolute mode is the initial default.

E) Peak Hold Keypad:

Allows the display to indicate the

peak value being measured. The

display will indicate "P" when this

feature is activated.

F) Power/Irradiance Keypad:

Provides the user with the ability to select between

measuring power in "mW" or 'W" or irradiance in

"mW/cm2" or "W/cm2". When in Irradiance mode, the

Radiometer automatically senses 3, 5 or 8 mm light guide

diameters when the appropriate adapter is used.

Power

Irradiance

G) Ergonomically Designed Enclosure:

Compact, hand-held, and portable so it may be used

where it is needed most.

Using the EXFO Radiometer

NOTE: The EXFO Radiometer defaults to the

measurement mode it was in when it last automatically

turned off.

4.1 Turning on the EXFO Radiometer

The hand held Radiometer is not fitted with an ON / OFF

switch. Instead, the Radiometer has been designed with

an auto turn ON and auto turn OFF feature.

The Radiometer will automatically turn on when it detects

an optical signal of 10 mW or greater. When the light

source is removed, the display will remain on for 10

seconds. At that point, the display will flash for 5 seconds

as a warning of impending turn off. The Radiometer will

then turn off.

4.2 Irradiance Measurement:

Insert the light guide into the optical port on the top of the

Radiometer and turn on the light source. The display will

automatically turn on and display the irradiance in either

"mW/cm2" or "W/cm2". If the display indicates power, as

evident by the lack of the "/cm2" icon, press the

Power/Irradiance button once.
