EXFO FTB-2 Manual de usuario



FTB-2/FTB-2 Pro and FTB-4 Pro

Accessing Connectors and Ports

Headset/microphone port

(for 3.5 mm connectors)

External monitor port

(for monitors compatible with a DisplayPort interface)

USB 2.0 host port

Ethernet (RJ-45) port

USB 2.0 host port

USB 3.0 host port

Module slots

(two or four slots,

depending on models)

Stylus

Built-in power meter and VFL (optional)

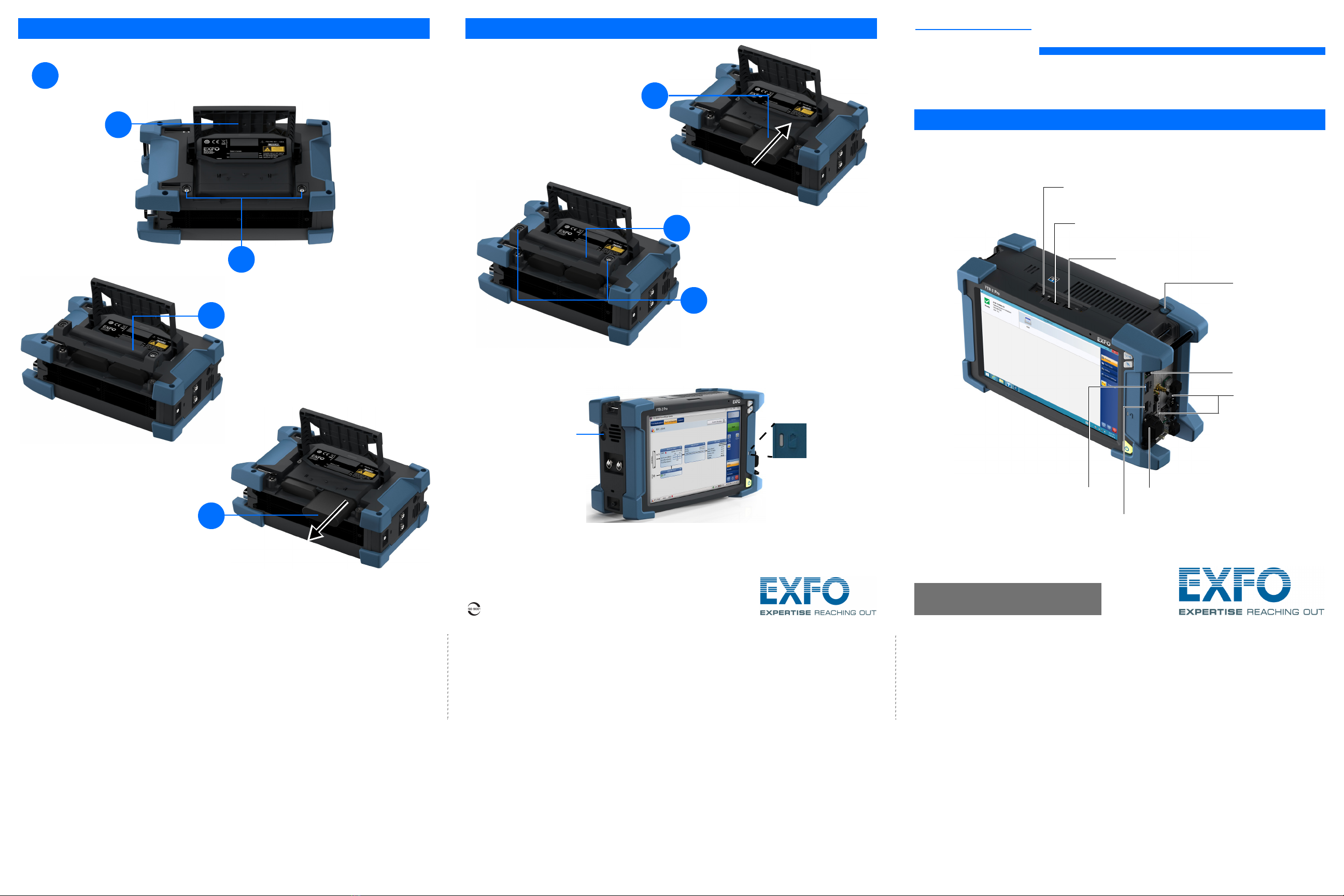

Replacing Batteries

Position the unit so that its front panel rests on a flat surface such as a table.

Lift.

Turn the screws counterclockwise until

the compartment door is loose.

Remove.

Charging Batteries

Connect your unit to AC

power with the provided

AC adapter/charger (FTB-2

and FTB-2 Pro) or

power cord (FTB-4 Pro).

Pull on the battery’s tab to free it

from its socket. 5

Slide in the new battery (poles facing down

and pointing towards the back of the

battery socket). 6

7Put back in place.

While applying slight pressure, turn the

screws clockwise until they are tightened.

Battery status LED

Green: Fully charged

Green, blinking: Charging

Yellow: Battery level is low

Quick Reference Guide

Printed in Canada (2017-03)

P/N: 1070843 Version: 3.0.0.1 For more information,

refer to the user guide.

Keyboard/screen capture button

Press once to show the on-screen keyboard.

Press once again to hide it.

Hold down for a few seconds to take a screen capture.

Task-switching button

Press once to view the list of running applications.

Press as many times as needed to select the

desired application.

On/Off button

Press for one second to turn the unit on.

Press for one second to send the unit to sleep (default behavior).

Using Your Unit

Information about the inserted module To start the applications related to

the module

Button bar

To access modules and instruments, test tools,

utilities, documentation, and to configure your unit

To retrieve information about your unit

To view the online help

Inserting Modules

For an FTB module,

press to turn off your

unit.

CAUTION

For FTB modules: Never insert or remove a module while the unit is

turned on. This will result in immediate and irreparable damage to

both the module and unit.

For FTBx modules: There is no need to turn off your unit before

inserting or removing modules. However, to remove them properly

and avoid problems, follow the instructions from the user guide.

2Place the module vertically so that you can

see its faceplate and the protruding edges are

on the left side.

3Insert the protruding edges of the module into

the grooves and push all the way to the back.

4Secure the module.

For an FTBx module, turn

the two retaining screws

clockwise.

For an FTB module, turn the

retaining screw (located on

the left panel) clockwise.

For heavier FTB modules such as the OSA or the FTB-88100NGE

PowerBlazer, secure the module with front locking screws

(turn clockwise).

Module adapters (must be installed before inserting FTB modules)
