Exemys RME1-TC Manual de usuario

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

www.exemys.com Rev. 1 Page 1

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

Exemys Products are in constant evolution to meet our customers´ needs. For that reason,

specifications and capabilities are subject to change without previous notice.

Updated information can be found at www.exemys.com

Rev. 1.0

www.exemys.com Rev. 1 Page 2

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

Index

INTRODUCTION 6

1.1 About this manual_______________________________________________________ 6

1.1.1 Purpose of this manual 6

1.1.2 Conventions, terms and acronyms 6

1.2 Product General Description________________________________________________ 7

1.3 RME1-TC models codification_______________________________________________ 7

INSTALLATION 9

2.1 Connectors general diagram _______________________________________________ 9

2.2 Power connection _______________________________________________________ 9

2.3 RS-232 serial port connection (only for configuration)____________________________ 10

2.4 Ethernet connection_____________________________________________________ 11

2.4.1 Hub or Switch connection 12

2.5 Analog inputs description ________________________________________________ 12

2.6 Indicator Leds _________________________________________________________ 13

CONFIGURATION 15

3.1 Basic ethernet configuration ______________________________________________ 15

3.2 Device parameters configuration ___________________________________________ 18

3.2.1 Network configuration 19

3.2.2 Analog inputs configuration 20

3.2.3 Alarms configuration 20

3.2.4 Monitor 21

3.2.5 Advanced configuration 22

OPERATION 23

4.1 TCP Modbus operation __________________________________________________ 23

4.2 CVS/XML mode operation ________________________________________________ 24

4.2.1 CSV 24

4.2.2 XML mode operation 25

4.3 SNMP mode operation___________________________________________________ 27

4.3.1 Introduction 27

4.3.2 MIB 28

4.3.3 SNMP tree description 28

4.3.4 SNMP traps 28

www.exemys.com Rev. 1 Page 3

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

4.4 Web page operation mode (HTTP) __________________________________________ 29

A MOUNTING OF THE DEVICE ON DIN RAIL 31

B. ORIGINAL MANUFACTURER´S CONFIGURATION 33

C. TECHNICAL SPECIFICATIONS 34

D. CONFIGURATION CONSOLE 35

D.1 Configuration command console (Serial and TELNET) ____________________________ 35

D.2. Commands _________________________________________________________ 36

D.2.1 Password Command 36

D.2.2 Host name Command 36

D.2.3 NetConfig Command 36

D.2.4. FACTRESET Command 37

D.2.5. Reset Command 37

D.2.6 AINPUT Command 37

D.2.7 ALIST Command 37

D.2.8 AALARM Command 38

D.2.9. ANAME Command 38

D.2.10. SNMPENABLE command 38

D.2.11. SNMPTRASPENABLE command 38

D.2.12 SNMPMANAGER1 command 39

D.2.13 SNMPMANAGER2 command 39

D.2.14. SNMPREADCN command 39

D.2.15. SNMPWRITECN command 39

D.2.16. SNMPTRAPCN command 39

D.2.17. Other Configuration commands 40

E. ARP METHOD TO CONFIGURE IP ADDRESS 42

Figures

Figure 1 - Usage general diagram 7

Figure 2 - Models codification details 8

Figure 3 - Connectors general diagram 9

Figure 4 - Power connection diagram 10

Figure 5 - Serial and Ethernet connectors position 10

Figure 6 - Serial RS-232 terminal detail 11

Figure 7 - Serial cable for configuration serial terminal 11

Figure 8 - Straight-through cable scheme 12

Figure 9 - RJ45 connector 12

Figure 10 - RME1-TC analog inputs in each channel arrangement 13

Figure 11 - A thermocouple connection 13

Figure 12 - Leds indicators 14

Figure 13 - Exemys device locator 16

Figure 15 - Enter the IP address in the Web browser. 18

Figure 16 - Enter the Host name in the Web browser 19

Figure 17 - Net configuration 20

www.exemys.com Rev. 1 Page 4

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

Figure 18 - Inputs configuration 20

Figure 19 - Alarms configuration 21

Figure 20 - User´s monitor configuration 21

Figure 21 - Advanced options 22

Figure 22 - Csv analog example 25

Figure 23 - SNMP configuration 27

Figure 24 - Administrator’s monitor 29

Figure 25 - User’s monitor 30

Figure 26 - Net configuratio 30n

Figure 27 -Device assembly 31

Figure 28 - Device Disassemb 32

Tables

able 1 - Acronyms.......................................................................................................................................................6

Table 2 - Terms.............................................................................................................................................................7

Table 3 - Conventions...................................................................................................................................................7

Table 4 - Indicator Leds ..............................................................................................................................................14

Table 5 - ModBus Registers........................................................................................................................................24

Table 6 - OID Values...................................................................................................................................................28

Table 7 - SNMP Traps .................................................................................................................................................29

Table 8 - Original manufacturer´s configuration .........................................................................................................33

Table 9 - PASSWORD command .................................................................................................................................36

Table 10 - Host name Command ................................................................................................................................36

Table 11 - NETCONFIG Command ..............................................................................................................................37

Table 12 - FACTRESET Command ...............................................................................................................................37

Table 13 - Reset Command ........................................................................................................................................37

Table 14 - AINPUT command .....................................................................................................................................37

Table 15 - ALIST command.........................................................................................................................................38

Table 16 - AALARM command ...................................................................................................................................38

...............................................................................................................................Table 17 - ANAME Command .....38

Table 18 - SNMPENABLE command ...........................................................................................................................38

Table 19 - SNMPTRAPSENABLE command .................................................................................................................38

Table 20 - SNMPMANAGER1 command.....................................................................................................................39

Table 21 - SNMPMANAGER2 command.....................................................................................................................39

Table 22 - SNMPREADCN command ..........................................................................................................................39

Table 23 - SNMPWRITECN command.........................................................................................................................39

Table 24 - SNMPTRAPCN command...........................................................................................................................40

Table 25 - Other Commands.......................................................................................................................................40

Table 26 - Telnet commands ......................................................................................................................................41

www.exemys.com Rev. 1 Page 5

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

Chapter 1

Chapter

Introduction

2.1 About this manual

2.1.1 Purpose of this manual

The purpose of this manual is to provide instructions to install and operate the Thermocouple

it a quick and easy way.

on and operation are provided in detail.

The acronyms used in this manual are listed below in table 1

Acquis ion Module RME1-TC in

The manual starts with a general description of the product followed by instructions to install its

hardware correctly. Further on the RME1-TC configurati

2.1.2 Conventions, terms and acronyms

Table 1 - Acronyms

Acronym Description

ARP Address Resolution Protocol

Bps Bits per second

HTTP HyperText transfer Protocol

IP Internet Protocol

LAN Local Area Network

NBNS verNetBios Name Ser

PC Personal Computer

UDP User Datagram Protocol

TCP l ProtocolTransmission Contro

DHCP on ProtocolDynamic Host Configurati

GND Ground (Reference)

CSV Comma Separated Value

XML Extensible Markup Language

SNMP ent ProtocolSimple Network Managem

www.exemys.com Rev. 1 Page 6

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

Table 2 - Terms

Terms Description

IP Address Logical address in a device within a network

NetMask Defines which part of the IP Address belongs to the

subnet.

Gateway

Host

Output of a network towards others.

Name of the equipment to identify NBNS

he con entions listed below are used in this manualT v

Table 3 - Conventions

Conventions Description

A|B|C A set of possible values for command parameters. You can type

A, B or C.

n..m A range of possible values. You can type any value in the range

including n and m.

aaa.bbb.ccc.ddd An IP address.

2.2 Product General Description

The RME1-TC is a complete interface for your thermocouples. It allows monitoring and

-TC work modes.

supervising in a remote way up to 8 thermocouples.

The information can be read by any of the four RME1

Thermocouple #0

Thermocouple #7

…

RME1-TC

Ethernet

TCP Modbus

Web Page

CSV / XML

SNMP

4 Work Modes

Figure 1 - Usage general diagram

2.3 RME1-TC models codification

www.exemys.com Rev. 1 Page 7

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

RS232 Serial Ports

RS485 Serial Ports

Rs422 Serial Ports

RME1-TC-100-00-80-IA3

Case

Analog Outputs

Analog Inputs

Digital Inputs

Digital Outputs

Figure 2 - Models codification details

www.exemys.com Rev. 1 Page 8

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

Chapter 2

Chapter

INSTALLATIONINSTALLATION

pter 2

Chapter

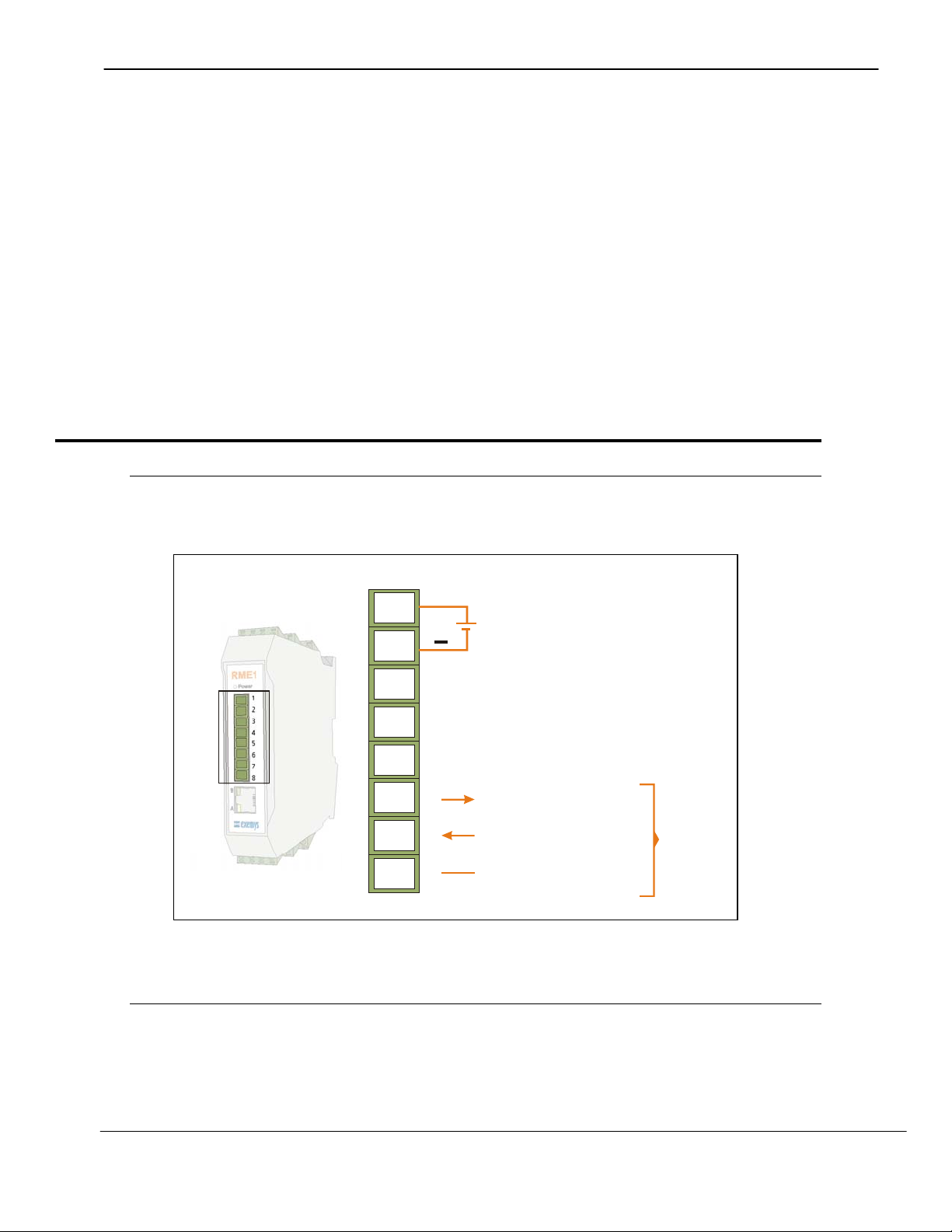

2.1 Connectors general diagram

On the device frontal connector there can be found the power input terminals as well as the

terminals of the different communication ports.

RS232

DTE

GND

TX = Transmits Data

RX = Receives Data

GND = Signal Ground

Vin

GND

Power Supply

10-30 Vdc

NC = No Connection

Figure 3 - Connectors general diagram

2.2 Power connection

Picture 4 shows the power input connection. It is found in the first two terminals called Vin (+)

and GND (-).The RME1-TC power connection has polarity and it accepts the range of 10 to 30

Vdc.

www.exemys.com Rev. 1 Page 9

RME1-TC User’s Manual - Thermocouple Acquisition Module Exemys

Vin

GND

PowerSupply

10-30 Vdc

Figure 4 - Power connection diagram

2.3 RS-232 serial port connection (only for configuration)

The RME1-TC has one configuration serial port whose connection terminals are shown in the

picture below. The configuration serial port is available for all the RME1-TC models. The same

picture also shows where the Ethernet connector is placed.

Note: The configuration method through serial port is an alternative. The suggested method is

through the configuration WEB page.

RS232 Serial Ports

Terminal Blocks

RJ45 Connector

Ethernet Connector

Power Supply

Figure 5 - Serial and Ethernet connectors position

www.exemys.com Rev. 1 Page 10
