USER MANUAL

CONTROLSKY

CONTROLONE

Getting started...

EXALUX™ CONTROL SKY is a 5-in-1 wireless DMX controller

especially designed to control up to 20 the SkyPanel®with

sense and simplicity.

CONTROL SKY works perfectly with all CRMX by LumenRadio™

receivers.

MEMORIES

Push >2s to save

Push <1s to restore

Always deploy the antenna for optimal range transmission

ANTENNA

5VDC

INPUT

DMX

INPUT

10-24VDC

INPUT

DMX

OUTPUT

LOCKBLACK OUT

Push to enter black out mode

Push to exit black out mode

Long push to lock the screen & the knobs

Push to unlock

OFF/ON/SCREEN OFF

Select «screen off» position to turn off the display and save battery

DMX data is still sent to the equipment

CRMXCRMX LINK/UNLINK

Push 1s to enable the CRMX transmitter

Push 1s to disable the CRMX transmitter

Push 3s to unlink all CRMX devices

Push 1s to link a CRMX devices

MASTER KNOB

Turn and push to select the App

Turn to adjust the master

Push = next fader

SET KNOB

Turn to set, push to valid

Push = previous fader

Use your ﬁnger or stylus to launch and control applications

TOUCH SCREEN

SKY CONTROL

RECORDER

PLAYER

RECORDER APP allows to record

512 DMX channels in real time.

8 memories | 80s recording @44Hz

max

PLAYER APP allows to play the

DMX memories that have been

recorded with the FADER, SKY and

RECORDER Apps

FADER

FADER APP works the exact same

way than your hardware DMX

console you used for years. Every

fader is linked to a DMX address.

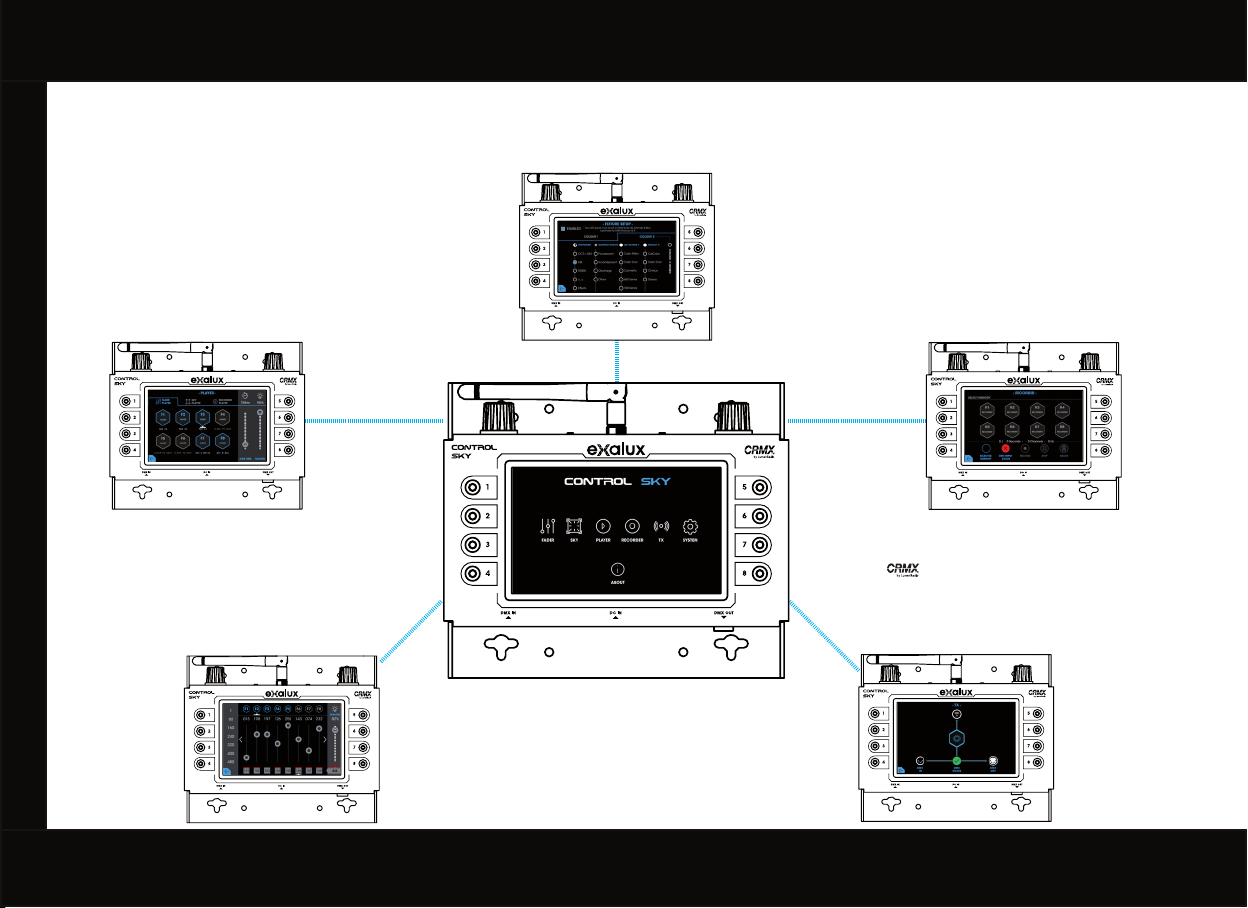

TX APP turns the CONTROL SKY

into a CRMX transmitter. The DMX

data bytes received on the DMX

input are wirelessly transmitted by

the integrated CRMX transmitter.

SKY APP allows to control the

SkyPanel® when DMX P30 mode

is set (CCT+GM, HSI, RGBW, (X,Y),

Effects, Source Matching, Filters).

SELECT AN APP

ENTER THE APP

TO ENTER THE APP

HOME is the main screen when you switch on your CONTROL SKY.

Touch the display or use the right knob to select an App.

HOME

INFORMATION SCREEN

SELECT AN APP

ENTER THE APP

SET MASTER LEVEL

NEXT FADER

SET THE MASTER LEVEL

FULL ON

MASTER ALL FADERS

SET THE FADER

PREVIOUS FADER

SAVE TO MEMORY

RESTORE MEMORY

SHORTCUT TO DMX

PAGE

PREVIOUS FADER

SET THE FADER LEVEL

MASTER THE FADER

BACK TO HOME

FADER APP works the exact same way than your hardware DMX console you

used for years. Every fader is linked to a DMX address.

FADER

>2’’

<1’’

STOP RECORDING

DELETE MEMORY

SELECT A MEMORY

TO RECORD DMX IN

DMX INPUT STATUS

GREEN : DMX OK

RED : NO DMX

BACK TO HOME

RECORDER APP allows to record all DMX frames received on the DMX input.

You can record sequences with a maximum duration of 80 seconds at a

frequency of 44Hz on one of the 8 memories.

RECORDER

START RECORDING

Recording stops automatically

after 80 seconds.

The recorded sequences

can only be playback in the

«PLAYER» application.

SELECT A BANK

BACK TO HOME

PLAYER APP allows you to play the DMX memories that have been recorded

with the FADER, RECORDER and SKY Apps.

PLAYER

CHANGE THE

MEMORY NAME TO SELECT A

MEMORY

TO SELECT A

MEMORY

SKY APP allows to control the SkyPanel® when DMX P30 mode is set.

Operation modes are : CCT+GM, HSI, RGBW, [X,Y], Effects, Source Matching,

Filters.

SKY

SAVE TO MEMORY

RESTORE MEMORY

UP/DOWN

SCROLLING

FIXTURE SELECTION

(UP TO 20)

BACK TO HOME

FIXTURE SETTINGS

>2’’

<1’’

SET COLOUR 1

CONFIGURE FIXTURE

GENERAL SETTINGS

SET COLOUR 2

FIXTURE SETUP

Allows to set the DMX operation modes : CCT+GM, HSI, RGBW, [X,Y], Effects,

Source Matching, Filters for each colour 1 and colour 2.

SKY

ENABLE / DISABLE

THE FIXTURE

MODE SELECTION

CHECK TO ACTIVATE

COLOUR 2

BACK TO HOME

MODE SELECTION

Please read the SkyPanel user

manual before using the SKY

APP.

The SkyPanel must be set in

DMX mode P30 before using

the SKY APP.

SKY

SET THE FADER

PREVIOUS FADER

SAVE TO MEMORY

RESTORE MEMORY

UP/DOWN

SCROLLING

FIXTURE SELECTION

>2’’

<1’’

BACK TO HOME

FIXTURE SETTINGS

SET MASTER LEVEL

NEXT FADER

SET COLOUR 1

CONFIGURE FIXTURE

GENERAL SETTINGS

SET COLOUR 2

SET DMX ADRESS

GENERAL SETTINGS

Allows to set main parameters such as Strobe, Fan, CrossFade between

colour 1 and colour 2 and Master.
