PTV 700
Power Take-O Vacuum
EXAKT Precision Tools Ltd.
Midmill Business Park
Tumulus Way
Kintore, AB51 0TG
United Kingdom
Designation: PTV (JL-T0801A)
is a Power Take-o Vacuum
Tel: + 44 (0) 1467 633 800
0800 180 7063 (D)
0800 916 696 (F)
Fax: + 44 (0) 1467 633 900
E-mail: [email protected]
Web: www.exakt.eu
Patents Apply
Registered Design
Registered Trade Mark
Made in PRC
Original Instructions
98-0429_01
®
© Precision Tools Ltd. 2010
2
© Precision Tools Ltd. 2010
3
© Precision Tools Ltd. 2010
4
19
© Precision Tools Ltd. 2010
5
19 20
GB
© Precision Tools Ltd. 2010
6
Safety Instructions
Please read these instructions fully before operating this product and keep
for future reference.
Warning: When using electric appliances, basic safety precautions, including the follow-
ing, should always be followed to reduce the risk of re, electric shock and personal injury.
For safe operation:
1. Do not expose to rain.
2. Do not use in damp or wet locations.
3. Keep work area well lit
4. Do not use where there is risk of re or explosion. For example: in the presence of explo-
sive dusts, liquids or vapours such as high concentrations of saw dust, grains or petrol fumes.
5. Never use to pick up harmful substances such as asbestos dust.
6. Do not pick up anything that is hot, burning or smouldering, such as cigarette or re ash.
7. Do not use to pick up liquids
8. Always unplug the appliance when leaving unattended and when servicing
9. This appliance is not intended for use by persons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been supervised or instructed in use by a person responsible for their safety.
10. Children should be supervised to ensure that they do not play with the appliance.
11. Never carry the tool by the cord or yank it to disconnect from the socket.
12. Keep the cord away from heat, oil and sharp edges.
13. Do not overreach and keep proper footing and balance at all times.
14. Repairs should only be carried out by qualied persons, using original spare parts.
15. If the motor becomes louder check that the hoses, accessories or lter are not blocked.
16. Empty the dust tank and clean the lters regularly. Always check they are present and
installed correctly.
17. Only use manufacturers’recommended spares and accessories.
1 Vacuum Handle
2 Suction Control
3 Flexible Hose
4 Extending Tubes
5 Carry Strap Attachment
6 Carry Handle
7 Power Switch
8 Motor Unit
9 Power Take-o Socket
10 Floor Nozzle
11 Brush Head Switch
12 Motor Unit Aperture
13 Retaining Clips
14 Dust Bin
15 Furniture Nozzle
16 Dusting Brush Attachment
17 Crevice Tool
18 Power Take-O Socket
19 Exakt Tool Adapter
Illustrated Description of Functions (Fig. 19,20)
GB
© Precision Tools Ltd. 2010
7
Operating Instructions
1. Unpacking
In the unlikely event that the appliance is damaged or parts are missing do not connect to
the mains supply. Contact Exakt Precision Tools Ltd. for advice.
The smaller accessories are packed inside the dust tank and must be removed before use.
2. Usage
Note: Power Take-o socket is live when the appliance is plugged in, regardless of switch
position (I, II or 0).
This appliance can be used as a vacuum cleaner or a dust extractor for connecting to hand-
held power tools.
3. Vacuum Cleaning
Do not use for sucking liquids
Follow the instructions in Section 5 to ensure that lters are clean before use!

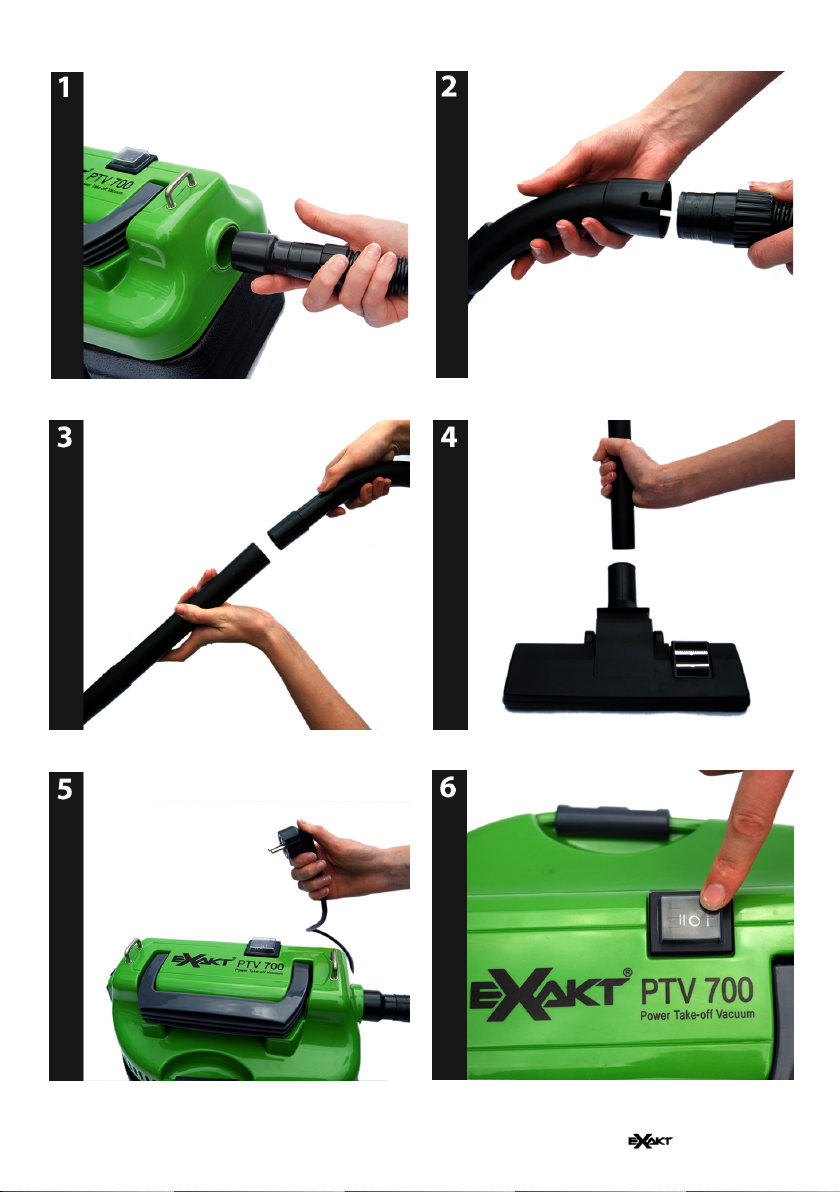

a. Fit one end of the exible hose into the aperture on the motor unit. (Fig. 1)
b. Fit accessories as required to the other end of the hose. (Fig. 2, 3, 4, 9)
c. When using the oor nozzle on hard surfaces press the switch to lower the brush head
(Fig. 8)
d. Unwind the mains lead and plug in. (Fig. 5)
e. Press the switch to the“I”position to use. (Fig. 6)
f. The shoulder strap can be clipped to the raised lugs on the appliance if required. The
shoulder strap can then be placed on the operators shoulder. The strap should not be placed
over the head, on the opposite shoulder. (Fig. 14)
4. Dust Extraction
a. When using as a portable power tool dust extractor, rst read the instructions for the
power tool to ensure safe operation.
b. Check the power tool is rated at 2200W or less.
c. Ensure the lters are clean by following the instructions in Section 5. Fit the exible hose to
the motor unit (Fig. 1)
d. If using with an Exakt power tool, attach the Exakt Tool Adapter. (Fig. 10)
e. Take the dust hose or vacuum attachment supplied with the Exakt tool and attach it to the
Tool Adapter. (Fig. 11)
f. If using with a dierent type of power tool nd whether the power tool adapter ts the
tool. If so, connect the power tool dust hose to the adapter and the tool.
g. If the adapter does not t the power tool it may be necessary to improvise a system.
i.e. Using plastic tube such as drain pipe or converting a plastic drain tting.
GB
© Precision Tools Ltd. 2010
8
h. Plug the power tool into the socket on the appliance (Fig. 12) and unwind the cable and
plug the appliance into the mains. (Fig. 5)
i. Switch the appliance on to position“II”. (Fig. 13)
j. When the power tool is switched on the vacuum will switch on automatically.
k. When the power tool is switched o there is a short delay before the appliance switches
o. This delay allows remaining dust to be cleared from the power tool and hose.
5. Cleaning and Maintenance
Regular cleaning is essential for the safe operation of the appliance. Ensure the
pre-lter is clear of excess dust before each use.
Care must be taken not to inhale dust while emptying and cleaning the appliance.
The pre-lter is a consumable item and should be replaced if it becomes damaged or worn.
a. Unplug from mains supply. (Fig. 5)
b. Unclip the dust-collection bin retaining clips and lift o the motor unit. (Fig. 15, 16)
c. Safely dispose of the contents of the dust-collection bin.
d. Remove the pre-lter and gently beat the dust from it. This item can be hand washed in
water if excessively soiled. Ensure it is properly dried before re-tting.
e. Unclip the HEPA lter and clean by blowing or brushing. Ensure that it is clear of dust
internally before re-tting. (Fig. 17, 18)
f. Brush out the dust tank and brush the underside of the motor housing before re-assembly.
6. Troubleshooting
Warning; If a problem occurs switch o and unplug the appliance immediately.
Motor does not start:
• Try connecting to a socket that is known to work.
• Ensure switch is set to the correct position.
• If temperature cutout has operated, wait 20 minutes for it to reset.
Motor switches on but power is reduced, or motor is excessively noisy:
• Follow the procedure in section 5 for emptying and cleaning.
• Ensure none of the hoses or accessories are blocked.
7. Maintenance
The appliance is oiled for life.
Except for cleaning the lters, there are no user serviceable parts inside.
If the replacement of the supply cord is necessary, this has to be done by the manufacturer
or his service agent in order to avoid a safety hazard.
GB
© Precision Tools Ltd. 2010
9
List of user-replaceable parts:
Accessory Part No.
Pre-lter 48-0419
HEPA Filter 48-0420
Flexible hose 48-0421
Exakt Tool Adapter 48-0422
Vacuum Handle 48-0423
Carry Strap 48-0424
Conforms to
European
directives
Double insulated
appliance
Read instructions
before use
Risk of electric
shock
Risk of injury
when instructions
are not followed
Discard at recog-
nised collection
point
Product reg. No.
WEE/BH0080UV
Explanation of Symbols
Specications
Voltage 220V– 240V
Power 600W
Power Take
O Socket 2200W
Total Power
Rating 2800W
Dust Bin Capacity 4 litres
Weight
with accessories 4.2 Kg
Air Volume 65 m3/h
Sound Intensity Level 85 dB(A)
This appliance is Class 1 earthed equipment
If the replacement of the supply cord is neces-
sary, this has to be done by the manufacturer
or his service agent in order to avoid a safety
hazard.
Furniture Nozzle &
Dusting Brush 48-0425
Crevice Tool 48-0426
Extending Tubes (x3) 48-0427
Floor Nozzle 48-0428
DE
© Precision Tools Ltd. 2010
10
Sicherheitshinweise
Lesen Sie diese Anleitung vor der Inbetriebnahme sorgfältig durch und
bewahren Sie sie für später gut auf.
Achtung: Bei der Benutzung von Elektrogeräten sind grundlegende Sicherheitsvorke-
hrungen, u.a. die nachstehend aufgeführten Regeln, einzuhalten, um Feuer, Elektroschocks
und Körperschäden zu vermeiden.
Hinweise für den sicheren Betrieb Ihres Geräts:
1. Nicht in den Regen stellen.
2. Nicht an feuchten oder nassen Orten benutzen.
3. Auf gute Beleuchtung im Einsatzbereich achten.
4. Nicht benutzen, wo Feuer- oder Explosionsgefahr besteht. Zum Beispiel: Nicht benutzen,
wo Explosionsgefahr durch Staub, Flüssigkeit oder Dämpfe besteht, etwa wegen hoher
Konzentrationen von Sägespänen, Körnern oder Kraftstodämpfen.
5. Niemals zum Aufsaugen von Gefahrstoen wie Asbeststaub verwenden.
6. Niemals Heißes, Brennendes oder Schwelendes, etwa Zigaretten oder Asche, aufsaugen.
7. Niemals Flüssigkeiten aufsaugen.
8. Immer den Netzstecker ziehen, wenn das Gerät nicht benutzt oder gewartet wird.
9. Dieses Gerät sollte nicht von körperlich, sensorisch oder geistig eingeschränkten Personen
benutzt werden; dies schlieβt Kinder mit ein.
10. Kinder beaufsichtigen, damit Sie nicht mit dem Gerät spielen.
11. Das Gerät niemals am Kabel ziehen. Den Netzstecker stets vorsichtig aus der Steckdose
ziehen.
12. Das Kabel von Hitze, Öl und scharfen Kanten fernhalten.
13. Bei der Benutzung darauf achten, dass Sie stets sicher stehen und nicht das Gleichge-
wicht verlieren.
14. Reparaturen sollten nur von qualizierten Personen ausgeführt werden. Nur Originaler-
satzteile verwenden.
15. Wenn das Motorengeräusch lauter wird, ist zu prüfen, dass Schläuche, Aufsätze und Filter
nicht blockiert sind.
16. Regelmäßig den Beutel entleeren und den Filter reinigen. Stets prüfen, dass Beutel und
Filter richtig eingelegt sind.
17. Nur die vom Hersteller empfohlenen Ersatz- und Zubehörteile verwenden.
