evinci™ ELECTRIC BICYCLE

USER MANUAL

infinity Series

PLEASE READ CAREFULLY

Table of Contents

Safety Instructions........................................................................................3

Symbols.......................................................................................................3

Introduction.................................................................................................4

Mode of operation and extent of electronic power assistance..........................................4

Levels of support..........................................................................................................4

What comes with the bike ............................................................................4

Components.................................................................................................5

Basic Safety Tips...........................................................................................5

For your own road safety..............................................................................................6

How to use your charger...............................................................................6

Safety notes concerning the battery...............................................................8

Charging the battery.....................................................................................9

How to remove and insert the battery............................................................................9

Before starting to ride...................................................................................9

Mount or dismount front wheel......................................................................................9

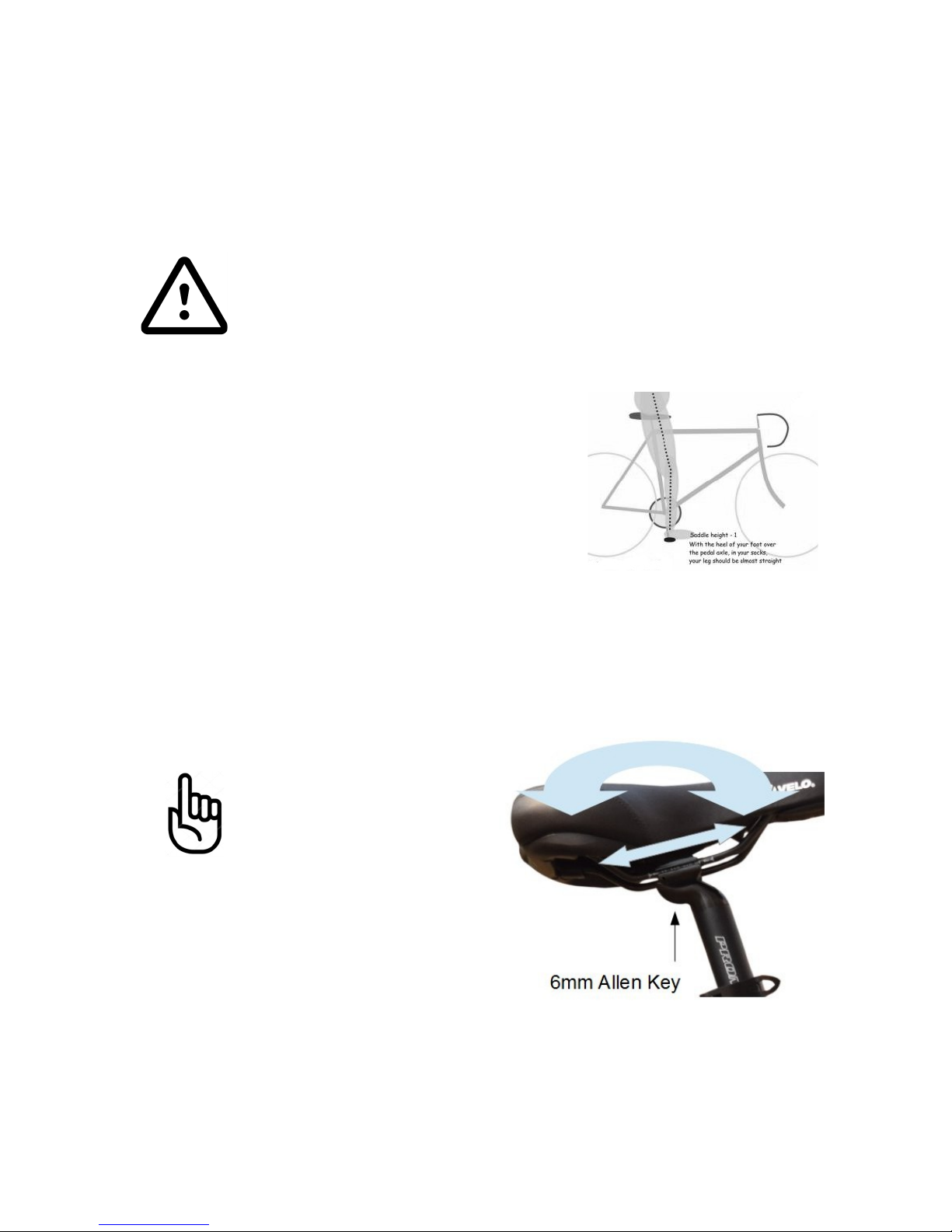

Adjust Seat height......................................................................................................10

How to find the correct saddle height .........................................................................10

Adjusting the saddle angle..........................................................................................10

Adjust the stem and handlebar....................................................................................11

Check tire pressure.....................................................................................................11

Suspension fork..........................................................................................................11

Operation...................................................................................................12

Display.......................................................................................................................12

Throttle......................................................................................................................13

Gears.........................................................................................................................13

Brakes.......................................................................................................................14

Maintenance...............................................................................................14

Brakes.......................................................................................................................14

Gears.........................................................................................................................14

Safety points..............................................................................................15

Repairing a puncture...................................................................................15

Trouble shooting.........................................................................................16

Glossary.....................................................................................................17

BMS...........................................................................................................................17

Controller...................................................................................................................17

Display.......................................................................................................................17

Hall sensor.................................................................................................................17

Pedal Assist Sensor (PAS)............................................................................................18

Torque Sensor............................................................................................................18

Safety Instructions

Thank you for purchasing an electric bike from NZEBIKES. Your infinity

mountain bike features the most recent innovation in technology and applies to

the AS/NZ standard. For safety reasons, it is most important that you read this

User Guide BEFORE you operate the bike. Improper handling can reduce its

riding performance and most importantly, pose danger to your safety and

health!

NZEBIKES is continuously updating and innovating this product. The printed

manual may therefore not always include the latest updates. However, we shall

make sure that our online manual will always be up to date on

www.volto.co.nz/support.

We want also encourage you to register your bike with your

frame serial number. This allows us to help you finding your

bike in case of theft, as we get contacted by the police when

bikes are recovered.

To register just go to our Volto website and click on “Login”.

Symbols

Please pay particular attention to information next to one of the symbols shown

below as it can be very important for your personal safety.

WARNING

This symbol indicates that improper handling poses a

risk to your health and safety

ATTENTION

This indicates that improper handling could damage

components and make void the warranty.

NOTE

Points out to useful tips

Introduction

You have decided in favour of a Pedelec (Pedal Electric Cycle) - a bicycle that is

equipped with an electric motor to give you additional assistance when riding.

With this bicycle you can make better progress in headwinds, when

transporting heavy loads or on steep slopes.

You can select the level of power assistance required according to the weight of

your load and/or the prevailing road conditions, the effectiveness of the power

assistance depends on your pedal power and the level of assistance selected.

Before switching on the electric assistance system, please read the chapter

“Charging the battery”. The battery must be fully charged before you go for a

ride the first time.

Mode of operation and extent of electronic power assistance

As soon as you turn on the electric assistance system and begin pedalling or

pushing the throttle, electronic power assistance is available. Depending on the

selected assistance level the motor will add a certain amount of power to assist

you. The amount of support is also proportional to the force pushed into the

pedals thanks to the torque sensor integrated into the crank axle.

An average rider can easily reach on flat tracks up to 80km out of the standard

13Ah battery.

Levels of support

There are currently five support levels:

1 = 20%, 2 = 40%, 3 = 60%, 4 = 80%, 5 = 100%

With higher support the motor will reach also a higher speed.

What comes with the bike?

•240V mains charger

An optional 12V charger (Powerbuddy) can be purchased through your retailer.

Components

1 LCD Display 5 Battery Charge Port

2 Control Buttons 6 Battery Lock

3 Thumb-Throttle 7 Controller Case

4 Torque Sensor 8 Suspension Damper Control

Basic Safety Tips

Always pull the brakes and hold the handlebar firm and

straight before taking off in order to make sure you keep

control of the bike when power assistance is in action! Also,

keep in mind that the left hand thumb-throttle is active.

For your own road safety

●Always wear a suitable bike helmet

●Wear bright clothing or reflective elements

to be seen better by other road users

●Wear shoes with a non-slip sole

●Wear close-fitting clothing on your legs or

wear trouser clips

●Wear bicycle gloves

How to use your charger

Your infinity comes with a 3Ah quick charger to charge your battery. Please do

not use any other charger.

The typical time to charge the standard 13Ah battery if it is completely empty is

about 5 hours.

If you want to charge your battery from a car or motor home

(12V systems), NZEBIKES or your retailer can supply a special

charger called PowerBuddy for this purpose.

Before you use the charger the first time please read the following notes

regarding safety carefully!

•Keep the charger away from children!

•In order to prevent any possible injury this charger

should only be used for the original lithium battery

which is supplied together with the infinity e-bike

•Any other battery is not compatible and risks to explode

while charging, causing serious injury to people as well

as damage to other equipment

•Using this charger for batteries not supplied by Volto

could risk catching fire, provoke electric shock and/or

cause serious injury

•Please make sure that the charger is always kept dry

and does not get wet at any time.

Ref (1)

Should there be an incidence of contact with water or any other liquid, make

sure to unplug the charger immediately from the power socket and have it

inspected by your dealer.

Please make sure the charger is always placed on a flat surface when in use.

Also make sure that the charger is always unplugged and removed from the

power socket when not in use.

Before using the charger, always make sure that the plug and the cables are

not damaged.

Never connect a damaged cable or plug to the power socket. Never try to

disassemble the charger. There are no serviceable parts in the charger.

Always unplug the charger before cleaning it. The charger should only be

cleaned with a dry cloth. Never use a wet cloth, oil or any other liquid. Only use

the original cable supplied with the charger.

The charger LED (1) indicates the battery status:

LED STATUS

green the battery is not connected

red the battery is charging

green the battery is charged, the charger has switched off

Before using your battery the first time, it has to be charged

once over night for at least 12 hours.

Safety notes concerning the battery

•Keep the battery out of reach for children

•Never try to open the battery. Apart from this being

dangerous, all warranty will be void

•Do not provoke a shortcut circuit with metal gadgets

•Remove the battery from the bike when transporting on

an external bike rack

•Do not dip the battery in water or any other liquid

•Do not keep the battery close to heat or open fire

•A battery needs to be re-cycled after use, never throw it

in an open fire as it could explode

•If the battery is damaged because it has been dropped

or because of a biking accident, there might be a risk of

an internal short-circuit. Immediately stop using a

damaged battery.

In order to maximise the use of this battery, please consider the following:

The battery will not charge when exposed to temperatures below +0°C or

above +60°C. It is therefore recommended to keep the battery at room

temperature before charging it.

The charger operates with a microcomputer system with automated control

functions. It automatically stops charging when the battery is full. It cannot be

damaged by overcharging.

None the less, we strongly recommend to always disconnect the power plug

from the wall socket after the battery is charged as power surges, i.e. lightning,

through the grid can damage the charger or battery electronics!

When storing the battery for a longer time period, (e.g. over winter) it is

important to place surface in a dry place. The battery should be re-charged

once every 3 month when it is not used. Negligence could lead to complete

discharge of the battery and this would void the warranty.

The discharging of the battery is due to chemical processes

which are taking place within the battery cells. How much a

battery discharges depends on the time it has not been used

and the temperature it has been exposed to. Thus, a re-

charge every 3 month, when not in use, is essential.

Charging the battery

You may charge the battery on the bike or remove it to a

more convenient place.

1. Open the plug cover at the right side of the battery (#5)

2. Connect charger cord to battery

3. Connect the power cord to a mains socket

The charger will get warm while charging – do not cover while

in use as it might cause a malfunction.

How to remove and insert the battery

1. Removal: unlock the battery lock at the left side of the battery

2. Slide battery upwards and then lift it out of the rail

3. Insert: Slide the battery into the battery rail, secure it in the frame with

the battery lock

Before starting to ride

Mount or dismount front wheel

For an easy transport you may remove the front wheel using the quick release

at the front wheel axle.

To remove the wheel open the lever to release the pressure. Now hold the lever

and turn the nut on the other side about 8-9 times – do not remove the nut!

You should be now able to lift the wheel out

of the fork.

To mount the wheel repeat procedure the

other way round. Hold the lever pointing

parallel to the fork in the open position

(downwards), turn the nut till you feel a slight

resistance. Try to close lever – if it goes too

hard undo the nut a bit.

Before every ride make sure the quick release is tightened

properly. To fail so can lead to serious injuries!

Adjust seat height

Open the quick release lever at the seat clamp, adjust seat height and close the

lever firmly. If the lever is too loose, open the lever again and turn the

adjusting nut clockwise till you feel resistance. Now close lever again. It should

close with noticeable resistance.

Never tighten the seat post if the maximum mark is visible,

otherwise you can injure yourself or damage the seat post.

How to find the correct saddle height?

1. Sit on bike saddle

2. Try to reach pedal with your heel when it is in

the bottom position. Your knee should be

more or less fully straightened out

3. Place the ball of your foot on the centre of the

pedal. If your knee is now slightly bend, the

saddle height is correct

Adjusting the saddle angle

Best riding comfort is found when the saddle is horizontal, some riders prefer a

slight forward angled seat.

Never angle a seat

backwards as it can

quickly lead to back pain

or physical injuries

1. Loosen the clamping screw anti-

clockwise

2. Tilt the saddle to the required angle

3. Tighten the clamping screw

clockwise. Make sure that the screw

is tightened firmly (20 NM)

Tabla de contenidos

Otros manuales de Bicicleta de Evinci

Evinci

Evinci infinity HD Series Manual de usuario

Evinci

Evinci infinity MD Series Manual de usuario

Evinci

Evinci TD Series Manual de usuario

Evinci

Evinci TD Plus-Series Manual de usuario

Evinci

Evinci TUI Manual de usuario

Evinci

Evinci KEA Manual de usuario

Evinci

Evinci TUI+ Manual de usuario

Manuales populares de Bicicleta de otras marcas

RAMBO

RAMBO R1000X2M-FF-BFD Manual de usuario

Vermeiren

Vermeiren SAFARI Manual de usuario

Velec

Velec A2/36V Manual de usuario

Coswheel

Coswheel A-ONE Manual de usuario

Betzold

Betzold 97869 Manual de usuario

Cervélo

Cervélo S3 2019 Manual de usuario

Tenways

Tenways AGO X Manual de usuario

Festo

Festo EGSC-BS-KF Manual de lista de piezas

Gio Electric

Gio Electric H1 Volt Manual de usuario

GOGOBEST

GOGOBEST GM30 Manual de usuario

DAHON

DAHON CIAO - 2009 Manual de usuario

Aprimatic

Aprimatic ONDA 500 Guía de inicio rápido

MV Agusta

MV Agusta Lucky Explorer GRAVEL Manual de instrucciones

Greyp

Greyp G6 Series Manual de usuario

Babboe

Babboe Carve-E Manual de usuario

Huka

Huka orthros Manual de usuario

Xtracycle

Xtracycle Stoker 2021 Manual de usuario

APRILIA

APRILIA DORSODURO 750 ABS 2015 Manual de usuario
