Administrator’s Guide and

Operating Instructions

DigitalVideoRecorder

DR400

Administrator’sGuideandOperatingInstructions

ARNING

TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO

UALIFIED SERVICE PERSONNEL.

WARNING: This equipment has been tested and found to comply with the

limits for a Class “A” digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction manual, may cause interference to radio communications.

Operation of this equipment in a residential area is likely to cause

harmful interference in which case the users will be required to correct

the interference at their own expense.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

This Class A digital apparatus meets all requirements of the Canadian

Interference Causing Equipment Regulations.

Notice:

The information in this manual was current when published. The manufacturer reserves

the right to revise and improve its products. All specifications are therefore subject to

change without notice.

Administrator’sGuideandOperatingInstructions

PRECAUTIONS

!" Refer all work related to the installation of this product to qualified

service personnel or system installers.

!" Do not block the ventilation opening or slots on the cover.

!" Do not drop metallic parts through slots.

This could permanently damage the appliance. Turn the power off

immediately and contact qualified service personnel for service.

!" Do not attempt to disassemble the appliance.

To prevent electric shock, do not remove screws or covers. There are

no user-serviceable parts inside. Contact qualified service personnel

for maintenance.

!" Handle the appliance with care.

Do not strike or shake, as this may damage the appliance.

!" Do not expose the appliance to water or moisture, nor try to operate it

in wet areas.

Do take immediate action if the appliance becomes wet. Turn the

power off and refer servicing to qualified service personnel.

Moisture may damage the appliance and also cause electric shock.

!" Do not use strong or abrasive detergents when cleaning the appliance

body.

Use a dry cloth to clean the appliance when it is dirty. When the dirt

is hard to remove, use a mild detergent and wipe gently.

!" Do not overload outlets and extension cords as this may result in a risk

of fire or electric shock.

!" Do not operate the appliance beyond its specified temperature,

humidity or power source ratings.

Do not use the appliance in an extreme environment where high

temperature or high humidity exists.

Use the appliance at temperature within 0oC ~ +45oC and a humidity

below 90%. The input power source for this appliance is 24V DC.

Administrator’sGuideandOperatingInstructions

iii

TableofContents

1. Product Overview………………….……………………….……...

1.1 Features…………………..……….…………..…………………...

1.2 Technical Overview…….….…….………………………….……..

2. Front & Rear Panels….…….……………………………….…….

3. System Installation…….…….……………………………….……

3.1 Before Installation…….……….…………………………….…….

3.2 Basic Connections…………….…………………………….……..

3.3 Optional Connections…………..…………………………….……

4. Main Screen…………………………………………..……….…...

5. Basic Operations & Log Display……………………..………..….

5.1 Version Display……………………………..…………….…….…

5.2 Alarm Message Display……………………...……………………

6. Setup (Administrator)………………..….………………………...

6.1 Time Type Setup…………………..…….………………………...

6.2 Day Type Setup……………………………………………………

6.3 Calendar Setup…………………..…………………….…………..

6.4 Alarm Action Setup………………………………………………..

6.5 Motion Action Setup……………..…………………….………….

6.6 Video Loss Action Setup…………………………………………..

6.7 Hard Disks Full Action Setup……………………………………..

6.8 Camera Setup…………...…………………………………………

6.9 Alarm In Setup…………..……………………………….………..

6.10 Alarm Out Setup……………..…………………………………..

6.11 Display Sequence Setup……………………..………….………..

6.12 Display Page Setup……………………………………………….

6.13 Motion Setup……………………………………………………..

6.14 Password Setup…………………………………..……….……...

6.15 System Configurations………...………...…………….…………

7. Day/Time Setup (Administrator)…………………………………

8. Image Playback and Archive (Administrator, Supervisor) ……

8.1 Select HDD & Range Dialog Box…………………………………

9. Remote Control..…………………………………..……….……...

Appendix A – Specifications

Appendix B – Time Lapse Mode Recording Time

Appendix C – Simulated Keyboard

Appendix D – Q & A

Administrator’sGuideandOperatingInstructions

1.ProductOverview

The PowerPlex eDR400, 4 Channel Digital Video Recorder, combines the

power of triplex multiplexing and digital video recording into one

comprehensive unit. The compact design is suitable for conventional

surveillance in limited spaces where only 4 cameras are required.

The EDR series digital video recorders provide excellent picture quality

with comprehensive programming that can be easily configured to meet a

customer’s need. Network and internet capabilities enhance the power

of remote monitoring. The PowerPlex eDR400 is the only suitable

weapon for security surveillance today.

1.1Features

!" Triplex operation: Recording, Live, & Playback

!" 4 Color or 4 B/W camera inputs (NTSC/PAL)

!" Intelligent motion detection with programmable area and sensitivity

for each camera

!" Powerful alarm processor with configurable triggering conditions

and reactions

!" Event recording, time-lapse recording or both

!" Up to 5 seconds of pre-record time

!" Built-in MPEG-1 and JPEG compression/decompression, with

configurable quality

!" Storage on 3.5” Docking Hard Disk, hot-swappable (DVR option)

!" Versatile display formats: full-screen, 4, 7, 9, 10, 13 & 16 video

!" Alarm history log for Video Loss, Motion, Alarm input, Hard Disk

Full and Power.

!" Multi-level password to ensure high degree of security

!" Configurable (Recording/Event) behaviors, up to 16 kinds of date

and 16 kinds of time

!" Recording rate: 30 fps for NTSC, 25 fps for PAL

!" Playback rate: up to 30 fps for NTSC, 25 fps for PAL

!" Independent record & playback

!" 2 Fast Ethernet interfaces, 1 for peer-to-peer, 1 for upward

communications

!" RS-232 interface for point-to-point or internet communications

!" Reserved RS-232 interface for PTZ camera control

!" 2 USB ports for backup devices, printer, USB port ISDN TA device

or USB hub.

!" Built-in CompactFlash memory, power off data protection, power on

and run

!" Built-in 4x4 video matrix

!" Graphics User Interface

!" Audio recording capability (reserved)

!" Stackable eDR400 architecture (up to 4, reserved)

!" Remote surveillance and playback through WEB Browser such as IE

or Netscape

!" Remote alarm notification

!" Remote upload/download of system configurations

Administrator’sGuideandOperatingInstructions

1.2TechnicalOverview

1.2.1VideoInputandOutput

The digital video recorder is designed to support either NTSC/EIA or

PAL/CCIR standard. To make the auto detection of video standard

work, at least one camera must be connected to the video input.

Camera input impedance termination is set independently for each

camera automatically. Synchronizing or phasing cameras is not

required to achieve the frame rate of 30 fps for NTSC/EIA or 25

fps for PAL/CCIR.

1.2.2VideoProcessing

The video processor controls the switching of the built-in video

matrix according to the system configurations. The video encoder

keeps analyzing the video signal from the cameras, and encoding the

incoming pictures in JPEG format or MPEG-1 format that is digitized

and smaller in size at 30 fps for NTSC/EIA or 25 fps for PAL/CCIR.

During video playback, the video decoder decodes the digitized

format, no matter it is JPEG or MPEG-1, and then displays the

decoded pictures on the VGA monitor screen.

1.2.3VideoStorageandRetrieval

The encoded pictures are stored in the hard disks, with the stored

frame rate for each camera set by the administrator. If any event

(Alarm, Motion, or Video Loss) happens, all the encoded pictures for

the correspondent camera for the preset pre-record duration will be

saved to the hard disk, and the recording rate for that camera will be

changed to its alarm recording rate afterwards for the preset

post-record duration.

During video playback, the selected pictures can be saved to ZIP disk,

DVD RAM etc. in .MPG format for MPEG-1 encoded video

or .MOV format for JPEG encoded video.

For Time-Lapse Mode Recording Time, please refer to Appendix B.

1.2.4MotionDetection

The digital video recorder continuously monitors all camera inputs

for motion. When motion is detected, the system reacts according to

the motion action set by the administrator, including increase of

recording frame rate, sounding the buzzer, triggering the alarm output,

Administrator’sGuideandOperatingInstructions

event log, etc. Motion detection options for different time types can

be set for each camera input using a 16 (width) by 12 (height) target

overlay. You can also enable or disable motion alarms for different

time types. However, the recording frame rate is NOT

influenced by motion detection for the digital video recorder.

1.2.5VideoDisplay

The VGA monitor displays either live camera pictures or pictures

from hard disks. The display resolution is 800x600(NTSC and

PAL). As many as 16 million colors can be displayed in the

following screen formats: full screen, 4 windows, 7 windows, 9

windows, 10 windows, 13 windows, and 16 windows. All the main

displays are window based look and feel for ease of user operations.

1.2.6VideoPlayback

The user can select a previously recorded hard disk to review the

recorded video. Displaying of the recorded video is composed of

decoding the JPEG or MPEG-1 encoded video automatically and

multiplexing each camera video to its designated video window.

With the coded data that was inserted into each recorded picture, the

digital video recorder can reconstruct each camera’s tag name, status,

date, and time information automatically. The image can be

displayed in any multi-window format on the VGA monitor, just like

in live video mode.

1.2.7Non-editableRecordedImages

The retrieved images are saved as .MPG files or .MOV files, which

can be played by Media Player or QuickTime. Therefore, those files

are editable by the video editing packages, just like the recorded

images in the other digital video recorders. However, the recorded

images in the hard disks are not editable by the video editing

packages. (They even cannot be seen by those packages.) That is

to say, the recorded images are guaranteed to be the original images.

Administrator’sGuideandOperatingInstructions

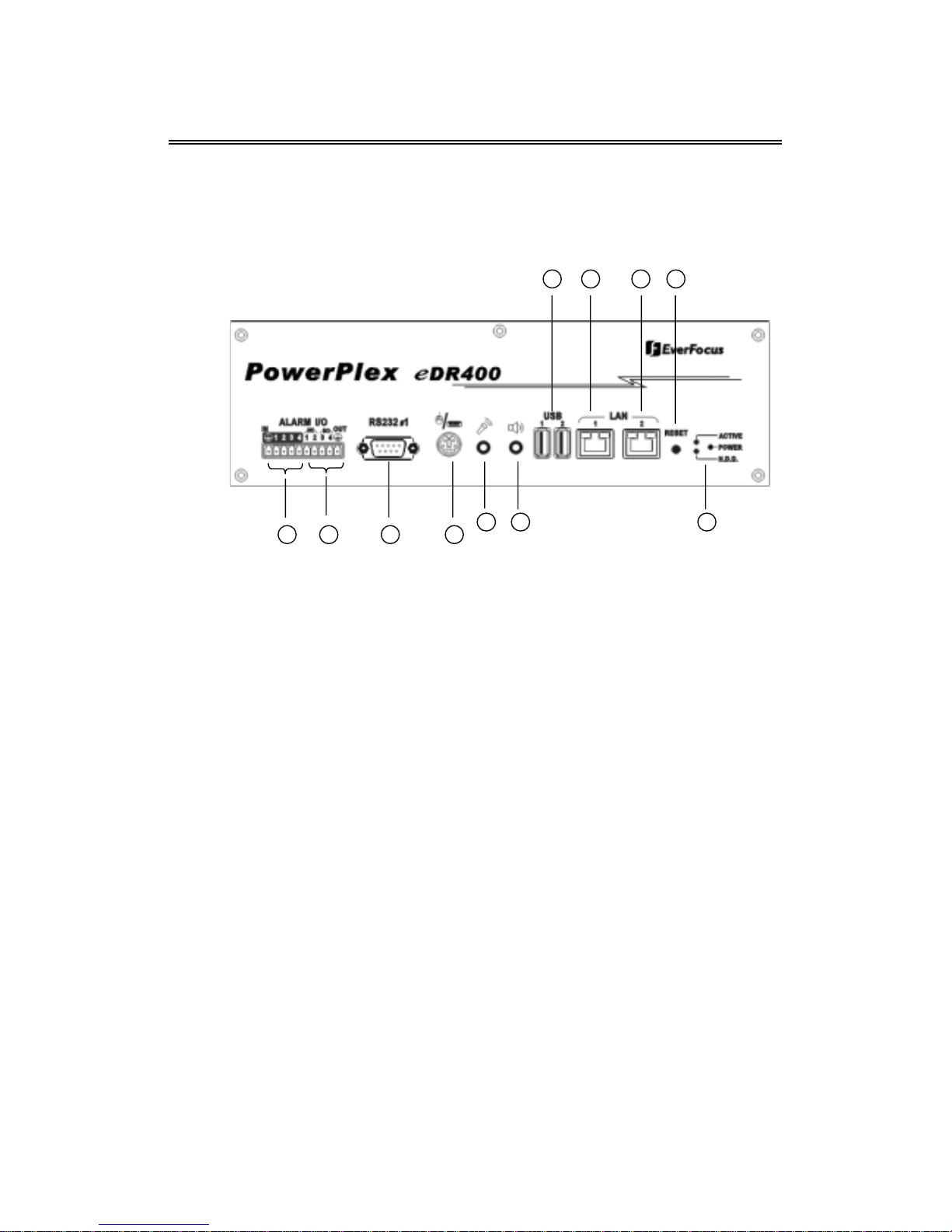

2.Front&RearPanels

The following is a brief overview of the rear panel and front panel of

EDR400.

Rear Panel

1. Power Socket: Connects to the DC 24V power source or the AC

adapter (system accepts 18V~30V DC power source).

2. Camera 1 Video Input: BNC connector for Camera 1.

3. Camera 2 Video Input: BNC connector for Camera 2.

4. Camera 3 Video Input: BNC connector for Camera 3.

5. Camera 4 Video Input: BNC connector for Camera 4.

6. 75ohm Termination: Normally, the termination should be set as On.

However, if the corresponding camera is connected to other devices,

please set it as Off.

7. VGA Monitor Output.

8. RS-232 Connector #2: Connects to PTZ camera (reserved).

1 32 4 5

6 7 8

Administrator’sGuideandOperatingInstructions

Front Panel

9. Alarm In 1-4: Connects to alarm inputs 1-4 & 1 common ground.

10. Alarm Out: Connects to 2 Normally Closed alarm outputs (1-2), 2

Normally Open alarm outputs (3-4) & 1 common ground.

11. RS232 connector #1: Connects to Modem.

12. Mouse (Y Cable) Connector: Connects to the PS2 mouse or the

Y cable (attached) for the mouse and keyboard (optional) connection.

The mouse must be connected at system startup.

13. Audio In (reserved).

14. Audio Out (reserved).

15. 2 USB connectors: Connect to the DVD RAM, ZIP, printer, USB port

ISDN TA(Terminal Adapter) device or USB hub.

16. LAN connector 1: For peer-to-peer connection (reserved).

17. LAN connector 2: Connects to the RJ45 LAN connector.

18. Reset Button.

19. LEDs: LEDs for system active, power and HDD access.

910 11 12

13 14

15 16 17 18

Administrator’sGuideandOperatingInstructions

Side Panel

20. Hard Disk Tray: Please make sure to set the hard disk as master. To

access the hard disk, use the attached key to open the cover and

remove the hard disk holder. The key can’t be removed from the cover

while the cover is open.

21. Cooling FAN.

Tabla de contenidos

Otros manuales de DVR de EverFocus

EverFocus

EverFocus ELR-4 Manual de usuario

EverFocus

EverFocus ECOR264-4D2 Manual de usuario

EverFocus

EverFocus DHV-410M Manual de instrucciones

EverFocus

EverFocus ECOR4D Manual de instrucciones

EverFocus

EverFocus PARAGON Series Manual de usuario

EverFocus

EverFocus ECOR264-D2 DVR Series Manual de usuario

EverFocus

EverFocus EDSR400H Manual de usuario

EverFocus

EverFocus EPHD04+ HDcctv Manual de usuario

EverFocus

EverFocus PARAGON Series Manual de usuario

EverFocus

EverFocus Paragon264 Series Manual de usuario

EverFocus

EverFocus PARAGON 264x1 Manual de usuario

EverFocus

EverFocus Nevio ENVS1600 Manual de usuario

EverFocus

EverFocus DVR-900 Manual de usuario

EverFocus

EverFocus TUTIS-16F3 Manual de usuario

EverFocus

EverFocus ENVR8304D-8CH Manual del propietario

EverFocus

EverFocus EDSR100M Manual de usuario

EverFocus

EverFocus ECOR264-D2 DVR Series Manual de usuario

EverFocus

EverFocus PowerPlex EDR1600 Manual de servicio

EverFocus

EverFocus ECOR264X1 Series Manual de instalación y operación

EverFocus

EverFocus EMV1200 FHD Manual de usuario

EverFocus

EverFocus ECOR264 Series Manual de usuario

EverFocus

EverFocus PARAGON 264x4-16 Manual de usuario

EverFocus

EverFocus eZ.HD PARAGON FD 16x4 Manual de usuario

EverFocus

EverFocus ECOR Series Manual de usuario

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

Swann

Swann NVR-7085 models Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario
