EverFocus ECOR Series Manual de usuario

Instruction Manual





























1.4 Front Panel

Your primary interaction with your new DVR will be through the Front Panel buttons and their

corresponding buttons on the included Remote Control. Take a moment to learn where the keys are as the

remainder of the manual will refer to them often.

1. USB 2.0 (front)

For connecting USB mouse or USB flash memory.

2. DVD+RW Burner

DVD+RW burner (D models only)

3. Channel Key (1~4)/(1~8)

Press channel key (CH1~CH4)/ (CH1~CH8) to display that channel in full screen view.

4. Live

Press this key to show live view. Press to exit from playback mode.

5. View

Press this key to switch between 4-screen, 9-screen, Picture In Picture, and Full-screen displays in

live and playback mode.

Note1: PIP display is not available in playback mode.

Note2: 9-screen display available in 8 Channel model only

6. SEQ

Press this key to enter the auto sequential switching mode. The sequence dwell time can be set in

“Display Setting” tab of the Menu.For more detail about SEQ, please see “5.8.2 Display Setting-

Main M/T SEQ”.

7. Search

Press this key to enter Search Menu.For more detail about Search function, please see “4.8

Search ”.

8. Fast reverse playback or step reverse playback depending on playback mode

9. Reverse playback or pause

10. Forward playback or pause

11. Fast Forward playback or step forward playback depending on playback mode

12.Enter and Arrow buttons

If you do not use a mouse, you can use these keys to change the Menu settings.

13. Copy

Press this key to enter Copy Menu.For more detail about Copy function, please see “4.7Copy”.

14. Menu

Press this key to enter/exit MAIN SETUP MENU.

15. System LEDs

LED displays for Power,Alarm,HDD and Net active.

3 Mouse and Front Panel Operation

ECOR series DVR supports multiple sources to control the DVR. It can be controlled with a mouse, the

front panel, an EKB500, the handheld remote control, or serial command from RS232 port.

This chapter will cover the basic operation using mouse and front panel.

3.1 General USB Mouse Operation

3.1.1 OSD Root Menu

1. Right-click the mouse to obtain DVR control bar (see Figure 3.1). When you move the mouse over each

icon, the appropriate title will be displayed on top of the control bar.

Figure 3.1

2. Click on any icon to perform that action. These actions are covered in detail in Chapter 4.

3. Click the “x” sign in the top-right corner to close the DVR control bar.

Chapter

3.1.2 Operation in Configuration Menu

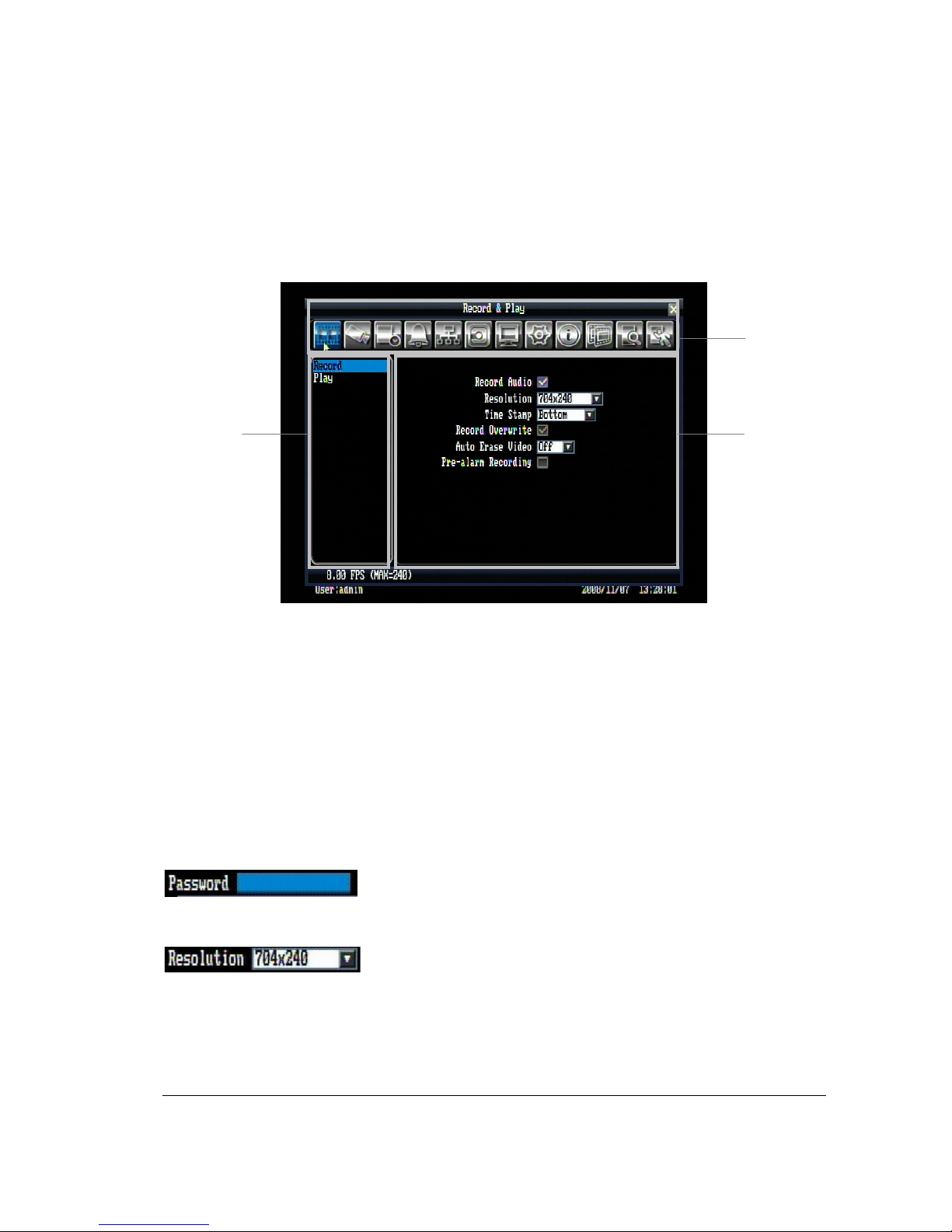

The Main menu (shown in Figure 3.2) is divided into 3 main sections.

Figure 3.2 (OSD Menu)



1In section 1, there are twelve setup options available. Move the mouse over an icon to select it.



2In section 2, the main options for the selected icon will be displayed. Click on a word to select it.



3In section 3, all the details for the selected option will be available. Click on an option to make changes.

3.1.3 Component Options

The following are examples of different fields available in the Configuration menu.

Textbox:Click on the box and anon-screen keyboard will appear below it.

(For more detailsabout on-screen keyboard, please see “*Note about on-screen keyboard”).

Dropdown box:Click on the down arrow to see all selections, then

directly click on an option to select it.



Check box:Click on thebox to check or uncheck it. Checked will enable the function,

unchecked will disable the function.

Button:Click the button to execute the function.

Selection box:Click Up/Down arrow to increase or decrease the value.

Bar:Click and hold on the bar to adjust the cursor Left or Right.

*Note about on-screen keyboard:

Click on a button to input that character.

The buttons on the right and bottom have the following functions:

<- BS

Delete the previous letter

Delete

Delete the next letter

Clear

Clear box

Enter

Confirm the selection

Caps

Switch to capital letters

Space

Enter a space

Move to left

Move to right

Cancel

Cancel and exit from the keyboard

3.2 General Front Panel Operation

3.2.1 Front Panel Key Review

The basic principle of front panel operation is to use navigation keys (up, down, left and right) to navigate

among the menu items. Use “Enter”key to confirm a selection or enter the next level menu. Press “Menu”

key to enter the Main Menu or exit from the current level of the menu.

3.2.2 Operation in Configuration Menu

Press “Menu”button to enter the Main Menu.

NOTE: If password is active, you will need to log in first. Refer to “4.2 Login” for information on logging in.

The menu (shown in Figure 3.3) is divided into 3 main sections.

Figure 3.3 (OSD Menu)



1In section 1, there are twelve setup options available. Use the arrow keys to highlight an icon and press

“Enter” to select it.



2In section 2, the main options for the selected icon will be displayed. Use the arrow keys to highlight an

option and press “Enter” to select it.



3In section 3, all the details for the selected option will be available here. Use the arrow keys to move

between items and press “Enter” to make changes.

Note: press “Menu”button to go back to the previous menu section.

3.2.3 Component Options

Textbox: Press Enter key and an on-screen keyboard will appear below.

(For more detailsabout on-screen keyboard,please see *Note about on-screen keyboard).

Dropdown box: Press “Enter” key to show the available options. Use the

Up/Down arrow keys to highlight the desired option and press “Enter” again to select it.

Check box: Press “Enter” key to enable or disable the setting.

Button: Press “Enter” key to execute the function.

Selection box: Press “Enter” key to select the field, then use the Up/Down arrow keys to

scroll through the desired options. Press “Enter” again to choose it.

Bar: Press “Enter” key to activate the slider, then use the Left/Right arrow keys

to adjust the setting. Press “Enter” again to finalize the changes.

*Note about on-screen keyboard:

Use the arrow keys to highlight a button and press “Enter” to input that character.

The buttons on the right and bottom have the following functions:

<- BS

Delete the previous letter

Delete

Delete the next letter

Clear

Clear box

Enter

Confirm the selection

Caps

Switch to capital letters

Space

Enter a space

Move to left

Move to right

Cancel

Cancel and exit from the keyboard

4 General DVR Operations

This chapter introduces the operations on major functions including playback, layout change, sequence,

triplex operations, archive,and search.

4.1 Record

By default, the ECOR series DVR will always be in record mode. When the DVR is turned on, it will start to

record.

The exceptions are:

1. ECOR will not record any disabled cameras(Refer to section 5.3.1 for more detail)

2. If a schedule is active, ECOR will follow the record settings of the schedule.

4.2 Login

In order to access ECOR options, users will be asked to log in for authority identification. To log in, follow

these steps.

1. Click on the Menu icon or press “Menu”button to bring up the following screen:

Figure 4.1 (Login page)

Chapter

2. Input the desired user name and password. The defaults are:

User name:admin

Password:11111111

+To select a user name: click the drop down button to show the list of the users, then click the desired

user from the list.

(Using front panel: press “Enter”key to show the drop-down list. Use “Up”and “Down”key to select the

desired name, and press “Enter”key to confirm the selection.)

+To input the password by mouse: click the password field to bring up the on-screen keyboard (see Figure

4.2). Click on each button to input the desired characters for the password. When finished, click “Enter”on

the on-screen keyboard to confirm the password.

(Using front panel: press “Enter”key to show the on-screen keyboard.Use the arrow keys to highlight each

character and press “Enter”key on front panel to input the selected characters. When finished, highlight

“Enter”on the on-screen keyboard and press “Enter” key on front panel to confirm the password input.

+ Click (or press “Enter”key)on “Login” button to log in to the system.

Figure 4.2 (on-screen keyboard)

3. If an invalid user name or password is used 5 times, the DVR will give an error message and

automatically lockdown. No access will be granted for 10 minutes without the backdoor password. To

obtain the backdoor password, you will need to contact EverFocus Technical Support and give the

provided access code.

EverFocus Support by phone: 1-888-884-9154 (toll-free)

EverFocus Support email: techsupport@everfocus.com
