EverFocus PARAGON Manual de usuario

PARAGON FHD 16x4

16CH, H.264, 1080p Full HD DVR

Quick Installation Guide

Release Date: May, 2016

This content is subject to change without notice.

PARAGON FHD 16x4

1. Overview

1.1 Front Panel

1 2 6

3457

14 15 16 17 18 19 20 21

8 9

10 12

No. Name Description

1 Screen Layout Press the type of layout you want for displaying your channel feeds.

2 Channel

1~16

Press to display the channel in full screen. The LED indicates the

channel is displayed in full screen.

3 Fast Reverse Press to play the recorded data in fast reverse.

4 Reverse

Play/Pause

Press to play the recordings in reverse at normal speed. Press this

button again to Pause the reverse playback. Press the Stop button to

stop all playback actions and exit the playback area.

5 Stop

Press to stop either the Reverse, Fast Reverse, Play, or Fast Forward

functions, if that function is active. This button stops all Play

functions, but no Recording functions.

6 Play/Pause

Press to play the recordings forward. Press this button again to

Pause the playback. Press the Stop button to stop all playback

actions and exit the playback area.

7 Fast Forward Press to play the recorded data in fast forward.

8 Enter

Use this button in conjunction with the Menu/Esc button (9) and the

Jog / Shuttle Wheel (10) to select menu values or to scroll between

menu categories. You can also use it in conjunction with a mouse or

you can use only a mouse to do these functions.

9 Menu/Esc Press to enter/exit the Main Setup Menu.

PARAGON FHD 16x4

Jog / Shuttle

Wheel

Jog

Shuttle

Use the Shuttle (outer wheel) to:

•In Playback mode, use the Shuttle wheel for fast forward / fast

reverse.

•Switch between Menu options / parameters.

•Highlight individual cameras.

Use the Jog (inner wheel) to:

•In Pause mode, use the Jog to move frame by frame.

•Switch between Menu options / parameters.

•Highlight individual cameras.

Status LED

: Indicates the power is on.

HD1: Indicates the internal Hard Disk is activating.

HD2: Indicates the external Hard Disk is activating.

LAN: Indicates the DVR is connected to the network.

Alarm

Indicates an alarm input is triggered.

13 USB2.0 Port The USB2.0 port for connecting to a mouse, external storage device

or EKB200 keyboard.

14 DVD Burner

(Optional)

Use the DVD Burner for archiving the recordings from the DVR. It’s

highly recommended to use a DVD with 4x or higher speed disc for

recording. To open the DVD tray, please refer to 4.8 Archiving the

Recordings or Log Data to the USB or DVD in the User’s Manual. To

close the tray, just gently push it and it will be automatically closed.

15 Display Press to cycle between the info display types (channel and status bar

info).

16 Seq (Sequence) Press to enter the automatic sequence mode. This will show each

channel feed in sequence. Press again to exit sequence mode.

17 Zoom Press repeatedly to toggle between 2x and 4x zoom. Press the

Menu/Esc button to switch zoom off.

Monitor

Press to switch between the Main and Call monitors. Just remember

to exit the setup menus before doing so.

19 Search Press to enter the Search Setup menu.

20 Copy Press to enter the Copy Menu.

21 IR Receiver Receiver for signals from the IR remote control.

PARAGON FHD 16x4

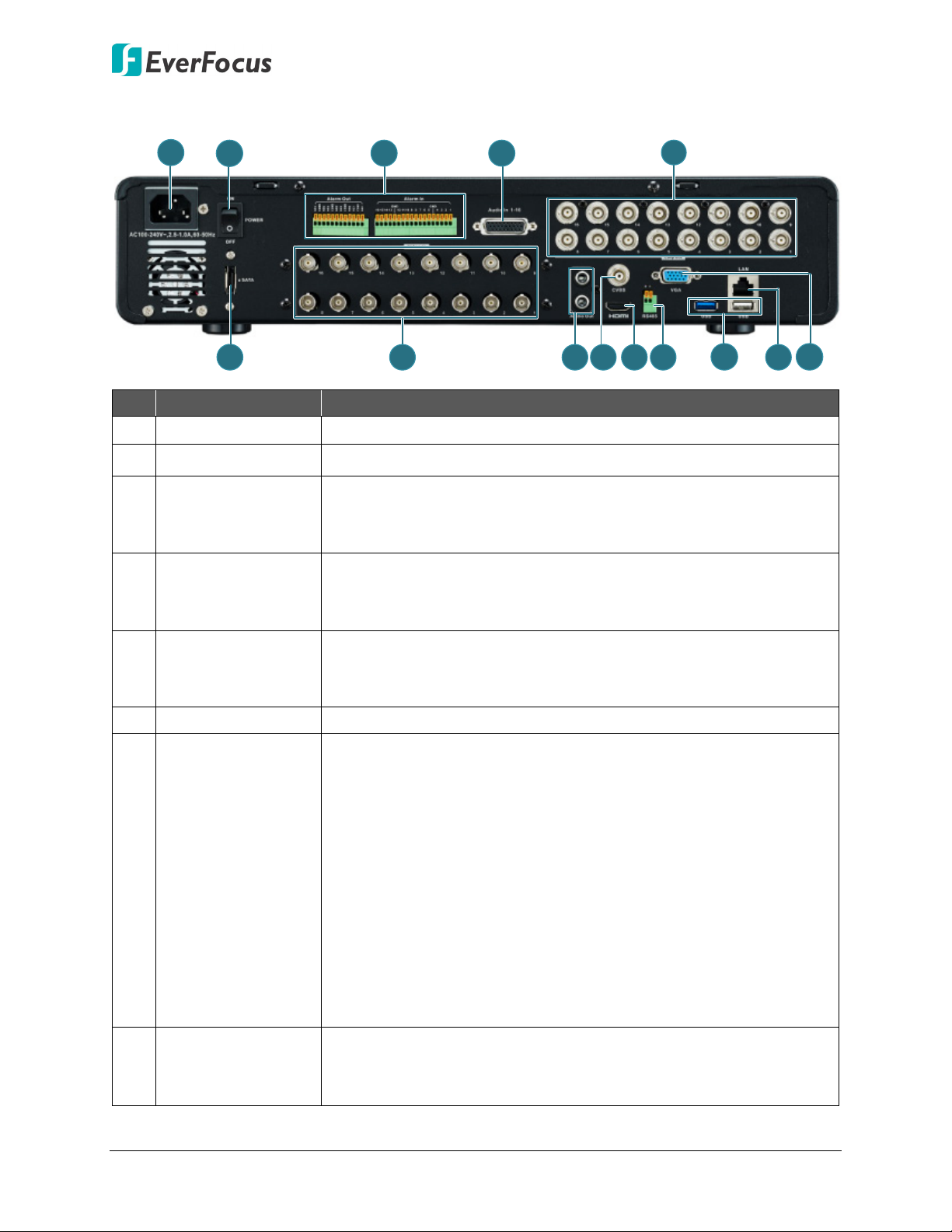

1.2 Rear Panel

12345

78 9 10 11 12 13 14

Name Description

1 Power Port Connects to the 100-240 VAC~ power using the supplied Power

2 Power Switch Press to turn on or off the power.

3 Alarm Input /Out

Connects up to 16 alarm inputs and 4 alarm outputs devices. You

can also connect to the radio-controlled clock for time

synchronization. Please refer to 3.2 Alarm I/O.

4 Audio Input 1~16

Connects to the audio input devices such as microphones using

the supplied Audio Cable. Note that the microphone with a

(built-in) amplifier and external power supply is required.

5 Loop Video Output

1~16

You can also optionally connect the monitors to each Loop Video

Output to display the video of the corresponding channel. Please

refer to 3.1 Monitor Connection.

6 eSATA Port Connects to an external eSATA storage device.

7 Video Input 1~16

Connects to analog HD / SD cameras using coaxial cables.

Note:

1. The DVR can automatically configure itself as NTSC or PAL.

To do this, connect a camera to any channel of the DVR. The

DVR will detect the first connected camera format (NTSC or

PAL) and then automatically configure itself to the detected

format from the first connected camera. For example, if the

format of the first connected camera is NTSC, the DVR will

configure itself to NTSC format.

2. All video inputs are compatible with all resolution types of

cameras, such as 1080p, 720p, 960H and D1 cameras

(HD-TVI / HD-CVI / HD-SDI cameras are not supported).

8 Audio Outputs

(RCA)

Connects to the audio output devices, such as speakers. Note that

the speaker with a (built-in) amplifier and external power supply

are required.

PARAGON FHD 16x4

9 CVBS Port (BNC) This can be used as a Call monitor output. Connects to the

monitor using a BNC cable (see 3.1 Monitor Connection).

10 HDMI Port This can be used as a Main monitor output. Connects to the

monitor using a HDMI cable (see 3.1 Monitor Connection).

11 RS-485 Port Connects to the RS-485 device (EKB500) or PTZ camera.

12 USB2.0 Port The USB2.0 port for connecting to a mouse, external storage

device or EKB200 keyboard.

13 Ethernet (LAN) Connects to the Network.

14 VGA Port This can be used as a Call monitor output. Connects to the

monitor using a VGA cable (see 3.1 Monitor Connection).

1.3 Dimensions

Front View

Side View

423mm / 16.65"

PARAGON FHD 16x4

1.4 eZ. Controller Function Description

eZ.Controller: Easily control PTZ camera from DVR using only coaxial cable.

eZ.Controller allows users to control PTZ camera from DVR using only a coaxial cable without

the need of a RS-485 cable between the PTZ camera and the DVR. Users can easily operate

Zoom, Focus, Iris, Direction, Auto Pan, Preset, Tour and Pattern functions to the PTZ camera

through DVR.

PTZ Cameras

Tip: You can also bring

up the camera OSD

through Preset 95.

Note:

1. The eZ.Controller function for PTZ control is only supported for EverFocus AHD (1080p,

720p) PTZ cameras.

2. After connecting the PTZ camera to the DVR through the coaxial cable, you will have to go

to the OSD Menu to turn the PTZ ID function off (System < Camera < Basic).

PARAGON FHD 16x4

eZ.Controller: Easily control eZ.HD camera’s OSD at the DVR end.

Traditionally, the CCTV installer needs to take a portable monitor to connect to the

camera for controlling the camera OSD at the camera installation site as the Diagram A

below. It will take extra effort, time and people to adjust the camera.

Now, EverFocus’ eZ.Controller allows users to control the camera OSD simply on the

monitor at the DVR end as illustrated in Diagram B.

Traditional Way to Control Camera OSD

Control Camera OSD at Camera End

Camera EndDVR End

Use eZ.Controller to Control Camera OSD

Camera OSD Control Directly at DVR End

DVR End Camera End

How to Control eZ.HD Camera’s OSD at the DVR End?

To display the OSD menu, click the

Enter button on the Coaxial Panel.

4. You can use the direction buttons on

the Coaxial Panel to control the

camera’s OSD setting menu.

5. To exit the camera OSD setting, click

Exit to return to the Adjust setting

page.

1. On the DVR’s OSD setting menu, go

to Configuration > Camera > Adjust.

Select a camera you want to adjust.

2. Click the Advanced button, and the

camera live view with the Coaxial

Panel will be displayed.

PARAGON FHD 16x4

1.5 Packing List

•

DVR x 1 •

Quick Installation Guide x 1

•Power Cord x 1

•Rack Ear x 2

•

Mouse x 1

•

Audio Cable x 1

•SATA Cable x 4 (for internal HDD connection)

•CD x 1 (Please see Note 3.)

•Internal HDD Bracket x 8 (with 16 Rubber Spacers, 16 Black Long Screws and 16 Silver

Screws)

( )

•IR Remote Control x 1 (with two AAA batteries) *Please see Note 4.

( )

Note:

1. Equipment configurations and supplied accessories vary by country. Please consult your

local EverFocus office or agents for more information. Please also keep the shipping

carton for possible future use.

2. Contact the shipper if any items appear to have been damaged in the shipping process.

3. The CD contains the IP Utility software, EFPlayer, User Manual and Quick Installation

Guide.

4. Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries

according to the instructions.

a. Use only two AAA dry cell batteries.

b. Do not dispose of the batteries in a fire as it may explode.

PARAGON FHD 16x4

1.6 Optional Accessories

•EKB200 (USB controller keyboard: connect to the PC or DVR to control the PTZ cameras

connected to the DVR). Please refer to 6.9.6 EKB200 Setting in the User Manual of the

EKB200 Keyboard.

•EKB500 (RS-485 keyboard: connect to the RS-485 port to control the PTZ cameras

connected to the DVR). Please refer to User Manual of the EKB500 Keyboard.

2. Basic Installation

2.1 Hard Disk Installation

You can optionally install four 3.5” HDDs inside the DVR for recording videos.

1. Make sure the DVR is power-off.

2. Unscrew the two housing screws on the back panel of the DVR.

3. Push the housing to the back and open it.

PARAGON FHD 16x4

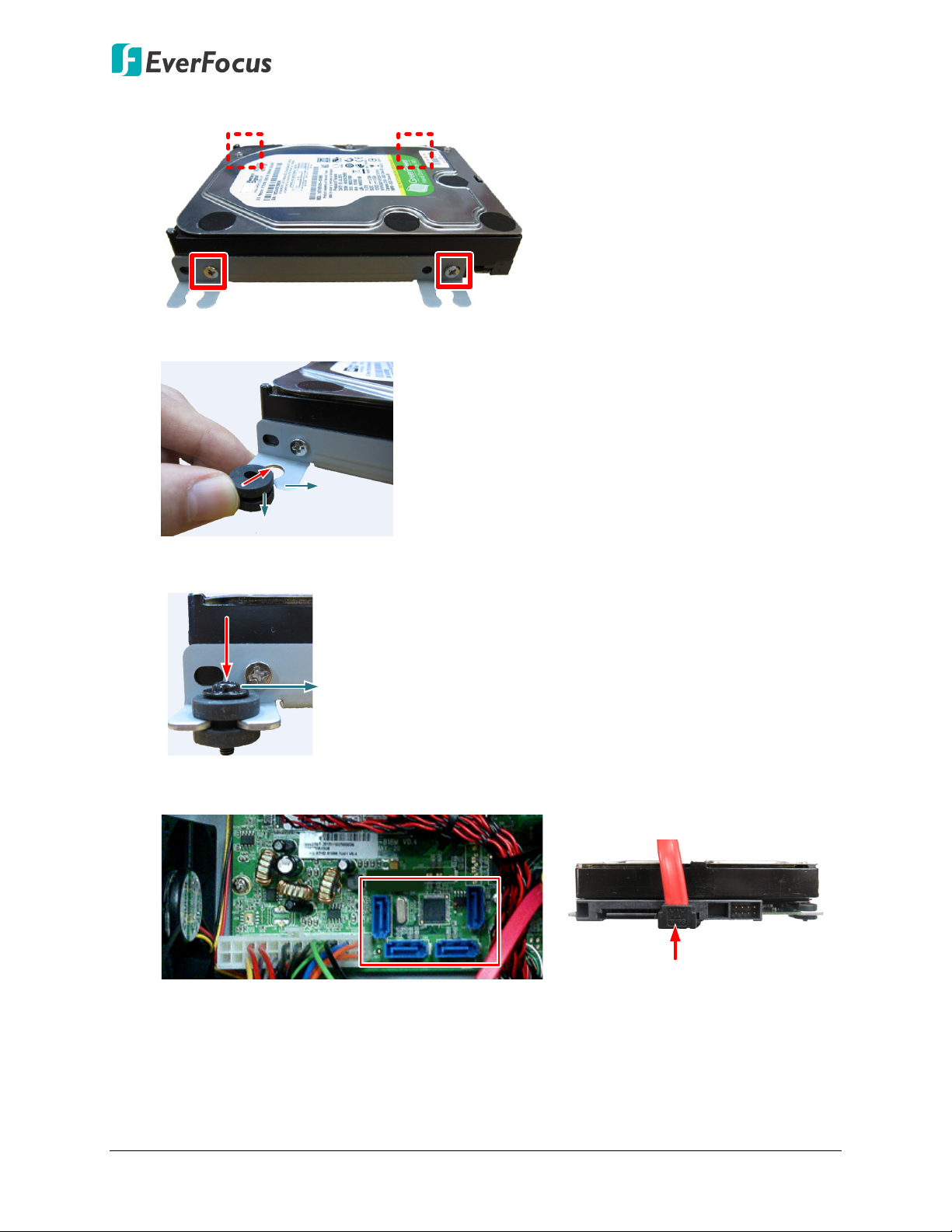

4. Fix the two HDD brackets on both side of the HDD using the Silver Screws.

5. Push the Rubber Spacer into the bottom slot of Bracket.

Bracket

Rubber Spacer

6. Insert Black Long Screws into the Rubber Spacers.

Black Long

Screw

7. Use the SATA Cable, and connect one end to either one of the SATA ports on the PCB

inside the DVR, and the other end to the SATA port on the HDD.
